TECHNICAL NOTICE

1

For more information, consult Technical Assistance

Toll free: 1-800-522-8610

E-mail: [email protected]

Home page: www.jacto.com

Tower Kit is available for Jacto Arbus 500 and Arbus 200 airblast sprayers.

Follow instructions below for assembly:

ARBUS 500 / ARBUS 200

TOWER KIT

CTI - ??/??/2012

IMP-????

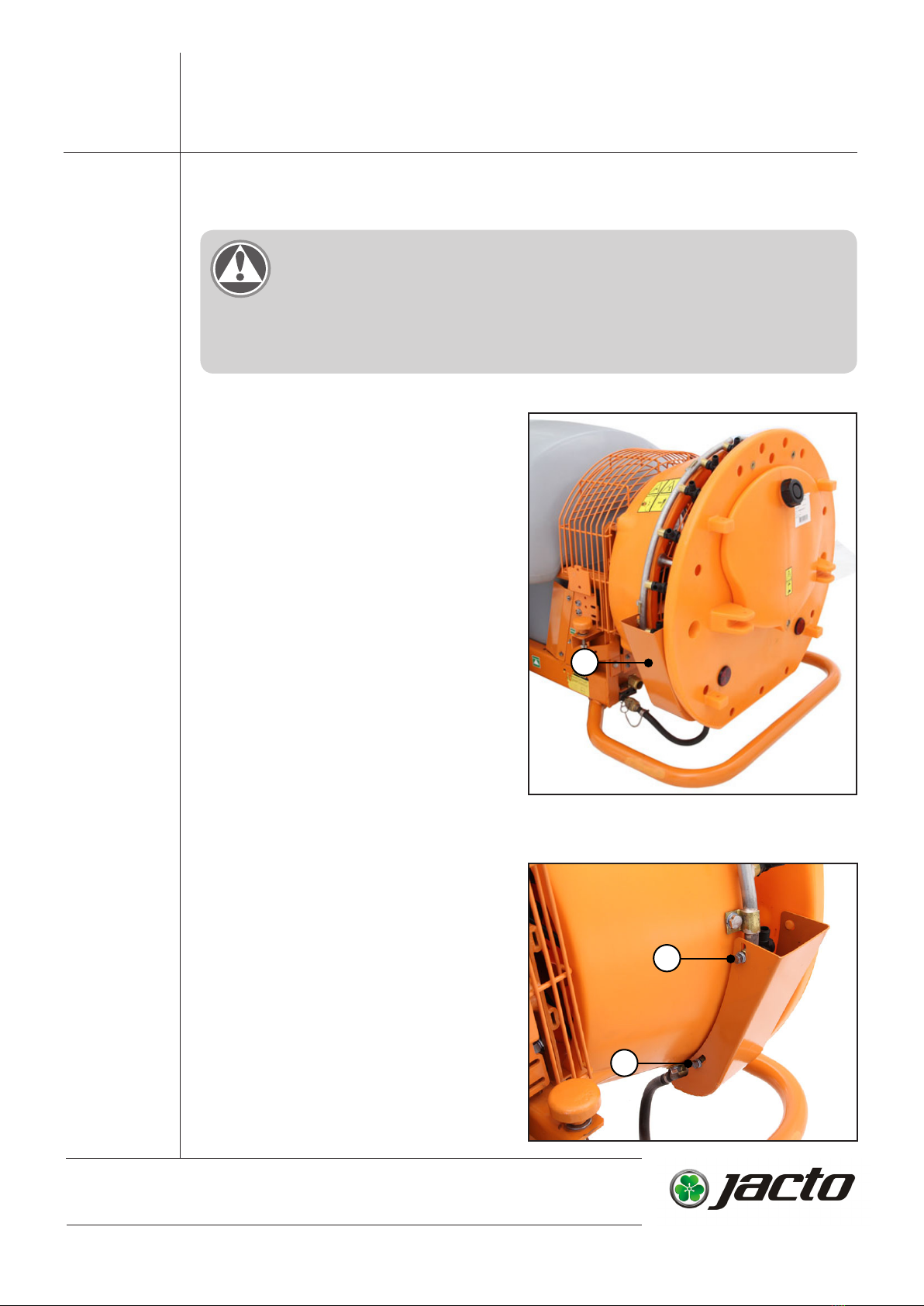

1-Locate left and right deflectors on

the rear of the machine (A).

A

2-Loosen mounting bolts (B) and

remove both right and left deflectors.

B

B

ATTENTION!

With sprayer hitched to the tractor, park on a rm and level

ground free of obstacles. Apply the tractor parking brake.

Wash the machine before assembling Tower Kit.

TECHNICAL NOTICE

2

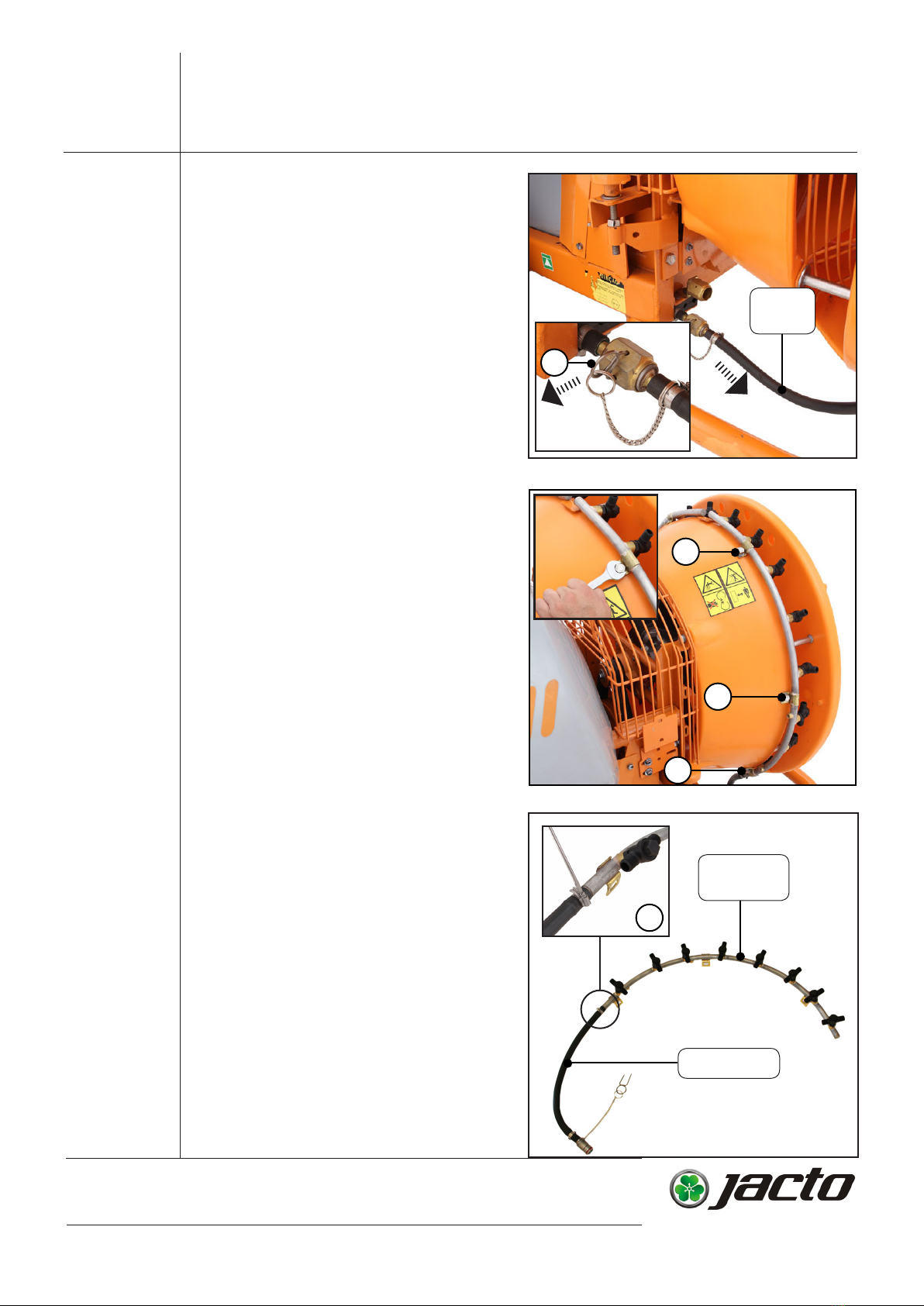

3-Pull the clip and remove the quick

fitting clamp (C). Then, disconnect

the hose from left and right branches.

C

4-Loosen nozzle branch mounting

bolts (D) and remove both right and

left branches. D

D

D

branch

hose

5-Use a screwdriver (E) to loosen

the hose clamp and disconnect the

branch hose.

E

nozzle

branch

branch hose

TECHNICAL NOTICE

3

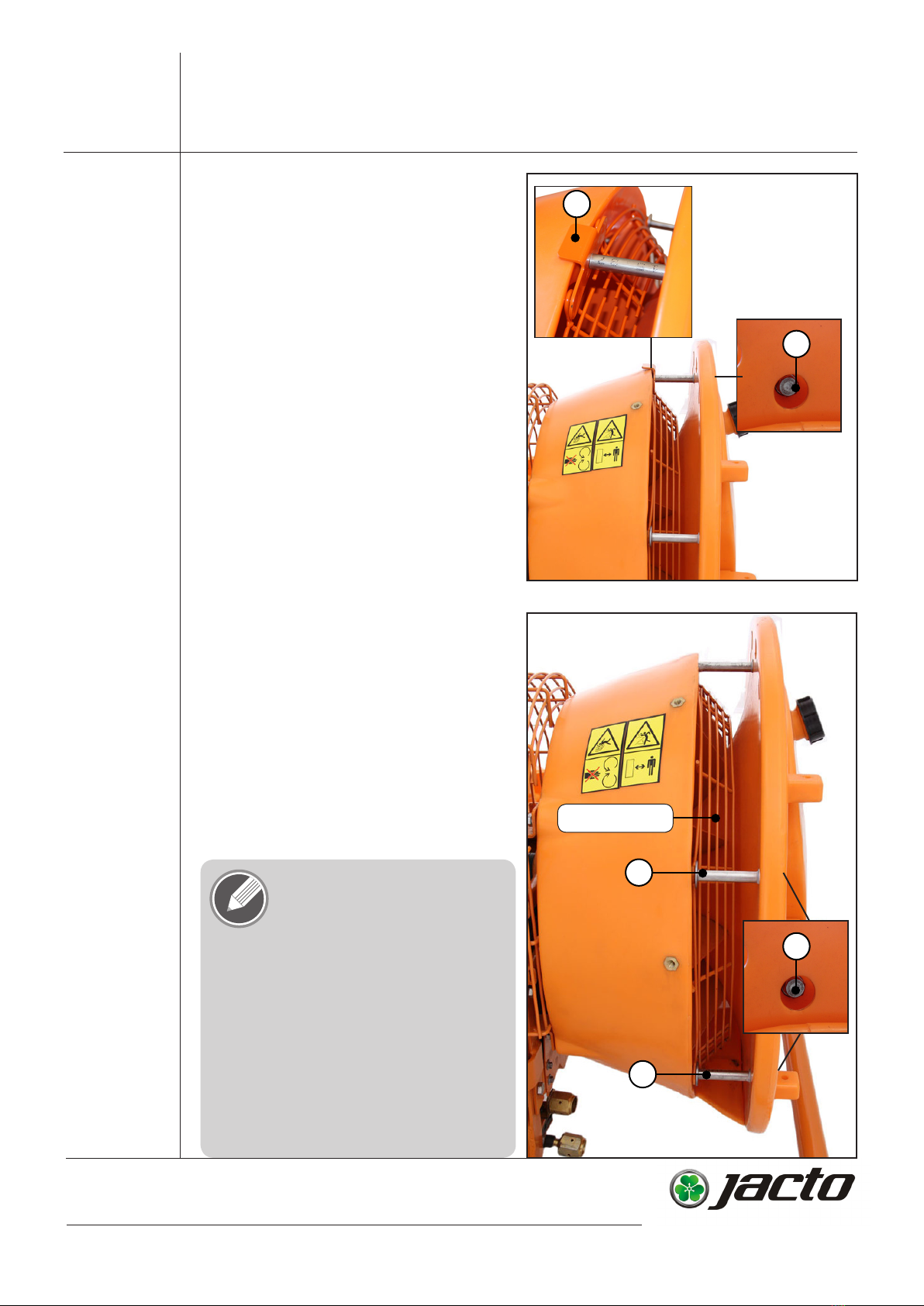

7-Loosen and remove mounting bolts

for spacer bushings (H).

I

I

guard screens

8-Remove spacer bushings (I) and

guard screens from both left and

right sides.

NOTE:

The spacer bushings (I)

will be replaced by new

ones included with the

Tower Kit. Keep the remo-

ved spacer bushings (I)

and the deflector upper

fastening (G) in an appro-

priate place for future use

without the Tower Kit.

6-To remove the fan guard screen,

loosen the mounting bolt for the

spacer bushing (F) and remove the

deflector upper fastener (G). Next,

tighten the mounting bolt (F) for the

spacer bushing.

G

F

H

TECHNICAL NOTICE

4

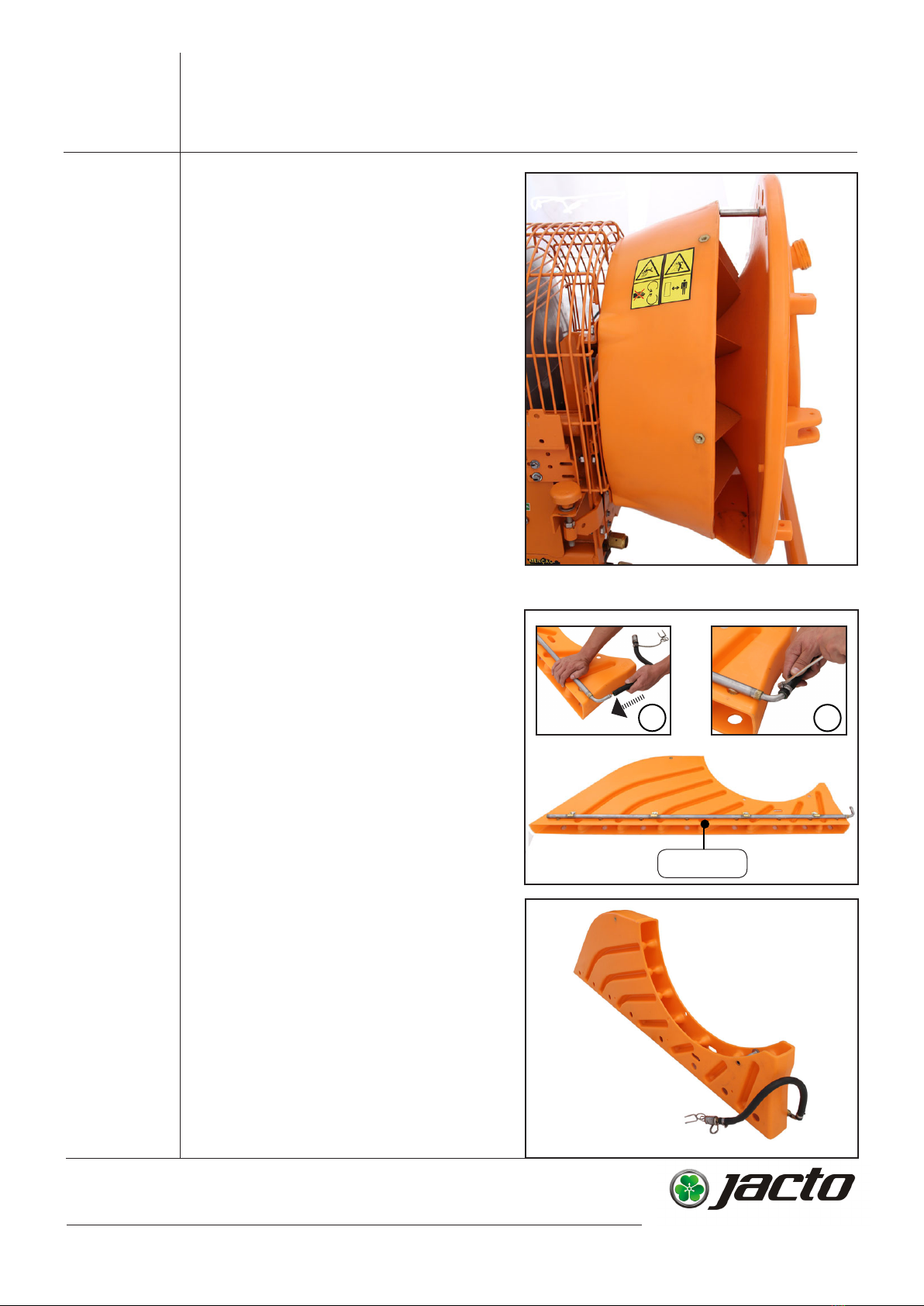

9-Equipment without spacer bushin-

gs and guard screen ready for Tower

Kit installation.

1-Connect the branch hose to the

Tower Kit (J) and tighten the clamp

with a screwdriver (L).

JL

Tower Kit

2-Tower Kit with branch hose con-

nected.

> Tower Kit assembly

TECHNICAL NOTICE

5

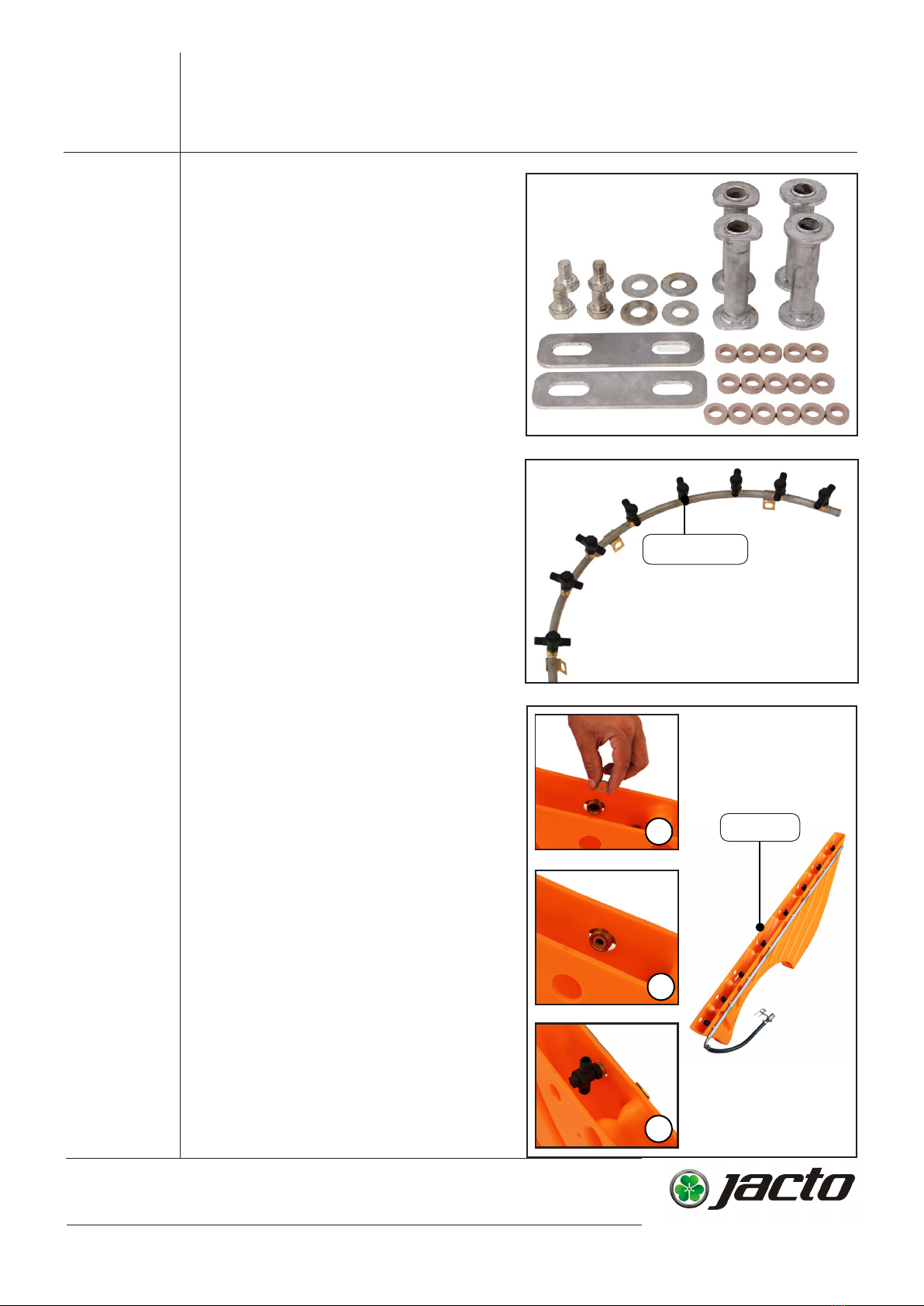

3-The items shown are included with

the Tower Kit and are used in the

assembly.

4-Remove nozzle holders from left

and right branches.

5-Install the nozzle holders with seal

(1) on the Tower Kit nozzle branch (2

and 3). By, placing the nozzle holder

seal (1) in the hole of the Tower Kit

nozzle branch and install the nozzle-

-holder (3). 1

2

3

Kit Tower

nozzle holder

TECHNICAL NOTICE

6

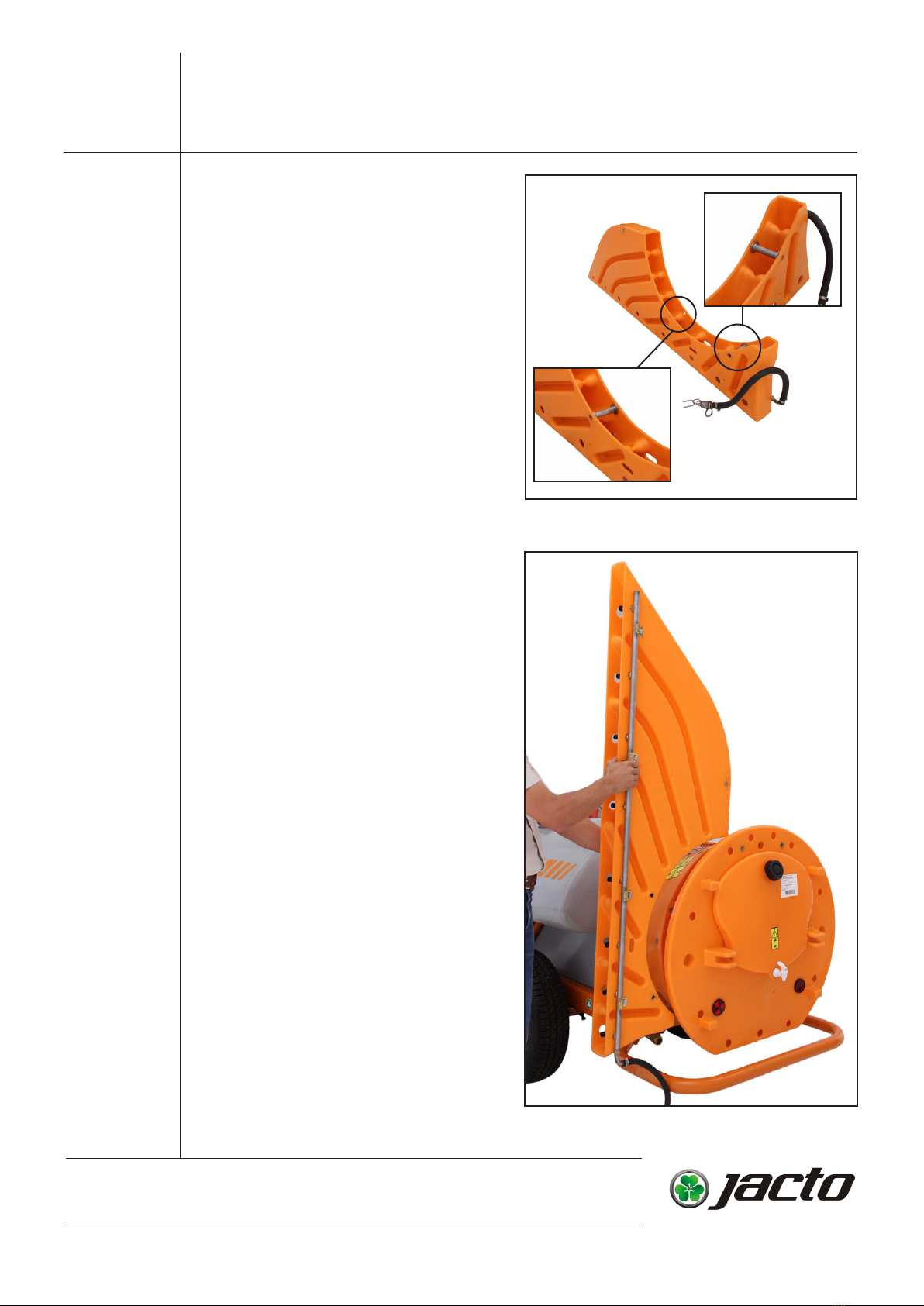

6-Use the spacer bushings included

in the kit and install on the Tower Kit

as shown in the picture.

7-Install the Tower Kit to the fan hou-

sing. Align the spacer bushings with

the holes on the fan housing.

TECHNICAL NOTICE

7

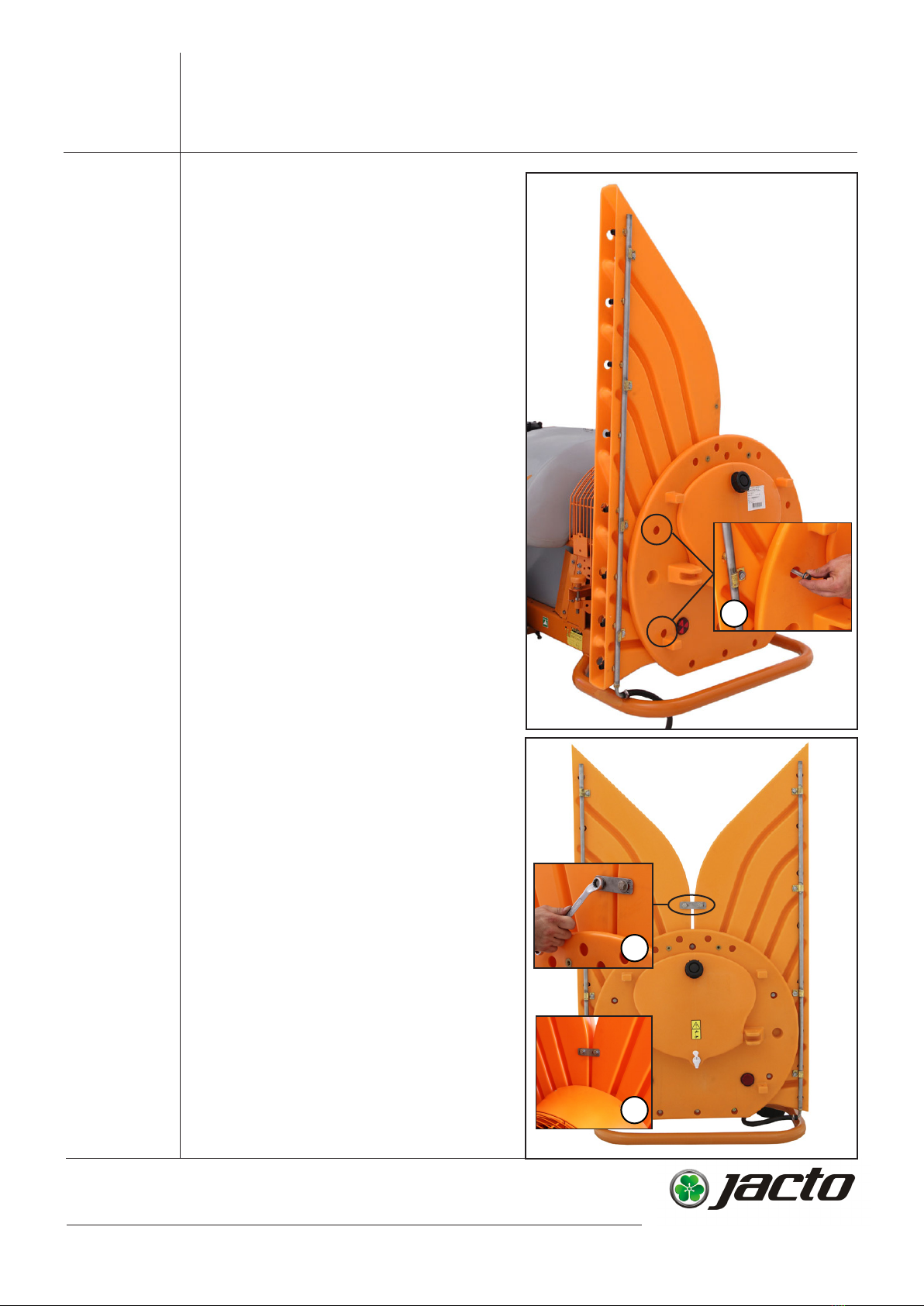

8-With Tower Kit installed, insert

mounting bolts into spacer bushings

(M) and tighten.

M

9-With both sides of Tower Kit instal-

led, locate the two mounting holes

(N and O). Insert mounting bolts and

tighten.

N

O

TECHNICAL NOTICE

8

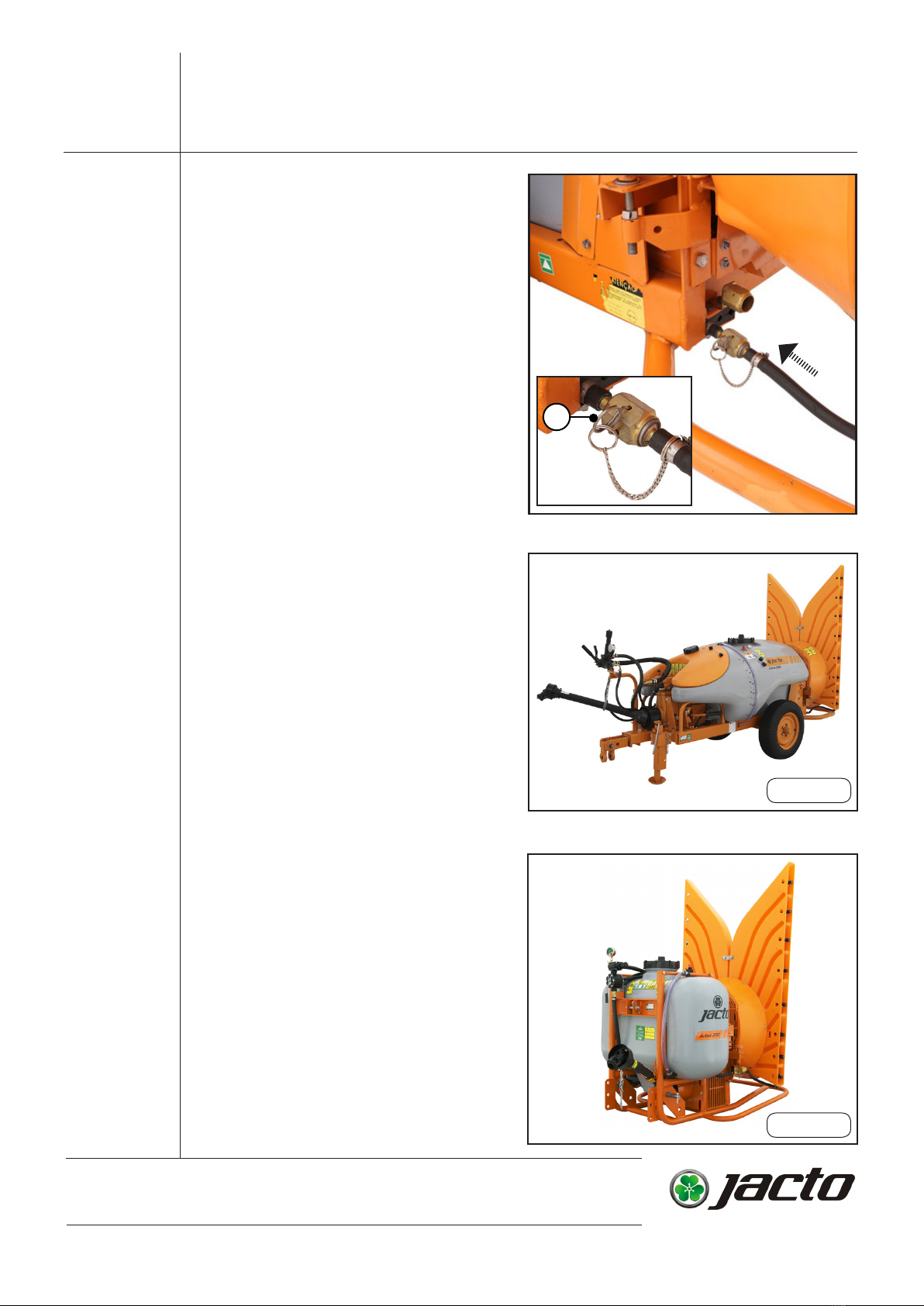

10-Connect the branch hose to the

quick fitting (right and left sides) and

attach the quick fitting clamp (P).

P

11-Machine with Tower Kit installed.

Arbus 200

Arbus 500
