Jacuzzi Elara 7242 Manuale utente

Elara™ 7242

PURE AIR®BATH

MODEL NUMBER:

GA30 (Left-hand)

GA40 (Right-hand)

EXTERIOR DIMENSIONS:

72" long x 42" wide x

26"high

OPERATING GALLONS:

66-105 gallons

If you enjoy a uniquely gentle, calming experience that caresses the body and

soothes the mind, the Elara™ air bath is right for you.

FEATURES:

• Exclusive 360° Balanced Airow™ system

• 800-watt variable speed heated air blower

• Timed purge cycle

• Safely use salts and aromatic oils

• Flexible drop-in or undermount installation options

• Low-prole deck

• Wave Pulse™ system

• PrO3

™ Cleansing System standard

Elara™ 7242 |PURE AIR®BATH

Elara™7242

PURE AIR® BATH

Technical Speciﬁcations

DIMENSIONS

72” L x 42” W x 26” H

(1829) mm L x (1067) mm W x (660) mm H

DRAIN/OVERFLOW

A: 18-1/2” (470 mm) B: 10.6” (269 mm)

CUTOUT

70” x 40” & undermount template BZ50000

TOTAL WEIGHT

1345 lb. (610 kg) / 64 lb/ft2(312 kg/m2)

OPERATING GALLONAGE

86 U.S. Gal. (326 Liters)

Min 66 U.S. Gal. (250 liters)

Max 105 U.S. Gal. (397 liters)

PRODUCT WEIGHT

215 lb (98 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS

Requires a dedicated GFCI protected separate circuit.

Blower: 120 VAC, 15 AMP, 60 Hz.

HEATER (STANDARD)

No water heater is available on this unit. Blower has integral air heater.

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#GD83000 01/08

GA30 Elara™ 7242 Pure Air® Bath, Left Hand

GA40 Elara™ 7242 Pure Air® Bath, Right Hand

• Right and Left Hand Drain Location

• Accessories / Hardware:

Sch 40, Rotoary Drain Kit: #DA34

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

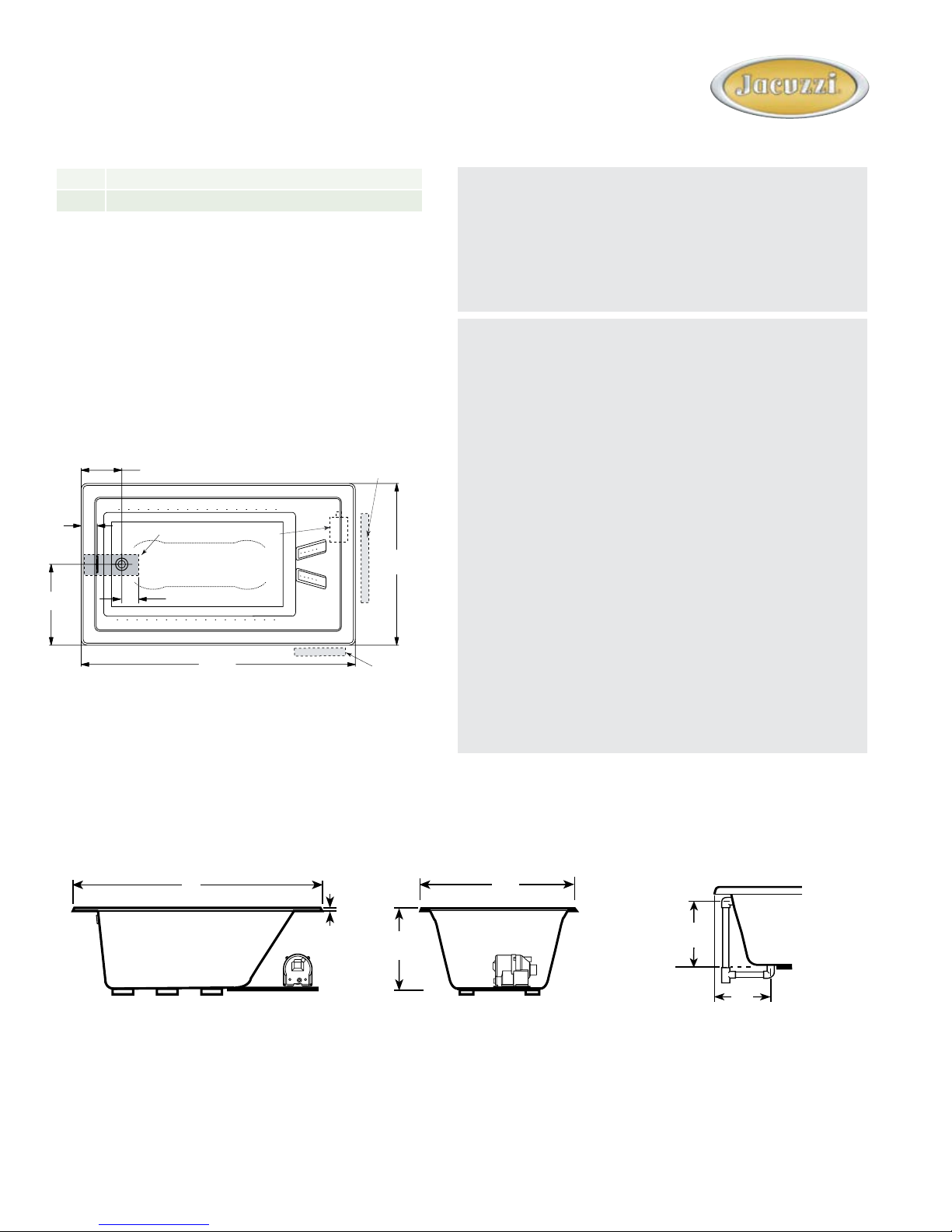

DRAIN/OVERFLOW

END VIEW

SIDE VIEW

1/2"

(13 mm)

(Blower)

72"

42"

21"

4.2"

9.6"

12" x 4"

Opt. Service

Access

12" H x 24" L

Service Access

Elara™ 7242,

Left Hand

Blower

Product Shown: Elara™ 7242 Pure Air®

Left Hand Model: GA30

* Measurements inside unit represent

cutout in ﬂoor to allow for drain/overﬂow.
