Jacuzzi Riva 6 Manuale utente

Riva®6

SOAKING BATH

MODEL NUMBER:

B685

EXTERIOR DIMENSIONS:

72" long x 42" wide x

20½" high

INTERIOR DIMENSIONS:

50" long x 28" wide

Riva®6

WHIRLPOOL BATH

MODEL NUMBER:

N274 – Right-hand

B690 – Left-hand

EXTERIOR DIMENSIONS:

72" long x 42" wide x

20½" high

INTERIOR DIMENSIONS:

50" long x 28" wide

# OF JETS/TYPE OF JETS:

4 TheraPro™ Jets

3 AccuPro™ Lumbar Jets

OPERATING GALLONS:

62 gallons

Evoking the breathtaking beauty and ancient maritime

tradition of the northern Italian town for which it is

named, the Riva®is true to form—an elegant classic. And

truly versatile—at home in both traditional and more

contemporary interior design.

WHIRLPOOL BATH FEATURES:

• Sculpted armrest.

• Contoured backrest.

• 4 Fully adjustable TheraPro™ jets

• 3 Directionally adjustable AccuPro™ lumbar jets.

• Exclusive Tru-Level™ base system.

• Slip-resistant bottom.

• Patented Silent Air™ Induction system.

• Drain included on whirlpool baths

Riva®6 |WHIRLPOOL BATH and SOAKING BATH

Detail:

The Jacuzzi Magic Touch®control system makes customizing your

bath in the Riva®whirlpool bath easy. 4 massaging TheraPro™ jets

soothe sore, tired muscles.

Riva®6

WHIRLPOOL BATH

Technical Speciﬁcations

DIMENSIONS

72” L x 42” W x 20-1/2” H

(1829 mm) L x (1067 mm) W x (521 mm) H

DRAIN/OVERFLOW

A: 16” (406 mm) B: 11-1/2” (292 mm)

CUTOUT

Template Provided Part Number: P186000

TOTAL WEIGHT

B690, N274: 871 lb (395 kg) / 42 lb/sq. ft. (203 kg/m2)

B685: 840 lb (381 kg) / 40 lb/sq. ft. (195 kg/m2)

OPERATING GALLONAGE

62 U.S. Gal. (235 Liters)

Max. 77 U.S. Gal. (291 Liters)

PRODUCT WEIGHT

B690, N274: 105 lb (48 kg)

B685: 74 lb (34 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS MODELS B690, N274 ONLY

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

HEATER (OPTIONAL) MODELS B690, N274 ONLY

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

INSTALLATION NOTES

Refer to installation instructions included with xture before

beginning installation. Please conrm product availability and

specications before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#FS07-000 05/08

N274

Riva™ 6 Whirlpool Bath, Right Hand

B690

Riva™ 6 Whirlpool Bath, Left Hand

B685 Riva™ 6 Bath

• Right and Left Hand Drain Location

• Accessories / Hardware:

4 XHTC Jet Trim Kit: #D095

2 X BMH Jet Trim Kit: #J869

Trip-Lever Drain Kit: #X559

Rotary Drain Kit, 26” Cable: #8730

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Riva®6

SOAKER BATH

Electrical Components and Electrical Speciﬁcations do not apply

to non-jetted baths.

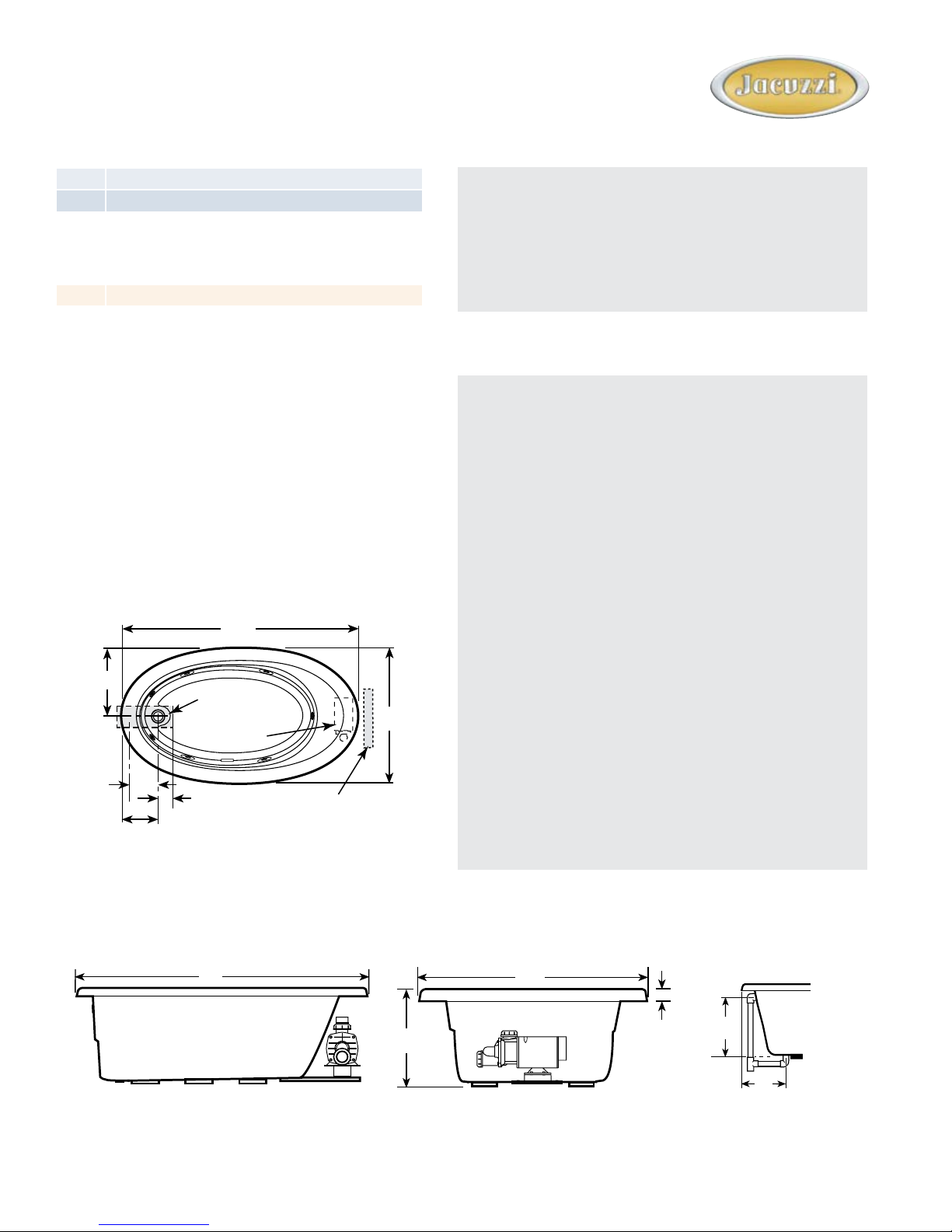

72"

21"

42"

14" x 4"

11-1/2"

Motor

12" H x 18" L

Service Access

6-7/8"

SIDE VIEW

H2''

END VIEW

DRAIN/OVERFLOW

Product Shown: Riva™ 6 Whirlpool Bath

Left Hand Shown Model: B690

* Measurements inside unit represent

cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
