Jaga STRADA Manuale utente

STRADA

INSTALLATION AND

MAINTENANCE INSTRUCTIONS

LOW-H2O RADIATOR

FOR HEATING ONLY

Tested in accordance

with EN442

CONTENTS

1. INTRODUCTION......................................................................................................... 4

2. COMPONENT PARTS................................................................................................ 4

3. TOOLS REQUIRED..................................................................................................... 4

4. INSTALLATION............................................................................................................ 5

5. FITTING THE CASING............................................................................................... 8

6. REMOVING THE GRILLE .......................................................................................... 9

7. OPTIONAL EXTRAS .................................................................................................. 10

8. FURTHER GUIDANCE............................................................................................... 11

9. MAINTENANCE .......................................................................................................... 12

10. GUARANTEE ............................................................................................................... 12

11. FAULT FINDING.......................................................................................................... 13

12. TERMS & CONDITIONS............................................................................................ 14

Thank you for choosing our STRADA Low-HO

radiator. If installed and maintained correctly, it will

give you many years of ecient and safe heating.

2. COMPONENT PARTS 3. TOOLS REQUIRED

Extended Air Vent

Heating Element

Casing

Tape Measure Spanner

(,  and mm)

Personal Protection Equipment

(minimum requirement)

Gloves Safety Glasses

Fixing Pack

Drill mm Masonry Drill Bit

HammerSpirit Level

Knife Screwdriver (ﬂat)

1. INTRODUCTION

The installation of STRADA Low-HO

radiators should be in accordance with

these installation instructions and the work

completed by a competent person.

Left Hand Bracket Right Hand Bracket

For lengths mm

to mm, a third

bracket is supplied.

For lengths mm

and over, a fourth

bracket is supplied.

4. INSTALLATION

Ensure the location facilitates good heat distribution for the room and that the wall and ﬂoor is ﬂat and sound.

Care to be taken when attaching brackets to ensure they are both the correct way round.

CLICK!

H  H  -  -  - 

Take the heating element and remove the protective covering

from the connection end only. The rest of the covering can be

removed later in the process. Leaving it on at this stage protects

the element from building and decoration debris.

Air Vent

Connection

Connection can be either on the left or right hand side, for either

option, make sure the /th connection for the air vent is on the

top of the heating element.

• Minimum clearance from ﬂoor to underside of casing for STRADA equals ‘h’ dimension.

• The supplied ﬁxings are suitable for solid wall construction only. For other wall structures alternative ﬁxings must be used.

• If third and fourth brackets are supplied, these are to be ﬁtted to the central plates of the heat exchanger. Fixing centres to

be marked at time of installation.

min. 100*

130

125

55 95

125

(T10/15/20)

255

(T06/11/16/21)

Tpe B (mm) d (mm) h (mm)

   

/   

/   

/   

H 200 NOTE: Flow and return

connections can be either left

hand or right hand. This can be

decided at time of installation.

Dimensions shown are for right

hand connections. For left hand

connections, dimensions are

mirrored.

Example with Jaga valve: to the wall.

Without TRV.

A24

11a

The valves can now be ﬁtted as per the option chosen;

as illustrated.

Fit the air vent to the top /th connection and moderately tighten.

Fix the element assembly to the wall with the ﬁxings provided.

Depending on the wall construction, other ﬁxings may be required.

Insert wall plugs into the holes, then insert screws and tighten

leaving mm protruding.

10mm

06 07

Drill mm holes at the marked centres.

Example with Jaga valve: to the ﬂoor.

25 50

2750

11b 12

It is important for correct operation that the thermostatic radiator

valve is ﬁtted to the ﬂow, into the higher connection of the

element. The lockshield valve should be connected to the return,

into the lower connection.

Tpe Connection

to foor d (mm)

Connection

to w A (mm)

  

/  

/  

/  

The blanking plug can now be ﬁtted to the unused connection.

If incorrectly connected, the heating

performance will be reduced and the

thermostatic radiator valve may

vibrate / chatter.

The installation is now complete and can be pressure tested to a

maximum  bar.

Important Note:

Once the radiator has been fully pressure

tested, the system should be cleaned

and ﬂushed in accordance with the

relevant standard.

The radiator should not be left empty

(after the cleaning and ﬂushing) for any

prolonged period.

5. FITTING THE CASING

Fit the TRV head, ensuring that it is ﬁrst turned to its maximum

setting. Please follow the TRV head installation instructions for

further information.

CLICK

Insert the ﬁrst half moon decorative clip.

Locate the grille into front panel, lower down into position

and ﬁx back bar.

CLICK

4CLICK

Hook casing onto bottom of bracket. Lift casing up and over

towards back. Line up cut out with valve. Push casing down onto

brackets to secure.

CLICK

Use blanking plate on opposite side.

CLICK

Insert the second half moon decorative clip.

6. REMOVING THE GRILLE

Remove the top grille by gently tapping a wedge in to the back bar

with a rubber mallet - do not use a screwdriver!

Remove the back bar.

Remove the top grille.

Replace top grille.

Replace the back bar.

Secure the back bar by gently tapping with a rubber mallet -

do not use a hammer!

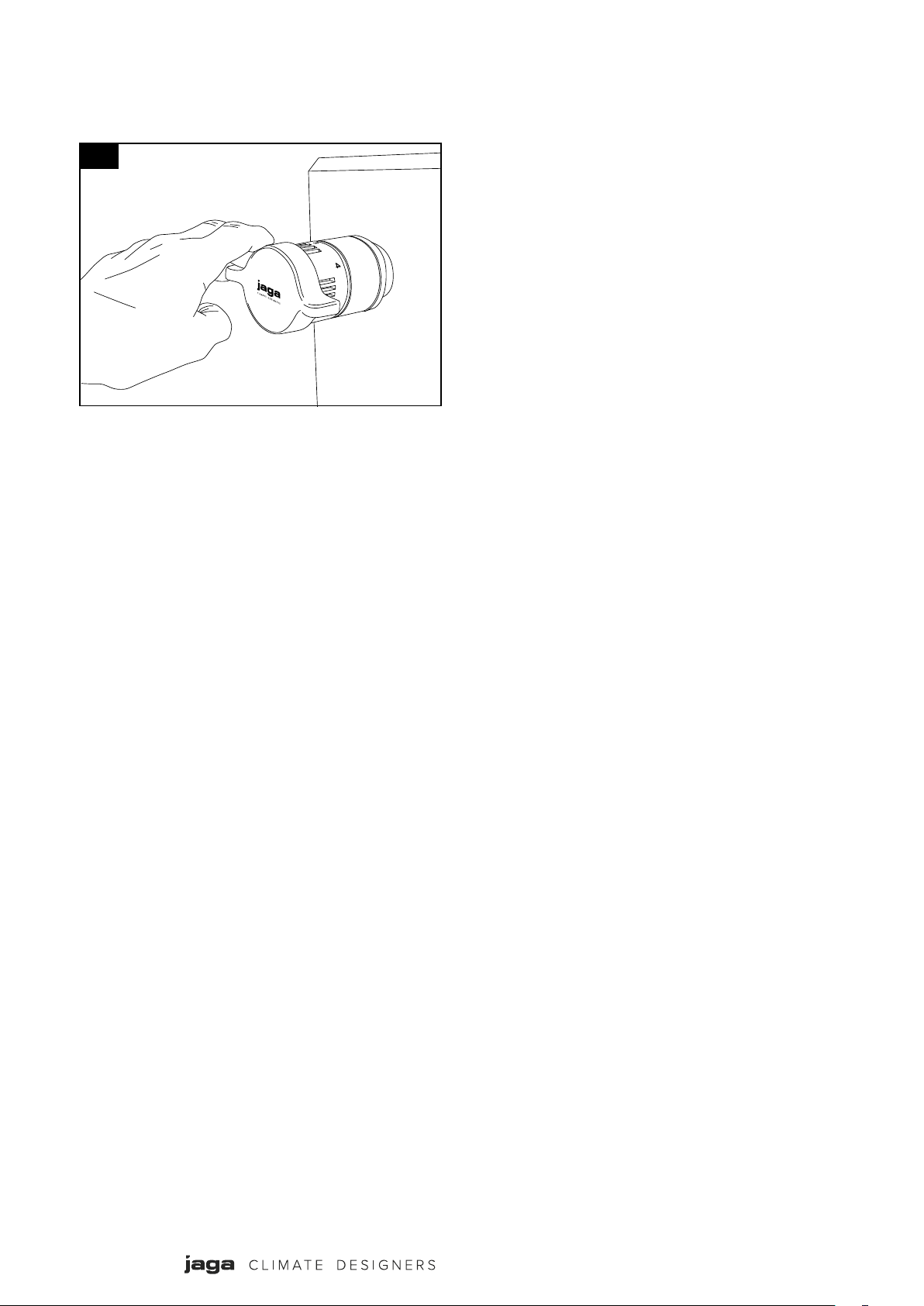

Arthritic Aid

Simply push over the end of TRV.

NOTE: Arthritic aid only suitable for use with

Jaga White (JW) TRV head.

7. OPTIONAL EXTRAS
