DSP Micro Head

CCD Colour Camera

JAI-M1000K

series

(JAI-M1000K

M1050K

M1200K

M1212K

M1250)

Operation Manual

ENGLISH VERSION

DO NOT OPEN

REDUCE

THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK), NO USER SERVICEABLE PARTS

REFER SERVICING TO QUALIFIED SERVICE

The lighting flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of

sufficient

magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

JAI-M1000K series

Table of contents

Declaration of CE Conformity

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Precautions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

User’ Record

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1. General

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2. Main Features

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3. Standard Composition

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4. External Appearance, Locations and Functions . . . . . . . . 6

5. Pin Assignment

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6. Operation and Mode Setting

1) ON-SCREEN DIRECT CONTROL

...............................

2) ON-SCREEN REMOTE CONTROL

.............................

RS-232CSERIALREMOTECONTROL

.....................

7. Specifications

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

- 1 -

JAI-M1000K series

Declaration of Conformity

As defined by the Council Directive

89/336/EEC

EMC (Electromagnetic Compatibility),

we herewith declare that this product

complies with the following provisions applying to it.

EN-50081-l

EN-500824

JAI-M1000K series

Precautions

Do not attempt to disassemble this camera.

To prevent electric shock, do not remove cover. There are no

user-

serviceable parts inside.Refer servicing to qualified service personel.

Do not expose this camera to rain or moisture.

Do not face this camera towards the

sun-exterme

bright light or light

reflecting objects. Even when this camera is not in use, put the supplied

shade-cap on the lens mount.

Handle this camera with the maximum care.

Operate this camera only from the type of power source indicated on

the camera.

Power off the camera during any modification such as changes of

jumper-line and jumper-register.

USER’S RECORD

The Model name and the production serial number

are shown on the bottom of the camera.

Model Name

Serial No.

-3-

JAI-M1000K series

1. General

JAI-M1000K series CCD Color Camera is a new series of Digital

Micro Head Cameras utilizing the most advanced DSP (Digital Signal

Processing) technologies with Micro-Computer setup capability.

JAI-M1000K series gives you the maximum availability in your operation

with the attractive features such as High Resolution, Y/C and RGB extra

outputs, One-Push White Balance, Backlight Compensation, etc.

Please read this Operation Manual throughly, and retain with you.

2. Main Features

Micro camera head

JAI-M1000K

2m Camera Cable

12mm 1/3" CCD Sensor

JAI-M1050K

Camera Cable

17mm

1/2"

CCD Senso

JAI-M1200K

2m Camera Cable

JAI-M1212K

2m Camera Cable

JAI-M1250K

Camera Cable

DSP (Digital Signal Processing) circuits for high quality level of

pictures

JAI-M1000K series

(

ON SCREEN

)

display for camera set-up

The following control-functions can be displayed on the monitor

screen, and can be set into the desired condition through the front

panel of the CCU (Camera control Unit), or the optional REMOTE

CONTROL UNIT (RS-232C Serial Communication).

White Balance

Electronic Shutter

AGC (Auto Gain Control)

Backlight Compensation

Negative Polarity

Y/C and RGB separate outputs provided as standard.

Backlight Compensation circuit for shooting in unusual lighting

conditions.

Standard Compositon

Camera Head X1

2) CCU (Camera Control Unit) X1

3) Camera Cable

Xl%

4) Power Plug

(Hirose

HR10A/7P/6S)

x 1

Y/C

Plug x1

Camera cable for

JAI-M1000K

is directly mounted to the camera head.

The cable connection for the other cameras is made by connector,

JAI-M1000K series

External Appearance, Locations and Functions

Camera Control Unit (CCU)

JAI-M1000K series

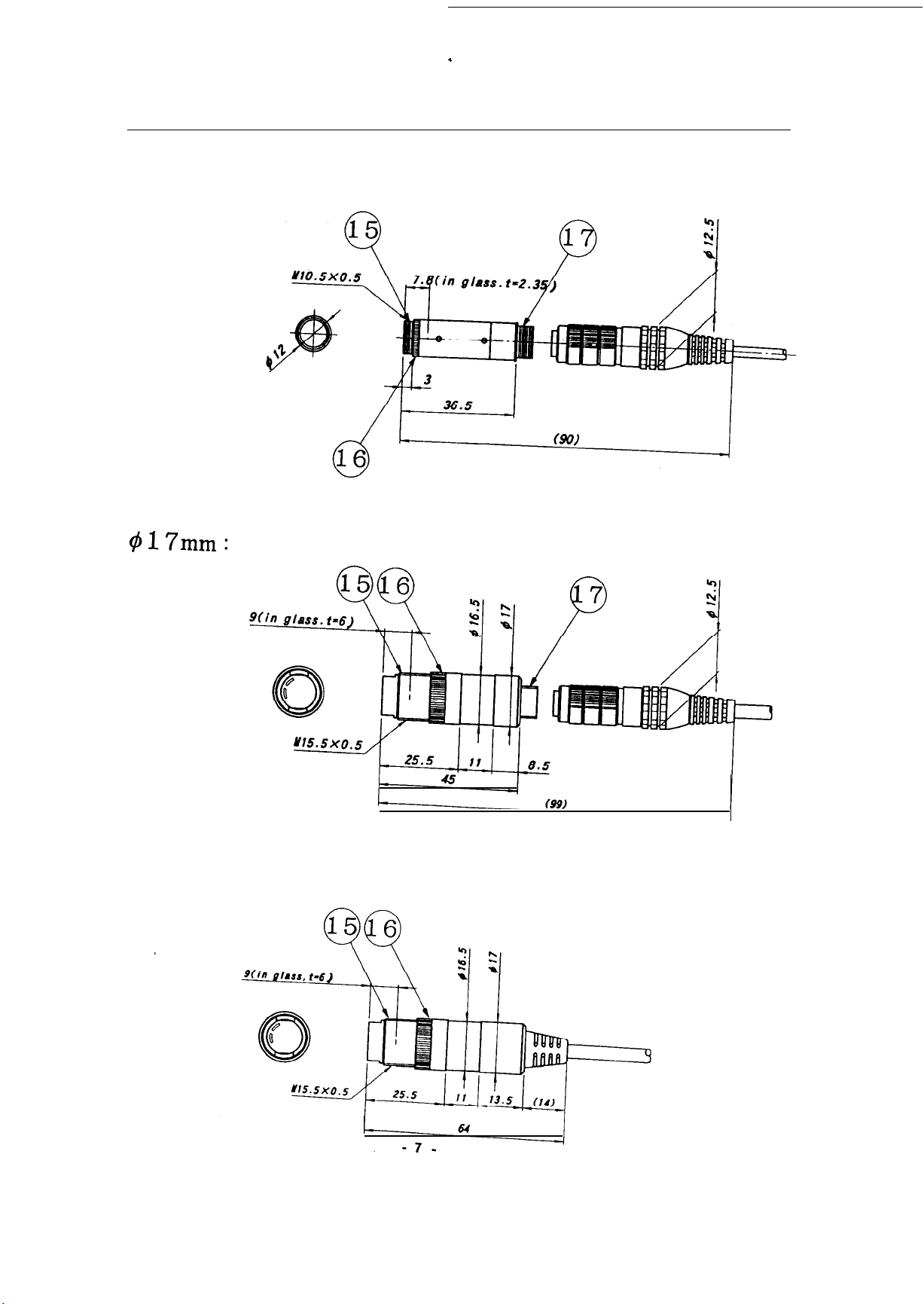

Camera Head

ø12mm:JAI-MlOOOK,

JAI-M1050K

$17mm:

JAI-M1250K,

JAI-M1212K

A-

øl7mm:JAI-M1200K
