Installation and Operation Data

Installation and

Operation Manual

AquaPalm

Wireless Handheld Remote

(For use with AquaLink® RS

OneTouch and All Button Systems)

WARNING

FOR YOUR SAFETY - This product must be installed and serviced by a professional pool/spa service

technician. The procedures in this manual must be followed exactly. Failure to follow warning notices

and instructions may result in property damage, serious injury, or death.

H0574200 Rev -

ATTENTION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an electrical source on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Modications made to this equipment, which are not authorized by the manufacturer, may void the user’s authority

to operate this equipment.

Page 3

Table of Contents

Section 1. Important Safety Instructions ........... 4

Section 2. Product Description .......................... 6

2.1 Basic Functions .............................. 6

2.2 AquaPalm Handheld Remote and

Transceiver J-box Dimensions ....... 6

Section 3. Installation ........................................ 6

3.1 AquaPalm Transceiver J-Box Cable

Connection to Power Center PCB .. 6

3.2 AquaPalm Transceiver J-box

Installation ...................................... 7

3.3 AquaPalm Handheld Remote

Installation ...................................... 7

3.4 Changing the Frequency Channel .. 8

Section 4. AquaPalm Handheld Remote

Operation .......................................... 9

4.1 Basic Functions .............................. 9

4.2 Using the Buttons ........................... 9

4.3 Battery Status ................................. 10

4.4 Signal Strength ............................... 10

Section 5. AquaPalm Handheld Remote Menus 10

5.1 Pool Mode/Spa Mode ..................... 10

5.2 Equipment On/Off Menu ............... 10

5.3 Filter Pump (Pool Mode) ............... 11

5.4 Spa .................................................. 11

5.5 Pool Heat ....................................... 12

5.6 Spa Heat ......................................... 12

5.7 Solar Heat ....................................... 13

5.8 Auxiliary Equipment ...................... 13

5.9 Set Temperature Menu ................... 14

5.10 Set Time Menu ............................... 14

5.11 AquaPure Menu ............................. 14

5.12 Auto Shut-off Menu ....................... 15

5.13 Backlight Menu .............................. 15

5.14 Assign Hotkeys Menu .................... 15

5.15 Boost Menu .................................... 16

5.16 Battery Backup ............................... 16

5.17 AquaPalm Handheld Remote Menu

Flow Chart ...................................... 17

Section 6. Troubleshooting ................................ 18

6.1 AquaPalm Quick Troubleshooting

Guide .............................................. 18

DATE OF INSTALLATION

INSTALLER INFORMATION

INITIAL PRESSURE GAUGE READING (WITH CLEAN FILTER)

PUMP MODEL

HORSEPOWER

FILTER MODEL

SERIAL NUMBER

AquaPalm MODEL SERIAL NUMBER

NOTES:

EQUIPMENT INFORMATION RECORD

Page 4

Section 1. Important Safety Instructions

READ AND FOLLOW ALL INSTRUCTIONS

LIRE LA NOTICE TECHNIQUE.

All electrical work must be performed by a licensed electrician and conform to all national, state, and local

codes. When installing and using this electrical equipment, basic safety precautions should always be followed,

including the following:

WARNING

Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs when the internal temperature of the

body reaches a level several degrees above the normal body temperature of 98.6° F. The symptoms of hyperthermia

include dizziness, fainting, drowsiness, lethargy, and an increase in the internal temperature of the body. The effects

of hyperthermia include: 1) unawareness of impending danger; 2) failure to perceive heat; 3) failure to recognize the

need to exit spa; 4) physical inability to exit spa; 5) fetal damage in pregnant women; 6) unconsciousness resulting

in a danger of drowning.

DANGER

To reduce the risk of injury, do not remove the suction fittings of your spa or hot tub. Never operate a spa or hot

tub if the suction fittings are broken or missing. Never replace a suction fitting with one rated less than the flow rate

marked on the equipment assembly.

WARNING

To Reduce the Risk of Injury -

a) The water in a spa should never exceed 104°F (40°C). Water temperatures between 100°F (38°C) and

104°F (40°C) are considered safe for a healthy adult. Lower water temperatures are recommended for young

children and when spa use exceeds 10 minutes.

b) Since excessive water temperatures have a high potential for causing fetal damage during the early months of

pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to 100°F (38°C).

c) Before entering a spa or hot tub, the user should measure the water temperature with an accurate

thermometer since the tolerance of water temperature-regulating devices varies.

d) The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to unconsciousness with

the possibility of drowning.

e) Obese persons and persons with a history of heart disease, low or high blood pressure, circulatory system

problems, or diabetes should consult a physician before using a spa.

f) Persons using medication should consult a physician before using a spa or hot tub since some medication

may induce drowsines while other medication may affect heart rate, blood pressure, and circulation.

WARNING

Risk of electric shock - Install the power center at least five (5) feet (152.4cm) from the inside wall of the pool and/or

hot tub using non-metallic plumbing. Canadian installations must be at least three (3) meters from the water.

Children should not use spas or hot tubs without adult supervision.

Do not use spas or hot tubs unless all suction guards are installed to prevent body and hair entrapment.

People using medications and/or having an adverse medical history should consult a physician before using a spa

or hot tub.

AVERTISSEMENT

Danger d'electrocution - Les installations Canadiennes doivent se trouver à au moins trois (3) mètres de l’eau.

Ne pas laisser les enfants utiliser une cuve de relaxation sans surveillance.

Pour éviter que les cheveux ou une partie du corps puissent être aspirés, ne pas utiliser une cuve de relaxation si

les grilles de prise d'aspiration ne sont pas toutes en place.

Les personnes qui prennent des médicaments ou ont des problèmes de santé devraient consulter un médecin avant

d’utiliser une cuve de relaxation.

Page 5

CAUTION

A ground-fault circuit-interrupter must be provided if this device is used to control underwater lighting fixtures. The

conductors on the load side of the ground-fault circuit-interrupter shall not occupy conduit, boxes, or enclosures

containing other conductors unless the additional conductors are also protected by a ground-fault circuit-interrupter.

Refer to local codes for complete details.

CAUTION

A terminal bar marked "GROUND" is provided within the power center. To reduce the risk of electrical shock, connect

this terminal bar to the grounding terminal of your electric service or supply panel with a continuous copper conductor

having green insulation and one that is equivalent in size to the circuit conductors supplying this equipment, but no

smaller than no. 12 AWG (3.3mm). In addition, a second wire connector should be bonded with a no. 8 AWG (4.115mm)

copper wire to any metal ladders, water pipes, or other metal within five (5) feet (1.52m) of the tub.

SAVE THESE INSTRUCTIONS

WARNING

People with infectious diseases should not use a spa or hot tub.

To avoid injury, exercise care when entering or exiting the spa or hot tub.

Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness and possible

drowning.

Pregnant or possibly pregnant women should consult a physician before using a spa or hot tub.

Water temperature in excess of 100°F/38°C may be injurious to your health.

Before entering a spa or hot tub measure the water temperature with an accurate thermometer.

Do not use a spa or hot tub immediately following strenuous exercise.

Prolonged immersion in a spa or hot tub may be injurious to your health.

Do not permit any electric appliance (such as a light, telephone, radio, or television) within 5 feet (1.5 m) of a spa or

hot tub.

The use of alcohol, drugs or medication can greatly increase the risk of fatal hyperthermia in hot tubs and spas.

Water temperature in excess of 100°F/38°C may be hazardous to your health.

AVERTISSEMENT

Les personnes atteintes de maladies infectieuses ne devraient pas utiliser une cuve de relaxation.

Pour éviter des blessures, user de prudence en entrant dans une cuve de relaxation et en sortant.

Pour éviter l’évanouissement et la noyade éventuelle, ne prendre ni drougue ni alcool avant d’utiliser une cuve de

relaxation ni quand on s’y trouve.

Les femmes enceintes, que leur grossesse soit conrmée ou non, devraient consulter un médecin avant d’utiliser

une cuve de relaxation.

Il peut être dangereux pour la santé de se plonger dans de l’eau à plus de 38°C/100°F.

Avant d’utiliser une cuve de relaxation mesurer la témperature de l’eau à l’aide d’un thermomètre précis.

Ne pas utiliser une cuve de relaxation immédiatement après un exercice fatigant.

L’utilisation prolongée d’une cuve de relaxation peut être dangereuse pur la santé.

Ne pas placer d'appareil électrique (luminaire, téléphone, radio, téléviseur, etc) à moins de 1.5m de cette cuve de

relaxation.

La consommation d’alcool ou de drogue augmente considérablement les risques d’hyperthermie mortelle dans une

cuve de relaxation.

Il peut etrê dangereux pour la santé de se plonger dans de l’eau à plus de 38°C/100°F.

Attention installer: Install to provide drainage of compartment for electrical components.

WARNING

To avoid injury ensure that you use this control system to control only packaged pool/spa heaters which have built-

in operating and high limit controls to limit water temperature for pool/spa applications. This device should not be

relied upon as a safety limit control.

Page 6

Section 2. Product Description

NOTE For use with an AquaLink® RS System ONLY,

software revision “M” or later.

This document gives instructions for installing and

operating the Jandy AquaLink® RS AquaPalm.

The instructions must be followed exactly. Read

through the instructions completely before

operating the equipment.

2.1 Basic Functions

The AquaPalm Handheld Remote can be used in

addition to an already existing AquaLink RS control

system. The AquaPalm can turn your pool/spa

equipment on and off in one of the following ways:

1. Activate the equipment manually through the

EQUIPMENT ON/OFF menu.

2. Use the AquaPalm Handheld Remote

buttons 1 or 2 (Hotkeys). See Section 5.13

for a detailed explanation of how to program

Hotkeys 1 and 2.

2.2 AquaPalm Handheld Remote and

Transceiver J-box Dimensions

WARNING

Potentially high voltages in the AquaLink RS Power

Center can create dangerous electrical hazards,

possibly causing death, serious injury or property

damage. Turn off power at the main circuit feeding

the AquaLink RS Power Center to disconnect the

Power Center from the system.

Section 3. Installation

Figure 1. AquaPalm Handheld Remote

Dimensions

Front View

3½"

6¾"

1 2

select

back

7/8"

Side View

Figure 2. J-Box Transceiver Dimensions

1 1/16"

Side View (at Angle)

1 1/16"

Side View (at Angle)

Front View

3.1 AquaPalm Transceiver J-Box Cable

Connection to Power Center PCB

Make provisions for the cable to be run between

the AquaPalm Transceiver J-box and the AquaLink

RS Power Center. Never run high voltage and low

voltage in the same conduit.

1. Turn off all power to the Power Center.

2. Pull cable through the knockout with the

Heyco fitting and into the low voltage

compartment (see Figure 3).

3. Strip back the insulation jacket of the cable

approximately 6".

4. Strip each wire ¼" and connect to the red,

4-pin connector on the Power Center PCB.

A multiplex kit may be required if there are

more than two cables running to a red, 4-pin

connector (see Figure 3) on the PCB.

NOTE For detailed tranceiver installation, see

Section 3.2.

Page 7

Figure 3. AquaPalm J-Box Cable Connection to

Power Center PCB

Conduit Knockout for Low Voltage

AquaPalm J-box Wire

Heyco Fittings for

Low Voltage JVA

and Sensor Wires

Low Voltage

Raceway

High Voltage

Knockouts for

Conduit

(DO NOT run any Low

Voltage wires through

these knockouts)

3.2 AquaPalm Transceiver J-box Installation

Installation Considerations. The transceivers will

transmit through walls and around corners. Steel

framing, aluminum siding, wrought iron, cyclone

fences, leaded glass, and other 900 MHz frequency

items may inhibit/prevent communication between

the AquaLink RS AquaPalm Handheld Remote

and the Power Center. The transceivers do not

require line of sight to communicate. To optimize

communication, install transceivers in a location that

minimizes interference.

1. Turn off all power to the Power Center.

2. Mount the Outdoor Transceiver J-box at least

6' above the ground and at least 8' from any

air blowers that may be in the vicinity (see

Figure 4).

3. The Transceiver J-box antenna must point

towards the sky.

NOTE To improve performance of the transceiver, mount

the J-box more than 6' above the ground.

4. Open the door to the Power Center and

remove the dead panel.

5. Feed the four conductor wire into the Power

Center through the low voltage raceway.

6. Cut off the excess wire. Strip the jacket back 6"

and strip the individual wires approximately

¼". Connect the four conductor wire to the

red terminal bar on the Power Center PCB.

7. Install the dead panel to the Power Center and

restore all power.

3.3 AquaPalm Handheld Remote Installation

1. Remove the Handheld Remote from the

packaging.

2. On the back of the Handheld Remote, loosen

and remove the two (2) screws that secure

the cover for the battery chamber (see

Figure 5).

3. Install two (2) AA batteries. Ensure that the

polarity is correct.

Low Voltage Raceway

Power

Center

Air

Blower

AquaPalm

Transceiver

J-box

Minimum 8'

Ground

Level

Figure 4. Outdoor Transceiver J-box Installation

3 Yellow

1 Red

2 Black

4 Green

Red 4-Pin

Terminal Bar

Page 8

4. Re-install the cover for the battery chamber

and secure with the two (2) screws removed

in Step 2.

3.4 Changing the Frequency Channel

If your AquaLink RS AquaPalm system is turning

items on or off at undesignated times, another

AquaLink RS AquaPalm system may be in close

proximity using the same or similar frequency

channel. To prevent unwanted operation the channel

for your AquaLink RS AquaPalm system can be

changed. The AquaPalm Handheld Remote and the

AquaPalm Transceiver J-box must be set to the same

RF channel.

1. At the Transceiver J-box, remove the cover

to expose the PCB (see Figure 6).

2. On the AquaPalm Handheld Remote, press

and hold both the UP and DOWN arrows

simultaneously for three (3) seconds. After

3 seconds, the CHANNEL SETUP screen

appears (see Figure 7). Select a channel.

3. Use the UP and DOWN buttons to highlight the

desired RF channel. Then press SELECT.

4. When the RF channel is selected, the

following message appears on the

AquaPalm display screen:

Set slide switch on J-Box PCB to the

LEARN MODE.

5. At the PCB in the Transceiver J-box, slide the

Learn Switch to LEARN (ON). See Figure 8.

Figure 5. Battery Installation on Handheld Remote

UM-3/R6/AA

BATTERY

1.5V x 2

3032401

MODEL NO 8265

FCC ID: S8F826X

Rated: 3V DC

AquaPalm

Handheld Remote

(Back View)

Two (2)

AA Batteries

Battery Chamber Cover for Battery

Chamber

Screws

Figure 6. AquaPalm Transceiver J-Box - Internal

View

MAIN CONNECTOR

RESET

LEARN

Y B RG

OFF ON

Transceiver

PCB

Reset Switch

Learn

Switch

Green

LED

Red

LED

SET RF CHANNEL

RF CHANNEL: 1

Use ARROW KEYS

to set the

RF CHANNEL.

Press SELECT to

continue.

1 2

select

back

Button

DOWN

Button

SELECT Button

Figure 7. AquaPalm Handheld Remote Channel

Setup and Buttons

Page 9

NOTE The default setting for Hotkeys 1 and 2 are AUX1

and AUX2 respectively. However, these buttons

can be assigned to any piece of equipment or

OneTouch Mood setting.

6. On the AquaPalm Handheld Remote display

screen, a prompt will appear with instructions

to slide the J-box Learn Switch out of LEARN

(OFF) and to press the J-box Reset Switch

(see Figure 8).

Figure 8. Tranceiver J-box PCB Learn Switch

MAIN CONNECTOR

RESET

LEARN

Y B RG

OFF ON

LEARN

OFF ON

Transceiver

PCB

Reset Switch

Learn

Switch

Shown

in Learn

Mode

- Switch

Position

On.

Green LED

(Receive)

Red LED

(Send)

7. At the PCB in the Transceiver J-box, slide the

Learn Switch out of LEARN (ON) and press

the Reset Switch. The Red and Green LEDs

on the J-box will blink simultaneously (see

Figure 8).

Section 4. AquaPalm Handheld

Remote Operation

4.1 Basic Functions

Use the AquaPalm Handheld Remote to turn your

pool/spa equipment on and off in one of the following

ways:

1. Activate the main equipment on the front

screen by highlighting the selection, then

press SELECT.

2. Activate the equipment manually through the

EQUIPMENT ON/OFF menu.

3. Use the Hotkey buttons 1 or 2 (see

Figure 9). See Section 5.13 for a detailed

explanation of how to program Hotkeys 1

and 2.

POOL

OFF

select

back

AIR

78°

80°

POOL MODE

POOL HEATER

SPA MODE

SPA HEATER

EQUIPMENT ON/OFF

FRI 10:30 PM

Figure 9. AquaPalm Handheld Remote Buttons

BACK

Button

DOWN

Button

SELECT

Button

HOT KEY 1

HOT KEY 2

Power ON/OFF

Button

Default

Screen

4.2 Using the Buttons

Use the buttons as explained in Figure 10.

Up/Down

Arrow

(Scroll)

Keys

Returns to

Previous Screen

1 2

select

back

AIR POOL

78˚

80˚

POOL MODE

POOL HEATER

SPA MODE

SPA HEATER

EQUIPMENT ON/OFF

OFF

FRI 10:30 PM

Selects

Highlighted

Item

Hotkeys

1 and 2

Power

ON/Off

Figure 10. AquaPalm Handheld Remote Buttons

Function

Page 10

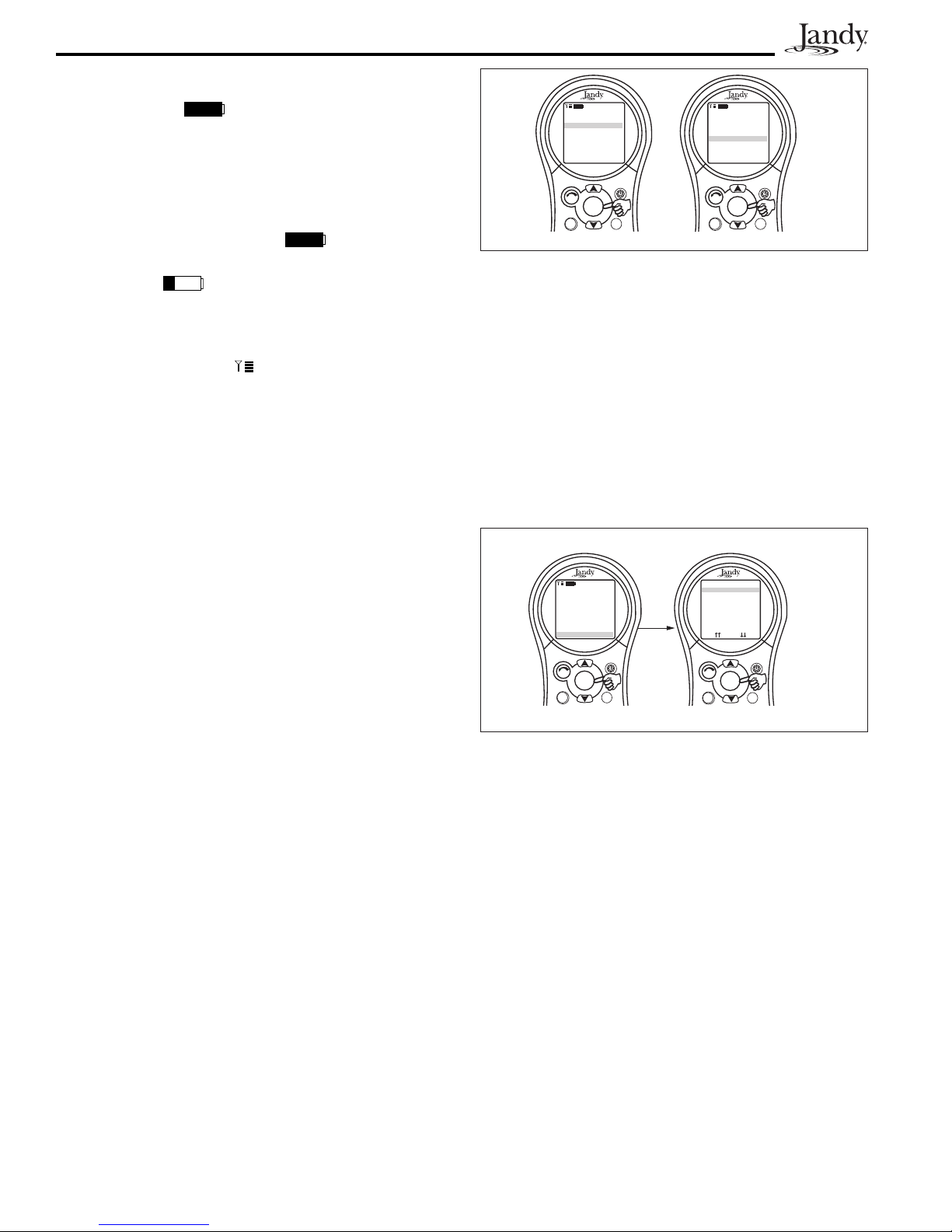

4.3 Battery Status

The Battery icon , located on the left corner of

the display screen, indicates the status of the battery.

The AquaPalm Handheld Remote uses two (2) AA

batteries. The batteries are located behind the cover

on the back side of the Handheld Remote. If the

batteries have full or sufficient charge, the icon will

appear on the display screen as . If the batteries

need to be replaced, the icon will consistently blink

and appear as .

4.4 Signal Strength

The Signal Strength icon , located on the left corner

of the display screen, indicates the signal strength

available from the Transceiver J-box to the AquaPalm

Handheld Remote. Signal strength is affected (lowered)

as the AquaPalm Handheld Remote is moved farther

away from the Transceiver J-Box. Also, obstructions,

such as walls or other wireless products, can lower

the signal strength if located between the AquaPalm

Handheld Remote and the Transceiver J-Box. The

Transceiver J-box must also be installed at least 6 feet

off the ground, 8 feet away from equipment, and the

antenna pointing towards the sky.

Section 5. AquaPalm Handheld

Remote Menus

5.1 Pool Mode/Spa Mode

When POOL MODE is selected, valve actuators

turn the valves to pool return (pool/spa combination

systems) and the filter pump turns on. If POOL HEAT

is enabled, the heater will fire and heat the water to

the set temperature.

When SPA MODE is selected, the valve actuators

rotate to allow flow to the spa (pool/spa combination

systems) and the filter pump is turned on. If SPA

HEAT is enabled, the heater will fire and heat the

water to the set temperature.

Figure 12. Equipment On/Off Menu - All Off

POOL

OFF

select

back

AIR

78°

80°

POOL MODE

POOL HEATER

SPA MODE

SPA HEATER

EQUIPMENT ON/OFF

FRI 10:30 PM

1 2

select

back

EQUIPMENT

ALL OFF

FILTER PUMP

SPA

POOL HEAT

SPA HEAT

AUX 1

AUX 2

AUX 3

OFF

SPA

OFF

ENA

select

back

AIR

104°

80°

POOL MODE

POOL HEATER

SPA MODE

SPA HEATER

EQUIPMENT ON/OFF

FRI 10:30 PM

POOL

ENA

OFF

select

back

AIR

78°

80°

POOL MODE

POOL HEATER

SPA MODE

SPA HEATER

EQUIPMENT ON/OFF

FRI 10:30 PM

Figure 11. Pool Mode and Spa Mode Menus

5.2 Equipment On/Off Menu

EQUIPMENT ON/OFF > ALL OFF

Use this menu to turn a piece of equipment on or

off. The ALL OFF mode will turn off equipment

that has been turned on by any means (manual or

pre-programmed). This includes any of the heater

enables that were on (unless in use by the Maintain

function).

To use Equipment On/Off

1. Highlight EQUIPMENT ON/OFF and press

SELECT. To highlight an item, use the UP/

DOWN arrow keys. Use the SELECT button

to turn the equipment on or off. Return to the

main menu by using the BACK button, or

use the UP/DOWN arrow keys to highlight

another device.

2. Highlight ALL OFF and press SELECT. After

using ALL OFF, return to the main menu by

using the BACK button.

Indice

Altri manuali Jandy Altro

Jandy

Jandy AquaLink RS Manuale utente

Manuali Altro popolari di altre marche

GO Industries

GO Industries 38017 Manuale utente

Cissell

Cissell 30LBCMAN2 Manuale utente

RIDGID

RIDGID K-60SP Manuale utente

Gage Bilt

Gage Bilt GB751SH-5 Manuale utente

OVE

OVE SIERRA 60 Manuale utente

ReelCraft

ReelCraft 7800 OLB21 Manuale utente

Body Armor 4x4

Body Armor 4x4 ECO-SERIES Manuale utente

ROBLIN

ROBLIN DROP Guida utente

EMG

EMG EMG-ACB BARREL Manuale di servizio

MiniSolar

MiniSolar MT-150 Manuale utente

Parkside

Parkside PSZ 250 B2 Manuale utente

ABB

ABB REM 610 Manuale del prodotto

Parkside

Parkside 55992 Manuale del proprietario

Skyjacker

Skyjacker F250 Manuale utente

IBM

IBM IBM SYSTEM Z Guida all'installazione

Grech Motors

Grech Motors G28 Manuale utente

NOVAK

NOVAK BATTERY CARE SHEET Guida

Telemotive

Telemotive blue PiraT Mini Guida utente
