ASSEMBLY INSTRUCTIONS
STEP 01

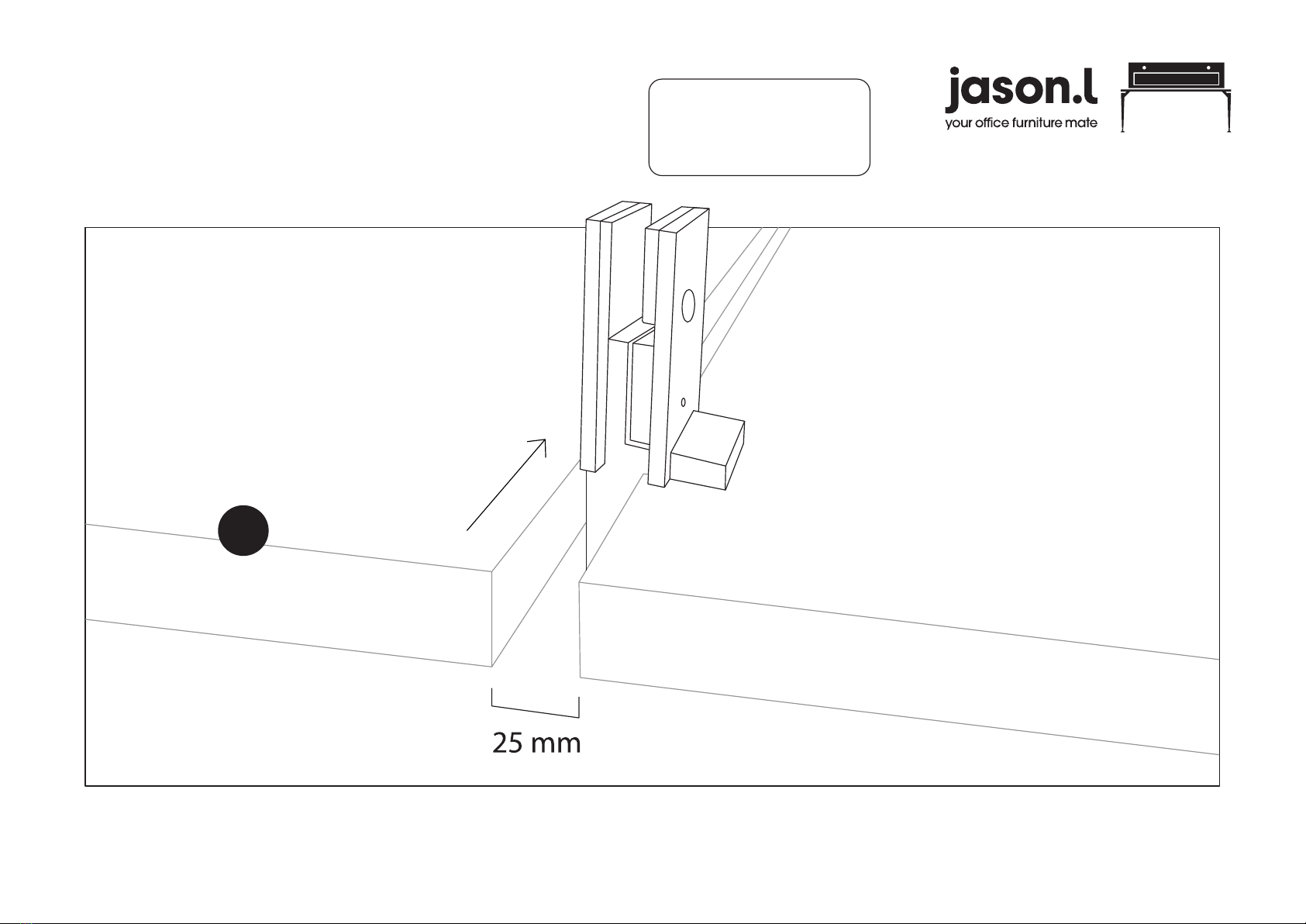

Please leave 25mm gap between table tops (A) so we can install pincer clamp brackets between the two table tops.
Pincer brackets can be installed around 250mm-300mm from the end of the screen (or can be any desired distance).
Echo panel screen
Sizes: 1200 / 1600 mm wide
Need help!
Call us on
1300 527 665
www.jasonl.com.au
Page 2 of 4
ASSEMBLY INSTRUCTIONS
A
Echo panel screen
Sizes: 1200 / 1600 mm wide
Need help!
Call us on
1300 527 665
www.jasonl.com.au
STEP 02 STEP 03
Page 3 of 4

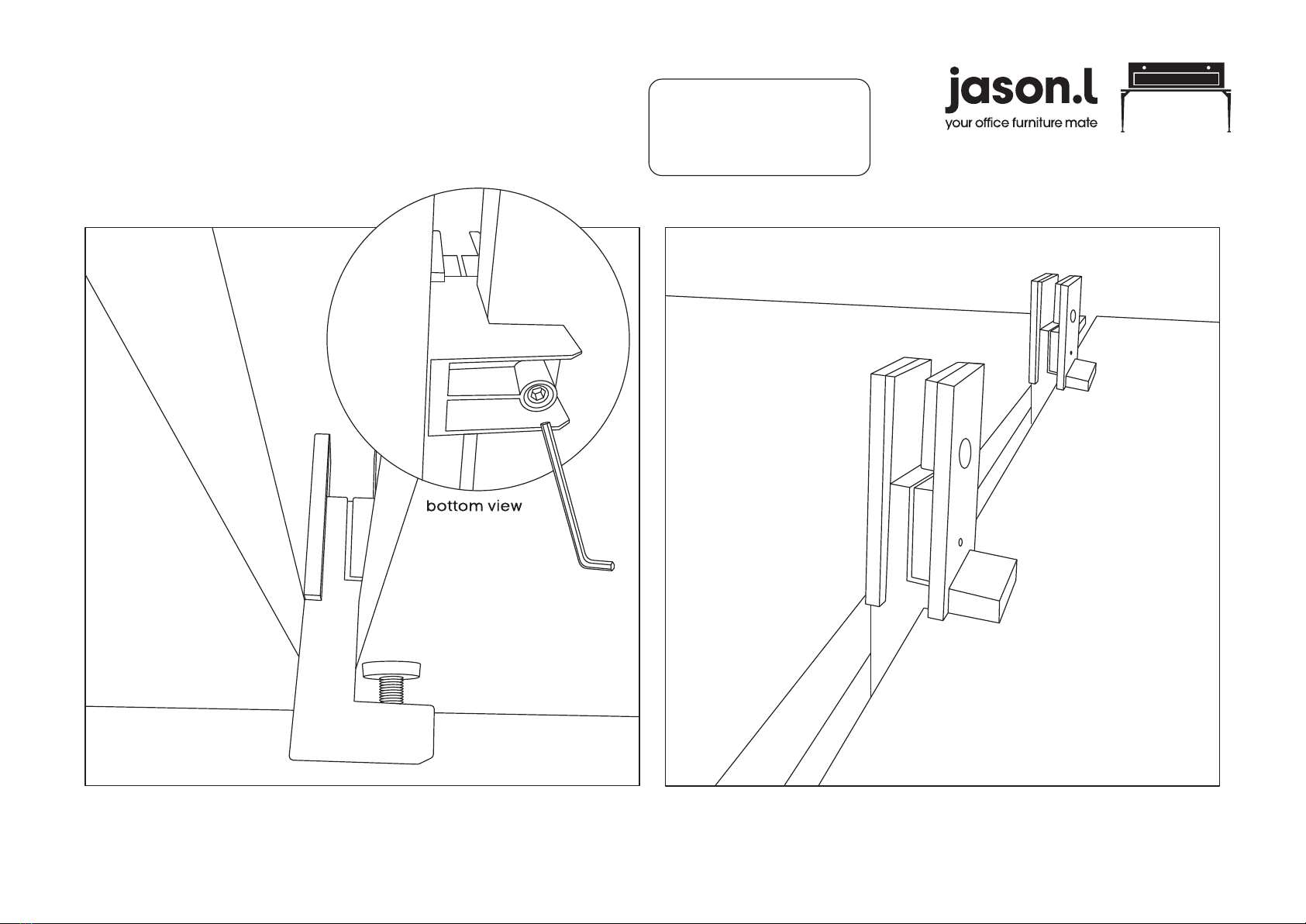

Step 2: Once desired location is set, please tighten the first pincer clamp bracket bottom screw using an allen key.
Step 3: Repeat step 2 and assemble the second pincer clamp bracket.
ASSEMBLY INSTRUCTIONS
STEP 04
ASSEMBLY INSTRUCTIONS
Echo panel screen
Sizes: 1200 / 1600 mm wide
Need help!
Call us on
1300 527 665
www.jasonl.com.au
Step 4: Please put the plastic spacer in between the clamp brackets.
Hint: Echo screen use 1x thick & 1x thin plastic spacer.
Step 5: Please slide down Lean Perspex or Lean Echo screens down until it fully rest over the brackets, standing between the pincer clamp
brackets. Please use both plastic spacer to clamp the screen and tighten it using an allen key.
Page 4 of 4
STEP 05
