JB Systems CD 410 Manuale utente

User’s Guide

Mode d’emploi

Gebruiksaanwijzing

Bedienungsanleitung

Manual de instrucciones

Manual do utilizador

CD 410 2

ENGLISH

NOTE ON USE

Operation manual

•Allow for sufficient heat dispersion when installed on a rack.

•Handle the power cord carefully. Hold the plug when

unplugging the cord.

•Keep the set free from moisture, water and dust.

•Unplug the power cord when not using the set for a long

period of time.

•Do not obstruct the ventilation holes (for sets with ventilation

holes).

•Do not let foreign objects into the set.

•Do not let insecticides, benzene and thinner come in contact

with the set.

•Never disassemble or modify the set in any way.

•Use proper plug for the local outlet.

CD 4103

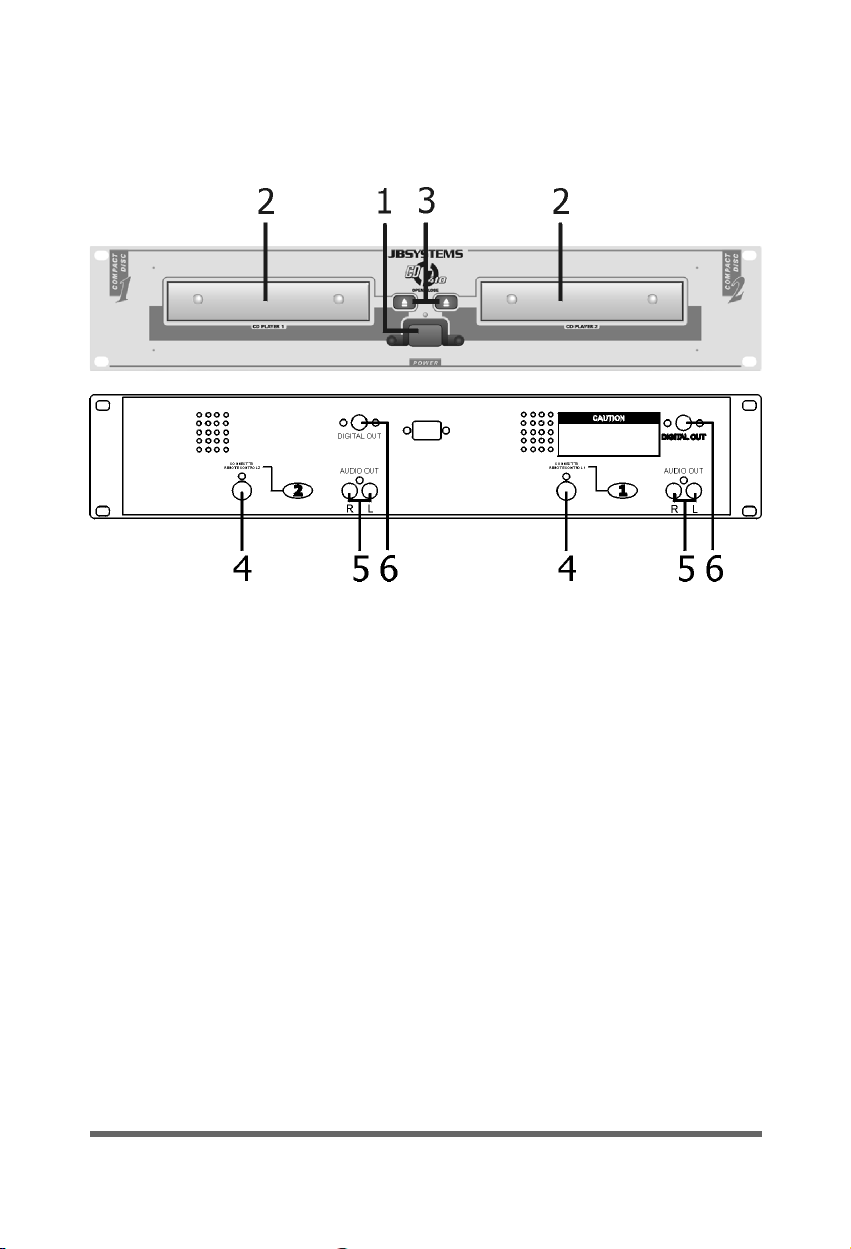

MAIN UNIT

1. Power (Power ON/OFF switch)

2. Disc Holder

3. Open/Close

Press it to open and close the disc holder. The control unit

also includes OPEN/CLOSE button. The disc holder cannot be

opened during playback, so stop playback before pressing the

button.

4. Remote Control Connector

Connect this connector to the control unit using the included

control cord.

5. Audio Out 1 & 2

The audio signals from each player are output from these

jacks.

6. Digital Out Socket

The music signal of this socket is digital. Connect the output

to the respective input of for example a digital amplifier.

CD 410 4

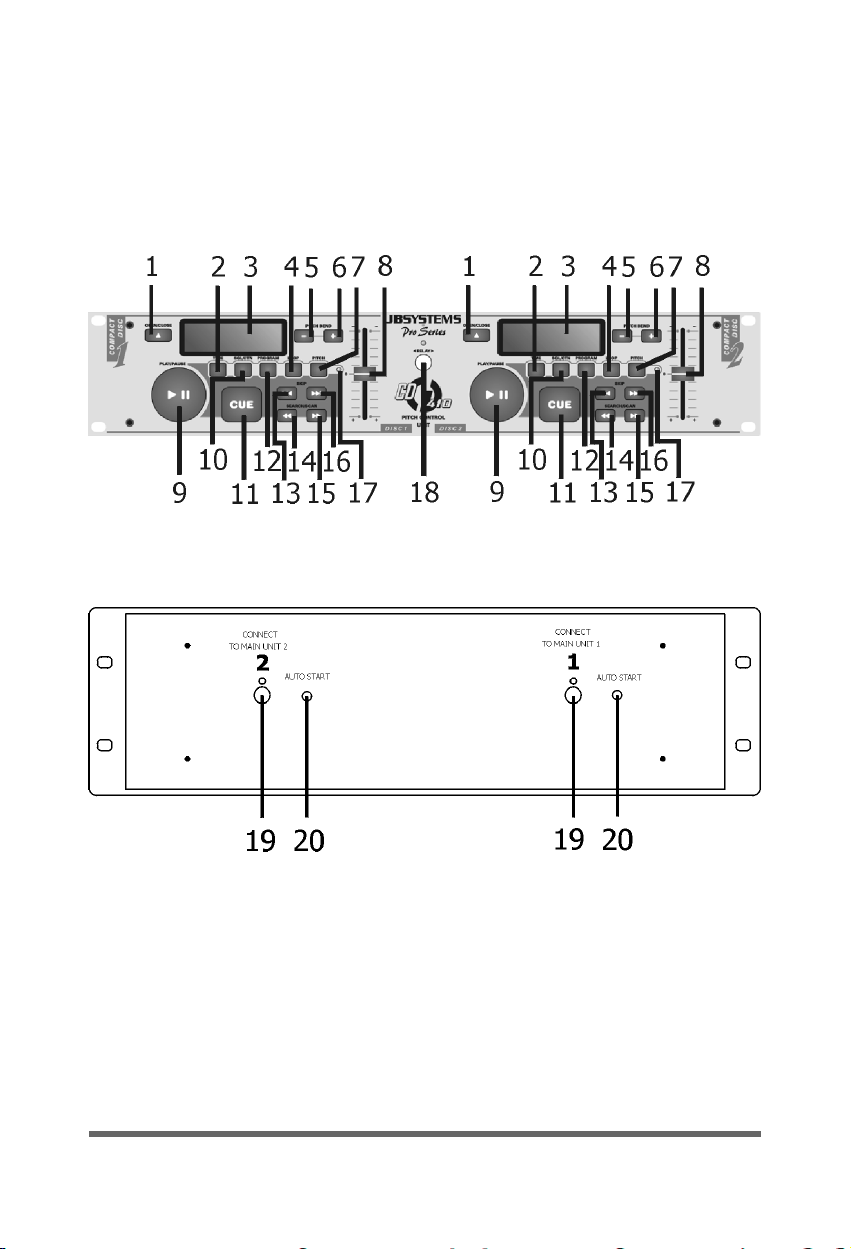

CONTROL UNIT

CD 4105

1. Open/Close

Press it to open and close the disc holder. The main unit also

includes OPEN/CLOSE buttons. The disc holder cannot be

opened during playback, so stop playback before pressing the

button.

2. Time Button

Press this button to switch the time display between the elap-

sed time and remaining time and total remaining time. The

selected mode is indicated by the indicators ‘Elapsed’, ‘Remain’

and ‘Total Remain’ on the LCD.

3. LCD

4. LOOP (Loop Button)

Press the LOOP button to set the loop start point, press the

LOOP button again to set the loop end point.

5. PITCH - Button

The CD slows down while this button is pressed. Release the

button to return to the original BPM.

6. PITCH + Button

The CD speeds up while this button is pressed. Release the

button to return to the original BPM.

7. PITCH (Pitch Button)

Use this button to enable or disable BPM adjustment with the

pitch sliders. BPM adjustment with the pitch sliders is enabled

when the pitch LED lights.

8. Pitch Slider

Use the slider to adjust the CD pitch. Slide up to decrease the

pitch, down to increase the pitch.

9. Play/Pause Button

Use the button to start playback. Press once to start playback,

once again to set the pause mode, and once more to resume

playback.

CD 410 6

10. SGL/CTN (Single/Continuous Button)

Press it to switch between the single and continuous play

modes. The SINGLE mode is indicated by the Single indicator

on the LCD.

11. CUE (Cue Button)

Press the Cue button during playback to return to the position

at which playback started.

12. Program (Program Button)

Press the Program button, the player will enter the program

mode and stop the CD playback.

13. SKIP 

Use this button to go back to the beginning of the current

track or to select a previous track for playing.

14 & 15. Search/Scan & 

Press these buttons to perform frame search function during

pause mode or to perform scan function during play mode.

16. SKIP 

Use this button to skip to the next CD track.

17. PITCH (Pitch Indicator)

Moving the pitch slider will change the pitch but only when

the pitch LED is illuminated.

18. Relay

Press the Relay button to enable or disable the Relay

function. While the Relay is enabled, the LED will light. In the

single mode, the CD player will be paused at the next track

when finished playing the current track. Only the other side

of the CD player that is standby in pause mode will start

playing automatically. There is no Fader start function when

in the Relay mode. Press the Relay button do disable relay

function. The LED will go out when Relay is disabled.

CD 4107

19. Control Connector

Connect this connector to the Remote connector on the main

unit using the included control cord.

20. Auto Start

Via the Control socket, the respective CD player can be

remotely controlled. If you are using a mixer with fader start

function, connect the player with the control out socket. Please

note that these sockets must never be connected with any

voltage.

LED

CD 410 8

21. PLAY Indicator 

The play indicator lights during play mode.

22. PAUSE Indicator 





The pause indicator lights during pause mode.

23. CUE Indicator

The cue indicator lights during cue mode or pause mode,

flashes when cue point is changed.

24. Elapsed Indicator

It indicates that the time shown on the display is the elapsed

time.

25. Total Indicator

It indicates that the time shown on the display is the Total

Remaining time of playback.

26. BAR Indicator

These ten indicators provide a visual display of the approxi-

mate position of the pickup within the current track.

27. Remain Indicator

Indicates that the time shown on the display is the remaining

time of the playing track.

28. Single Indicator

When the indicator lights, playback will stop at the beginning

of the next track.

29. Program Indicator

The program indicator lights when the program mode is set.

30. Pitch Indicator

When the indicator lights, the pitch mode is enabled.

31. Loop Indicator

When the indicator lights, the loop mode is enabled.

32. - 35. Track, Minute, Second & Frame Displays

These displays indicate information on the CD’s current

position and time.

CD 4109

36. Pitch Display

It shows the BPM change range, the BPM changes within a

range of ± 10%.

Specifications

Power Source: ....................AC 230V, 50Hz, 25W

Dimensions:

Main unit:...........................482 (W) x 88,8 (H) x 251 (D) mm

Control unit: .......................482 (W) x 88,8 (H) x 60 (D) mm

Weight:

Main unit:...........................5 Kgs

Control unit: .......................2 Kgs

CD 410 10

FRANCAIS

AVANT L’USAGE

Mode d’emploi

• L’endroit de placement de l’installation doit être choisi avec

extrême prudence. Evitez des sources de chaleur (par ex. des

amplis). Evitez les vibrations et des endroits poussiéreux,

humides, etc. Evitez aussi la fumée (cigarettes et autres).

• Soyez extrêmement prudent dans le traitement de vos disques.

Ne touchez jamais vos disques avec des mains sales ou

humides.

• Des disques sales doivent être nettoyés prudemment et

seulement avec des tissus et des produits spécialement conçus

dans ce but.

• Remettez vos disques directement dans leur étui après

utilisation.

• Ne mettez jamais vos disques au soleil ou à proximité d’une

source de chaleur. Ceci peut les rendre inutilisables.

• Des disques trop dégradés (griffés/déformés) ne peuvent pas

être mis dans votre appareil.

• Quand l’appareil passe d’un espace froid à un espace chaud, on

a des problèmes de condensation sur la lentille laser. Dans ce

cas, votre CD ne marchera pas. Il faut brancher l’appareil sans

le faire jouer. La condensation partira au bout de quelque

temps (+/- 1 heure).
