JBL EON518S/230 Manuale utente

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL EON518S/230 REV I

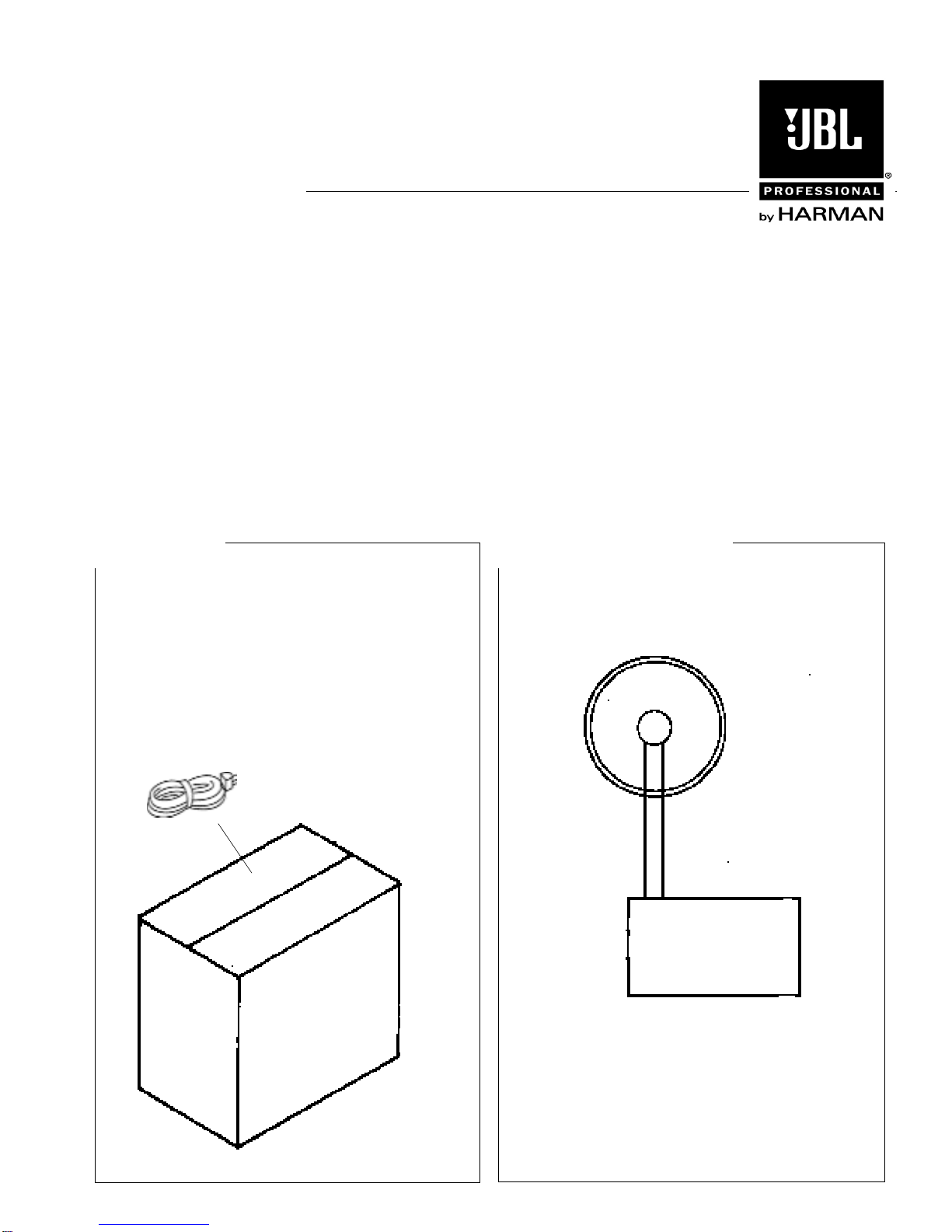

PACKAGE WIRING DIAGRAM

12-12

Technical Manual

JBL EON518S/230

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Systen Power Rating: 500W continuous, 1000W peak

• Frequency Response: 42 Hz –100 Hz (±3 dB)

• Frequency Range: 36 Hz -130 Hz (-10 dB)

• Input Gain: - infinity to +4 dBu

• Input Impedance: Nominal 20K ohms (balanced)

• Maximum SPL: 129 dB, 1 watt @ 1 meter

• Crossover Frequency: 120 Hz (HPF switchable on outputs)

SYSTEM COMPONENTS:

• Cabinet Enclosure (Not for Sale)

• Baffle/Grille Assembly: 441958-001

• Low Frequency 268G, 460 mm (18 in) Differential

Transducer: Drive® integated woofer with dual

voice coils, 4 ohm impedance

• DC Resistance: 2.60 ohm ±10%

• Input Connectors: Balanced XLRs with loop through

SYSTEM COMPONENTS:

(CONT’D)

(stereo) to balance XLR satellite

outputs. 1/4” Speaker level input

• XLR Pin Assignments: Pin 2 (+), Pin 3 (-), Pin 1 (GND)

• Suspension/ Mounting: 36 mm pole socket on the top

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 500mV Input, 20 Hz to 500 Hz

Sweep Duration: 5 seconds

B. L.F. Aural Sweep Test: 3.5V Input, 10 Hz to 300 Hz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 617 x 569 x 652 mm D

(24.3 x 22.4 x 25.7 in D)

• Shipping Weight: 65 lb (29.5 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Driver, Low Freq.

268G

(364481-001X)

Cone Repl

C4R268

RED

BLK

Amplifier Assembly

Warranty 59660

Owner’s Manual

364822-001

(Available on

web-site only)

Top / Bottom Inner, (2)

364817-001

PKG, Microfoam

49790P

20” x18” sheets

Carton

364816-001

Cord, AC, Line

425-00000-00 120V

425-00000-01 230V

JBL EON518S/230

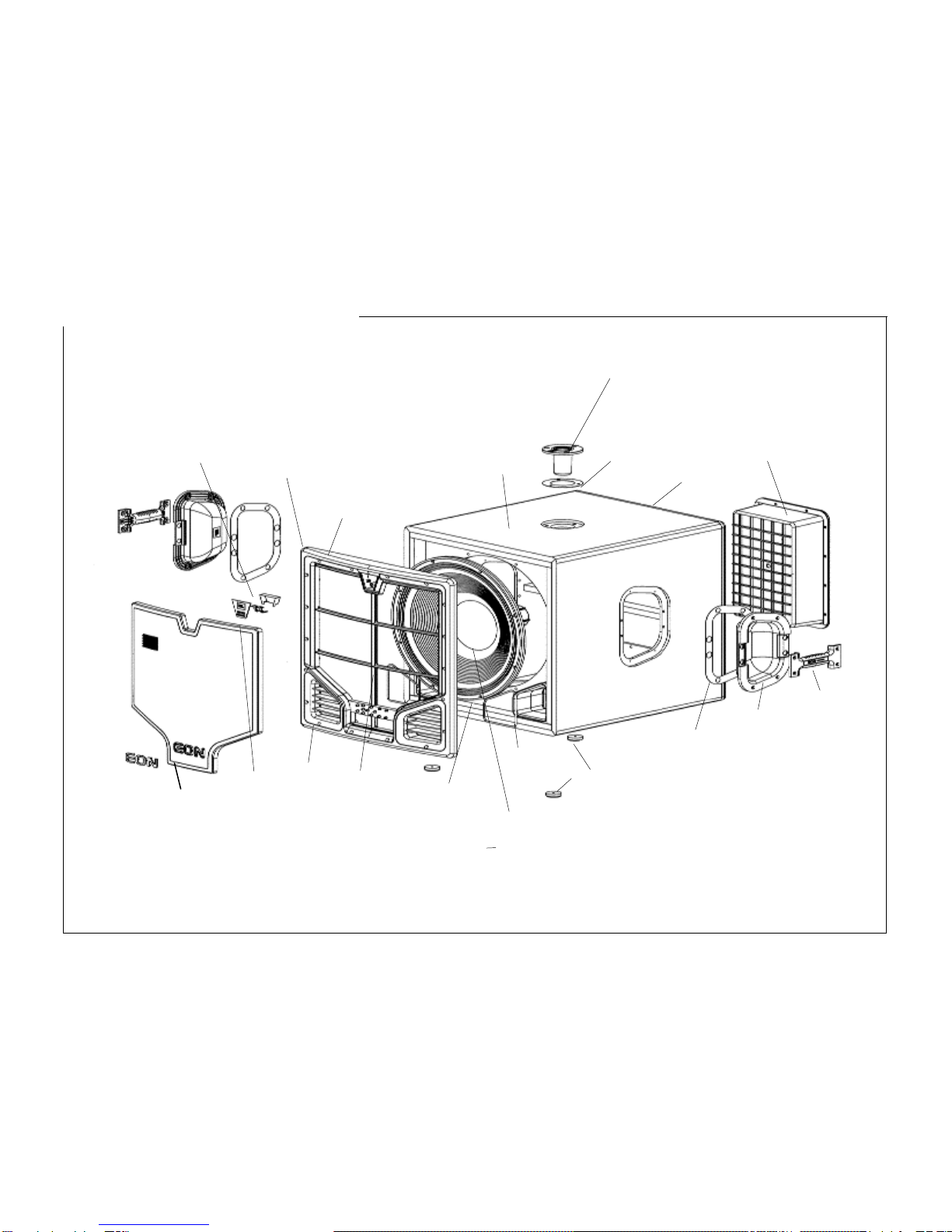

COMPONENT EXPLODEDVIEW JBL EON518S/230

Screw (15)

884-41110-12

10-32

PAN,PH,PB

BLK ZINC,

LCS

Screw (18)

365008-060

60mm, M5 SOCHD,PB

(short bezel)

Stick-on, Bumper

350922-001

Blk

Driver, Low Freq.

268G

(364481-001X)

Cone Repl

C4R268

Screw (8)

804-01110-16

10-32 x 1

FIL,PH,BLK ZINC,

LCS

Gasket, Port (2)

365447-001 Foot (4)

353445-001

Screw (4)

884-41110-12

10 x 3/4

PAN,PH,PB, BLK

ZINC, LCS

Handle Cup (2)

364854-001

Screw (8)

365008-020

20mm, M5

SOCHD, PB

Gasket, Handle (2)

443367-001

Handle Bar

Assembly (2)

364855-001

Screw (8)

815-73414-15

M5x0.8x15MM

SOCHD,HEX-

SOCK-BLK

Amp Board Screw (12)

442983-001 804-41110-12

10-32 x 3/4

Input Module PAN,PH,BLK,

443226-001 ZINC,LCS

AC Inlet PCB Amplifier Gasket

443228-001 364811-001

SMPS

443227-001

Enclosure Assembly

EON518S

(Not Available for

Sale)

Pole Cup

443406-001

Screw (3)

806-41010-20

1/4-20 x 1/14

FLT,PH,UNC,

BLK,ZINC,LCS

Gasket,

364808-001

(pole cup)

Screw

802-41010-12

6-32 x 3/4

PAN,PH,PB,

BLK ZINC,

LCS

(Logo)

KURLY LOK (2)

925-00005-01

Dust Dome

71133-03

Gasket,Rear (4)

60578

18” cork

adh/back

Baffle/Grille Assembly

441958-001

(inlcudes EON logo)

Bezel

364423-001

Screw (4)

365008-060

60MM, M5 SOCHD,PB

Short Bezel

Logo Assembly

365393-001

Defuser Logo

364810-001

Logo Terminal Plate

Assembly

365170-001

Please note:grille assembly

is not available seperately
