Technical Manual

S1S-EX Synthesis One/Hercules

AURAL SWEEP TEST SPECIFICATIONS:

• L.F. Aural Sweep Test 15.0V Input 16Hz to 250Hz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions 34-1/2" x 21" x 22"

(H x W x D) (876mm x 533mm x 559mm)

plus knobs

• Weight 129 lb (58.5kg) Each

WARRANTY:

• Refer to Warranty Statement packed with each product.

* The maximum recommended amplifier power rating will

ensure proper system headroom to allow for occasional

peaks. We do not recommend sustained operation at

these maximum power levels.

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance 8Ω

• Max Amp Power 800 watts*

• Frequency Response 20Hz – 200Hz

• Sensitivity 97dB @ 50Hz

SYSTEM COMPONENTS:

• Low-Frequency Transducer 2242HPL 18" (457mm)

Cone transducer

301361-003

DC Resistance 4.7 ohms ±10%

S1S-EX Synthesis One/Hercules

JBL Consumer Products, 250 Crossways Park Drive, Woodbury, New York 11797

7/04

Legend on Page 2

2

1

2

4

X4

3

PACKAGING

L.F.

INPUT

27" GRN

27" GRN/BLK

S1S-EX SCHEMATIC

TERMINAL CUP

352303-001

GRN/BLK

GRN

—

+

LOW-FREQUENCY

TRANSDUCER

301361-003

Technical Manual

S1S-EX Synthesis One/Hercules

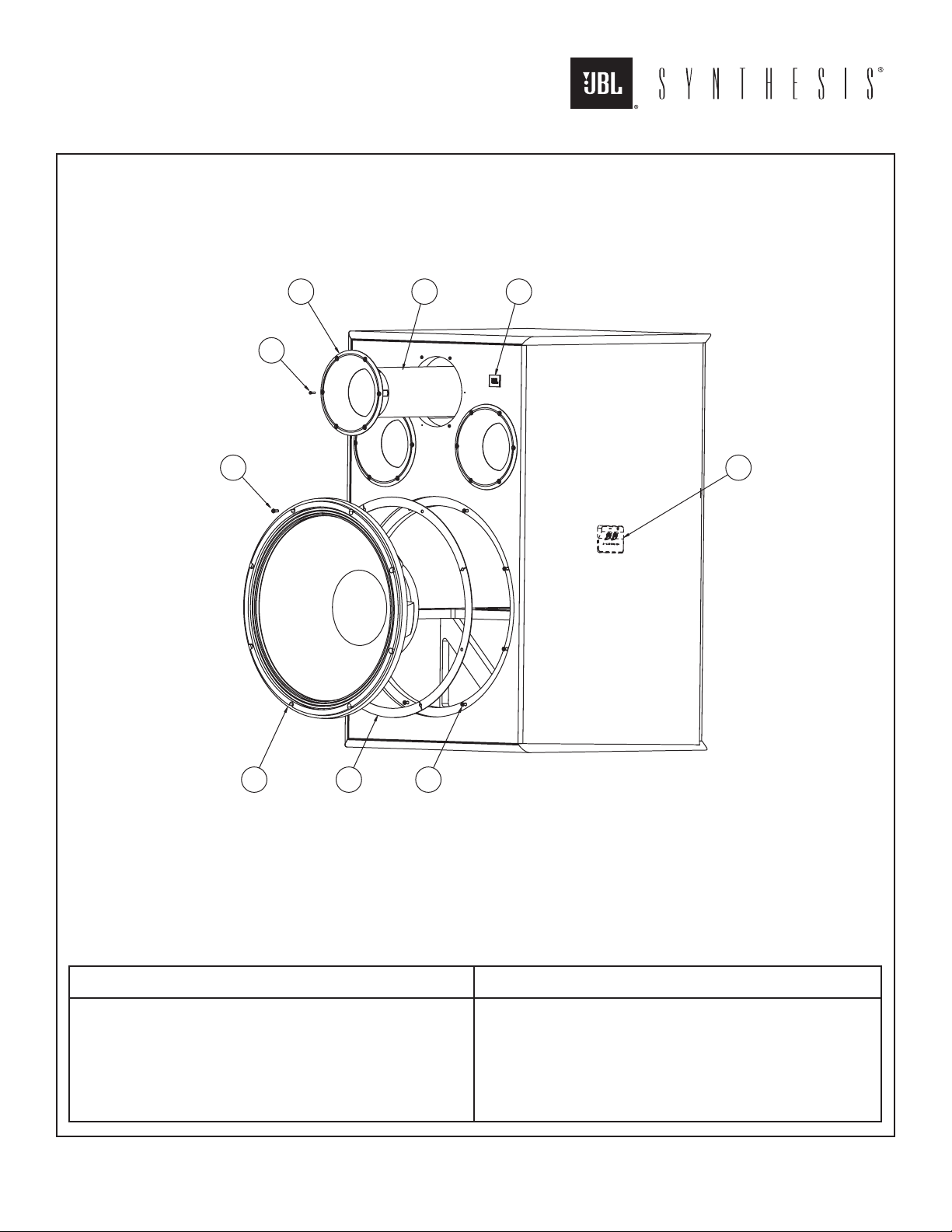

EXPLODED VIEW

ITEM

NO. DESCRIPTION QTY. PART NO.

1. Master Carton S1S-EX 1 352304-001

2. End Pad, Top and Bottom 2 352612-001

3. Glide, 3/4" Dia x 3/8"H Black 4 72370

4. 5 Year Warranty 1 338322-001

5. Terminal Cup Wire Assembly 12AWG 1 352303-001

6. Port, Flare 6 352336-001

7. Port Tube, Plstc 3 352337-001

8. Woofer 1 301361-003

ITEM

NO. DESCRIPTION QTY. PART NO.

9. Screw (woofer) 8 804-01110-20

10-32 x 1 1/4, FIL, PH, BLK ZINC, LCS

10. Screw (port tube/term cup) 22 903401-012

6 x 3/4, PAN, PH, PB, BLK ZINC, LCS

11. Woofer Gasket, 2240H 4 60578

12. JBL Logo Plate 1 48003-01

13. Woofer T-Nut 8 61861

10-32x7/16, Step Barrel

10

9 5

811 13

6 7 12

S1S-EX Synthesis One/Hercules

JBL Consumer Products, 250 Crossways Park Drive, Woodbury, New York 11797

7/04
