JBL VT4886 Manuale utente

06-11

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBLVT4886

REV K

PACKAGE

Technical Manual

JBLVT4886

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Bandpass Nominal 12 Ohms (drivers wired in series-parallel,

Impedance: passive network)

• System Input Power 900W Continuous, 3600W Peak

Rating: (AES / 2 hour)

700W Continuous, 2800W Peak

(100 hour)

• Frequency Response: 75 Hz- 18 kHz (±3 dB)

• Frequency Range: 65 Hz- 20 kHz (-10 dB)

• Maximum Peak Output: 136 dB SPL, 1 Meter

• Bandpass Sensitivity: 101 dB, 1 Watt @ 1 Meter

• Recommended 1400-1800W at 12 Ohms (single encl.)

Amplification: 2800-3600W at 6 Ohms (two enclosures

in parallel)

4200-5400W at 4 Ohms (three enclo-

sures in parallel)

5600-7200W at 3 Ohms (four enclosures

in parallel)

• Recommended Signal Crown®I-Tech HD, Crown I-Tech, dbx®

Processing: DrivePack® 4800, BSS Audio™ FDS-366T

Omnidrive™, BSS Audio Soundweb™

London

• Crossover Frequency: 375 Hz and 1.6 kHz

SYSTEMS COMPONENTS:

• Cabinet: Enclosure Assembly C4886

• Grille: 442452-001

• Low Frequency (2) 2166H, 165 mm (6.5 in) dia, 50 mm

Transducer: (2 in) Dual Coil, Dual Magnet Neodymium

Differential Drive®, Direct Cooled™

• DC Resistance: 5.0 ohms ± 10%

• Mid Frequency (4) 2103G, 101 mm (2.5 in) with 25.4

Transducer: mm (1 in) dia. voice coil and Neodymium

magnet

SYSTEMS COMPONENTS:

(CONT’D)

• DC Resistance: 2.2 ohms ± 10%

• High Frequency (2) 2414H, 25 mm (1 in) exit com-

Transducer: pression driver, Neodymium magnet,

38 mm (1 in) voice coil

• DC Resistance: 3.60 ohms ± 0.2 ohm

AURAL SWEEPTEST SPECIFICATIONS:

A. System Aural Sweep Test: 15V, 50 Hz to 20 kHz

B. LF Woofer Sweep Test: 10V, 10 Hz to 300 Hz

C. MF Woofer Sweep Test: 4V, 100 Hz to 1000 Hz

D. HF Driver Sweep Test: 0.75V, 500 Hz to 1.5 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 197 x 579 x 261 mm D

(7.8 x 22.8 x 10.3 in. D)

• Net Weight: 34 lb (15.4 kg)

• Shipping Weight: 38.5 lb (17.5 kg)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

Specification Sheet

443674-001

JBL VT4886-AF

Carton

445033-001

Corner Protector, (4)

445034-001

PKG, Microfoam (6)

49790P

20” x 18” Sheets

Carton

445209-001

Filler (2)

445208-001

PKG, Microfoam (2)

49790P

910-00035-01 (1)

Ferro fluid vial w/

blotter paper and

instruction sheet

910-00035-02 (12)

Ferro fluid vials w/

blotter paper and

instruction sheet

JBLVT4886

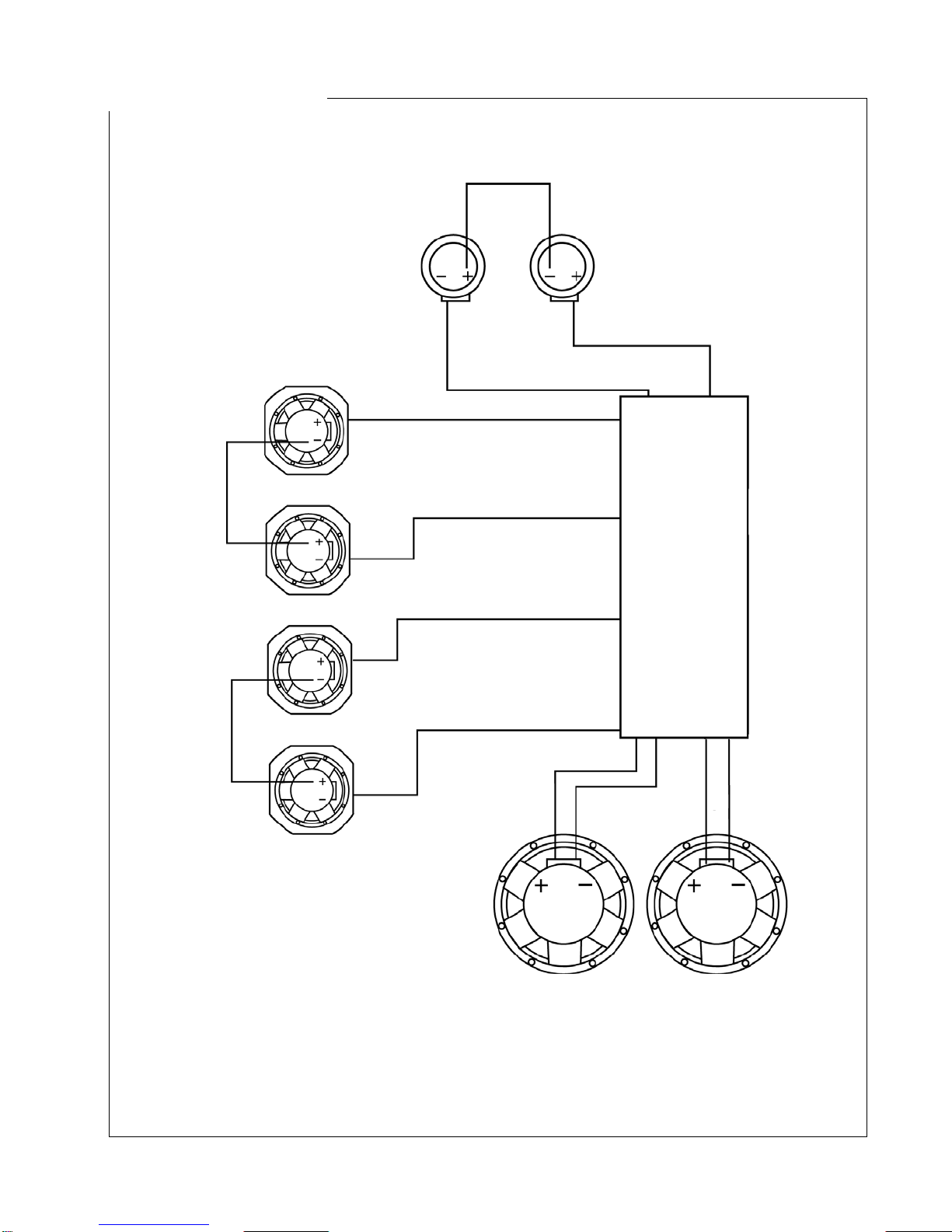

WIRING DIAGRAM

No. 1 No. 2

No. 1

No. 2

No. 3

No. 4

No. 1 No. 2

Network

443492-001

Wire Harness

443670-002

Driver, Low Freq. (2)

2166H

(442216-001X)

Cone Repl

C8R2166

GREEN

GRN / BLK GREEN

GRN/BLACK

Driver, High Freq (2)

2414H

(342423-002X)

Driver, Mid Range (4)

2103G

(442205-001X)

WHITE

WHITE / BLK

BLK

W/WHITE

STRIP

BLK

W/WHITE

STRIP

WHITE

WHITE / BLK

YELLOW/BLACK

YELLOW

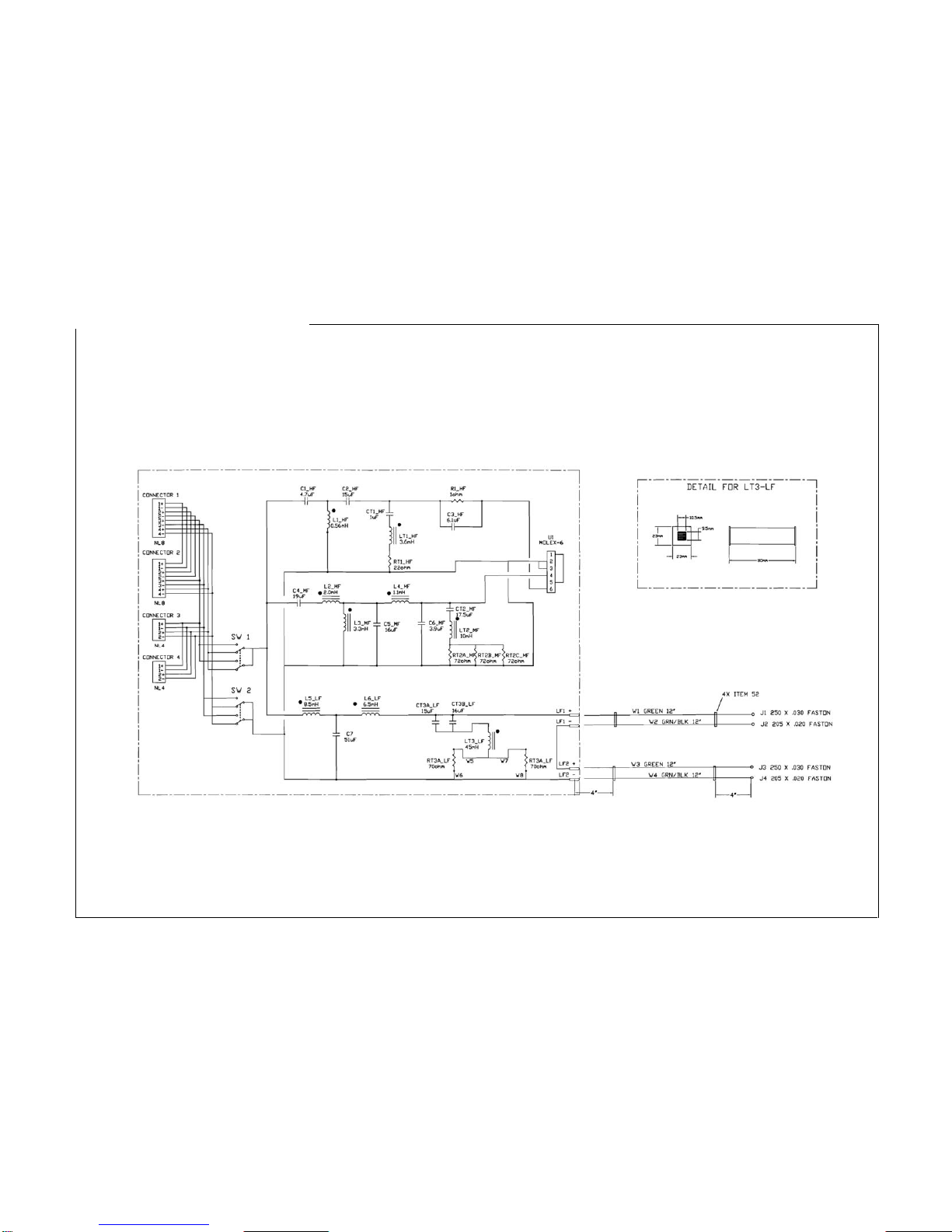

JBL VT4886

SCHEMATIC (44392-001)

JBL VT4886

Network

NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAIABLE.

A COMPLETE RERPLACEMENT ASSEMBLY SHOULD BE ORDERED

10W

20W 20W 20W

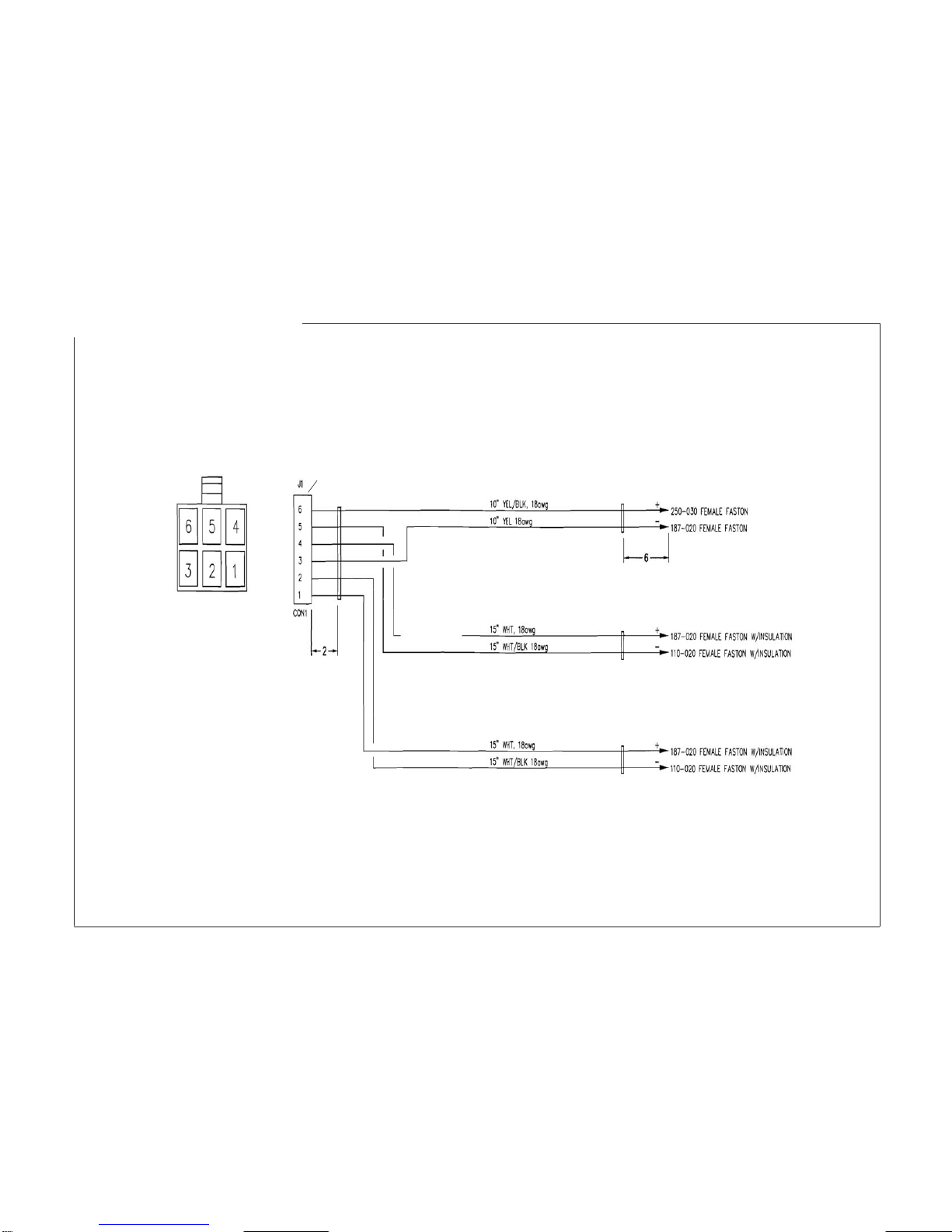

DIAGRAM (443670-002) JBL VT4886

JBL VT4886

Molex: #39-01-2065

Cable Mount

Wire Harness

Grille (2)

442452-001

Screw (16)

801-51010-04

4-40 x 1/4

OVAL,PH,

BLK ZINC,LCS

Grille

Standoff

(16)

443553-001

Threadlock

352951-001

9 Gram Stick

Loctite 248

Gasket,(2)

443514-001

Mid Cup

Handle Grip (2)

444163-001

Screw (4)

803-41010-10

8-32 x 5/8

PAN,PH,BLK

ZINC,LCS

Network Assembly

443492-001

Screw (10)

873-13014-08

8-32 x 1/2

FLT,SOC,BLK

ZINC,ALL

Screw

443996-001

1/4-20 x 5.5

FLT,

SOCKET

BLK

Bumper (4)

443552-002

Screw (8)

801-31010-05

4-40 x 5/16

TRUSS,PH,

BLK ZINC

LCS

Left RBI (2)

443946-001

Screw (8)

801-51010-04

4-40 x 1/4

OVAL,PH,BLK

ZINC,LCS

Driver, Low Freq. (2)

2166H

(442216-001X)

Cone Repl

C8R2166

Screw (8)

803-41010-08

8-32 x 1/2

PAH,PH,BLK ZINC,

LCS

Gasket (2)

443512-001

Dome (2)

31305-10

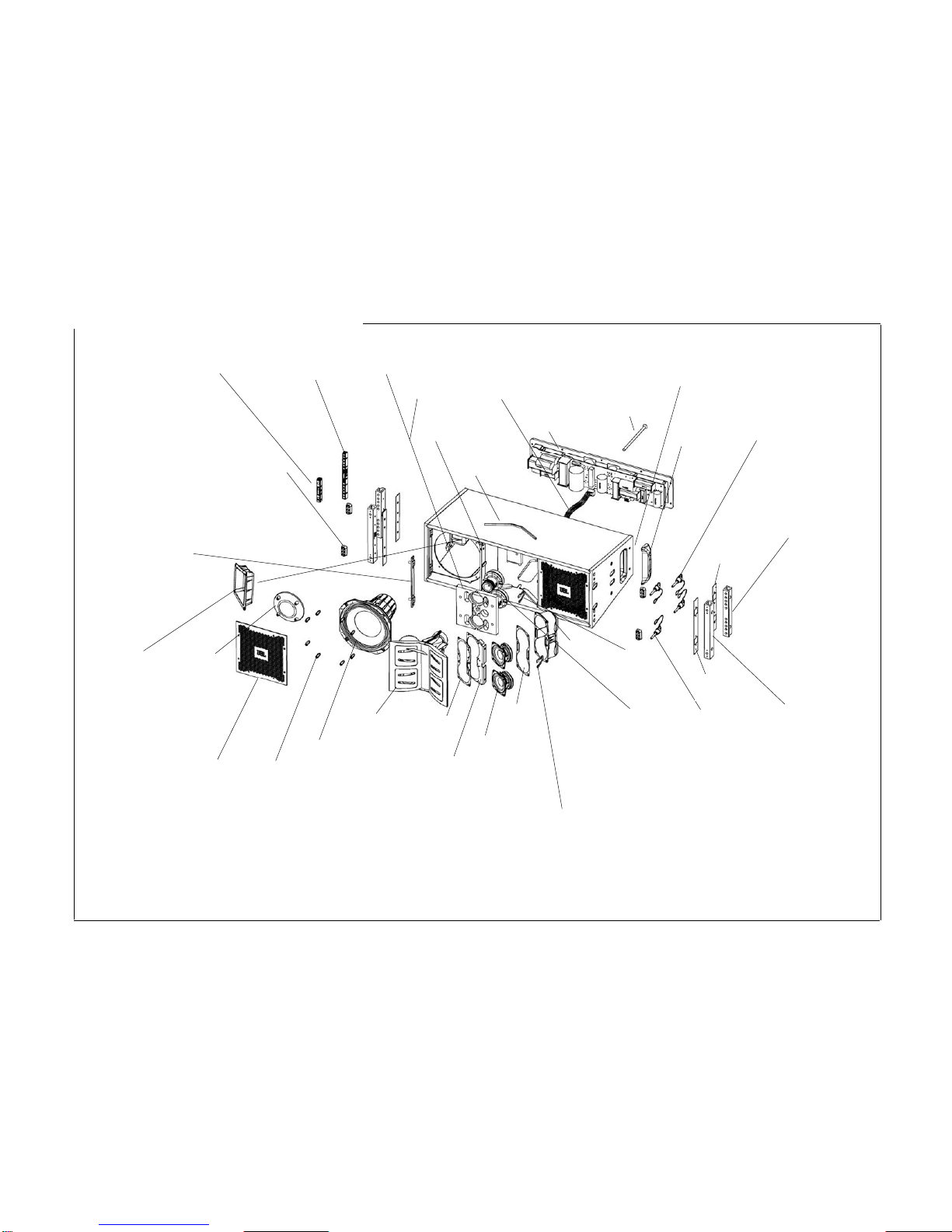

JBL VT4886

COMPONENT EXPLODEDVIEW

JBL VT4886

Wire Harness

443670-002

Enclosure Assembly

C4886 (Available to

VerTec Dealers and

Service Centers)

Gasket (2)

443513-001

Bracket,

Horn/Mid,(2)

444666-001

Screw (4)

803-111010-08

8-32 x 1/2

FLT,PH,BLK

ZINC,LCS

443394-001

Horn Assembly Driver,

Midrange (4)

2103G

(442205-001X)

Dome (4)

66136-002 Jumper,Mid (2)

443673-002

Mid Cup,(2)

443409-001

Plug,Cup

Midrange (2)

333050-002

Screw (16)

872-33004-09

6-32 x 9/16

CAP

Washer (16)

841-03100-00

SPLIT #6,

CLR ZINC

Driver,

High Freq.(2)

2414H

(342423-

002X)

Gasket

338463-001

(clocking)

place gasket

between the

H/F driver and

horn to align

termials with

plate

Jumper,HF

443672-001

Ball Lock Pin (4)

444618-002

Screw (4)

802-41010-02

6-32 x 1/8

PAN,PH,BLK

ZINC, LCS

*Shim,Front

444242-002 Suspension

Tube, Front (2)

444619-002

Screw (4)

873-13014-14

8-32 x 7/8#

FLT,SOC,

BLK ZINC,AL

Threadlock

352951-001

9 Gram Stick

Loctite 248

*Shim,Front

Suspension

Tube,Rear (2)

444612-002

Screw (4)

873-13014-14

8-32 x 7/8#

FLT,SOC,

BLK ZINC,AL

Threadlock

352951-001

9 Gram Stick

Loctite 248

**Shim,Rear

444243-002

Ball Lock Pin (4)

444618-002

Screw (4)

802-41010-02

6-32 x 1/8

PAN,PH,BLK

ZINC, LCS

Gasket,Horn(2)

444698-001

Gasket,

Baffle Edge (2)

444697-001

Baffle,HF

444683-001

(Horn)

61861 (4)

10-32 x

7/16

Step Barrel

Screw (4)

804-41110-12

10-32 x 3/4

PAN,PH,BLK

ZINC,LCS

Hinge Assembly

Rear (2)

444613-001

0-Ring,Hinge

444853-001

(100 pcs)

Hinge Assembly

Front (2)

444614-001

0-Ring,Hinge

444853-001

(100 pcs)

Threadlock

352951-001

9 Gram Stick

Loctitie 248

Screw (2)

873-33014-10

8-32 x 5/8

SCKTCAP,HEX

BLK ZINC

(Slider Knob)

Bracket,

Front Rigging (2)

443477-001

Screw (8)

804-11110-10

10-32 x 5/8

FLT,PH,BLK

ZINC, LCS

Plastic Handle

Cup (2)

442476-001

(located in the

side panels)

Screw (2)

882-41110-06

#6x.375

PB,PPH,BLK

Screw (8)

883-41110-08

8 x 1/2

PAN,PH,PB,

BLK ZINC,

LCS

Inserts (4)

8161207-001

8-32x4MM,

HXS,KNIFE326

D08x10zc

Screw (4)

882-41110-06

PB,PPH,#6x

.375,BLK,

Shoulder Nut

Shoulder Nut,

Rigging (4)

441870-001

Washer (4)

843-00110-06

10 x .06

FLT,PL,REG,

BLK ZINC,CS

Panel, Front

445430-001

Panel, Front

445430-002

(No CSink)

Panel, Side (2)

445431-001

Lifting Bar Short

445500-001 Center Bracket (4)

445435-001

Front Hinge Bracket (2)

445271-001

Front Hinge Bracket (2)

445271-002

Rear Hinge Bracket (2)

445273-001

Screw (4)

803-41040-05

8-32 x 5/16

PAN,PH,BLK OXCIDE

LCS

Threadlock

352951-001

9 Gram Stick,

Loctite 248

Pin, Ball Lock (4)

444618-001

1/4 dia x 0.960

Front Hinge

Bracket (2)

445271-002

Label

445475-001

Screw (8)

444723-002

1/4-28 x 5/8

Socket, Flat Cap BK

Adhesive

444866-001

Loctitie 27131

Screw (8)

444723-002

1/4-28 x 5/8

Socket, Flat Cap BK

Adhesive

444866-001

Loctitie 27131

Screw (4)

444723-002

1/4-28 x 5/8

Socket, Flat Cap BK

Adhesive

444866-001

Loctitie 27131

Screw (4)

444723-007

1/4-28 x 1

Socket,Flat

Cap BK

Adhesive

444866-001

Loctitie 27131

Screw (2)

444723-007

1/4-28 x 1

Socket,Flat

Cap BK

Adhesive

444866-001

Loctitie 27131

Screw (2)

444723-007

1/4-28 x 1

Socket,Flat

Cap BK

Adhesive

444866-001

Loctitie 27131

Hinge Assembly, Front (2)

444614-001

Carton Filler (2)

445478-001

Carton

445477-001

Filler, Hinge

445893-001

PKG, Microfoam (2)

49790P

Warranty Card

59660

Manual

445479-001

VT5886-DF

Rear Pull Bracket

445502-001

Screw (2)

444723-009

5/16-24 x 5/8

SOCKET FLAT

CAP BLK

Adhesive

444866-001

Loctitie 27131

Screw (2)

444723-009

5/16-24 x 5/8

SOCKET FLAT

CAP BLK

Adhesive

444866-001

Loctitie 27131

Rear Hinge (2)

445374-001

Hinge Storage Bracket

445396-001

Shoulder Screw

44530-001

10-32 x .38

Slider

445405-001

Screw (2)

445884-001

8-32

SST, 5/16

Foam Pad

445412-001

#10 Nylon Washer

843-00151-05

Pin, Ball Lock

444618-003

Screw

804-41110-06

10-32 x 3/8

PAN,PH,

BLK ZINC

LCS

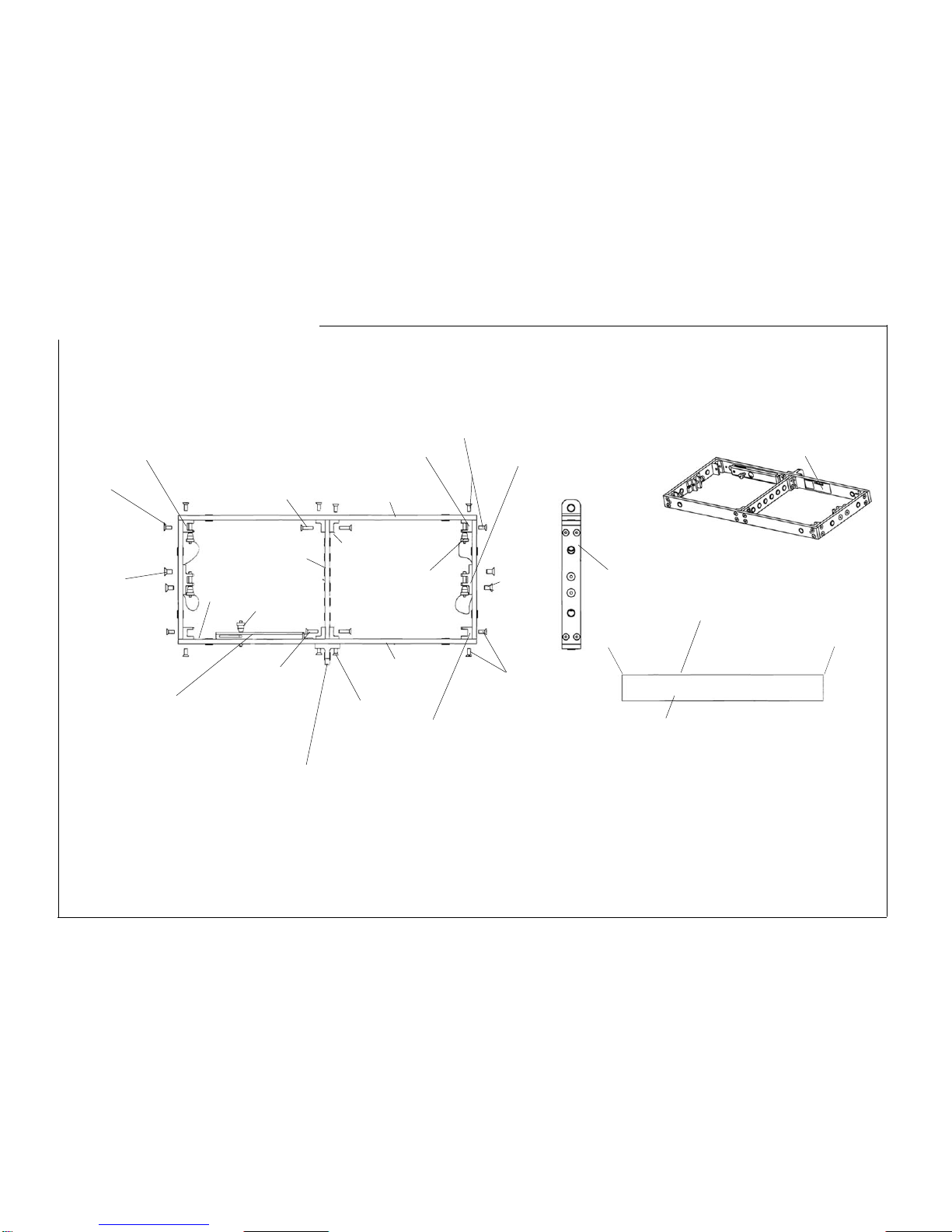

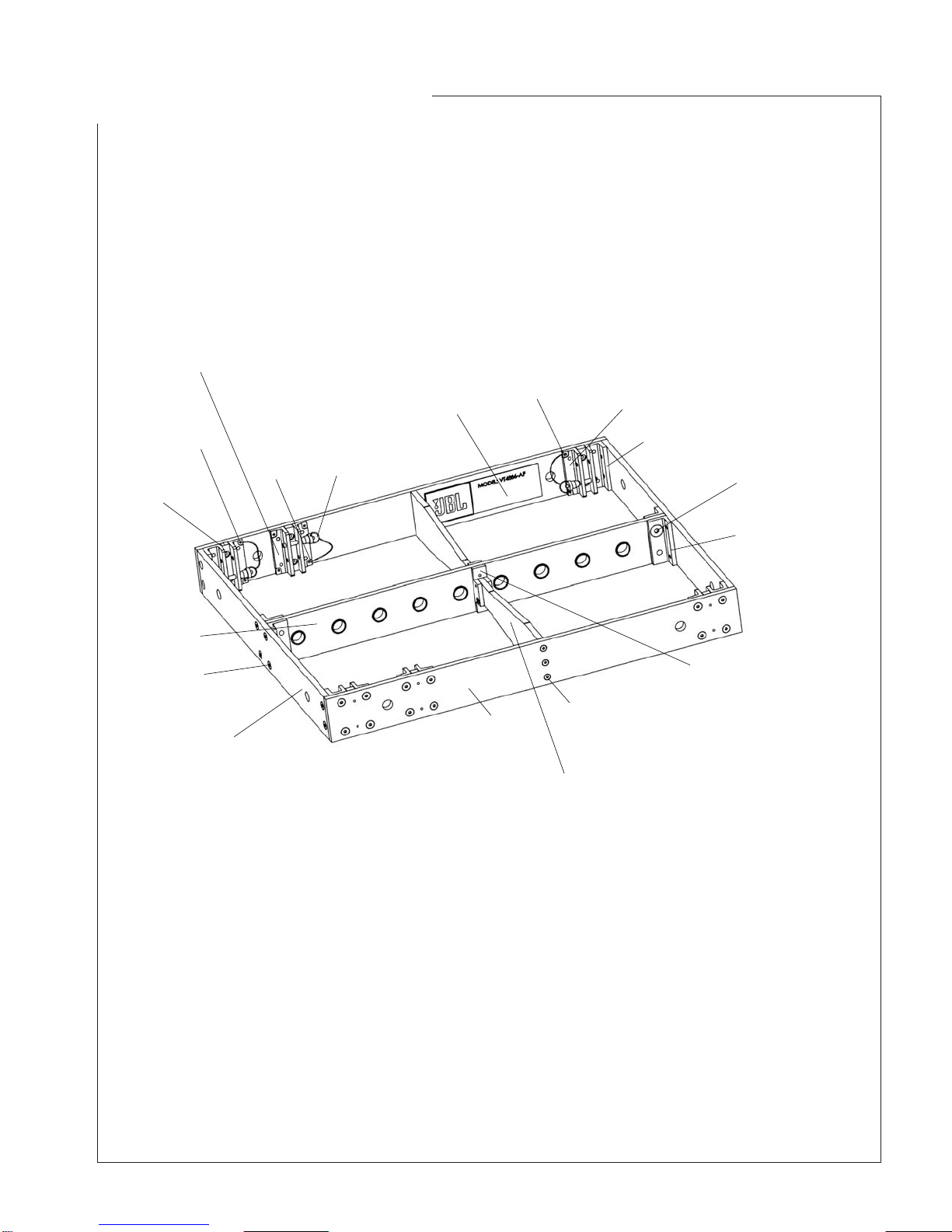

ARRAY FRAME ASSEMBLY JBL VT4886-SF

JBL VT4886-SF

ARRAY FRAME ASSEMBLY

JBL VT4886-AF

Lifting Bar

442299-001

Screw (40)

444723-002

1/4-28 x 5/8

SOC,FLT

ALLOY,BLK Screw (6)

444723-001

10-32 x 7/8

SOC,FLT,

ALLOY,BLK

JBLVT4886-AF

Front/Back Bar (2)

442300-001

Side Bar (2)

442300-001

Twist Support Bar (2)

444720-001

Bracket, U, Twist

Support Bar (2)

444719-001

Screw (6)

444723-001

10-32 x 7/8

SOC,FLT,

ALLOY,BLK

Bracket Lifting Bar (4)

444511-001

Screw (4)

444723-003

3/8-24 x 7/8

SOC,FLT,CAPBK

Bracket, Corner (4)

444553-001

Bracket, Short Hinge (4)

444540-001

Screw (2)

803-41040-05

8-32 x 5/16

PAN,PH,BLK

OXCIDE, LCS

Label

444721-002

Screw (2)

803-41040-05

8-32 x 5/16

PAN,PH,BLK

OXCIDE, LCS Ball Lock Pin (6)

444618-001

Bracket, Long Hinge (4)

444510-001

Screw (2)

803-41040-05

8-32 x 5/16

PAN,PH,BLK

OXCIDE, LCS

Spacer

Block (6)

444764-001

Screw (12)

803-41010-08

PAN,PH,BLK

ZINC,LCS

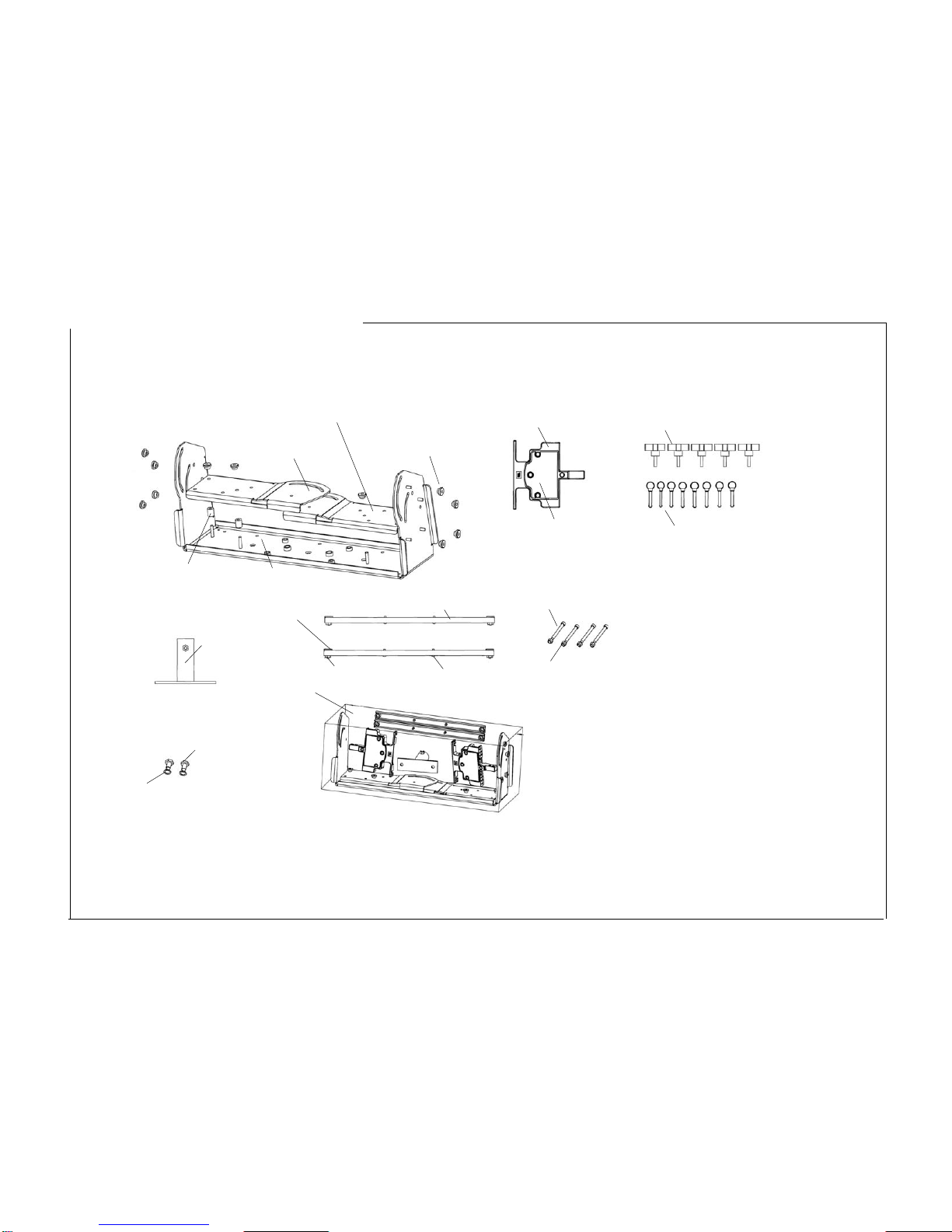

JBL VT4886-UB

COMPONENT EXPLODEDVIEW

Ball Lock Pin (8)

444875-001

Clamp, Handle (5)

444873-002

Speaker Attachment (2)

444918-002

Sheet Pad (2)

445161-001

Thumb Nut (12)

444874-001

1/4-20

Lock Washer

844-03110-06

1/4, BLK

Spacer (2)

444909-001 Bracket Base

444871-001

Bolt (2)

818-85710-16

M10 x 16MM

BLK

Bracket, Extension

444872-001

(right)

Bracket, Extension

444872-002

(left)

Lock Washer (2)

846-74110-02

Bolt (4)

806-73010-32

AlLLEN, BLK

Nut (4)

834-36010-00

1/4-20

NYLOC,BLK

Carton

444912-001

Instruction

444877-001

Filler (2)

444911-001

Pole Mount Bracket

444876-001

Rubber Foot (4)

444914-001

Nut (4)

832-30010-00

8-32 K-LOCK NUT,BLK

Screw (8)

803-41010-10

8-32 x 5/8

PAN,BLK

Rail (2)

444913-001

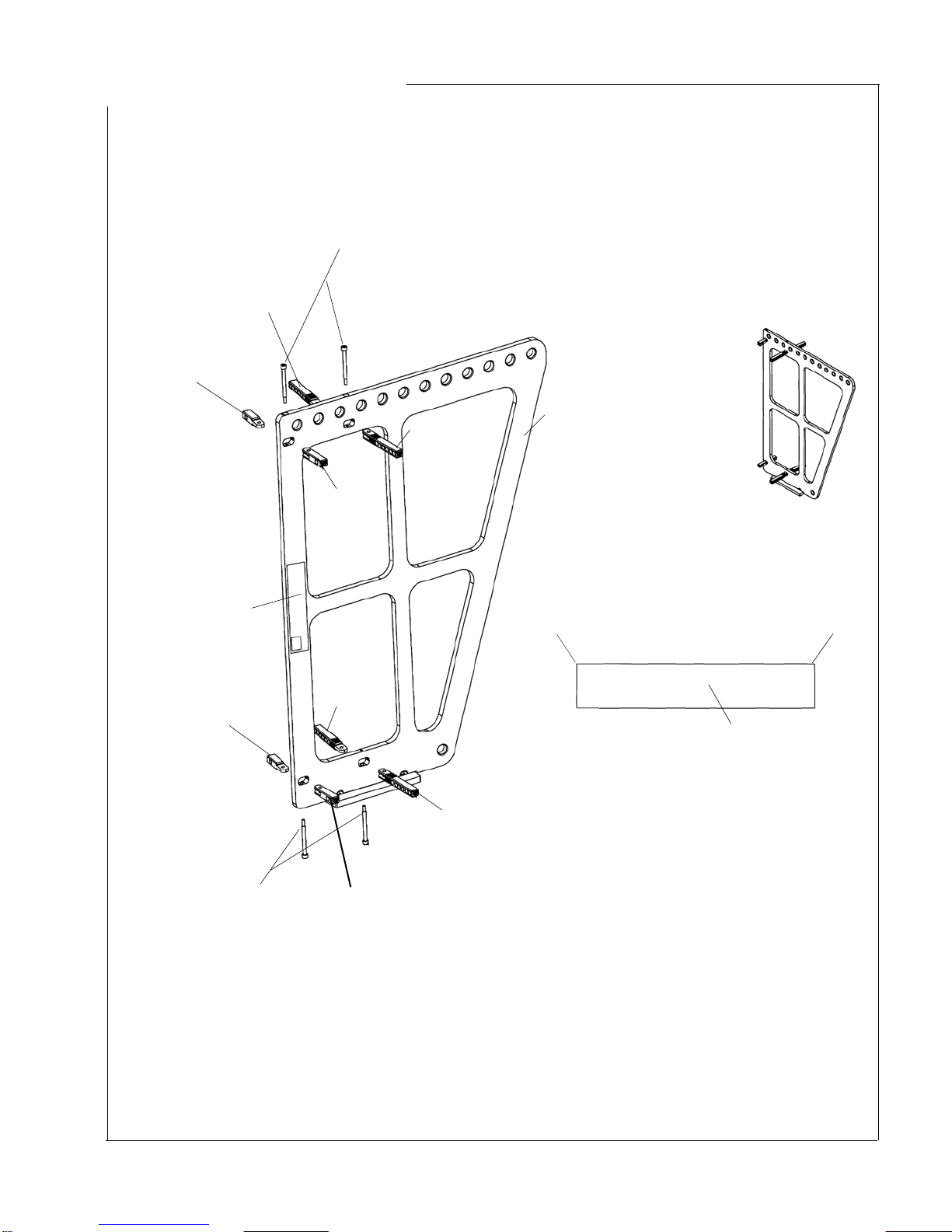

HORIZONTAL BRACKET

JBL VT4886-HB

JBLVT4886-HB

Frame

(Not Available for

Sale)

Screw (2)

445712-001

10-32 x 2 3/4

Threadlock

9 Gram Stick

Front Hinge

445445-001

(Male)

Front Hinge

445445-001

(Male)

Front Hinge

445445-002

(Female)

Front Hinge

445445-002

(Female)

Rear Hinge

445446-001

(Male)

Rear Hinge

445446-001

(Male)

Rear Hinge

445446-002

(Male)

Rear Hinge

445446-002

(Male)

Screw (2)

445712-001

10-32 x 2 3/4

Threadlock

9 Gram Stick

Label

445710-001

Warranty Card

59660

Manual

445547-001

Filler

445716-001

Carton

445715-001

Indice

Altri manuali JBL Sistema di altoparlanti

JBL

JBL 4732-M/HF Manuale utente

JBL

JBL AVR480 Manuale utente

JBL

JBL Control Control 23 Manuale utente

JBL

JBL CINEMA SB250 Manuale utente

JBL

JBL XTi SUB 300 Manuale utente

JBL

JBL MOVIES 2 Manuale utente

JBL

JBL Project EVEREST DD66000 Manuale utente

JBL

JBL Studio 570 Manuale utente

JBL

JBL Simply Cinema ESC333 Manuale utente

JBL

JBL Simply Cinema ESC333 Manuale utente

JBL

JBL Cinema Vision CVIW50 Manuale utente

JBL

JBL SIMPLY CINEMA SCS110 Manuale utente

JBL

JBL AC195 Manuale utente

JBL

JBL CS1500 Manuale utente

JBL

JBL 560GTI Manuale utente

JBL

JBL CINEMA SOUND CS400SAT Manuale utente

JBL

JBL Harman BAR 500 Manuale utente

JBL

JBL DECADE DS35 Manuale utente

JBL

JBL 4301E Manuale

JBL

JBL 4344 MKII Manuale utente

JBL

JBL DSC 500 Manuale utente

JBL

JBL Simply Cinema SCS 140 Manuale utente

JBL

JBL Speaker System Manuale utente

JBL

JBL Application Engineered Series Guida utente

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
