JBL W15GTI Manuale di istruzioni

SPECIFICATIONS

DIAMETER: 15" (381.0 MM)

SENSITIVITY (2.83V @ 1M): 92 dB

POWER HANDLING: 800 WRMS, 5,000 WPK

FREQUENCY RESPONSE: 20 HZ~ 1 KHZ

NOMINAL IMPEDANCE:6OHMS (PER COIL)

VOICE-COIL DIAMETER: 3.0" (76.2 MM)

BASKET DISPLACEMENT: 0.130 FT3 (3.680 LITERS)

DIMENSIONS:

THIELE-SMALL PARAMETERS

VOICE COIL DCRESISTANCE:R

EVC (OHMS)*. . . . . 2.95

VOICE COIL INDUCTANCE @ 1 KHZ:L

EVC (MH)* . . . . . . 1.06

DRIVER RADIATING AREA:S

D(FT2). . . . . . . . 0.839

SD(M2) . . . . . . . . 0.078

MOTOR FORCE FACTOR: BL (TM)*. . . . . . . 15.39

COMPLIANCE VOLUME:V

AS (FT3) . . . . . . . . 4.67

VAS (LITERS) . . . . 132.20

SUSPENSION COMPLIANCE:C

MS (µM/N) . . . . 153.02

MOVING MASS, AIR LOAD:M

MS (GRAMS). . . . 260.67

MOVING MASS, DIAPHRAGM:M

MD (GRAMS) . . . 248.15

FREE-AIR RESONANCE:F

S(HZ) . . . . . . . . 25.20

MECHANICAL Q: QMS . . . . . . . . . . . 7.20

ELECTRICAL Q: QES. . . . . . . . . . . . 0.51

TOTAL Q: QTS. . . . . . . . . . . . 0.48

MAGNETIC-GAP HEIGHT:H

AG (IN). . . . . . . . . 1.00

HAG (MM) . . . . . . . 25.40

VOICE-COIL HEIGHT:H

VC (IN). . . . . . . . . 2.60

HVC (MM) . . . . . . . 66.04

MAXIMUM EXCURSION:X

MAX (IN). . . . . . . . 0.80

(ONE-WAY LINEAR)X

MAX (MM) . . . . . . 20.32

*VOICE COILS CONNECTED IN PARALLEL

SEALED BOX VOLUME

(INCLUDES DRIVER DISPLACEMENT)

SEALED

FREQUENCY RESPONSE @ 2.83 V

SEALED

TRANSDUCER EXCURSION @ 3200 W

JBL, Incorporated • 250 Crossways Park Drive • Woodbury, NY 11797 • VOICE: 516-496-3400 • FAX: 516-496-4868 • www.jbl.com

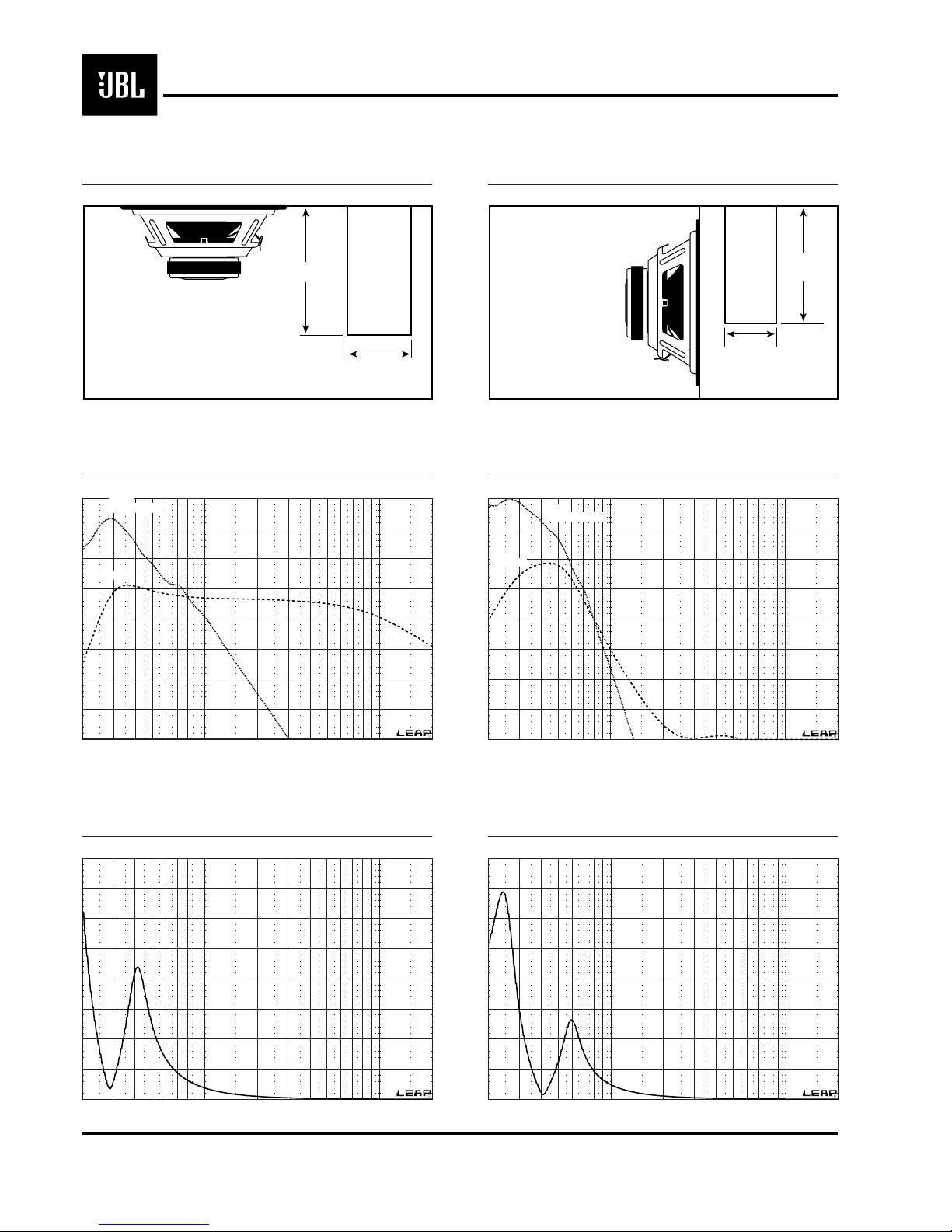

W15GTi 15" Woofer – Technical Data

mounting depth

10.25" (260.35 mm)

cutout diameter

13.87" (352.30 mm)

outer diameter

15.31"(388.87 mm)

VBOX = 1.50 ft3 (42.48 liters)

(stuffed with loosely-packed fiberfill)

W15GTi

(side view)

100

60 20 Frequency 50 100Hz 200 500 1k 2k

Out-Of-Car

In-Car

12 dB LP@ 80 Hz

Xd mM

20 Frequency 50 100Hz 200 500 1k 2k

VENTED BOX VOLUME

(INCLUDES DRIVER/PORT DISPLACEMENTS)

VENTED

FREQUENCY RESPONSE @ 2.83 V

VENTED

TRANSDUCER EXCURSION @ 3500 W

SEALED BANDPASS BOX VOLUME

(INCLUDES DRIVER/PORT DISPLACEMENTS)

SEALED BANDPASS

FREQUENCY RESPONSE @ 2.83 V

SEALED BANDPASS

TRANSDUCER EXCURSION @ 2500 W

JBL, Incorporated • 250 Crossways Park Drive • Woodbury, NY 11797 • VOICE: 516-496-3400 • FAX: 516-496-4868 • www.jbl.com

W15GTi 15" Woofer – Technical Data

W15GTi

(side view)

Port

fo= 28.0 Hz

diameter = 6.0"

length = 15.13"

VBOX = 4.00 ft3 (113.28 liters)

(all sides lined with 1-inch fiberglass or fiberfill)

110

105

100

70 20 Frequency 50 100Hz 200 500 1k 2k

Out-Of-Car

In-Car

12 dB LP@ 80Hz

Xd mM

20 Frequency 50 100Hz 200 500 1k 2k

VREAR = 3.40 ft3 (96.28 liters)

(all sides lined with 1-inch fiberglass or fiberfill) VFRONT = 2.00 ft3

(56.64 liters)

W15GTi

(side view)

diam. = 6.0"

Port

fo= 40.0 Hz length =

14.72"

105

100

65 20 Frequency 50 100 Hz 200 500 1k 2k

In-Car

12 dB LP@ 80Hz

Out-Of-Car

Xd mM

20 Frequency 50 100Hz 200 500 1k 2k
