Compact Excavators
35Z-1 / 36C-1
Quick Start Guide
2
2 | P l e a s e s e e o p e r a t o r m a n u a l f o r f u l l d e t a i l s .
Intended Use.......................................................................................................3
Dimensions .........................................................................................................4
Tie Down Points ..................................................................................................5
Lifting Points .......................................................................................................6
Cab Layout & Controls................................................................................... 7-10
Start Up Sequence ............................................................................................11
Machine Health Check & Shut Down Sequence …………………………………......……12
Hydraulic Hitch Unlock ……………………………......………………………………………………13
Mechanical Hitch Unlock & Maintenance Position ...........................................14
Service / Maintenance.......................................................................................15
Service & Access Covers...............................................................................16-17
Fluids & Lubricants............................................................................................18
Index
35Z- 1 , 3 6 C - 1 | 3
General
Machine type –Compact Excavator
Self propelled machine with a tracked undercarriage
360° revolving upper structure with boom, dipper, bucket and slew mechanism
Intended Use
Machine intended to be used in normal conditions as detailed in the operators manual
With bucket fitted, machine work cycle consists of digging, elevating, slewing and
discharging of materials
Applications include earthmoving, road construction, building and construction,
landscaping etc.
Can be used for object handling
Not intended for use in mining and quarrying applications, demolition, forestry, any use
underground and any explosive atmospheres.
Must not be used for forestry, used with attachments of unknown weight, used on
surfaces with unknown stability –list not exhaustive
PPE may be required in certain applications/environments e.g. high silica concentration
or asbestos
The machine should not be operated by any person without appropriate qualifications,
training or experience of using this type pf machine
Prior to use, the machines suitability should be considered with regards to the intended
applications and any hazards which may be present
Intended Use
4
4 | P l e a s e s e e o p e r a t o r m a n u a l f o r f u l l d e t a i l s .

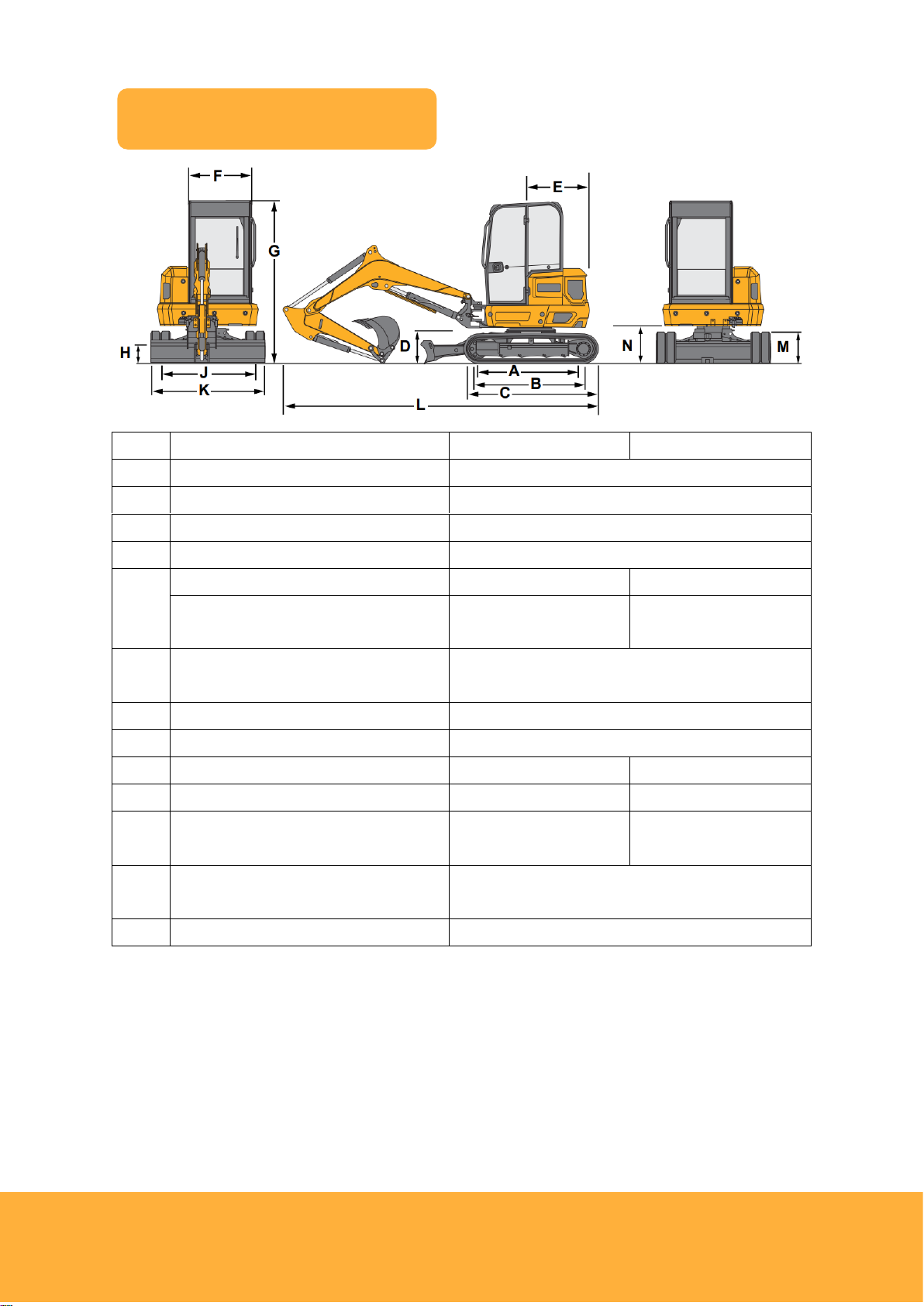

Item
Description
35Z-1
36C-1
A
Sprocket idler centres
1590mm
B
Track length on ground
1590mm
C
Undercarriage overall length
2049mm
D
Kingpost clearance
555mm
E
Tailswing radius –Light CW
900mm
1200mm
Tailswing radius –Heavy CW
1000mm
1300mm
F
Overall width of
superstructure
1550mm
G
Height over cab
2482mm
H
Ground clearance
275mm
J
Track gauge
1400mm
1200mm
K
Width over tracks
1750mm
1550mm
L
Transport length –standard
dipper
4851mm
4806mm
M
Track height - rubber
480mm
N
Counterweight clearance
563mm
Dimensions
35Z- 1 , 3 6 C - 1 | 5

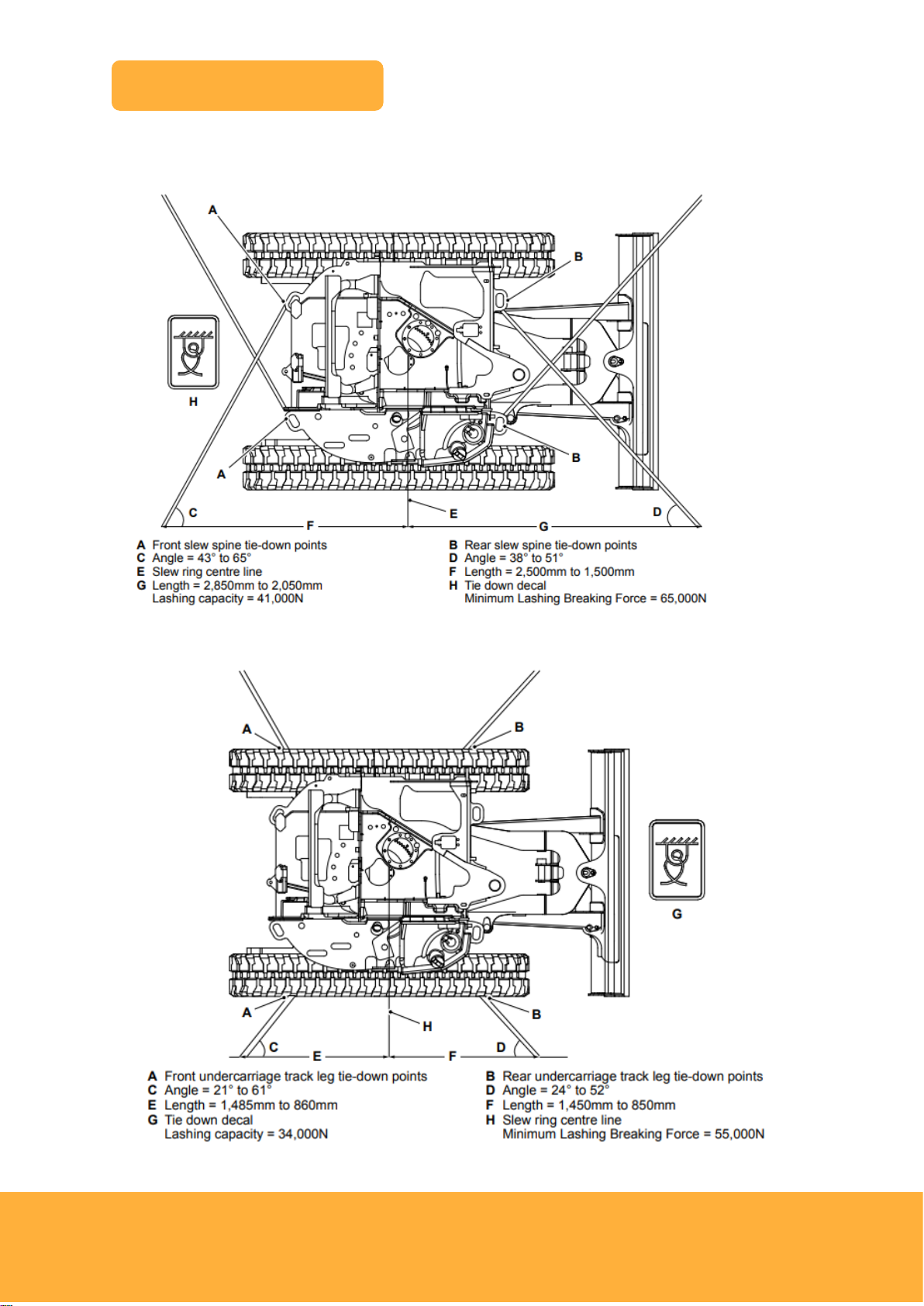

Method 1
Method 2
Tie down points
6
6 | P l e a s e s e e o p e r a t o r m a n u a l f o r f u l l d e t a i l s .
Carry out the following procedure when lifting a machine:
1. Remove all attachments
2. Remove all loose equipment from machine exterior
3. Check the unladen weight of the machine
4. Attach lifting equipment to each end of the dozer blade. Correct lift-point positions are
identified on the machine by a label.
5. Attach lifting equipment to each end of the boom. Correct lift-point positions are
identified on the machine by a label.
6. Position the dig end as shown below.
6.1. Boom in centre position and ram fully extended.
6.2. Dozer ram fully raised.
6.3. Dipper ram fully extended.
7. Maintain correct angle between the boom and dozer blade.
8. Check that the lifting eye is positioned directly above the machine centre of gravity.
Item
35Z/36C
A
Boom lift point
B
Dozer blade lift point
C
38°
D
2148mm
E
4653mm
F
875mm
G
764mm
H
880mm
Lifting Points
35Z- 1 , 3 6 C - 1 | 7
Component Locations
A. Track Controls
B. Excavator controls
C. Dozer blade control lever
D. Throttle control
E. Switch console
F. Entertainment system
G. Air-conditioning controls
H. Operator seat
J. ISO/SAE control pattern switch
K. Instrument panel
L. 12V Power socket
Console Switches
A. Hydraulics controls isolation (2 GO)
B. Initiate Auto Aux Vent
C. Lift overload
D. Worklights
E. Wiper
F. Not used
G. Tool selection
H. Not Used
J. Auto Idle
K. Beacon
L. Quick Hitch
M.Auto stop switch
Cab Layout & Controls
8
8 | P l e a s e s e e o p e r a t o r m a n u a l f o r f u l l d e t a i l s .
Instrument Panel
A
SAE active
B
Air filter (blocked) indicator
C
Seat belt
D
Park brake
E
Engine pre-heat
F
Master warning
G
After treatment critical warning
H
Axle lock
J
Fuel indicator
K
Coolant temperature
L
Engine oil pressure
M
Battery charging condition
N
Swing active
P
Hydraulic active
Q
High travel speed
R
Dozer blade, float
S
After treatment critical warning
T
Master warning
Cab Layout & Controls
35Z- 1 , 3 6 C - 1 | 9
Excavator Levers (ISO Control Pattern)
Excavator Levers (SAE Control Pattern)
Cab Layout & Controls
10
10 | P l e a s e s e e o p e r a t o r m a n u a l f o r f u l l d e t a i l s .
Swing Control Switch
A. Swing left
B. Swing right
C. Swing control switch
Auxiliary Controls
A. Left electro-proportional switch for aux 2 (low flow)
B. Tilt/grab changeover for tilt-rotator
C. Boom swing/AUX changeover
D. Right finger button –High flow AUX maximum
preset flow button (momentary/latching depending
on settings in menu)
E. Right electro-proportional switch for aux 1 (high
flow)
Dozer Blade Controls
A. Raise the dozer
B. Lower the dozer
C. Dozer float
A. Travel speed selector button
B. 4-Way dozer rotate left
C. 4-Way dozer rotate right
Cab Layout & Controls
