CK247 JDW STEAM MOP

Instruction Manual

Page 2 of 10

Plug Wiring (UK)

This appliance is fitted with a BS1363 13 amp plug. If you have to replace the

fuse, only those that are BSI approved to BS1362 and with a rated current of 13

amps should be used. Spares fuses are available from electrical stores. If the

plug outlets in your home are not suitable for the plug of this product, the plug

must be removed and disposed of safely as insertion of the plug into a socket is

likely to cause electric hazard.

A replacement plug should be wired according to the following instructions.

If in doubt, contact a qualified electrician.

This appliance must be earthed. The wires in the cord set are coloured in the

following way: BLUE-NEUTRAL. BROWN-LIVE, GREEN&YELLOW-EARTH

The wire that is coloured blue must be connected to the terminal that is

marked with the letter N.

The wire that is coloured brown must be connected to the terminal that is

marked with the letter L.

The wire that is coloured green & yellow must be connected to the terminal

in the plug that is marked with the letter E or marked with symbol.

If the supply cord is damaged a qualified person must replace it in order to

avoid a hazard.

Environment

The "crossed-out wheeled bin" symbol indicates that this product can be

recycled. Do not dispose of with household waste. Please take the Steam

Mop to your local refuse/collection site centre. If you are unsure of where

you local refuse centre is please contact your local authority.

Page 3 of 10

Safety instructions

SAFETY GUIDELINES-DEFINITIONS

It is important for you to read and understand this manual. The information it contains

relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols

below are used to help you recognize this information.

DANGER：Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING：Indicates a potentially hazardous situation which, if not avoided, could result

in death or serious injury.

CAUTION：Indicates a potentially hazardous situation which, if not avoided, may result in

minor or moderate injury.

NOTICE：Used without the safety alert symbol indicates a potentially hazardous situation

which, if not avoided, may result in property damage.

Residual risks：

Additional residual risks may arise when using the tool which may not be included in the

enclosed safety warnings. These risks can arise from misuse, prolonged use, etc.

Even with the application of the relevant safety regulations and the implementation of safety

devices, certain residual risks cannot be avoided. These include:

Injuries caused by touching any moving parts.

Injuries caused by touching any hot parts.

Injuries caused when changing any parts or accessories.

Injuries caused by prolonged use of the appliance. When using any appliance for

prolonged periods ensure you take regular breaks.

WARNING：Read all safety warnings and all instructions. Failure to follow the warnings

and instructions listed below may result in electric shock, fire and/or serious injury.

Warning: When using electrical appliances, basic safety precautions, including the

following, should always be followed to reduce the risk of fire, electric shock, personal

injury and material damage.

Read all of this manual carefully before using the appliance.

The intended use is described in this manual. The use of any accessory or attachment

or the performance of any operation with this appliance other than those

recommended in this instruction manual may present a risk of personal injury.

Retain this manual for future reference.

Page 4 of 10

Using your appliance

For Household use only.

Do not direct steam at people, animals, electrical appliances or electrical outlets.

Do not expose to rain.

Store indoors.

Do not immerse the appliance in the water.

Do not leave the appliance unattended. Keep children away from unit while in use.

Do not leave the appliance connected to an electrical outlet when not in use.

Never pull the power cord to disconnect the appliance from the socket. Keep the

appliance cord away from heat, oil and sharp edges.

Do not handle steam cleaner with wet hands.

Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around

sharp corners or expose cord to heated surfaces.

Do not use appliance in an enclosed space filled with vapor given off by oil-based

paint thinner, some moth-proofing substances, flammable dust, or other explosive or

toxic vapors.

Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or other

delicate, steam-sensitive materials.

Do not use on any unsealed hard floor surfaces. Additionally, on surfaces that have

been treated with wax or some no-wax floors, the sheen may be removed by the heat

and steam action. It is always recommended to test an isolated area of the

surface to be cleaned before proceeding. We also recommend that you check the

use and care instructions from the floor manufacturer.

Never put de-scaling, aromatic, alcoholic or detergent products into the steam mop, as

this may damage it or make it unsafe for use.

Do not operate the appliance with a damaged cord or plug or after the appliance

malfunctions, or has been damaged in any manner.

The mops tank should only be with cool/cold water and when the appliance is

disconnected from the power supply..

Use a funnel or measuring jug when filling to avoid any spills..

Never fill the tank with hot water, and do not over fill

If the circuit breaker activates while using the steam function, discontinue product use

immediately and contact the customer support center. (Beware of the risk of electrical

shock.)

The appliance emits very hot steam to sanitize the area of use. This means that the

steam head and cleaning pads get very hot during use.

NEVER LEAVE THE STEAM MOP OPERATING AND STATIONAR AS A

PERMANENT WITNESS MARK MAY RESULT ON YOUR FLOORING.

Do not use for any purpose other than described in this manual.

Caution: Always wear suitable shoes when using your steam mop and when changing

the accessories on your steam mop. Do not wear slippers or open-toed footwear.

Care should be taken when using this appliance. DO NOT touch any parts which may

become hot during use.

Page 5 of 10

Do not use when micro-fiber cleaning pad is not installed correctly.

Safety of others：

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning the use of the appliances

by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

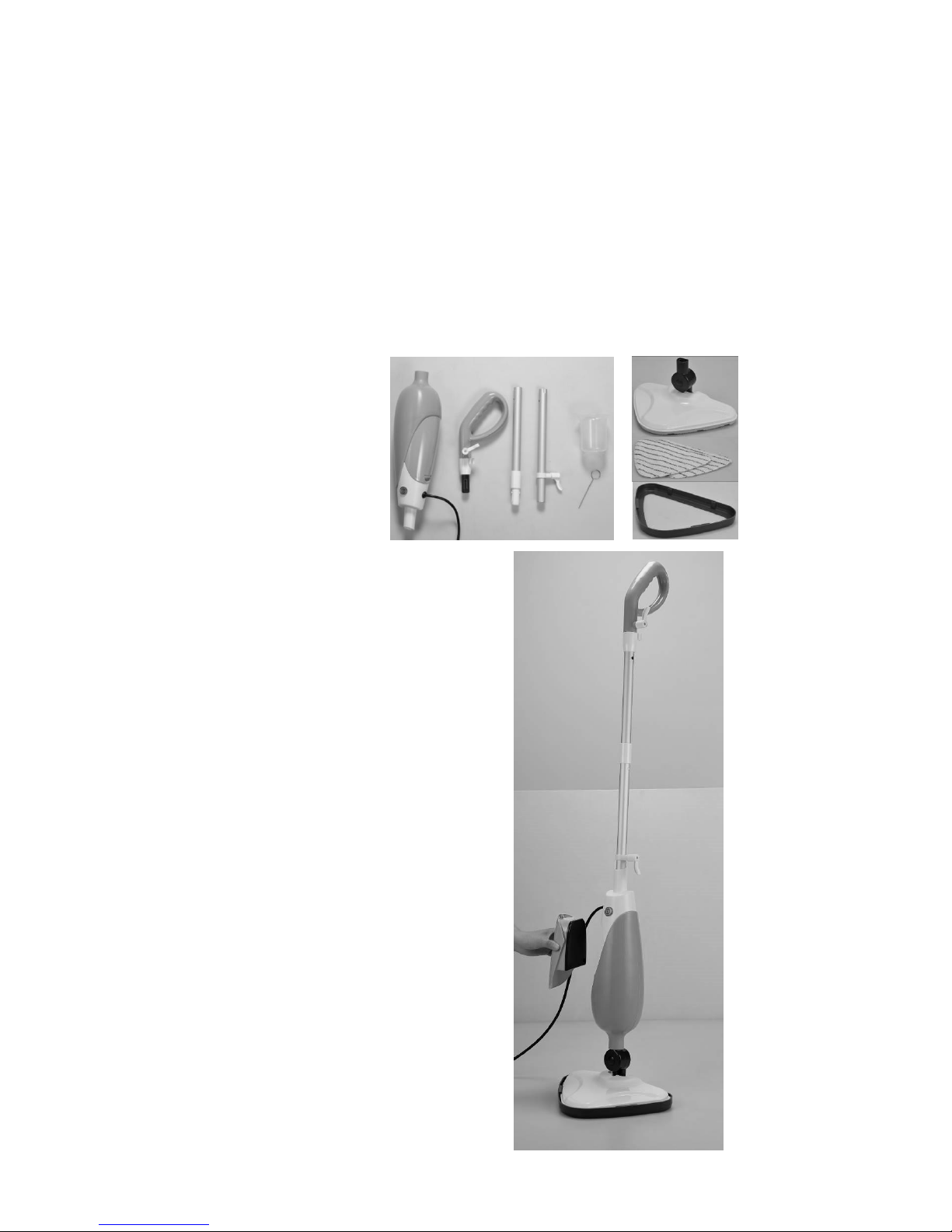

STANDARD FEATURES

A Handle

B Handle Tube 1

C Handle Tube 2

D Measuring Cup

E Cleaning Tool

F Main Body

G Steam Head

H Microfiber Pad x 2

I Carpet Glider

Product Components

1 Handle

2 Cord Hook

3 Handle Socket

4 Handle Tube 1

5 Tube Connector

6 Handle Tube 2

7 Power Switch

8 Water Tank Release Catch

9 Water Tank

10 Water Tank Filler Cap

11 Power Cord

12 Swivel Head

Page 6 of 10

Features and Specifications

Features

Removable water tank；

Continuous steam output (up to 5 minutes continuous working):- 26g/min (avg.)

Steam output time：14 minutes (full water tank)

Red (warm-up) and blue (working) indicator light

Pressure relief protection, maintaining constant pressure

Wide range of angular movement and rotation of head



Specification

Rated voltage：230V

Rated frequency：50Hz

Output power：1300W (+5%,-10%)

Water Tank Capacity：350mL

Waterproof level：IPX4

ASSEMBLY –refer to Product Component Diagram for Part Numbers

NOTE: Each steam mop is 100% tested in the factory to ensure product performance and

safety. When assembling your new steam mop for the first time you may notice water residue

inside of the unit.

WARNING: Before attempting any of the following operations, make sure that the

appliance is switched off and unplugged and that the appliance is cold and contains

minimal or no water.

Attaching the handle

Slide the Handle Tube 4 into the Handle 1 until it clicks into place;

Slide the Handle Tube 6 into the Tube Connector 5 until it clicks into place;

Slide the Handle Tube 6 with Handle installed into the socket on top of the main body, until it

clicks into place;

The handle assembly can be removed from the steam mop body for easy storage by pressing

the Handle Tube button on the rear of the socket on the Main Body.

Page 7 of 10

Attaching the steam head

Slide the stem on the bottom of the main body into the

socket on the Steam Head 12 until the Steam Head

clicks into place.

The Steam Head can be removed from the Main Body

by pressing the button on the back of the Steam Head.

Attaching a cleaning pad

The Steam Head has a series of hooks on the

underside. Place the Micro-fiber Cleaning Pad on the

floor and press the Steam Head down onto it –they

will bond tightly.

To remove the pad, place the toe of your shoe onto the

Cleaning Pad removal tab and hold while lifting the

Steam Mop up.

Attaching Carpet Gilder

Press the Steam Mop, with Microfiber Cleaning Pad

fitted to Steam Head, down onto the Carpet Glider until

it clicks into place.

Place the toe of your shoe onto the Cleaning Pad

removal tab and lift the Steam Mop to remove the

Carpet Glider.

OPERATION

1. Filling the water tank

Remove the Water Tank 9 from the Main Body by

pressing the Release Catch 8. Unscrew the Water

Tank Filler Cap 10, and using the Measuring Cup add

350mL water to the tank. Replace the Filler Cap and

tighten.

Install the Water Tank back onto the Main Body until it

clicks into place.

2. Plug in the appliance into a grounded outlet.

When the appliance is switched on, the indicator light will turn red; this indicates preheating

mode.If the light does not illuminate, please check the "Troubleshooting" section for

assistance.

The Steam Mop has a warm-up time of 30 seconds. After the completion of the warm-up, the

indicator color turns blue. The Steam mop is ready for use.

Page 8 of 10

NOTICE: If power is turned off in the middle of the warm-up, or after the warm-up is

complete, the product may repeat the above warm-up operation, depending on how

long the power has been off.

The Steam Head has a wide range of motion –it can clean into corners, and also under low

objects.

CLEANING AND MAINTENANCE

WARNING: BE SURE THAT THE UNIT IS DISCONNECTED FROM THE ROWER

OUTLET WHEN PERFORMING CLEANING

Drain the remaining water in the tank and clean the tank after every use.

How to decalcify the Water Tank interior:

To clean calcium deposits that build up inside the Water Tank , add one or two tablespoons of

white vinegar to a full Water Tank close the Water Tank Cap and then shake the contents.

DO NOT TURN THE STEAMER ON.

Cleaning procedure to remove lime scale:

If your steam mop begins to produce steam more slowly than usual or stops producing steam,

you may need to remove lime scale. Lime scale can develop over time on the metal parts

and greatly affect mop performance.

It is necessary to remove lime scale on regular basis every 25-50 times you use a full tank of

water or at least once a month, especially in areas with hard water.

The frequency of lime scale removal depends upon the hardness of your tap water and how

often you use the steam mop.

Follow this procedure to remove lime

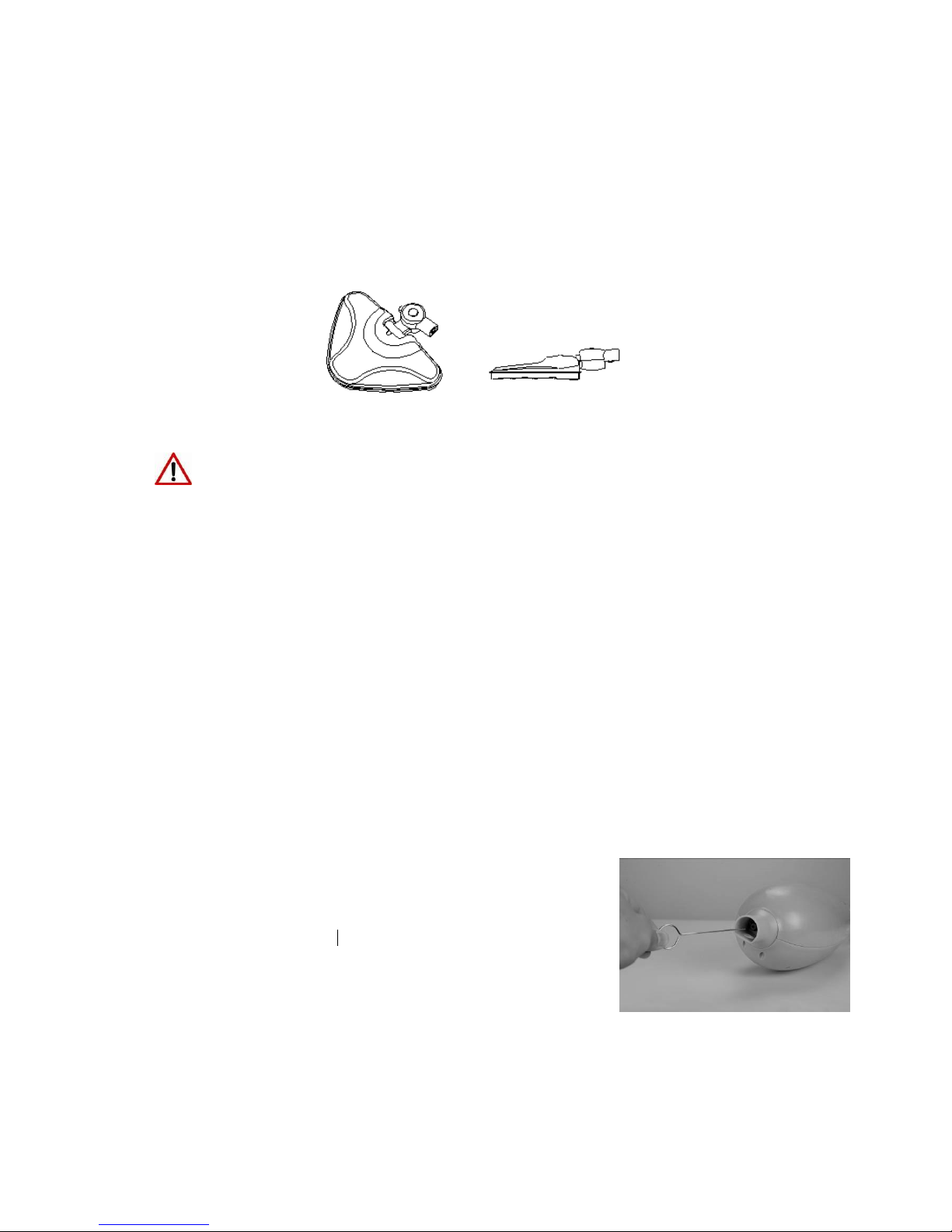

By the use of cleaning tool

1. Check to ensure that the power supply is disconnected

before beginning.

2. Use the cleaning tool to remove the scale, as shown.

3. Move and rotate the cleaning tool to clean the vents.

Continue until all scale is removed from the outlet holes.

By using cleaning solution

1. Prepare a solution of 1/3 white vinegar and 2/3 tap water and add to the water tank.

2. Secure and position the unit to ensure that the steam released is aimed away from the

Page 9 of 10

floor or surrounding objects and surfaces.

3. Plug the unit in, turn the unit ON by pressing the power switch, and allow the unit to

produce steam unit the vinegar/water solution in used up.

4. Repeat the above procedure as many times as necessary until a normal steam flow

rate is achieved.

5. Fill the water tank with fresh water and rinse out.

6. Refill the water tank with fresh water, attach to the unit and release steam through the

system unit the water tank is empty.

WARNING:Don't leave the steamer unattended during the lime scale removal

process and/or while in use.

NOTICE: Perform a test cleaning on a suitable isolated area after each lime scale removal to

ensure that there is no debris left in the system.

This product contains no serviceable parts. Do not try to repair it yourself. Any servicing that

requires disassembly other than cleaning must be performed by a qualified appliance repair

technician.

ALL servicing should be done by an authorized service representative.

If the supply cord is damaged, it shall be replaced by the manufacturer or its

service agent or similarly qualified person in order to avoid a hazard.

Cleaning Microfiber Pad

Machine washable on "warm" setting. Always use a mild detergent.

For best care results, lay flat to dry.

IMPORTANT ：Allow the steamer to fully cool down before performing any

maintenance or troubleshooting checks.

IMPORTANT：Never use bleach or fabric softener when washing the Microfiber

Cleaning Pad.

STORAGE

NOTICE：After use, take out the water tank and, before turning off the power, let the product

work for a while until there is no steam emitted. Once it stops steaming it is ready to be stored.

After the Steamer is used, turn power off and then unplug the power cord.

Empty any residual water in the tank and clean the external surface with a dry cloth.

Once the Steam Mop cools down fully, wipe it over with a dry cloth.

Remove the cleaning pad and wash it so that it will be ready for next use.

Store the Steam Mop in a protected, dry area. Retain water funnel and measuring cup

for future use. Store the cord by winding it loosely around the cord hooks on the side of

the handle.

Keep out of reach of children.

Page 10 of 10

TROUBLESHOOTING

Use this troubleshooting guide as a first step to resolve any problems you may be

experiencing.

All servicing should be done by an authorized service representative.

WARNING: TO REDUCE RISK OF PERSONAL INJURY UNPLUG STEAMER BEFORE

SERVICING AND ALLOW TO COOL

PROBLEM

POSSIBLE REASON

POSSIBLE SOLUTION

Reduced steam or no steam

Water tank may be empty

Fill water tank

Steam nozzle may be

blocked

Clean steam nozzle

There is no power to the unit

Make sure unit is plugged in

Not switched on

Press power button

Unit will not turn on

Blown fuse or breaker

Replace fuse or reset breaker

in home

Power cord not plugged in

Plug cord into a working

circuit

Internal fuse is blown

Contact customer services

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Indice

Altri manuali JD Williams Ltd. Pulitore a vapore

JD Williams Ltd.

JD Williams Ltd. WN187 Manuale utente

Manuali Pulitore a vapore popolari di altre marche

Oreck

Oreck STEAM-IT STEAM100LRH Manuale utente

Beautural

Beautural YPZ-146 Manuale utente

MPM

MPM MZP-02 Manuale utente

Electrolux

Electrolux Refine 500 Manuale utente

Kärcher

Kärcher SC 3 Premium Manuale utente

Shark

Shark PRO Steam & Spray Istruzioni operative e di manutenzione

Jula

Jula 802-337 Manuale utente

Haan

Haan Floor Sanitizer MS-30 Manuale utente

Black & Decker

Black & Decker HSM13E1 Manuale utente

HOFFEN

HOFFEN GS-1231 Manuale utente

POLTI

POLTI VAPORETTO SYSTEME PRO Manuale utente

eta

eta AQUASIM PRO Manuale utente

Maxwell

Maxwell MW-3715 G Manuale utente

VAPamore

VAPamore Primo MR-100 Manuale

Bestron

Bestron AZQ016 Manuale utente

Nilfisk-ALTO

Nilfisk-ALTO Steamtec 312 Manuale utente

Tempo di saldi

Tempo di saldi SPINSCRUBBER Manuale utente

DOMENA

DOMENA HYGIAFLOR Manuale utente
