Jeanneau 53 Manuale utente

97/154

119635

Index G

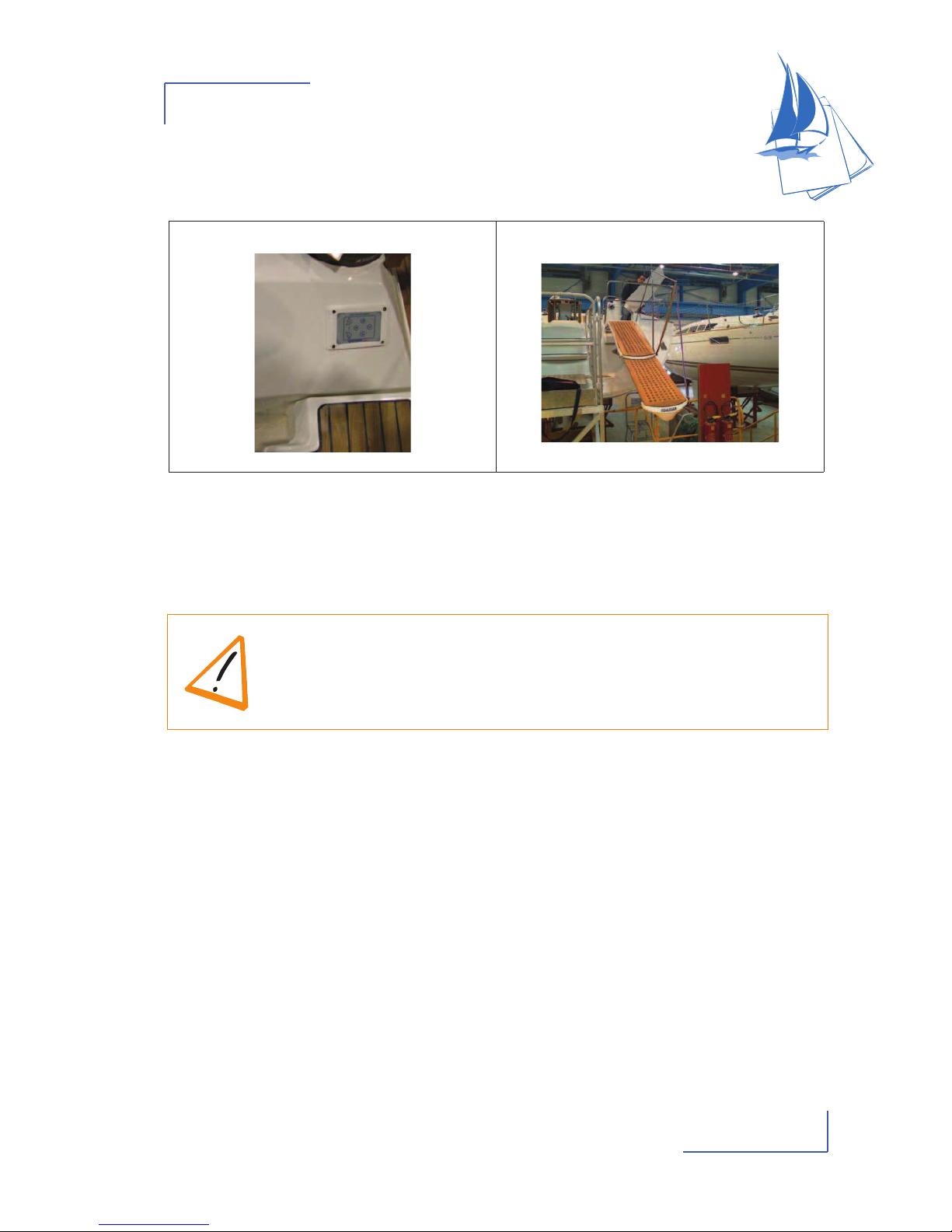

HYDRAULIC GANGWAY - EXTERNAL

OPERATION

The gateway combines the functions of gateway and davit.

Maximum permitted load: 110 kg: 170 kg

Open length: 2,30 m

Controls Location

WARNING

Refer to the manufacturer's instructions for use and maintenance..

ELECTRICAL EQUIPMENT

98/154

119635

Index G

BOW THRUSTER 24V

Nozzle Layout of components:

Skipper's cabin

1. Battery set 4 x 50A

2. Fuse 315A

3. Isolation relay

4. Motor

Relay coupler - Batteries

(Changes the 12V circuit to 24V)

Breaker

Location: Port aft cabin

Control

99/154

119635

Index G

INVERTER 12 / 220V

Layout of components: Port aft cabin

Inverter 1800W Breaker 16A

Fuse 125A Control

Location: Unit - Chart table

Earth

WARNING

- The cutting power 220V-110V (dock or generator) does not cut the power

converter: It is imperative to switch the converter OFF before handling

devices or 220V-110V.

ELECTRICAL EQUIPMENT

100/154

119635

Index G

SHORE POWER SOCKET

1. Shore power socket - Air conditioning

2. Breaker 32A - Air conditioning

3. Breaker 32A - Generator

4. Breaker 16A - General

5. Shore power socket overall

Extension passage

DANGER

- Unplug the dock before leaving the dock.

ADVICE - RECOMMENDATION

- In order to reduce the risks of electic shock and fire:

- Before you plug in or unplug the boat/shore supply cable, switch off the shut off device

connected to the shore supply.

- Plug in the boat/shore supply cable in the boat before you plug it into the shore supply

socket.

- Unplug the boat/shore supply cable on shore first. Close the shore socket cover.

- Do not modify the connections of the boat/shore supply cable.

101/154

119635

Index G

ELECTRICAL CIRCUIT, 110-220 V

GENERAL RECOMMENDATIONS

Certain vessels are equipped (as either standard or optional features depending on

the model)with a 110 V or 220 V circuit.

The following measures are recommended in order to avoid the danger of electrical shock

and fire:

- Never work on a live electric fitting.

- The cutting power 220V-110V (dock or generator) does not cut the power converter: It

is imperative to switch the converter OFF before handling devices or 220V-110V.

- Plug in the boat/shore supply cable in the boat before you plug it into the shore supply

socket.

- Never let the end of the boat/shore supply cable hang in the water.

- Turn off the shore supply with the onboard cut-off switch before connecting or

disconnecting the vessel/shore supply line.

- Disconnect the ship/shore power cable at the shore socket first.

- Check the polarity indicator for the shore connections (110V AC version).

- If the reverse polarity indicator is activated immediately disconnect the cable. Rectify

the polarity fault before using the vessel's electrical installation.

- Close the shore supply input cover firmly after use.

- Do not modify the vessel/shore supply line connections; only use compatible

connections.

- Do not alter the vessel's electrical system. The installation, modifications and

maintenance must be carried out by a qualified marine electricity technician. Check the

system at least twice a year.

- Disconnect the vessel supply when the system is not being used. This is to prevent the

danger of fire.

- Use double insulated or earthed appliances.

Note that the live wires are brown, the neutral ones are blue and the earth wires are green

and yellow.

DANGER

- Never let the end of the boat/shore supply cable hang in the water: The

result may be an electric field liable to hurt or kill the swimmers nearby.

- There may be danger of electrocution if alternating current systems are

incorrectly used.

PRECAUTION

- Never modify an electric fitting and relevant diagrams yourself.

- Call in a technician skilled in marine electricity to carry out any electric modification.

- Never change the breaking capacity (amperage) of the overcurrent safety devices.

- Never install or replace the electric appliances (or any electric equipement) by

components exceeding the capacity (amperage) of the circuit (Watt for bulbs).

ELECTRICAL EQUIPMENT

102/154

119635

Index G

EQUIPMENT

GENERAL INTRODUCTION

(As far as possible) use electric appliances with double insulation or with three conductors

(Neutral-Live wire-Ground).

ELECTRONIC

Wire runs are available to complete the boat equipment.

Do not install electronic instruments or repeaters less than 1,50 m away from the radio

loudspeakers.

Advice: For further information refer to the appliance instructions.

MAINTENANCE

Clean the repeater dials with freshwater. Refer to the instructions before using any other

produce. The use of alcohol must be avoided.

ELECTRONIC

LEAD LINES

The log and sounder transducers are found under the saloon floor. Keep the log sensor

cowl close to the instrument so as to be able to intervene in complete safety.

Do not store material on top of the sensors.

AUTO PILOT

The pilot consists of several elements listed as follows:

- Repeater in the cockpit.

- Compass in the cabin hanging locker located in rear port.. A pictogram helps to locate

it easily.

- Logic controller, piston and hydraulic pump, either side of the rudder sector in the aft

cabin.

- To supply power to all elements switch on the "Navigation" circuit breaker on the

electrical panel.

For use and maintenance of the material consult the manufacturer instructions.

MAINTENANCE

Clean the transducer probe during each dry dock and the log sensor regularly. Read the

instructions for maintenance recommendations.

Refer to chapter 12 "Launching" for the precautions to be taken concerning the sensors during

hoisting.

ADVICE - RECOMMENDATION

- Place the protective covers on the repeaters when unused for long periods.

- When sailing store the protective covers inside the boat to avoid losing them.

- The various repeater displays are back-lit.

- The onboard radio is fitted with two outside speakers.

- When mooring be careful to adjust the sound so as not to disturb your neighbours.

ADVICE - RECOMMENDATION

- For best results, remove any metal compass.

- Do not store material close to the calculator and electrical connections.

103/154

119635

Index G

ELECTRONIC - LAYOUT OF COMPONENTS

Log and depth sounder transducers

View interior

View Outside

ELECTRICAL EQUIPMENT

104/154

119635

Index G

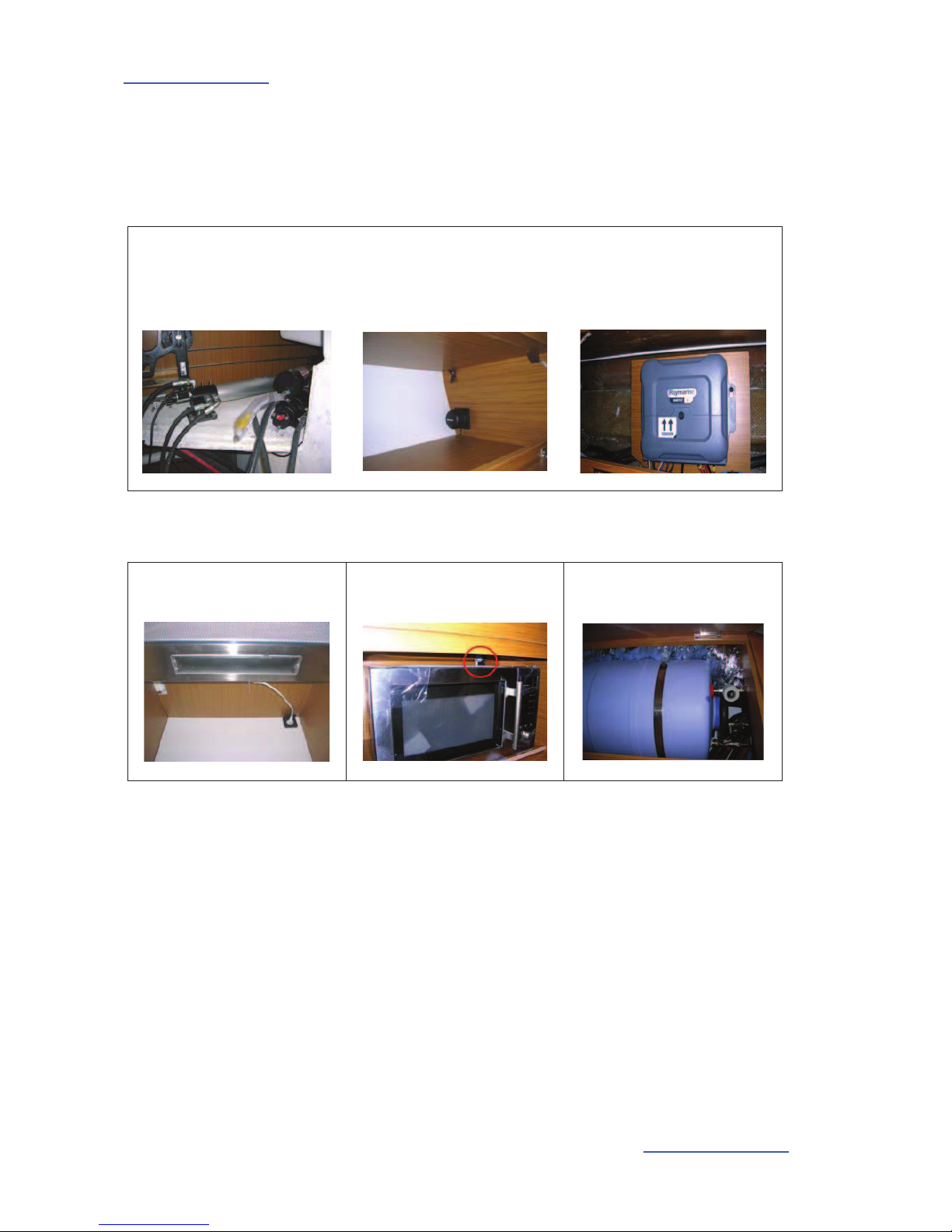

ELECTRONIC

AUTO PILOT

Access:

Port cockpit locker

Gyrocompass

Cubby hole locker - Port aft

cabin

Vessel Management Unit

Cubby hole locker - Port aft

cabin

MAIN COMPONENTS 220V

EXTRACTOR HOOD +

Socket 220V

MICROWAVE

+ Socket 220V

WATER HEATER

+ Thermostatic mixer valve

105/154

119635

Index G

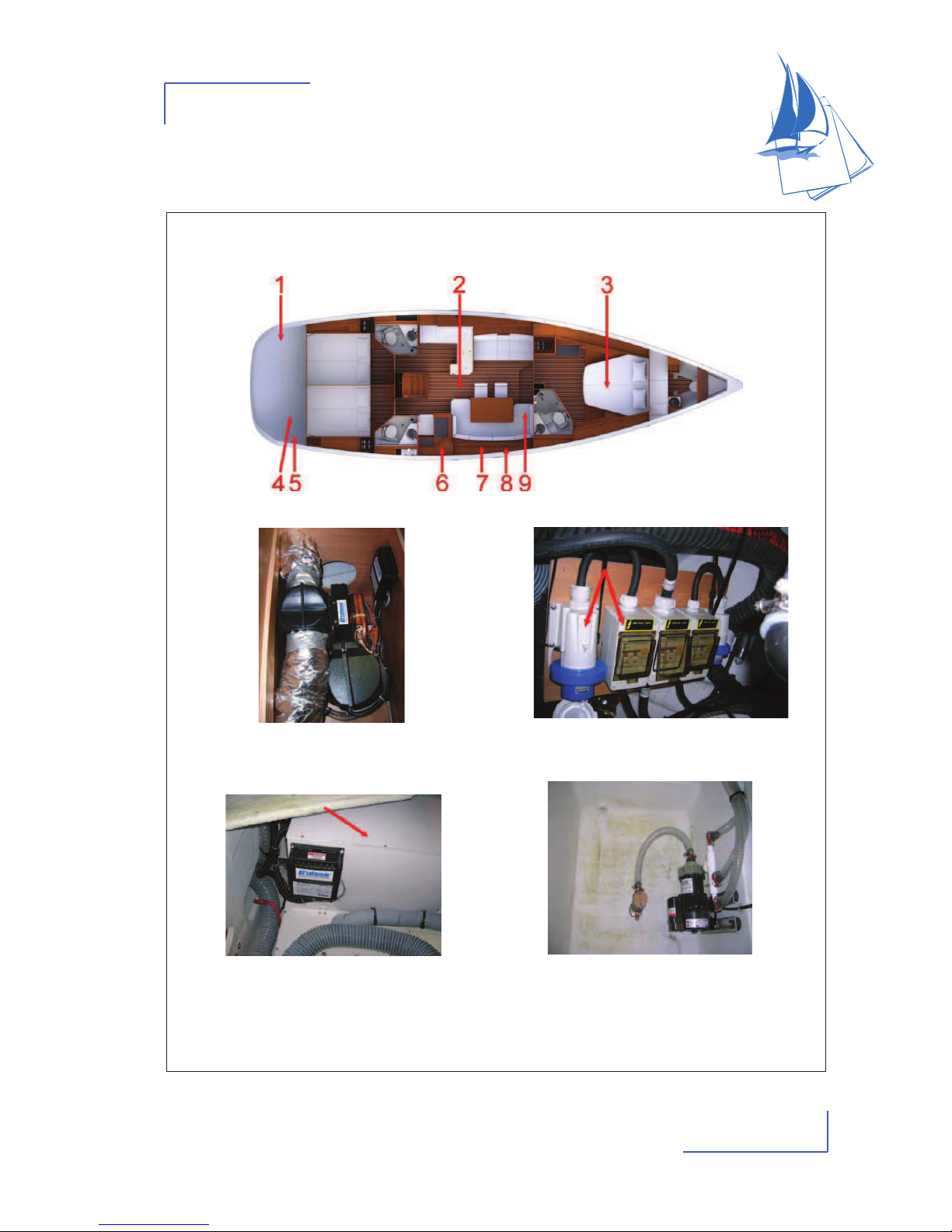

AIR CONDITIONING

Layout of components

Compressor - Forward cabin (Ref 3)

Compressor - Aft cabin + Cocon (Ref 4)

Socket + Breaker 220V (Ref 1)

Seawater inlet + Pump (Ref 2)

Maintenance of filters (to engage in

regular):

- Close valves taken seawater.

- Unscrew the top of the filter.

- Clean the strainer.

- Put everything back in place.

ELECTRICAL EQUIPMENT

106/154

119635

Index G

Drainage - Compressor

Aft cabin (Ref 5)

Master switch (Ref 7)

Relay box - Seawater pump (Ref 6)

Drainage - Compressor

Forward cabin + Saloon (Ref 8)

Compressor - Saloon (Ref 9)

Control
