Jenn-Air JMD2124W Guida utente

Product dimension, cutout and installation speciﬁcations are provided for planning purposes only. Before installing

any product, be sure to verify cutout dimensions and electrical/gas connections as actual product dimensions may vary.

JENN-AIR® DETAILED PLANNING DIMENSIONS 1 of 2

JRC120058A 07/2012

uNDER cOuNTER MIcROwAvE OvEN wITh DRAwER DESIGN

JMD2124W – 233⁄4" x 153⁄8" x 241⁄2"

PRODucT DIMENSIONS

FRONT VIEW

MODEL # JMD2124W

in cm

AOverall width 233⁄460.4

BHeight of control panel 21⁄26.2

CHeight of drawer 101⁄226.6

DHeight of trim 2 5.1

ESpace between control panel and drawer 1⁄80.4

FSpace between drawer and trim 1⁄40.5

GOverall height 153⁄839.1

HRecessed width 215⁄854.9

IWidth of conduit channel 45⁄811.9

JDepth without drawer 231⁄259.7

KDepth with drawer 241⁄262.4

LDepth with drawer fully open 391⁄2100.5

MRecessed height 145⁄837.1

Depth with drawer fully open

Flush receptacle

391⁄2

100.5

Non-ﬂush receptacle 44 111.9

Depth with drawer

Flush receptacle

241⁄2

62.4

Non-ﬂush receptacle 29 73.8

Depth without drawer

Flush receptacle

231⁄2

59.7

Non-ﬂush receptacle 28 71.1

TOP VIEW

C G

Back of

Cabinet

Power Supply Location

C G

Back of

Cabinet

Power Supply Location

C G

Back of

Cabinet

Power Supply Location

SIDE VIEW

Product dimension, cutout and installation speciﬁcations are provided for planning purposes only. Before installing

any product, be sure to verify cutout dimensions and electrical/gas connections as actual product dimensions may vary.

JENN-AIR® DETAILED PLANNING DIMENSIONS 2 of 2

JRC120058A 07/2012

MODEL # JMD2124W

in cm

AWidth of cutout 221⁄856.2

BHeight of cutout 147⁄837.6

Top of cutout to bottom

of oven (min.) 2 5.1

Top of cutout to bottom

of countertop (min.) 2 5.1

DBottom of cutout to top

of cabinet door (min.) 2 5.1

Depth of cutout (min.)

with ﬂush receptacle

231⁄2

59.7

with non-ﬂush receptacle 28 71.1

eRecommended electrical connection location

ELECTRICAL REQUIREMENTS

120 volt, 60 Hz, AC only, 15- or 20-amp fused, grounded circuit

is required. A time-delay fuse or dedicated circuit is recommended.

Do not use an extension cord.

LOCATION REQUIREMENTS

Support structure must be able to support 100 lb (45.4 kg) including

microwave oven and contents.

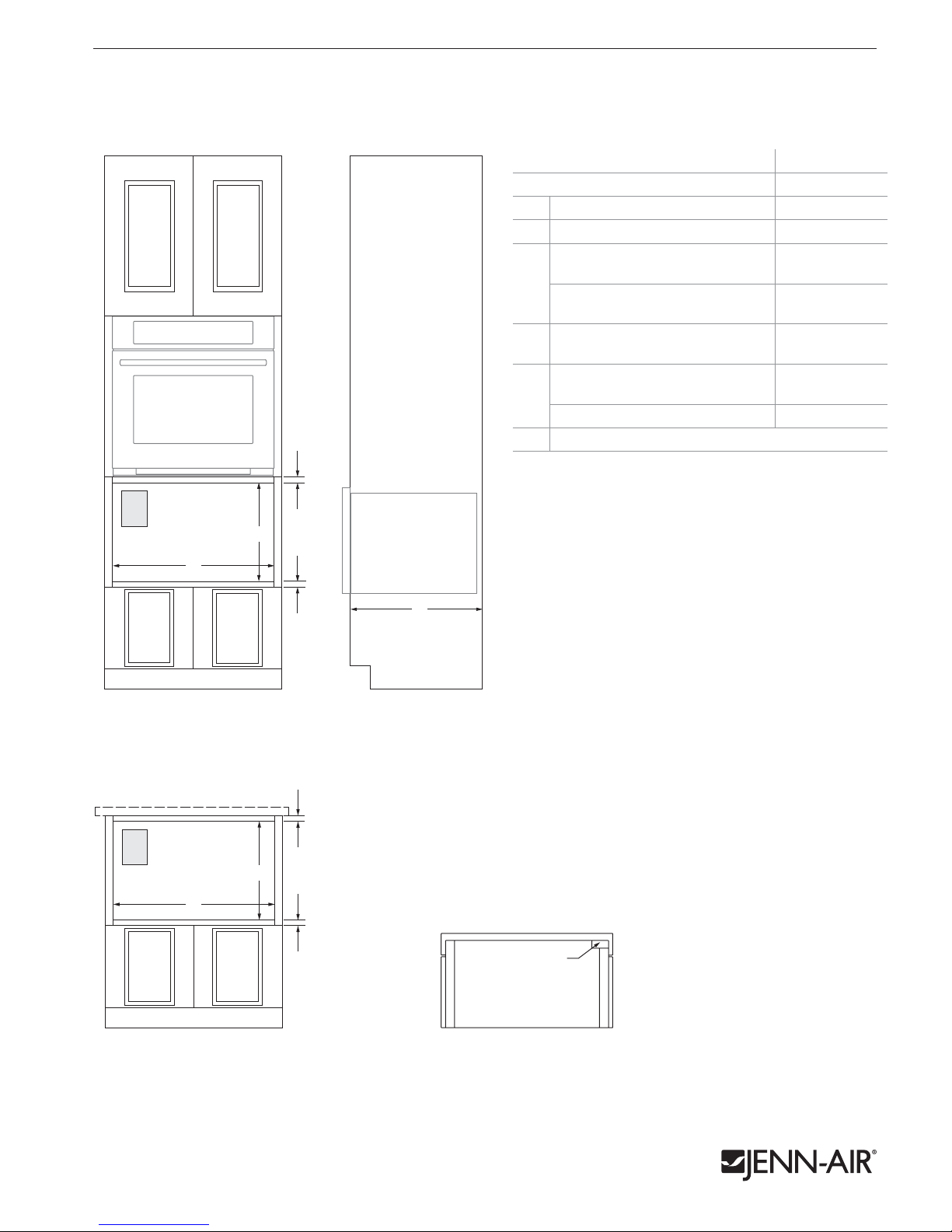

OPENING/cLEARANcE DIMENSIONS

FRONT VIEW – INSTALLATION UNDER

SINGLE OVEN

SIDE VIEW

FRONT VIEW – INSTALLATION UNDER

COUNTERTOP

uNDER cOuNTER MIcROwAvE OvEN wITh DRAwER DESIGN

JMD2124W – 233⁄4" x 153⁄8" x 241⁄2"

C G

Back of

Cabinet

Power Supply Location

BACK VIEW
