Jenn-Air JGR8895BDS12 Manuale utente

COOKTOP PARTS

For Model: JGR8895BDS12

(Stainless Steel)

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

CONVECTION

5−12 Litho In U.S.A. (CCS) (psw) Part No. W10261077 Rev. C

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10162494

Installation

Instructions

W10162492

Owners Manual

Brochure, Tips

Safe Cooking

9762761 English

W10065852

French

2 Cap, Burner

7504P204−60

(LF)

7504P241−60

(LR & RR)

7504P165−60

(RF)

7504P202−60

Center

8016P022−60

Glide, Main Top

4 Burner

8286183 17K, LF

8286182 12K, RF

8286181 6K, Center

W10194076

LR/RR

W10191074

Cooktop (BLK)

6 8285469 Grommet, Knob

W10183665

Knob, Control

7518P455−60

Grate, Burner

(Incl. Bumpers)

9 3368921 Screw

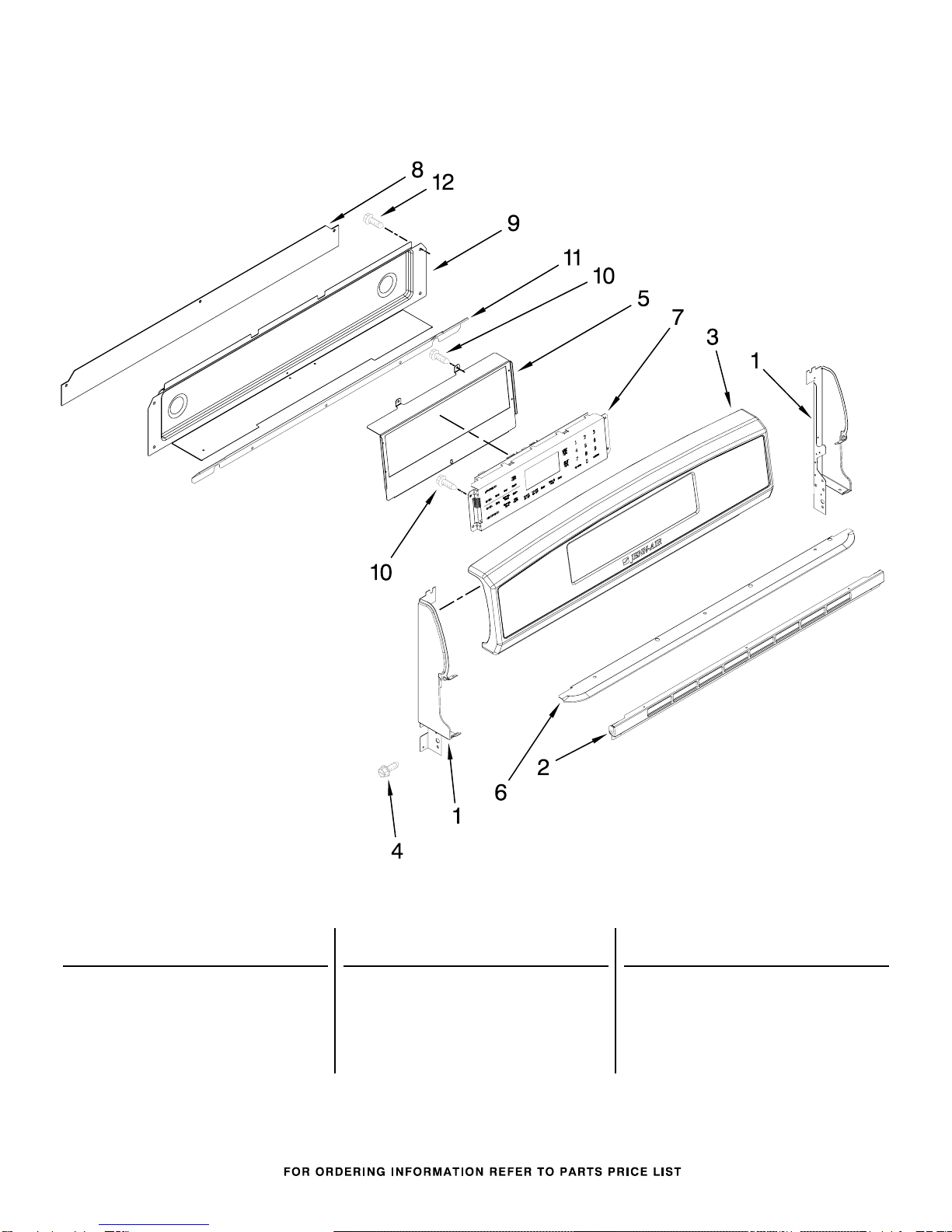

CONTROL PANEL PARTS

For Model: JGR8895BDS12

(Stainless Steel)

W10261077

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Support, Backguard

3807F734−70

Left

3807F733−70

Right

3608F121−09

Trim, Vent

W10172705

Panel, Control

(Incl. Overlay)

7101P633−60

Screw

3801F926−51

Bracket, Control

3604F398−09

Shield, Vent

7450P073−60

Control Assy.

(Incl. Membrane

Switch)

8036P025−60

Shield, Sight

4005F804−51

Cover, Rear Wire

7101P500−60

Screw

3604F405−51

Shield, Wire

7101P434−60

Screw

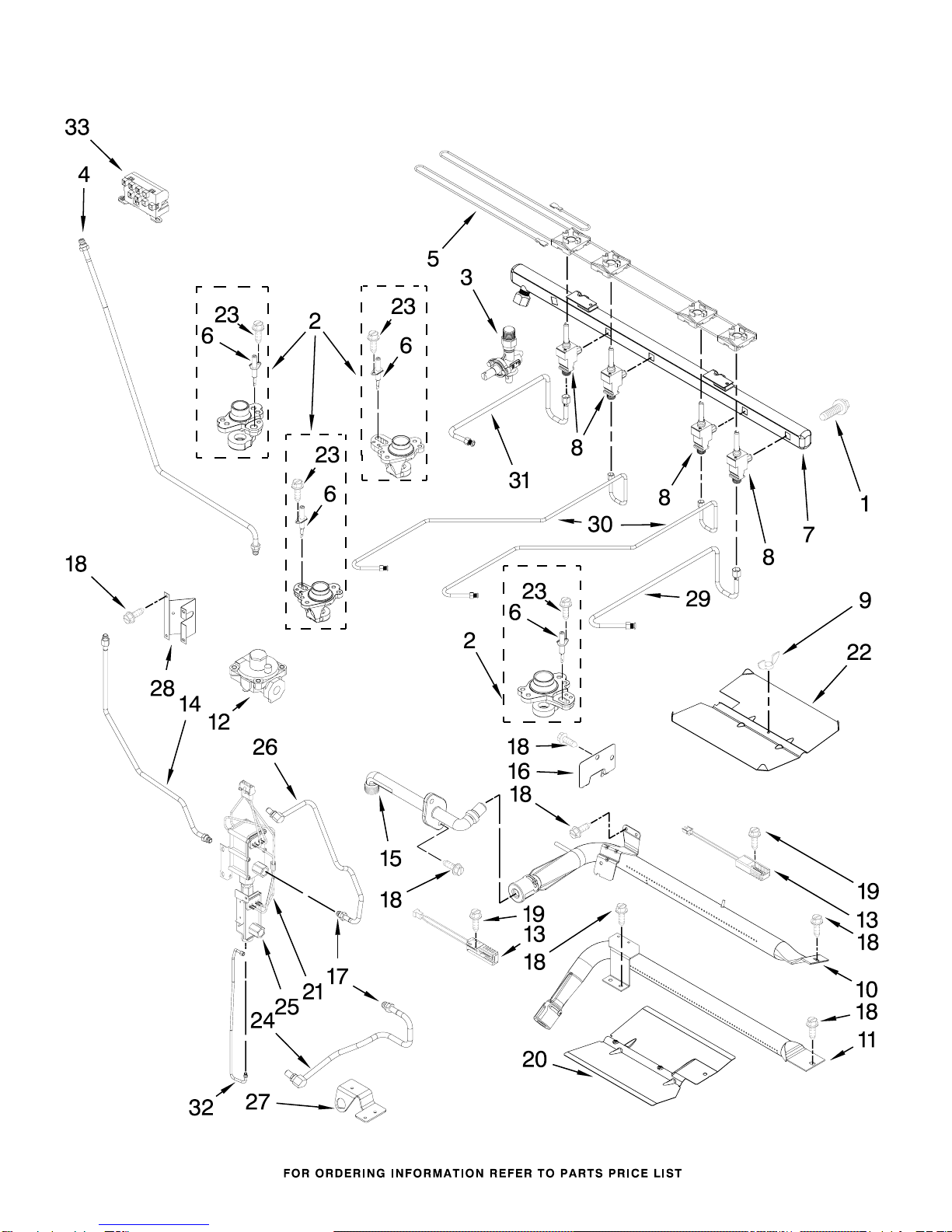

MANIFOLD PARTS

For Model: JGR8895BDS12

(Stainless Steel)

W10261077

MANIFOLD PARTS

For Model: JGR8895BDS12

(Stainless Steel)

W10261077

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7101P639−60

Screw, Valve

2 Holder, Orifice

7527P021−60

(LF)

7527P022−60

(LR & RF)

7527P023−60

(RR)

7502P565−60

Valve, Shut Off

(Incl. Screw)

7506P422−60

Tubing,

Manifold to Valve

7450P106−60

Harness, Igniter

(Incl. Switches)

7432M126−60

Ignitor, Top

Burner (5)

7513P529−60

Pipe, Manifold

8 Valve

7502P561−60

(Center)

7502P562−60

(LR/RF/RR)

7502P564−60

(LF)

7103P030−60

Nut

7505P323−60

Burner, Broiler

7505P324−60

Burner, Bake

7510P089−60

Regulator,

Pressure

13 Igniter

7432P130−60

Broil

7432P143−60

Bake

7506P429−60

Tubing (Broiler

Fitting To Valve)

7507P400−60

Fitting, Broiler

7507P400−60

Cover, Igniter

7103P195−60

Nut, Mounting

7101P388−60

Screw

7101P282−60

Screw

3601F339−45

Baffle, Bake

Burner

5171P603−60

Harness, Triple

Valve

3601F358−45

Baffle,

Broil Burner

23 8273062 Screw

7507P395−60

Tubing, Bake

Burner

(Incl. Orifice)

7501P221−60

Valve, Bake/Broil

7507P396−60

Tubing, Broil

Burner

(Incl. Orifice)

3801F681−45

Bracket, Orfice

3801F691−51

Bracket, Regulator

7506P378−60

Tubing (RF & RR)

7506P379−60

Tubing (LF & LR)

7506P417−60

Tubing (Center)

7506P428−60

Tubing, Manifold

to Valve

7431P053−60

Module, Spark

Following Parts Not Illustrated

W10191081

Spuds, LP Gas

(Kit of 5)

For Model: JGR8895BDS12

(Stainless Steel)

W10261077

CHASSIS PARTS

For Model: JGR8895BDS12

(Stainless Steel)

W10261077

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3826W047−45

Extension, Lower

Vent

8004P024−60

Spacer, Side Panel

7101P388−60

Screw

2618F194−70

Panel, Side

3605F338−19

Plate, Convection

W10206589

Fan, Convection

3801F656−51

Bracket, Anti−Tip

3823F015−51

Spacer, Side Panel

(Long)

3801F924−80

Bracket, Cooktop

7101P507−60

Foot, Leveler

W10312768

Base, Gemini

12 Sensor, Oven

7430P045−60

Upper Oven

7430P041−60

Lower Oven

7101P633−60

Screw

7101P385−60

Screw

4005F741−51

Cover, Conv. Motor

4005F743−51

Cover, Bottom Wire

W10210727

Cover, Upper Wire

4005F421−45

Cover,

Ignitor Wire

19 Bracket

3801F705−51

Right

3801F706−51

Left

W10180198

Back, Main

3807F647−45

Plate, Broil

Fitting

3804F212−45

Retainer, Bottom

Insulation

23 Support, Upr Oven

3807F643−45

Right

3807F644−45

Left

3804F270−45

Retainer,

Insulation

25 Pan, Bake

3401F091−45

Lower

3401F090−45

Upper

7401P039−60

Block, Terminal

W10260703

Support, Lwr Oven

7407P179−60

Light Assy.

899138−001

Bulb, Light

8002P077−60

Latch, Door Lock

31 Bottom, Burner Box

W10283688

Right

W10283722

Left

3601F321−50

Baffle, Vent Seal

3826W042−45

Extension, Upper

Vent

4022W055−45

Flue Assy., Upper

3826W052−45

Flue Assy., Lower

7101P375−60

Screw

7212P066−60

Seal, Front Frame

4005F736−45

Cover, Burner

Opening

3601F308−19

Baffle, Lower Oven

Vent

2205F055−19

Bottom, Upper Oven

2205F051−19

Bottom, Lower Oven

3608F088−70

Trim, Kickplate

7450P108−60

Switch, Light

Assembly

INSULATION

Insulation, Wrap

7002P310−60

Upper Oven

7002P413−60

Lower Oven

Insulation, Back

7002P415−60

Upper Oven

7002P419−60

Lower Oven

UPPER DOOR PARTS

For Model: JGR8895BDS12

(Stainless Steel)

W10261077

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7701P467−60

Handle, Door

7760P149−60

Panel, Door

7101P388−60

Screw

3823F017−45

Spacer, Handle

7101P376−60

Screw

7201P141−60

Gasket, Window

3804F184−45

Retainer, Glass

Support

7902P753−60

Glass, Outer Door

7902P542−60

Glass, Inner Door

7101P376−60

Screw

3601F354−45

Baffle, Door

7002P488−60

Insulation

7902P521−60

Glass, Inner

7907P034−60

Frame, Glass

2402W248−19

Liner, Door

7103P141−60

Nut, Snap

7201P091−60

Gasket, Door

7106P148−60

Hinge, Door

7101P282−60

Screw

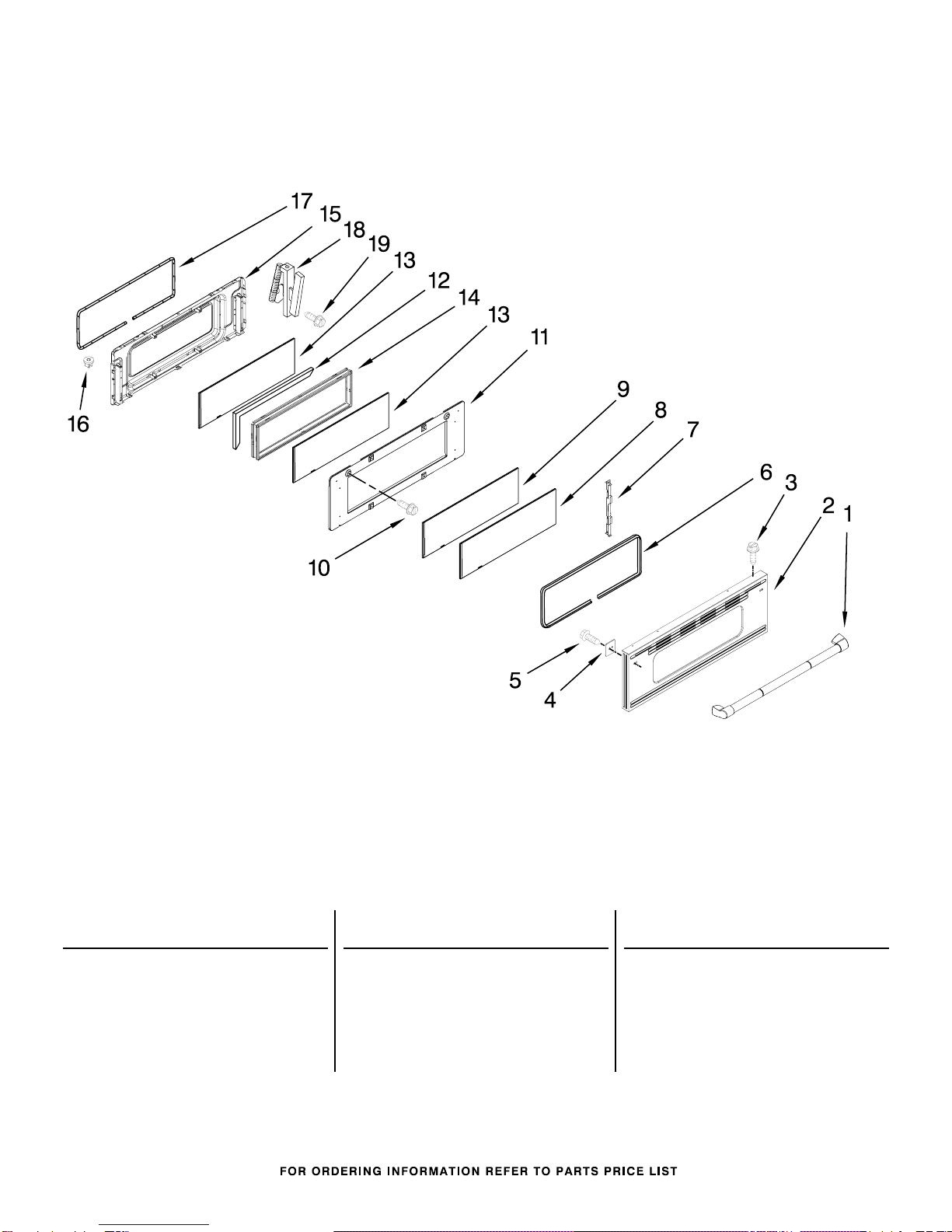

LOWER DOOR PARTS

For Model: JGR8895BDS12

(Stainless Steel)

W10261077

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7201P141−60

Gasket, Window

7106P141−60

Hinge, Door

7701P467−60

Handle, Door

7760P148−60

Panel, Door

7002P427−60

Insulation, Foil

7101P376−60

Screw

3823F017−45

Spacer, Handle

7101P376−60

Screw

3804F265−45

Retainer, Glass

Support

3604F441−51

Shield, Door

7902P754−60

Glass, Outer Door

7902P468−60

Glass, Door

3801F886−51

Bracket, Inner

Glass

7902P436−60

Glass, Inner

3601F373−51

Baffle, Door

7002P246−60

Insulation

2402W312−19

Liner, Door

7103P141−60

Nut, Snap

W10162384

Gasket, Door

7101P282−60

Screw

RACK PARTS

For Model: JGR8895BDS12

(Stainless Steel)

W10261077

Illus. Part

No. No. DESCRIPTION

W10273862

Rack, Upper Oven

W10251904

Rack, Telescoping

7801P173−60

Rack, Lwr Oven

OPTIONAL PARTS (NOT INCLUDED)

For Model: JGR8895BDS12

(Stainless Steel)

W10261077

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

REFINISHING MATERIAL

242756 Touch−Up

Self−Clean(1/2 Pt)

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

72032 Black

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350939 Black

285006 Black

350942 White Primer

350938 Gray Primer

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORIES

241430 Foil, Aluminum

(18" x 25’)

WIRING HARNESS PARTS

5171P467−60

Harness, Gas

5171P467−60

Harness, Side

Mount Lock

5171P360−60

Harness, Sensor

W10202387

Harness, Spark

5175P365−60

Harness, Door

Position
