Jenn-Air Pro-Style JGR8890ADP20 Manuale utente

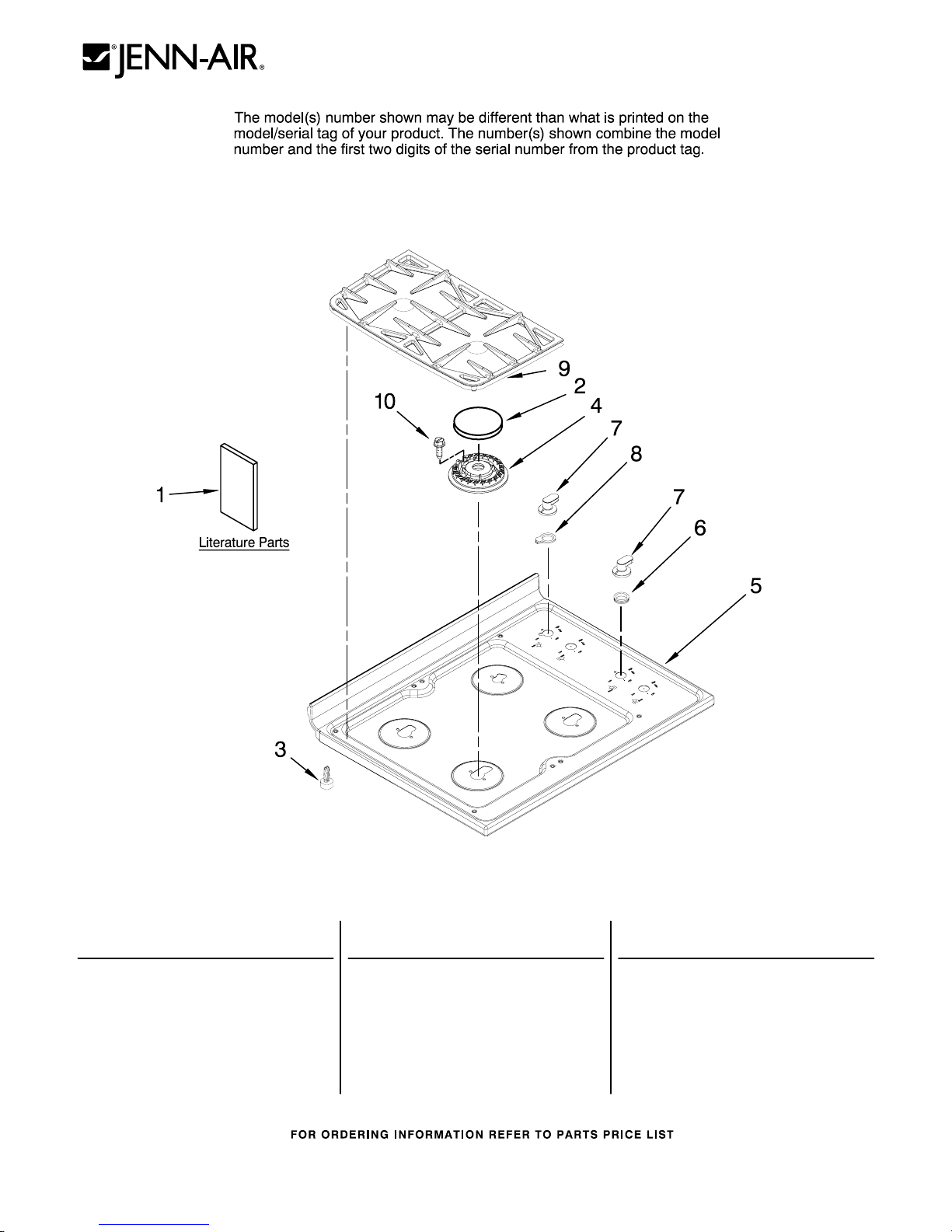

COOKTOP PARTS

For Models: JGR8890ADP20

(Stainless Steel)

3−09 Litho In U.S.A. (MMS) (psw) Part No. W10261580 Rev A

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

CONVECTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8101P728−60

Installation

Instructions

8113P716−60

Owners Manual

2 Cap, Burner

7504P204−60

(LF−EX−LG)

7504P241−60

(LR & RF−MED)

7504P202−60

(RR−SM)

8016P022−60

Glide, Main Top

4 Burner

8286181 (RR)

7540P043−60

(LR & RF)

8286183 (LF)

2001N292−09

Cooktop (BLK)

6 8285469 Grommet, Knob (3)

(RF,LF, & LR)

W10175696

Knob, Control (4)

8 8285469 Grommet, Knob (1)

(RR)

7518P422−60

Grate, Burner (2)

(Incl. Bumpers)

7101P685−60

Screw (8)

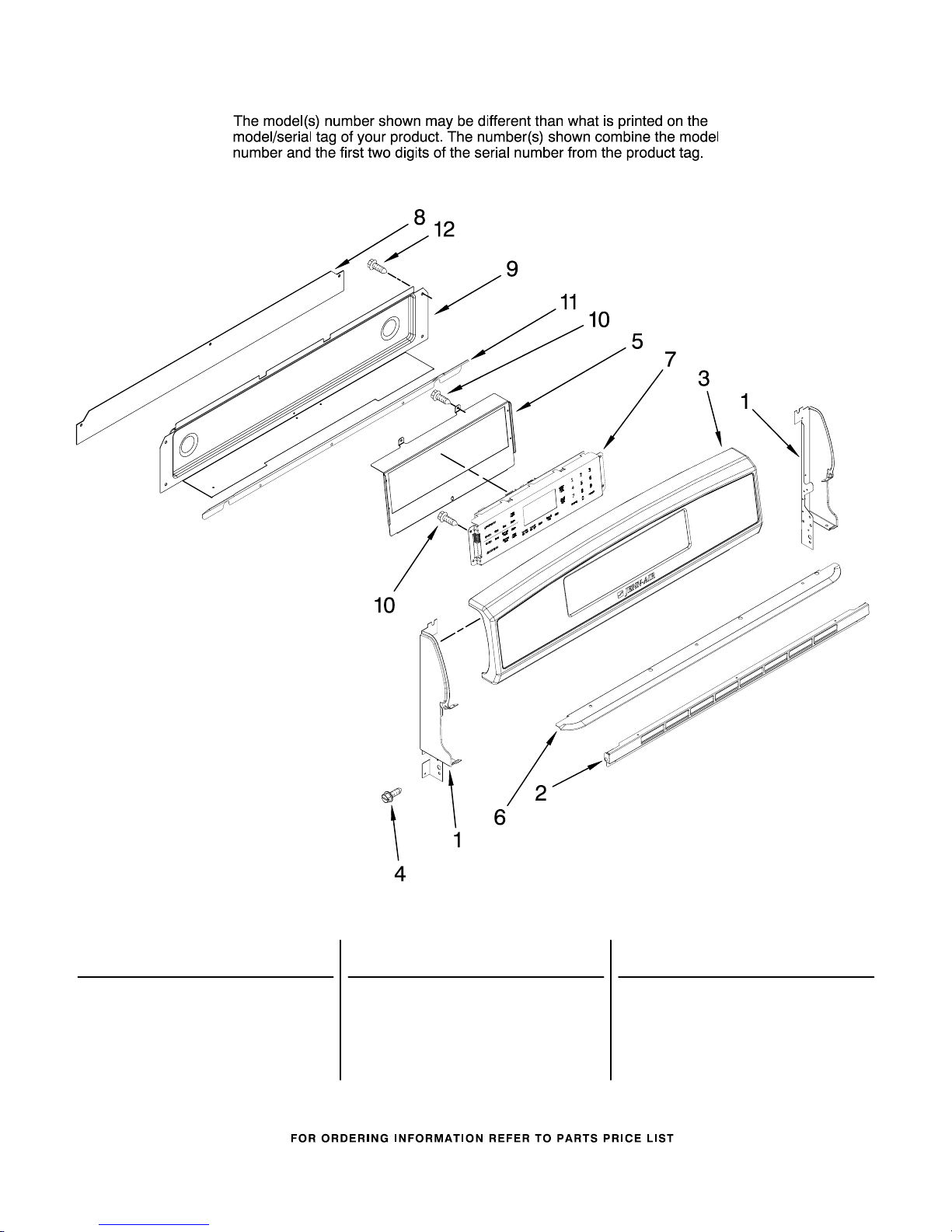

CONTROL PANEL PARTS

For Models: JGR8890ADP20

(Stainless Steel)

W10261580

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Support, Backguard

3807F734−70

Left

3807F733−70

Right

3608F121−09

Trim, Vent

2602M182−09

Panel, Control

(Incl. Overlay)

7101P633−60

Screw

W10163277

Bracket, Control

3604F398−09

Shield, Vent

W10162916

Control Assy.

(Incl. Membrane

Switch)

8036P025−60

Shield, Sight

4005F804−51

Cover, Rear Wire

7101P500−60

Screw

3604F405−51

Shield, Wire

7101P434−60

Screw

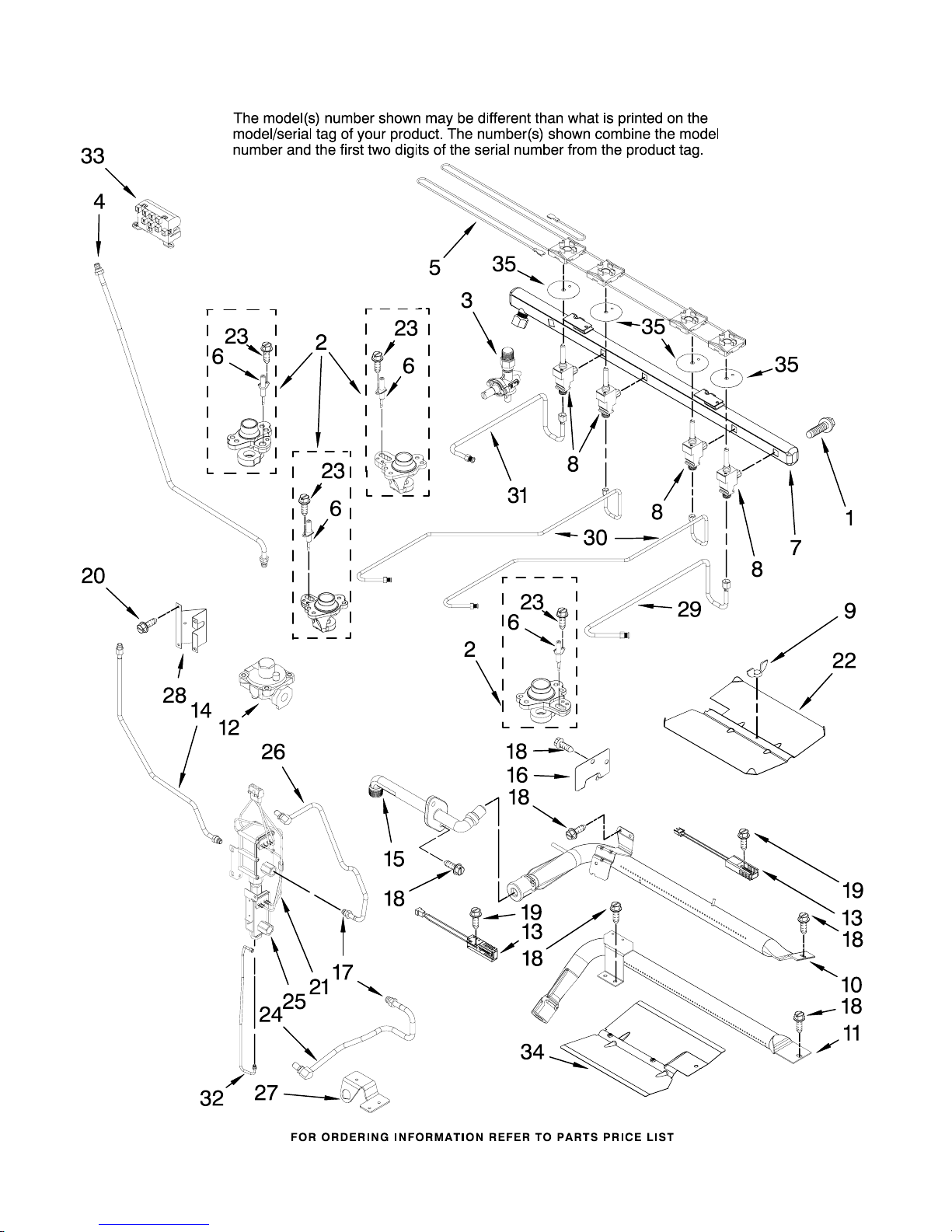

MANIFOLD PARTS

For Models: JGR8890ADP20

(Stainless Steel)

W10261580

MANIFOLD PARTS

For Models: JGR8890ADP20

(Stainless Steel)

W10261580

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7101P639−60

Screw, Valve (4)

2 Holder, Orifice

7527P021−60

(LF)

7527P022−60

(LR & RF)

7527P023−60

(RR)

7502P565−60

Valve, Shut Off

(Incl. Screw)

7506P422−60

Tubing,

Manifold to Valve

7450P107−60

Harness, Igniter

(Incl. Switches)

7432M126−60

Ignitor, Top

Burner (4)

7513P530−60

Pipe, Manifold

8 Valve

7502P561−60

(RR)

7502P562−60

(LR & RF)

7502P564−60

(LF)

7103P030−60

Nut

7505P323−60

Burner, Broiler

7505P324−60

Burner, Bake

7510P089−60

Regulator,

Pressure

13 Igniter

7432P130−60

Broil

7432P143−60

Bake

7506P429−60

Tubing (Broiler

Fitting To Valve)

7507P400−60

Fitting, Broiler

4005F421−45

Cover, Igniter

7103P195−60

Nut, Mounting

7101P360−60

Screw

7101P282−60

Screw

7101P388−60

Screw

5171P603−60

Harness, Triple

Valve

3601F358−45

Baffle,

Broil Burner

23 8273062 Screw

7507P395−60

Tubing, Bake

Burner

(Incl. Orifice)

7501P221−60

Valve, Bake/Broil

7507P396−60

Tubing, Broil

Burner

(Incl. Orifice)

3801F681−45

Bracket, Orfice

3801F691−51

Bracket, Regulator

7506P378−60

Tubing (RF)

7506P379−60

Tubing (LR & LF)

7506P418−60

Tubing (RR)

7506P428−60

Tubing, Manifold

to Valve

7431P064−60

Module, Spark

3601F339−45

Baffle, Bake

Burner

7724P194−60

Cover, Valve Swtch

Following Parts Not Illustrated

5789A602−60

Spuds, LP Gas

(Kit of 4)

W10196413

Kit, LP Conv.

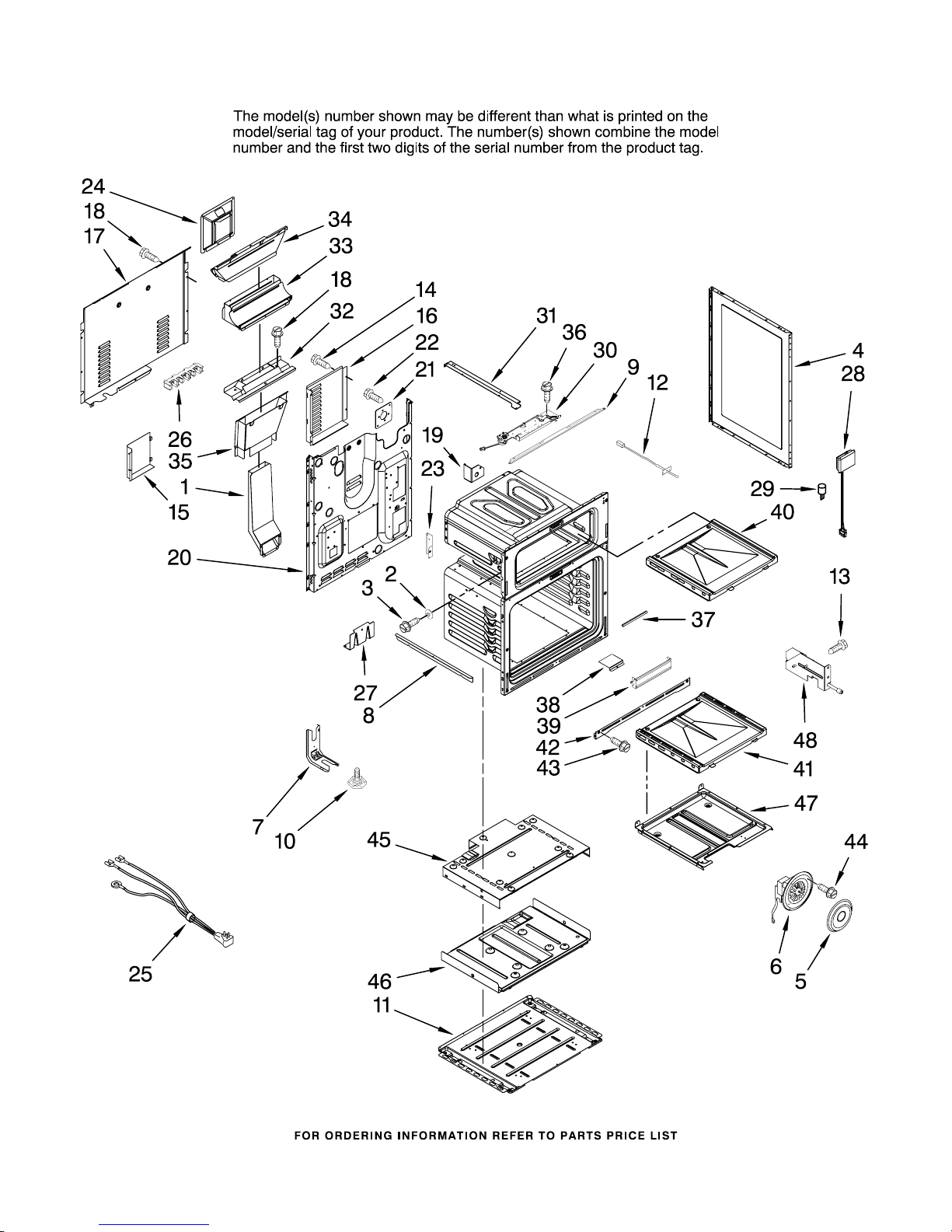

CHASSIS PARTS

For Models: JGR8890ADP20

(Stainless Steel)

W10261580

CHASSIS PARTS

For Models: JGR8890ADP20

(Stainless Steel)

W10261580

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3826W047−45

Extension, Lower

Vent

8004P024−60

Spacer, Side Panel

7101P618−60

Screw

2618F194−70

Panel, Side (2)

3605F338−19

Plate, Convection

7427P103−60

Fan, Convection

3801F656−51

Bracket, Anti−Tip

3823F015−51

Spacer, Side Panel

(Long)

3801F924−80

Bracket, Cooktop

7101P507−60

Foot, Leveler (4)

4003F070−51

Base, Gemini

12 Sensor, Oven

7430P045−60

Upper Oven

7430P041−60

Lower Oven

7101P347−60

Screw

7101P388−60

Screw

4005F741−51

Cover, Conv. Motor

4005F743−51

Cover, Bottom Wire

4005F655−51

Cover, Upper Wire

7101P388−60

Screw

19 Bracket

3801F705−51

Right

3801F706−51

Left

W10180198

Back, Main

3807F647−45

Plate, Broil

Fitting

7101P388−60

Screw

23 Support, Upr Oven

3807F643−45

Right

3807F644−45

Left

3804F270−45

Retainer,

Insulation

7402P111−60

Cord, Power

7401P039−60

Block, Terminal

3807F580−51

Support, Lwr Oven

7407P179−60

Light Assy. (2)

899138−001

Bulb, Light (2)

8002P077−60

Latch, Door Lock

31 Bottom, Burner Box

W10163331

Right

W10163332

Left

3601F321−50

Baffle, Vent Seal

3826W042−45

Extension, Upper

Vent

4022W055−45

Flue Assy., Upper

3826W052−45

Flue Assy., Lower

7101P375−60

Screw

7212P066−60

Seal, Front Frame

4005F736−45

Cover, Burner

Opening (2)

3601F308−19

Baffle, Lower Oven

Vent

2205F055−19

Bottom, Upper Oven

2205F051−19

Bottom, Lower Oven

3608F088−70

Trim, Kickplate

7101P633−60

Screw (2)

7101P385−60

Screw

4005F695−45

Cover, Bottom

Insulation

3804F212−45

Retainer, Bottom

Insulation

47 Pan, Bake

3401F091−45

Lower

3401F090−45

Upper

7450P108−60

Switch, Light−Assy

INSULATION

Insulation, Wrap

7002P310−60

Upper Oven

7002P413−60

Lower Oven

Insulation, Back

7002P415−60

Upper Oven

7002P419−60

Lower Oven

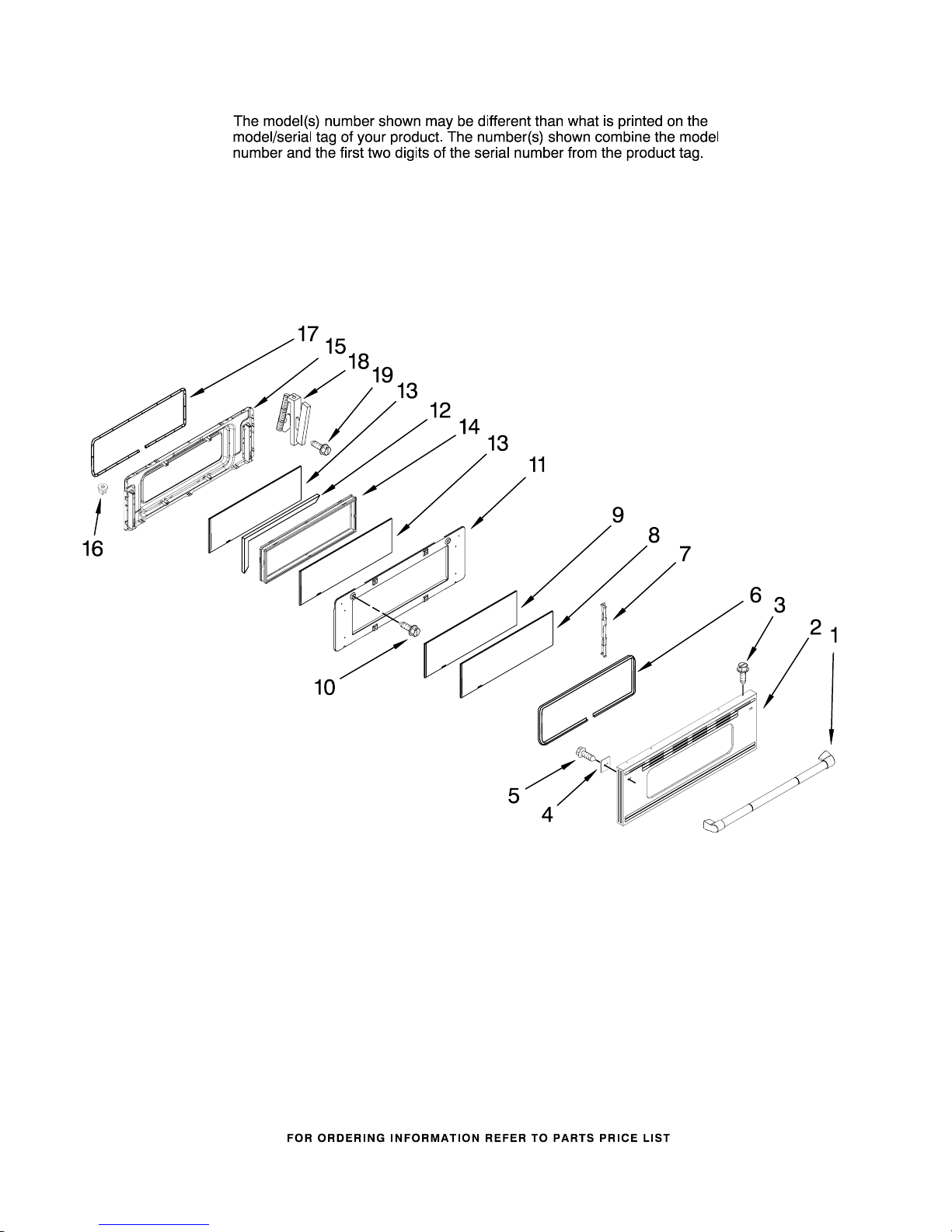

UPPER DOOR PARTS

For Models: JGR8890ADP20

(Stainless Steel)

W10261580

UPPER DOOR PARTS

For Models: JGR8890ADP20

(Stainless Steel)

W10261580

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7701P475−60

Handle, Door

7760P217−60

Panel, Door

7101P388−60

Screw

8038P040−60

Plate, Back (2)

(Handle Mtg.)

7101P668−60

Screw

7201P091−60

Gasket, Window

3804F184−45

Retainer, Glass

Support (2)

7902P753−60

Glass, Outer Door

7902P542−60

Glass, Inner Door

7101P376−60

Screw

3601F354−45

Baffle, Door

7002P488−60

Insulation (2)

7902P521−60

Glass, Inner (2)

7907P034−60

Frame, Glass

2402W248−19

Liner, Door

7103P141−60

Nut, Snap (2)

7201P091−60

Gasket, Door

7106P148−60

Hinge, Door (2)

7101P282−60

Screw (4)

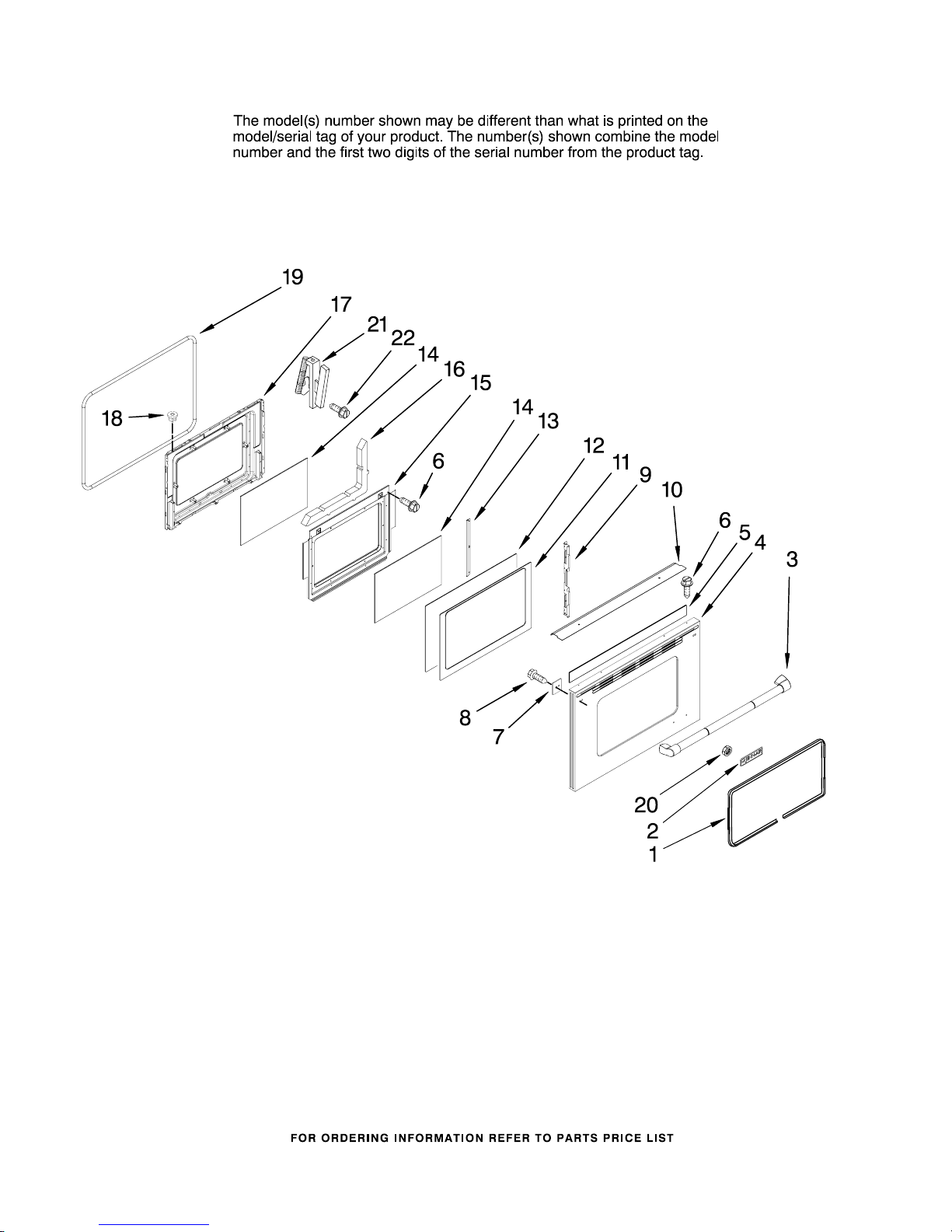

LOWER DOOR PARTS

For Models: JGR8890ADP20

(Stainless Steel)

W10261580

LOWER DOOR PARTS

For Models: JGR8890ADP20

(Stainless Steel)

W10261580

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7201P140−60

Gasket, Window

7719P087−60

Nameplate

7701P475−60

Handle, Door

7760P158−60

Panel, Door

7002P427−60

Insulation, Foil

7101P376−60

Screw

8038P040−60

Plate, Back (2)

(Handle Mtg.)

7101P668−60

Screw

3804F265−45

Retainer, Glass

Support (2)

W10163149

Shield, Door

7902P754−60

Glass, Outer Door

7902P468−60

Glass, Door

3801F886−51

Bracket, Inner

Glass (2)

7902P436−60

Glass, Inner (2)

3601F373−51

Baffle, Door

7002P246−60

Insulation

2402W312−19

Liner, Door

7103P141−60

Nut, Snap (2)

W10162384

Gasket, Door

7103P166−60

Palnut (2)

7106P143−60

Hinge, Door (2)

7101P282−60

Screw (4)
