Jenn-Air JXT9130CDP Manuale utente
RANGE HOOD
INSTALLATION
GUIDE
TABLE OF CONTENTS
Safety Instructions.................................................... 1
Mounting Heights.................................................... 2
Ducting..............................................................3-7-8
Specifications...........................................................4
Installation............................................................5-6
Form No. A/06/04 Part No. 8110P262-60 ©2004 Maytag Appliances Sales Co. Litho U.S.A.
MK7530
MK7536
Model Number: JXT9130CDP JXT9136CDP
Manufacturer Number: MK7530 MK7536
Size: 30” 36”
INSTALLATION GUIDE
Read all Instructions before Installing and operating this appliance
MODELS: JXT9130 JXT9136
Installation
The installation in this manual is intended for qualified installers, service technicians or persons
with similar qualified background. DO NOT attempt to install this appliance yourself. Injury could
result from installing the unit due to lack of appropriate electrical and technical background.
All electrical wiring must be properly installed, insulated and grounded. Overly accumulated
grease in old duct work should be cleaned out or duct work should be replaced if necessary to
avoid the possibility of a grease fire. Check all joints on duct work to insure proper connection
and all joints should be properly taped.
* Please check for latest specification revisions before any custom work or cutouts.
IMPORTANT SAFETY NOTICE
WARNING
LIST OF MATERIALS
1 - Hood
2 - Baffle filters (2-30", 3-36")
2 - Halogen light bulbs (2-30", 3-36")
1 - Hardware packet containing:
4 - 2” drywall screws
4 - 1 1/2” drywall screws
4 - 1” drywall screws
4 - 1/2” washers
3 - wire connectors
1- 6 to 3 1/4” x 10” rectangular adapter
NO DUCTING IS INCLUDED
INSTALLATION 2
MOUNTING HEIGHTS
DUCTING
10"
36"
96"
Min 24"-Max 32"
Minimum mounting height between range top
to hood bottom should be no less than 24".
Maximum mounting height should be no
higher than 32".
It is important to install the hood at the
proper mounting height. Hoods mounted too
low could result in heat damage and fire
hazard; while hoods mounted too high will be
hard to reach and will loose performance
and efficiency.
If available, also refer to range manufacturer's
height clearance requirements and recom-
mended hood mounting height above range.
A minimum of 6" round or 3-1/4” x 10"rectangular
duct must be used to maintain maximum air flow
efficiency.
Always use rigid type metal ducts only.
Flexible ducts could restrict air flow by up to 50%.
Also use calculation (on right) to compute total
available duct run when using elbows, transitions
and caps.
ALWAYS, when possible, reduce the number of
transitions and turns. If long duct run is required,
increase duct size from 6" to 7” or 8". If a reducer
is used, install a long reducer instead of a pancake
reducer. Reduce duct size as far away from open-
ing as possible.
If turns or transitions are required:
Install as far away from opening and as far
apart, between 2, as possible.
Duct Run Calculation:
Maximum run
6" or 3-1/4” x 10" duct
Deduct:
each 90 Elbow used
each 45 elbow used
each 6" to 3/14 x 10"
transition used
each 3/14 x 10" to 6"
transition used
Side Wall Cap w/ damper
Roof Cap
100 FT
15 FT
9 FT
1 FT
5 FT
30 FT
30 FT
e.g.- 1 roof cap, 2x90 elbows, 1 x 45 elbow used:
=30' + 30' + 9' =69' used, 31' available for straight duct runs.
Minimum Duct Size:
Round:
6" minimum
Rectangular:
3-1/4” x 10”
INSTALLATION 3

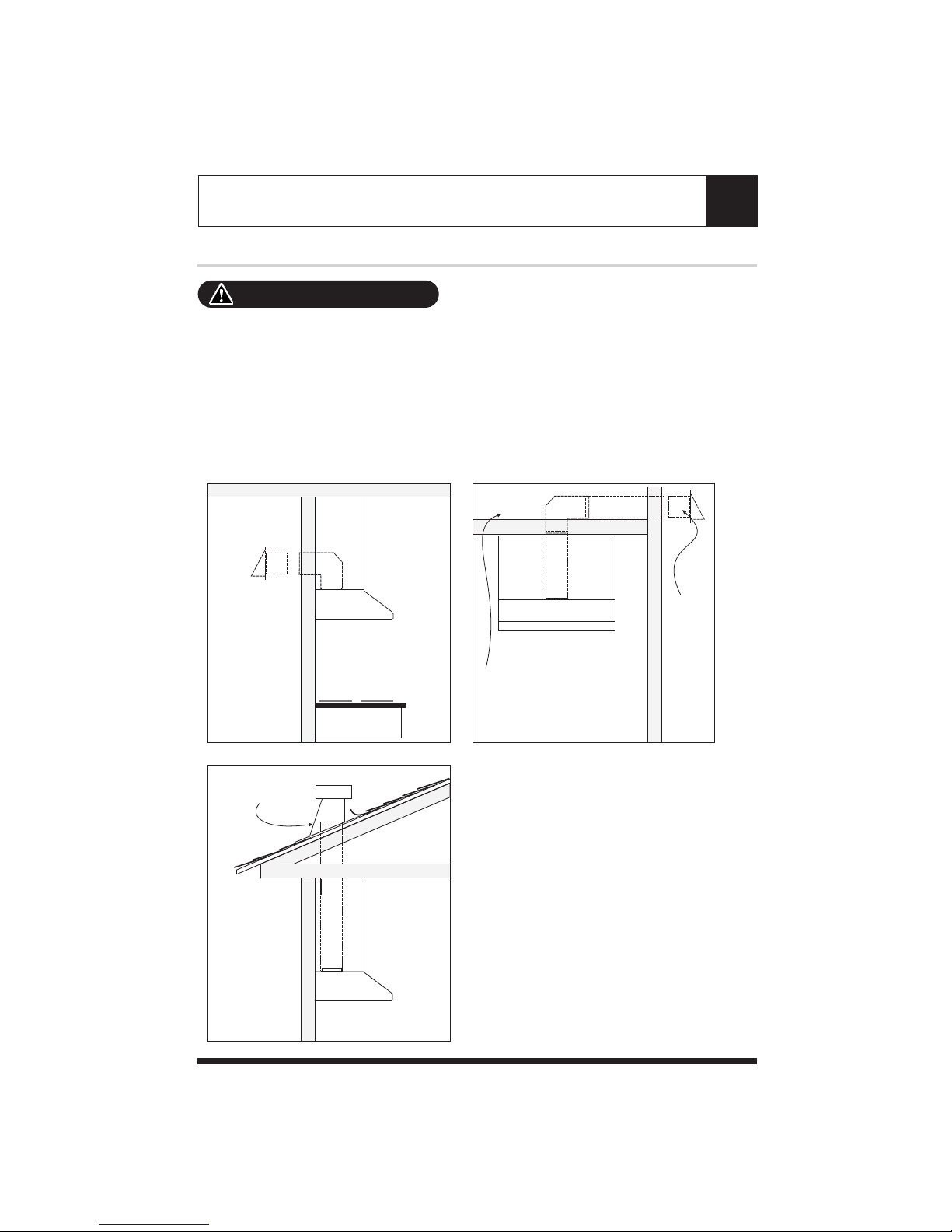

DUCTING
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or
garages. All exhaust must be ducted to the outside.
Use metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.
Some Ducting Options:
Side wall cap
w/ gravity damper
Side wall cap
w/ gravity damper
Soffit or crawl space
Roof Pitch w/
Flashing & Cap
INSTALLATION 4

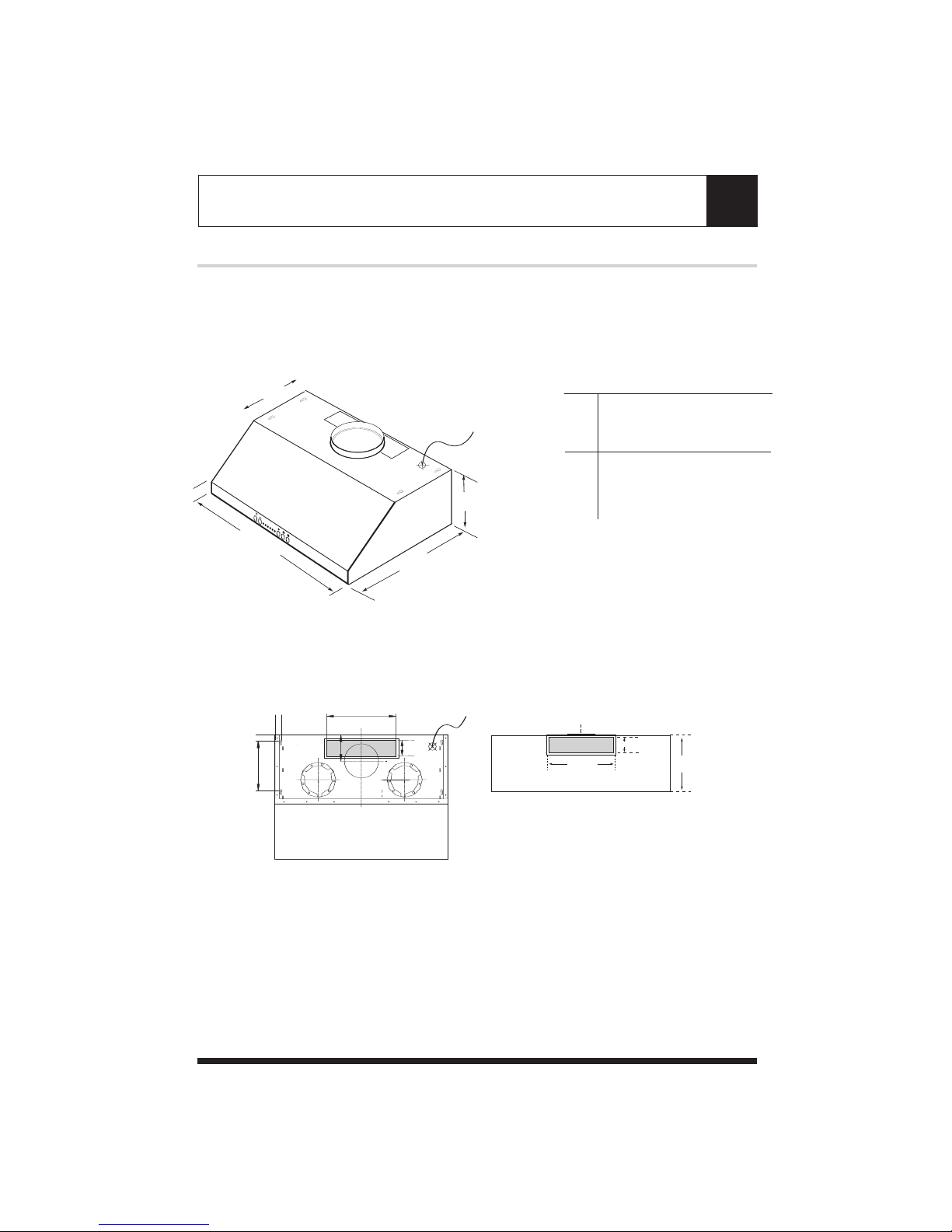

SPECIFICATIONS
10"
22"
12"
4"
30"
36"
CL
3-1/4"
10"
TOP VIEW REAR VIEW
10"
8-5/8"
4-1/2"
3-1/4"
1-1/8"
1"
1/2" Elec K.O. 1/2" Elec K.O.
10"
22"
CL
3-1/4"
10"
10"
TOP VIEW REAR VIEW
10"
8-5/8"
4-1/2"
3-1/4"
1-1/8"
1"
1/2" Elec K.O. 1/2" Elec K.O.
Position of electrical knockout
30” 2 1/2” from right
1 1/4” from back
36” 5 1/2” from right
1 1/4” from back
INSTALLATION 5

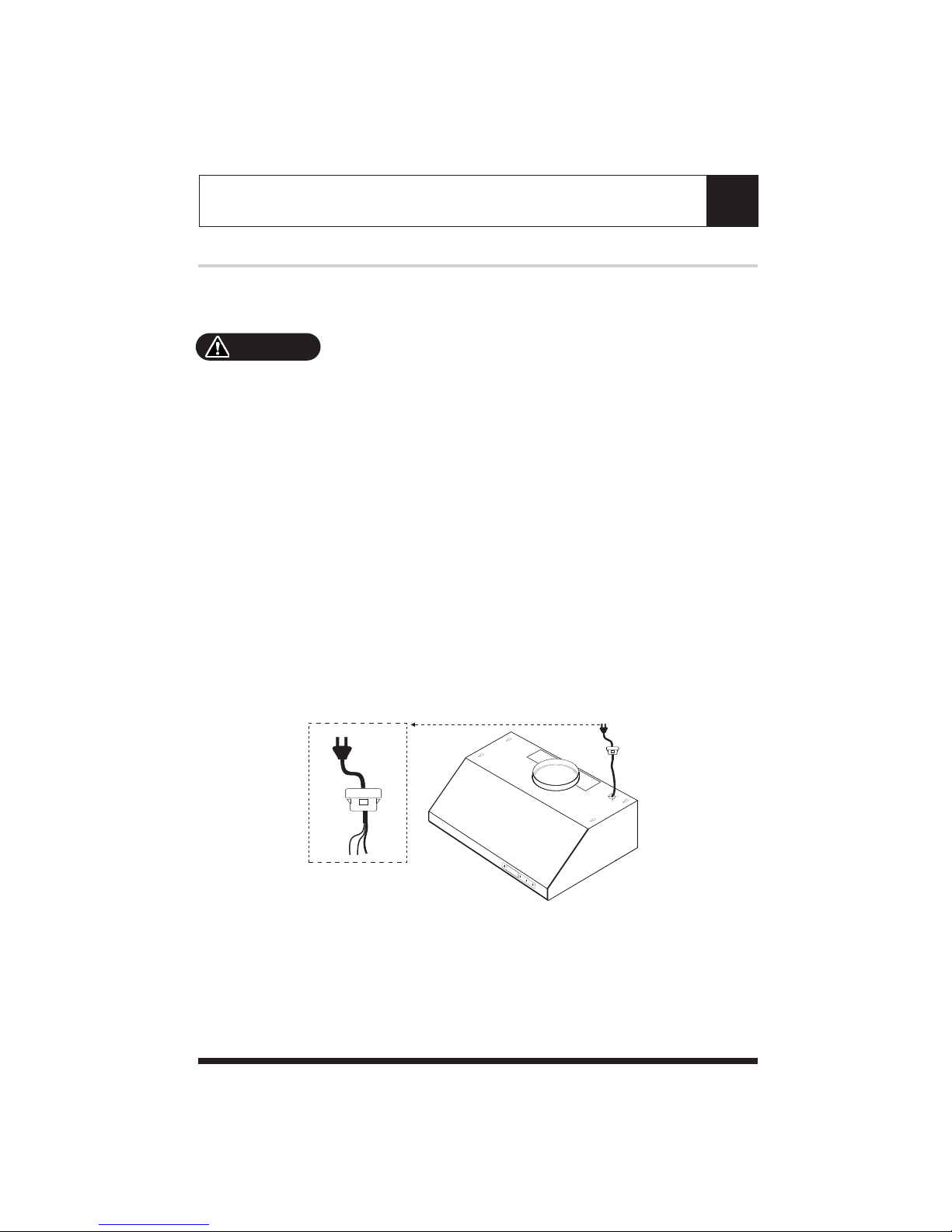

MOUNTING THE RANGEHOOD
ELECTRICAL
All Electrical work must by performed by qualified electrician or person with similar technical
know how and background.
For personal safety, remove house fuse or open circuit breaker before beginning installation.
Do not use extension cord or adapter plug with this appliance.
Follow National electrical codes or prevailing local codes and ordinances.
Electrical Supply:
This appliance requires a 120V 60Hz electrical supply, connected to an individual, properly grounded
branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2
wire w/ ground. Please also refer Electrical Diagram labeled on product.
Cable Lock:
A cable locking connector (not supplied) might also required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary.
WARNING
Cable Lock
INSTALLATION 6

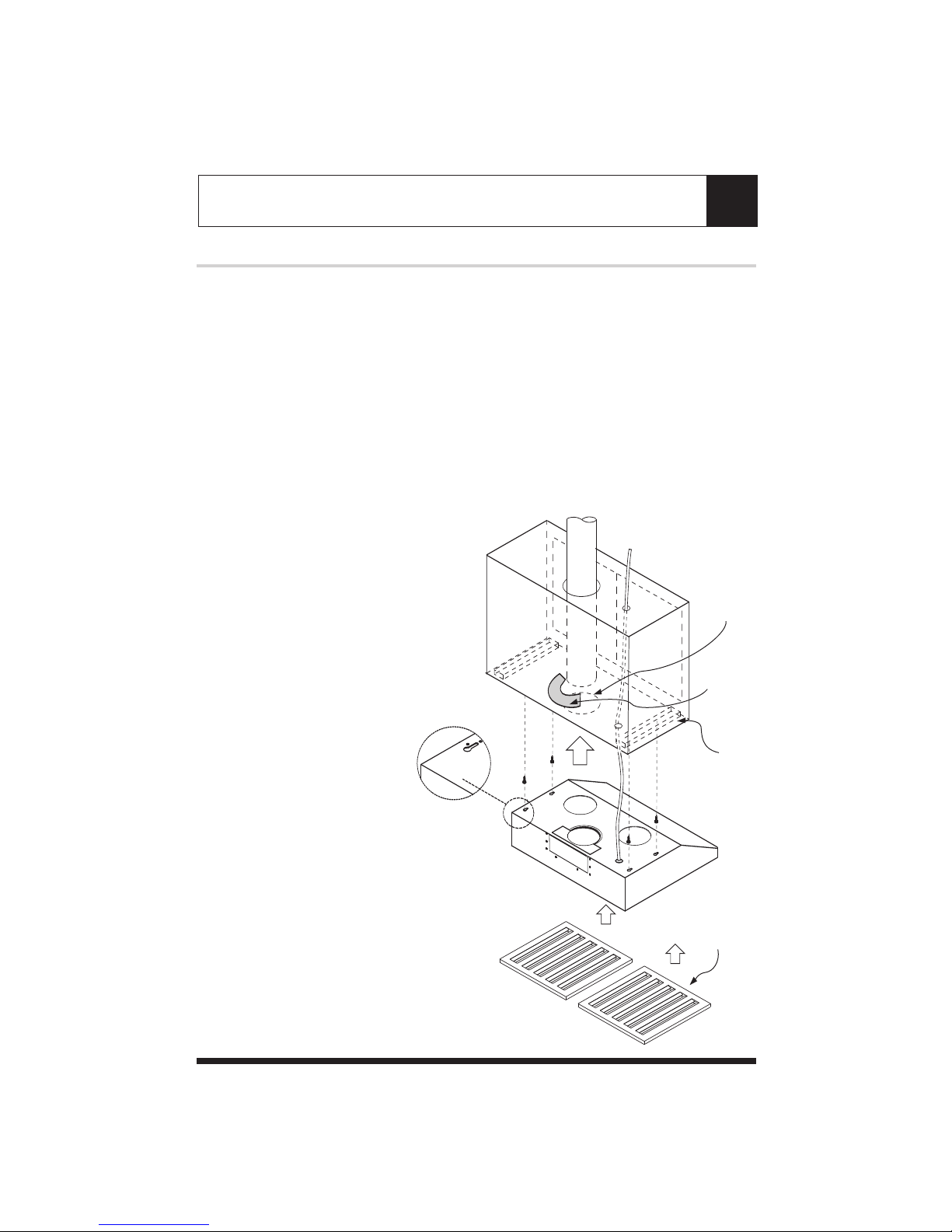

MOUNTING THE RANGEHOOD
1. This range hood is mounted under a
kitchen cabinet unit.
2. Select preferred duct location on rear or
top of unit. (See page 6 & 7 for ducting
conversion options)
3. Begin installation by temporarily removing
the baffle filters.
4. Reinforce cabinet base with 1x2 wood
strips if additional strengthening is
required.
5. Temporarily position the range hood in
the desired mounting location.
Measure and mark the mounting holes,
duct and electrical access locations with
a pencil.
6. Drill/cut out the required openings for
duct and electrical access; make sure the
duct opening is large enough to apply
duct tape.
7. Fasten hood onto cabinet with screws
and washers provided.
8. Install electrical.
9. Install duct work and duct-tape.
10. Reinstall the baffle filters.
11. Power up hood and check for leaks
around duct-tape.
duct/silver
tape
6. Duct
opening
cutout
4. Add 1x2
wood strips
3. Baffle
filters
INSTALLATION 7
CONVERTIBLE OPTIONS
This range hood is equipped with the option of a 6” vertical discharge, 3 1/4”x10” vertical discharge,
or 3 1/4”x10” rear discharge. Additional accessories are provided to convert to either of the above
discharge methods.
Convertible Options
Vertical discharge 6” round
Vertical discharge 3 1/4”x10”
Horizontal rear discharge 3 1/4”x10”
Convertible Accesories
Round to rectangular transition adaptor
Rectangular to round transition adaptor
Gasket (pre-mounted)
Rectangular rear cap (pre-mounted)
3 1/4”x10” starting collar

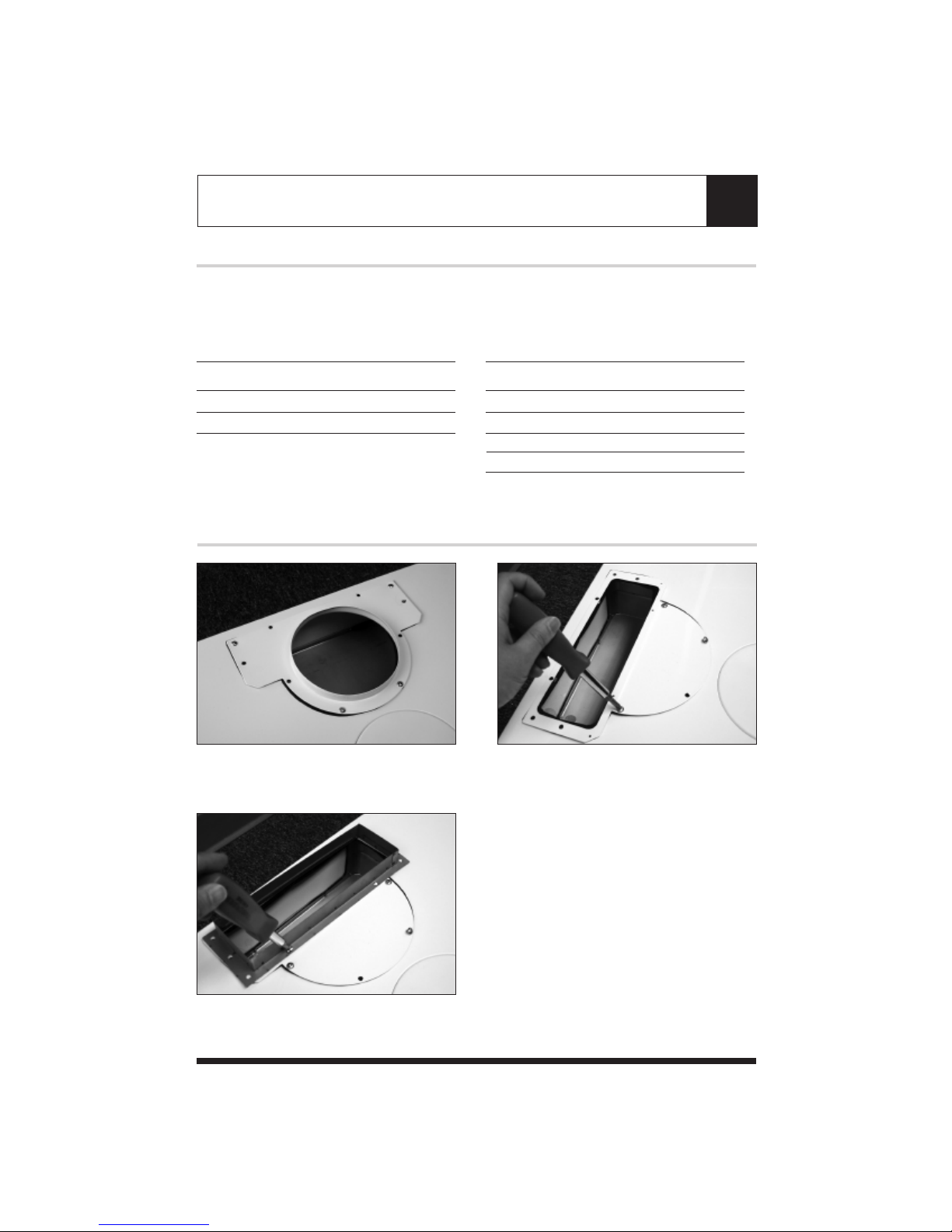

3 1/4”x10” Vertical Discharge
1. Remove pre-mounted 6” transition adaptor or duct
opening. Leave attached gasket in its original place.
3. Mount the 3-1/4”x10” starting collar on top of
transition piece with remaining screws.
2. Place rectangular transition adaptor as shown over
gasket and by first installing 4 screws on half round
section.
(pre-mounted)
INSTALLATION 8
CONVERTIBLE OPTIONS

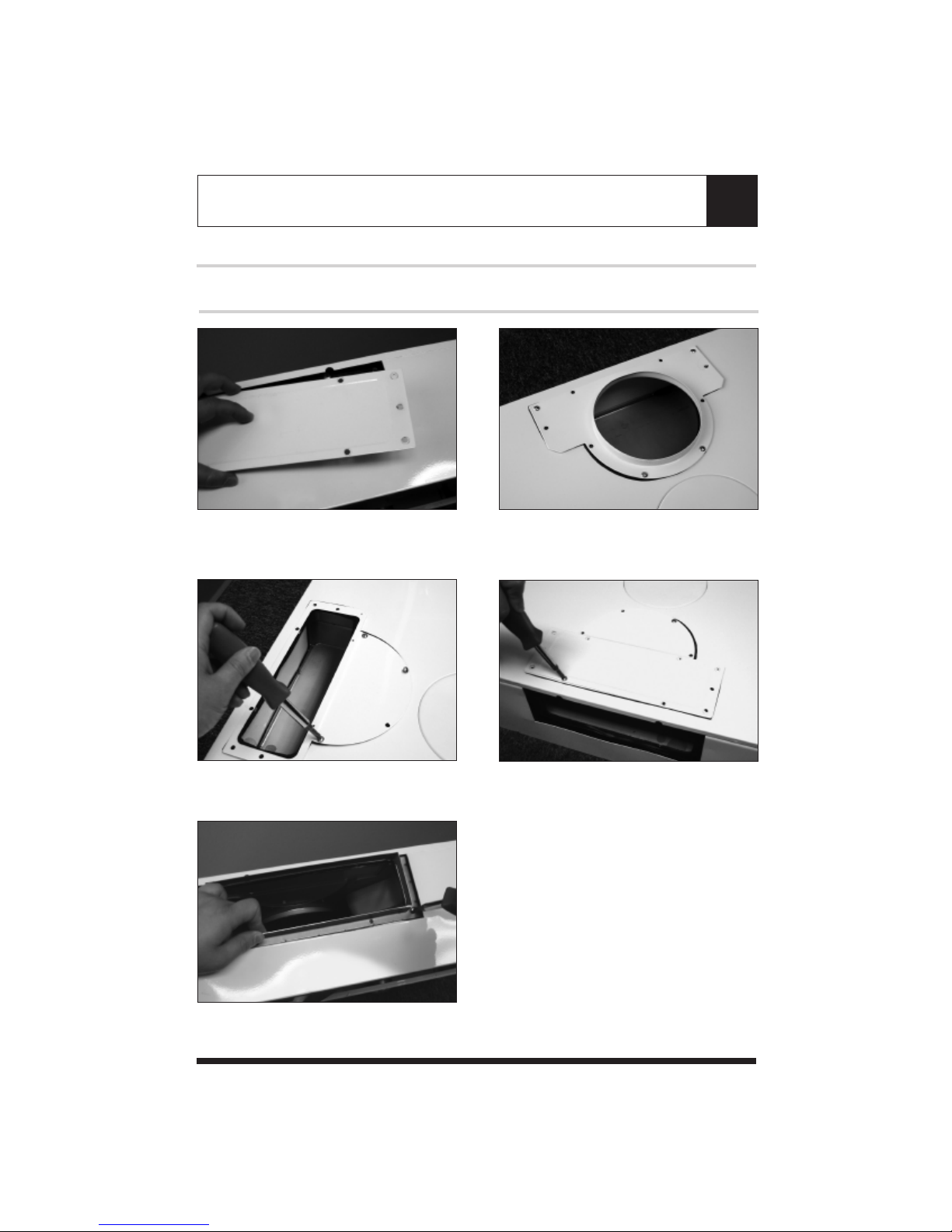

3 1/4”x10” Rear Discharge
1. At rear of range hood, remove all screws on pre-
mounted rear rectangular cap and remove cap.
5. Mount starting collar (provided) at rear discharge
opening with gasket.
4. Mount rectangular cap (previously removed) on top
of transition adaptor.
3. Mount rectangular transition piece at opening with
gasket as shown.
2. Remove top pre-mounted transition piece. Leave
attached gasket in its original place.
