Jensen of Scandinavia AL7954 Guida all'installazione
AL7954ABC
FAQ - Spørsmål og svar
FAQ - Spørsmål og svar
How to setup security - page 2-3
How to change network name - page 4-5
How to change channel - page 6-7
How to reset - page 1 1
How to reset
If you cannot access the menu of yourAL7954
or if you have forgotten the password,we recommend you to do a factory reset.
1.Unplug power of router.
2.Press and hold the reset button (back of router) with a pen or paperclip,
while at the same time putting the power back on.
Keep the reset button pressed for about 20 seconds before you release it.
Now the router will be set back to factory default settings.
IPaddress:http://192.168.1.1
Username = admin
Password = admin
FAQ - Spørsmål og svar
FAQ - Spørsmål og svar
- 2 -

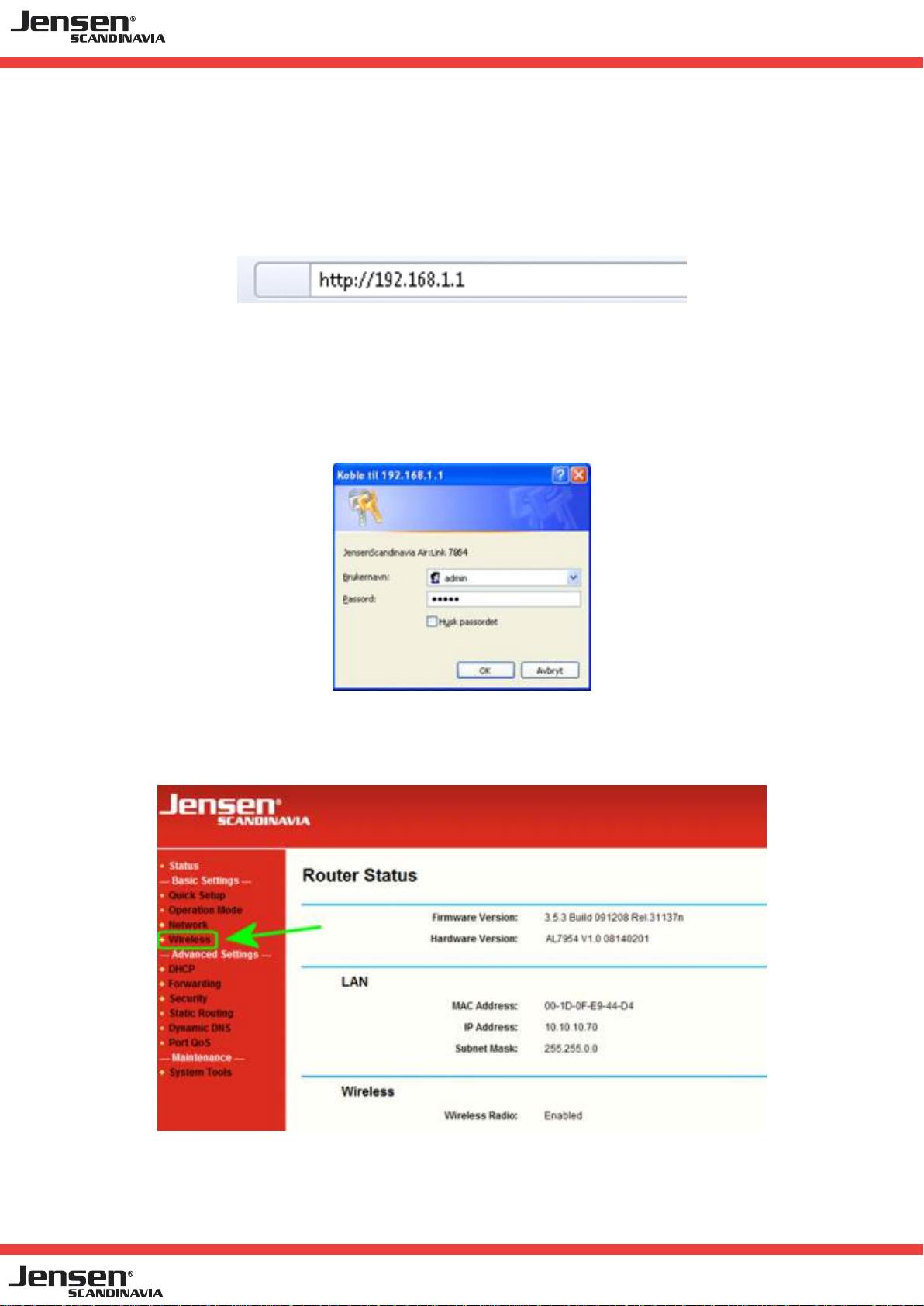

How to setup security
1.Log into router by enter http://192.168.1.1 in your browser.
Note! If you cannot access the IP address above,please try connecting
your computer to the router with a network cable in port 1,2,3 or 4 and then try again.
2.Username = admin og password = admin
3.ClickWireless
FAQ - Spørsmål og svar
FAQ - Spørsmål og svar
- 3 -

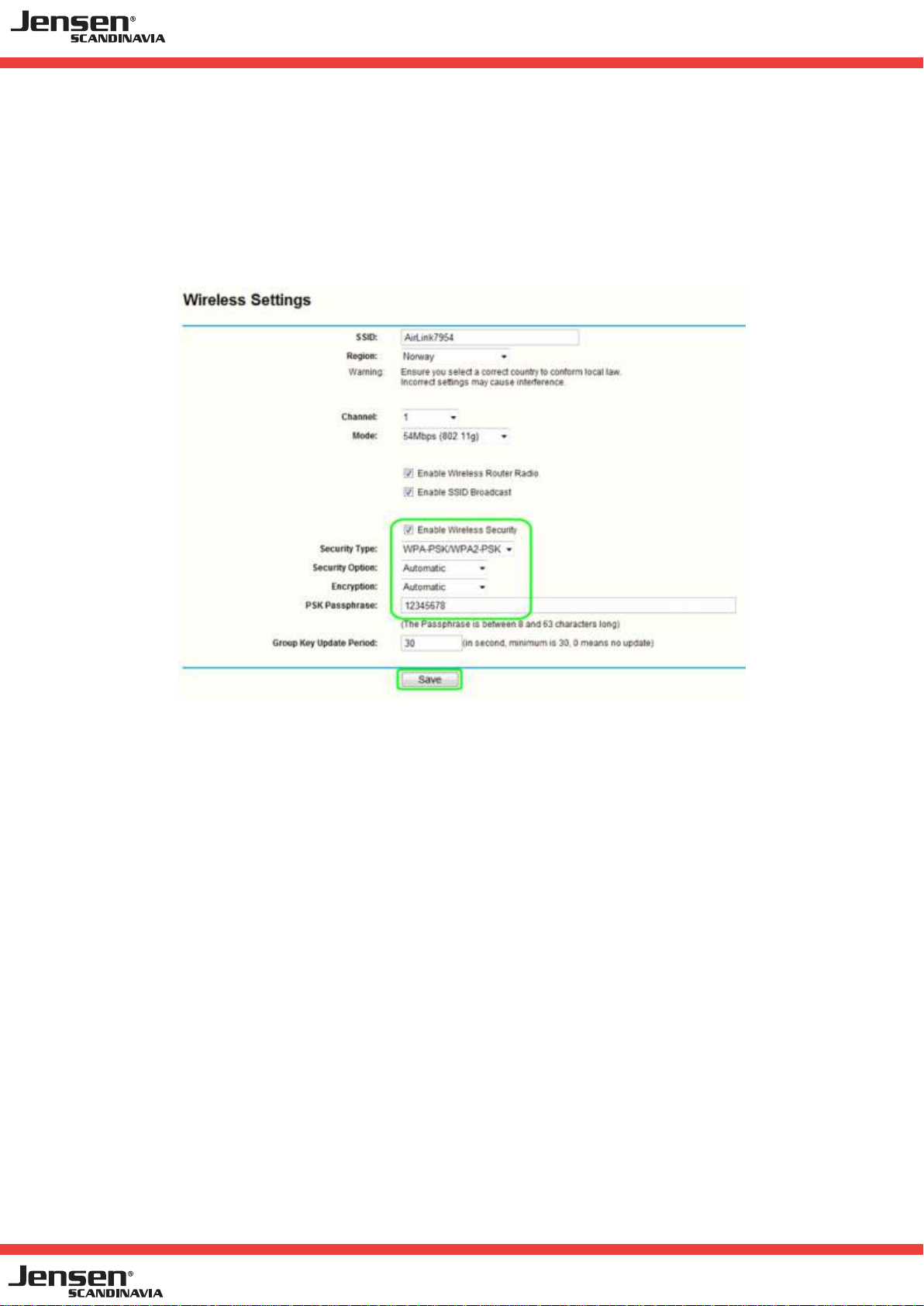

4.Click «EnableWireless Security»
SecurityType =WPA-PSK/WPA2-PSK
Security Option =Automatic
Encryption =Automatic
In PSK Passphrase you can enter the encryption code you want to use
for your wireless network.The key must have between 8 and 63 characters.
5.Click Save
6.YourAL7954 is now secured with the new encryption key.
You now have to connect all your wireless units again and then enter this new key.
FAQ - Spørsmål og svar
FAQ - Spørsmål og svar
- 4 -

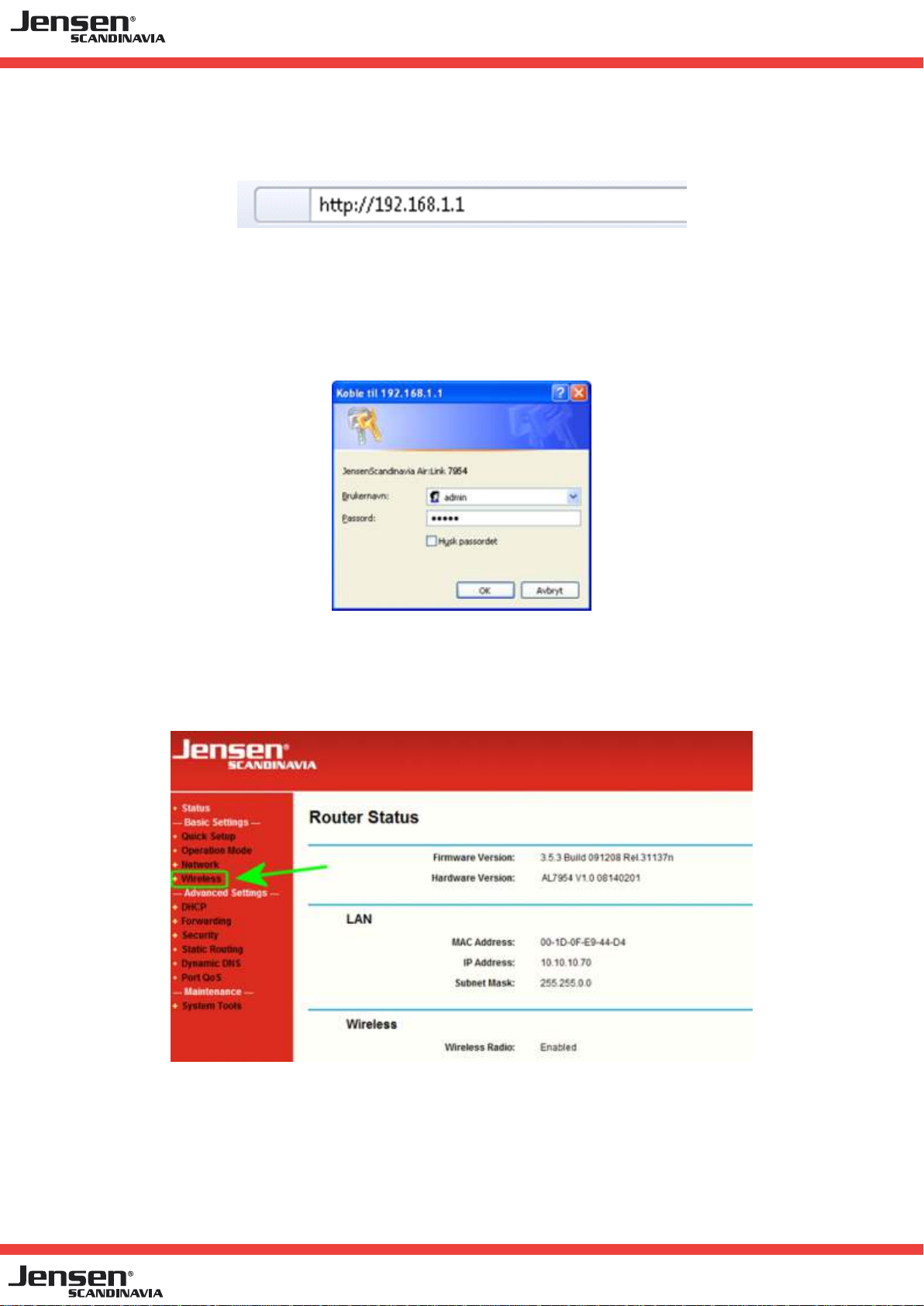

How to change network name
AS default the network name (SSID) for your JensenAirLink7954 is set
to“AirLink7954”.
If you want to change this name you do it like this:
1.Log into router by enter http://192.168.1.1 in your browser.
Note! If you cannot access the IP address above,please try connecting
your computer to the router with a network cable in port 1,2,3 or 4 and then try again.
2.Username = admin og password = admin
3.ClickWireless
FAQ - Spørsmål og svar
FAQ - Spørsmål og svar
- 5 -

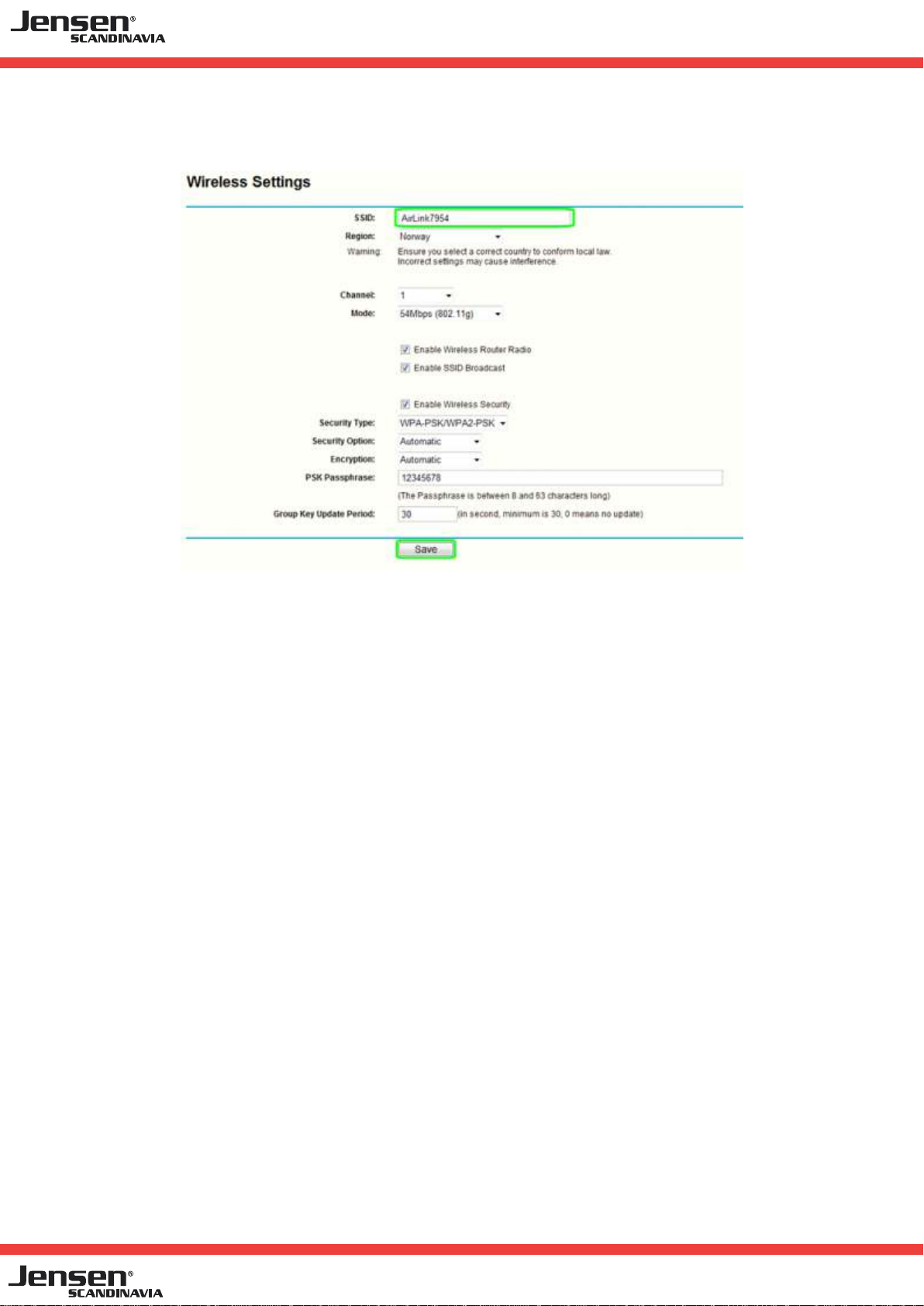

4.In the SSID field you can now change the name of your wireless network.
Note!! Do not use space or any special character in the network name.
5.Click Save
6.TheWireless network name for yourAL7954 is now changed.
Please do a search for available wireless networks and connect to your new one.
FAQ - Spørsmål og svar
FAQ - Spørsmål og svar
- 6 -

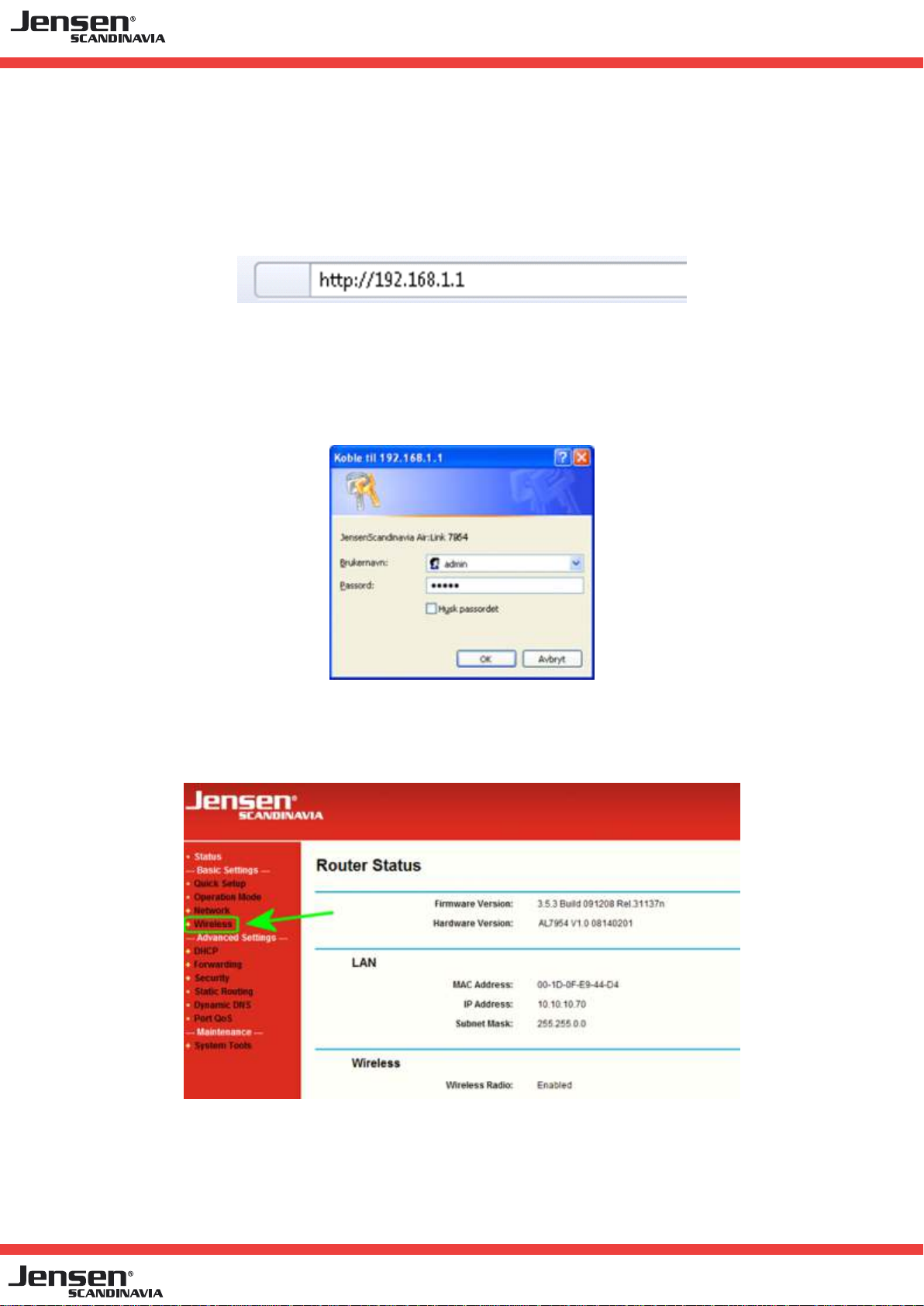

How to change the channel
If you experience unstable wireless connection,the reason can be
disturbance from other wireless network.In such cases we recommend changing *
channel on your router.
1.Log into router by enter http://192.168.1.1 in your browser.
Note! If you cannot access the IP address above,please try connecting
your computer to the router with a network cable in port 1,2,3 or 4 and then try again.
2.Username = admin og password = admin
3.ClickWireless
FAQ - Spørsmål og svar
FAQ - Spørsmål og svar
- 7 -

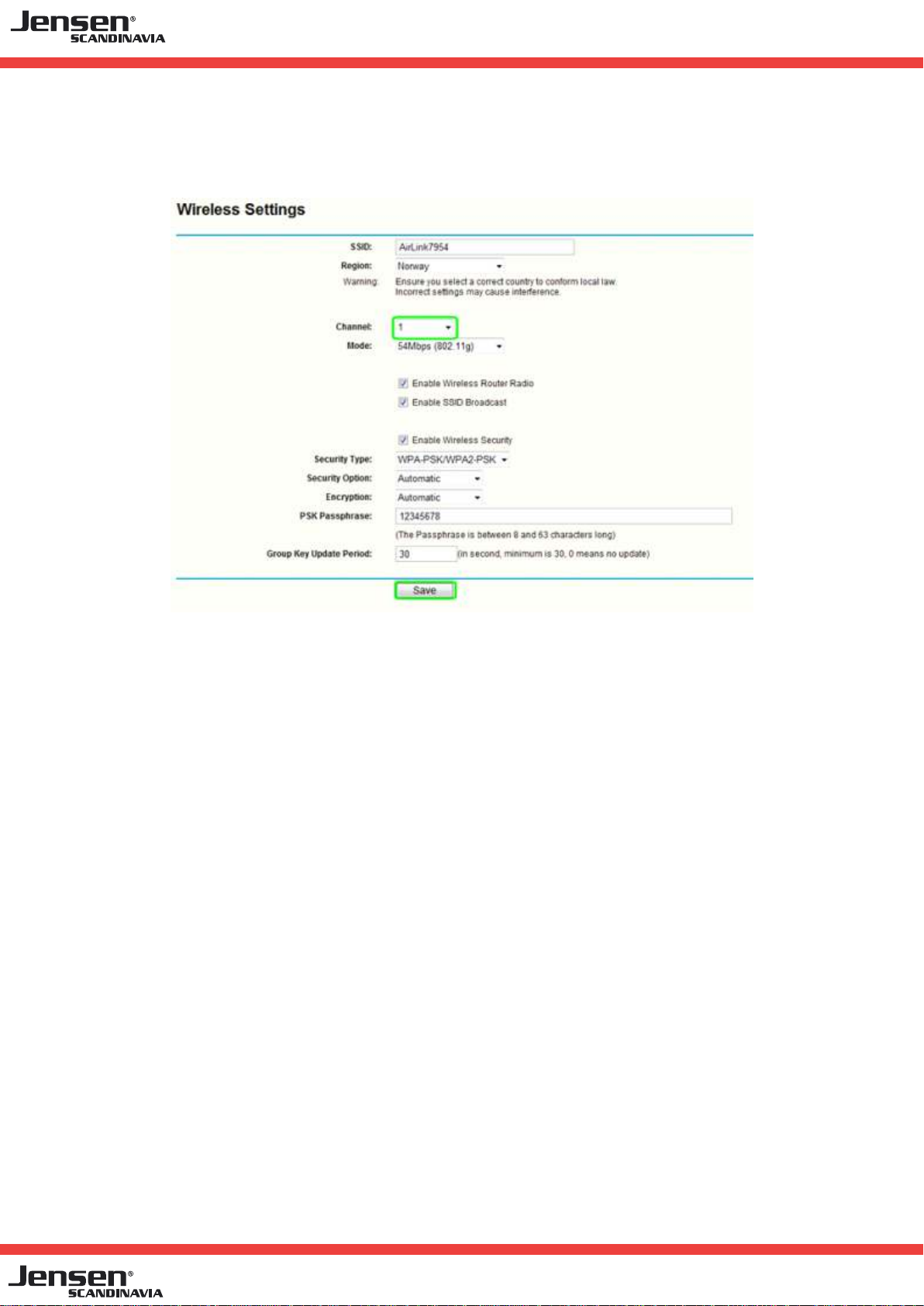

4.Please change the channel (1 to 13).The best choice is normally
channel 1,6 or 11,but it all depends on which channel the other wireless
networks are using.
5.Click Save
6.Now the channel is changed.Use your wireless network for a while and see if there
is any improvement.Othervice do the same procedure again and select another channel.
