Jensen VM9213 - Touch Screen MultiMedia Receiver Manuale utente

Featuring:

DVD, CD, MP3, WMA and USB Playback

Touch Screen Interface

RCA and Front Panel A/V Input

USB Connector

Composite Video Out

Remote Control

Navigation Ready (NAV102 Only)

Bluetooth Ready (Requires BTM10)

VM9213 Quick

Reference Guide

Navigation operation requires NAV102

installation

Bluetooth operation requires BTM10

installation

Rear Camera operation requires rear camera

installation

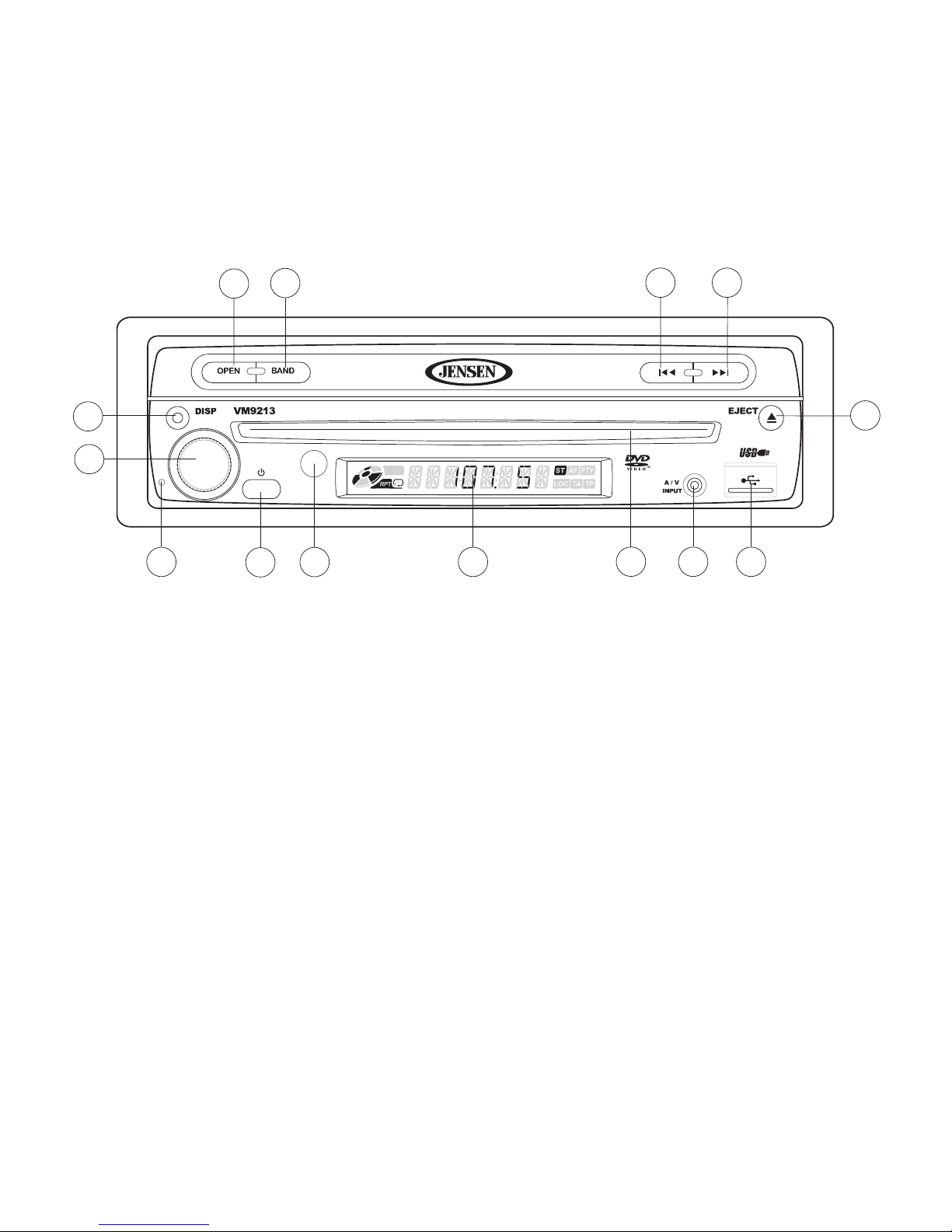

Controls and Indicators

13 10 11 12

14 5

1. Press to turn the unit on. Press and hold to turn the unit off.

Press repeatedly to select playing mode.

2. Rotate to adjust the volume.

Press to Mute/Resume audio.

Press and hold while in tuner mode to change the Local/Distance radio reception

mode. Sets turn-on volume in other modes.

3. Insert disc for automatic playback.

4. Press to eject disc.

Press and hold to reset core mechanism position.

5. With the monitor closed, press to change the AM or FM band.

6. Press to play the previous chapter/track or auto-search the previous available

radio station.

7. Press to access the next chapter or track or auto-search the next available radio

station.

8. With the monitor closed, press to cycle through information available on the

secondary LCD screen.

9. View playback information on secondary LCD.

10. Point remote control at IR Receiver to control functions.

11. Insert A/V cable connected to a portable media device for playback through the

radio.

12. Insert USB device for playback of media files through the radio.

13. Use thin metallic object to depress RESET button and restore factory default

settings.

14. Press to open TFT screen.

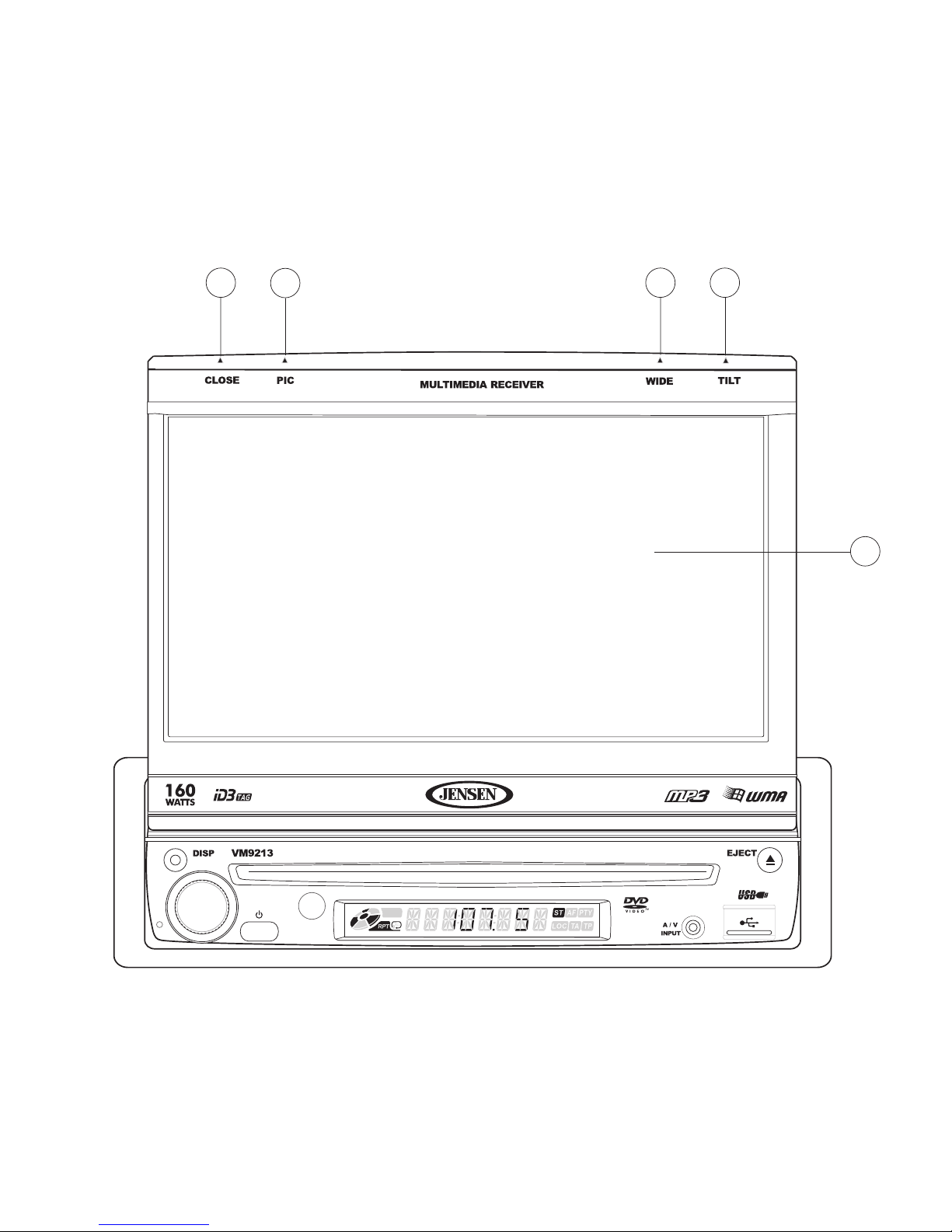

Controls and Indicators (continued)

16 17

SRC

15. Touch the TFT screen to control head unit functions.

16. Press to close the TFT screen.

17. Press to adjust the Brightness and Contrast. Press the volume control to move

between Brightness and Contrast. Turn the rotary encoder to adjust the setting

for the selected option.

18. Press to adjust the display aspect ratio of the picture to one of three settings:

Full, Normal or Standby.

19. Press to activate the tilt function. Use the rotary encoder to adjust the angle of

the screen while the yellow tilt icon is flashing. You can also adjust the title using

the TILT and buttons on the remote control. Press once to adjust the

downward tilt angle of the screen one step at a time or press and hold to adjust

the angle in a continuous motion.

Common User Settings

Audio Control Menu

Touch the EQ button on the left side of the screen to access the Audio Control Menu,

shown below.

1. Use the touchscreen, or press the (>>|)/(|<<) buttons on the remote control to

highlight the audio feature to be adjusted.

2. Touch the screen to select the highlighted option.

3. Touch the +/– buttons on the screen or press the |<<, >>|, >>, or << buttons on

the remote control to adjust the selected feature to the desired setting.

+14 — 0 —

0 — —

–14 — –14 —

EQ User FAD BAL

BASS MID TREB SUB

User

The "FAD-BAL"

portion of the

screen uses a

grid control.

Touch inside the

box to move the

cursor and

adjust the Fader

and Balance

level from Front

to Rear and Left

to Right.

NOTE

The EQ mode will automatically change to “USER” when individual

audio functions are adjusted.

Set Clock

The clock appears in the top right corner of the screen and on the LCD screen during

certain operations.

To set the clock, you must first press the button on the screen to access the SETUP

menu.

1. Use the touch screen or directional buttons on the remote control to select the

Clock option.

2. Use the touch screen or press the >/|| button on the remote control to enter the

adjustment field.

3. Select a new value using the touch screen or >> and << buttons on the remote

control. The AM/PM indication will change as you continue to adjust the hour past

12.

4. Use the touch screen or press >/|| to confirm and exit the SETUP menu.

RADIO

SETUP

Rating

Bluetooth

Hardware

DEMO

P.VOL

TS Cal

General Language Audio Back

Clock Mode 12Hr

Clock 04 : 31 AM

Tuner Region USA

Beep On

Touch the menu titles

across the left and

top of the menu to

see highlighted sub-

menu options in the

center of the screen.

Touch the menu

option you want to

adjust and use the

touch screen to

adjust the setting.

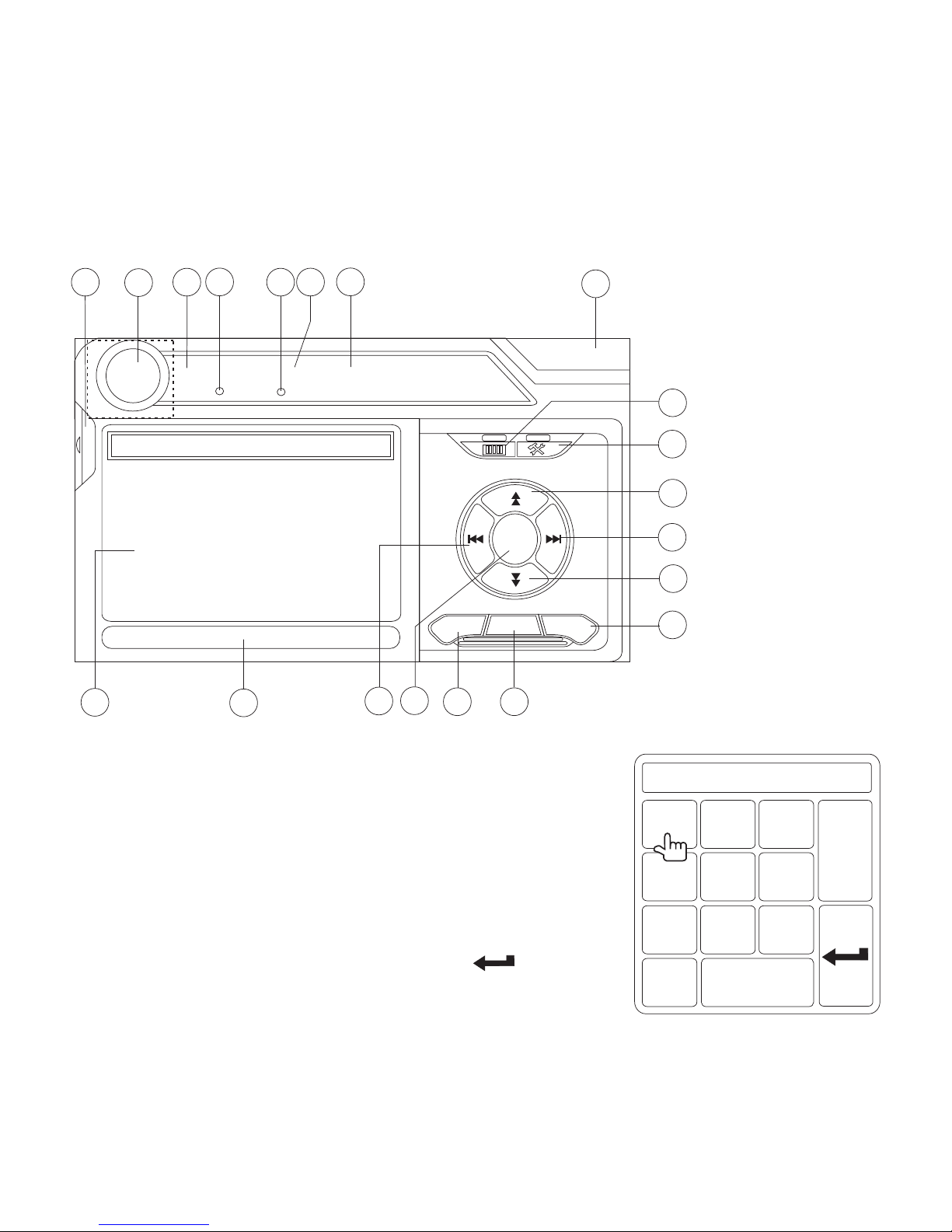

1. Current radio band indicator

2. Radio frequency indicator

3. Clock display

4. Stereo reception indicator

5. Tuning mode indicator (local/distant)

6. Touch to recall preset stations.

7. No function in tuner mode.

8. Touch for quick access to Equalizer level settings.

9. Touch to access the Direct Entry Screen. Enter the

desired frequency and then touch the button.

You can also press GOTO on the remote control to

access the Direct Entry Screen.

Tuner User Interface

110 2

RADIO

FM-1 P1 87.5 MHz

01:02 PM

BAND AS MEM

P1 87.5 MHz

P2 90.1 MHz

P3 98.1 MHz

P4 106.1 MHz

P5 107.9 MHz

P6 102.9 MHz

ST LOC 9

FM: _ _ _ . _ MHz

123

456

789

0Clear

Exit

Direct Entry Screen
