VM9215BT

Operating Instructions

160

watts peak

40W x 4

VM9215BT

Thank you for choosing a Jensen product. We hope you will nd the instructions

in this owner’s manual clear and easy to follow. If you take a few minutes to look

through it, you’ll learn how to use all the features of your new Jensen VM9215BT

Mobile Multimedia Receiver for maximum enjoyment.

CONTENTS

Features...............................................................................................................3

Controls and Indicators......................................................................................6

Remote Control...................................................................................................8

Using the TFT Monitor........................................................................................14

Operating Instructions.......................................................................................16

Steering Wheel Controls ....................................................................................25

Settings Menu.....................................................................................................26

Tuner Operation .................................................................................................34

DVD/VCD Video Operation ................................................................................40

DVD/CD Audio Operation ..................................................................................46

MP3/WMA Operation .........................................................................................50

iPod®/iPhone® Operation...................................................................................57

Pandora Operation.............................................................................................61

Bluetooth Operation ..........................................................................................66

SiriusXM® Radio Operation................................................................................75

Rear Camera Operation......................................................................................83

Troubleshooting .................................................................................................84

Care and Maintenance .......................................................................................88

Specications......................................................................................................89

Common Replacement Parts .............................................................................91

VM9215BT

FEATURES

Congratulations on your purchase of the Jensen VM9215BT Mobile Multimedia

Receiver. It’s a good idea to read all of the instructions before beginning the

installation. We recommend having your Jensen VM9215BT installed by a

reputable installation shop.

DVD

• Aspect Ratio - Full and Normal

• Fast Forward - 2X, 4X, 8X, and 20X

• Slow Motion - 2X, 4X, 8X, and 20X

• Play, Pause, Stop, Next Chapter, and Previous Chapter

CD / MP3 / WMA

• CD-Text Compatible

• ID3 Tag Compatible

• Directory Search (MP3 / WMA Only)

• Direct Track Access via Remote Control

• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW

• Audible Forward / Reverse Track Search (CD-DA Only)

• Random, Repeat, and Intro

• Play, Pause, Stop, Next Track, and Previous Track

AM-FM

• USA / Europe / Latin America / Asia Frequency Spacing

• 30 Station Presets (18 FM / 12 AM)

• Auto Stereo / Mono

• Local / Distance

• Auto Store / Preview Scan

iPod®/iPhone®

• iPod®/ iPhone® via USB

• High Speed Direct Connect Interface to Access iPod® Playlists, Artists, Albums

and Songs. Play music and view video/photo* les from your iPod®. *Video/

photo playback requires jLink-USB iPod® interface cable (sold separately).

• Power Management Charges iPod® while Connected

VM9215BT

SiriusXM® Ready

• Satellite Channel Name, Artist, Song, and Categories Displayed on Monitor

Chassis

• 1.0 DIN (Import / ISO-DIN Mountable)

• Motorized Flip-Out / Flip-Up LCD Screen

• 8 Character / Segment Type Secondary LCD Display

• 7”TFT Active Matrix LCD

• 336, 960 Sub Pixels (1440W X 234H)

• Screen Tilt / Angle Adjustment

• Beep Tone Conrmation (ON-OFF Option)

• Heat Management System - Forced Air-Cooling To Keep The Chip-Sets Operating

at Nominal Temperatures

General

• Navigation Ready (NAV104)

• Built-In Bluetooth with external microphone, providing hands-free operation for

safety and convenience and A2DP for streaming music from your smartphone

or other Bluetooth device.

• 44-Key Infrared Remote Control

• One Composite Video Output for Additional Screens

• Front Panel Audio/Video Input

• Three-Band Tone control (Bass, Mid and Treble) with Eight Preset EQ Curves

Front Panel A/V Aux Input for Portable Media Devices

• Front, Rear, and Subwoofer Line Output

• Programmable Volume Control

• Rear Camera Input (Normal and Mirror Image View)

• Touch Screen Calibration Mode

• 4 VRMS Line Output - All Channels

• Rotary Encoder Audio Control

• SWC Interface - Compatible with PAC SWI-PS and Metra ASWC steering wheel

control interfaces (sold separately)

VM9215BT

Optional Equipment

• NAV104

The VM9215BT is “navigation ready.” Before accessing any navigation features,

you must purchase and install the navigation module (NAV104). All installation

and operating instructions will be included with the navigation module.

Once the navigation module is connected and operating properly, the NAV

source mode will become active. While the navigation module is not installed,

the NAV option appears gray, indicating the function is not available.

• Bluetooth Phone

See “Bluetooth Operation”on page 66.

• Rear Camera

The VM9215BT is “camera ready.” Before accessing any camera features, you must

purchase and install a rear video camera. Once the rear camera is connected

and operating properly, the CAMERA source mode will become active. While

the camera is not installed, the CAMERA option appears gray, indicating the

function is not available.

WARNING! Never install this unit where operation and viewing could interfere

with safe driving conditions.

WARNING! To reduce the risk of a trac accident (except when using for rear

view video camera) never use the video display function while driving the

vehicle. This is a violation of federal law.

WARNING! Never disassemble or adjust the unit.

WARNING! To prevent injury from shock or re, never expose this unit to

moisture or water.

WARNING! Never use irregular discs.

WARNING! To prevent damage to the mechanism inside this unit, avoid impact to

the TFT monitor.

WARNING! The monitor employs an automatic motorized mechanism. To prevent

damage to the core mechanism, please do not push, pull or swivel the monitor

manually.

VM9215BT

A/V

INPUT

DISP

CLOSE PIC NAV / WIDE TILT

DISP

OPEN BAND

2345

SRC

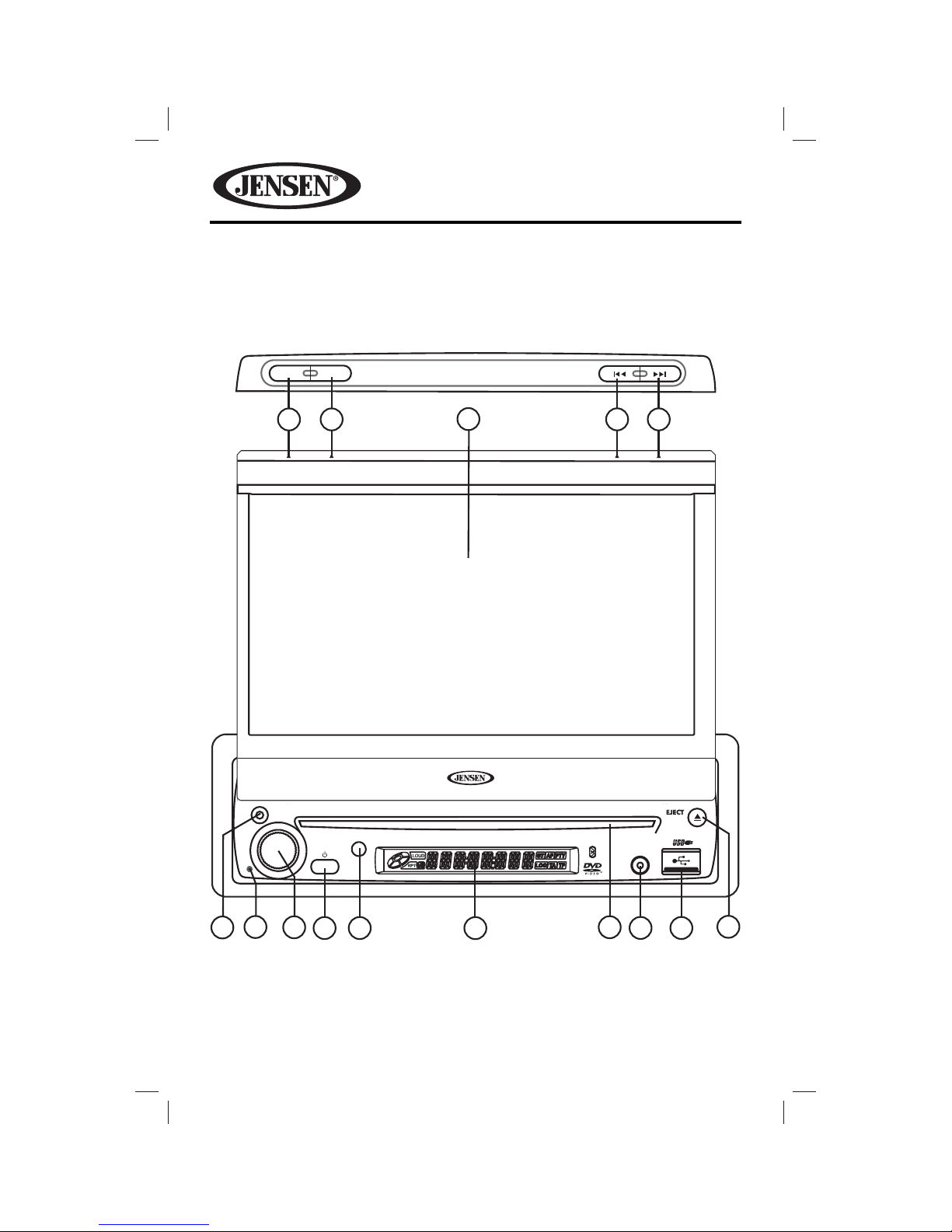

CONTROLS AND INDICATORS

VM9215BT

1. CLOSE/OPEN

Press to activate the automatic mechanical system and move the TFT monitor

into the viewing position. Press again to close the TFT.

2. PIC/BAND

With the monitor open, press PIC to adjust the Brightness and Contrast (see

“Image/Display Settings”).

With the monitor closed, press BAND to change between three FM and two

AM bands.

3. TFT Display

4. WIDE/

With the monitor open, press WIDE to adjust the display aspect of the picture

to one of two settings: Full or STANDBY.

With the monitor closed, press to seek backward.

5. TILT/

With the monitor open, press TILT to activate the tilt function. Use the rotary

encoder to make adjustments while the blue tilt icon is ashing.

With the monitor closed, press to seek forward.

6. EJECT

Press to eject a disc. Press and hold to reset the core mechanism position.

7. USB Interface Cover

Covers the USB interface connector. Open the cover and insert a USB device

for playback of music/video les.

8. A/V Input

Attach a compatible A/V device.

9. DISC SLOT

10. LCD Display

11. IR Remote Control Receiver (Location)

12. / SRC

Press to turn the unit on. Once the unit is on, momentarily pressing the SRC

button will display the Main Source Menu.

Press and hold to turn the unit o.

13. Rotary Encoder

Rotate to adjust the volume. Press to activate the MUTE function and silence

the receiver. Press again to resume sound.

While in tuner mode, press and hold to activate the LOC feature. Repeat to

deactivate.

14. RESET

Press to reset the system settings to factory default (except the password and

parental lock setting).

15. DISP

With the monitor open, during DVD playback, press once to view Time, Title,

Chapter info or twice for Audio, Subtitle, Angle, and Bit Rate info.

With the monitor closed, press to view alternate LCD display information.

VM9215BT

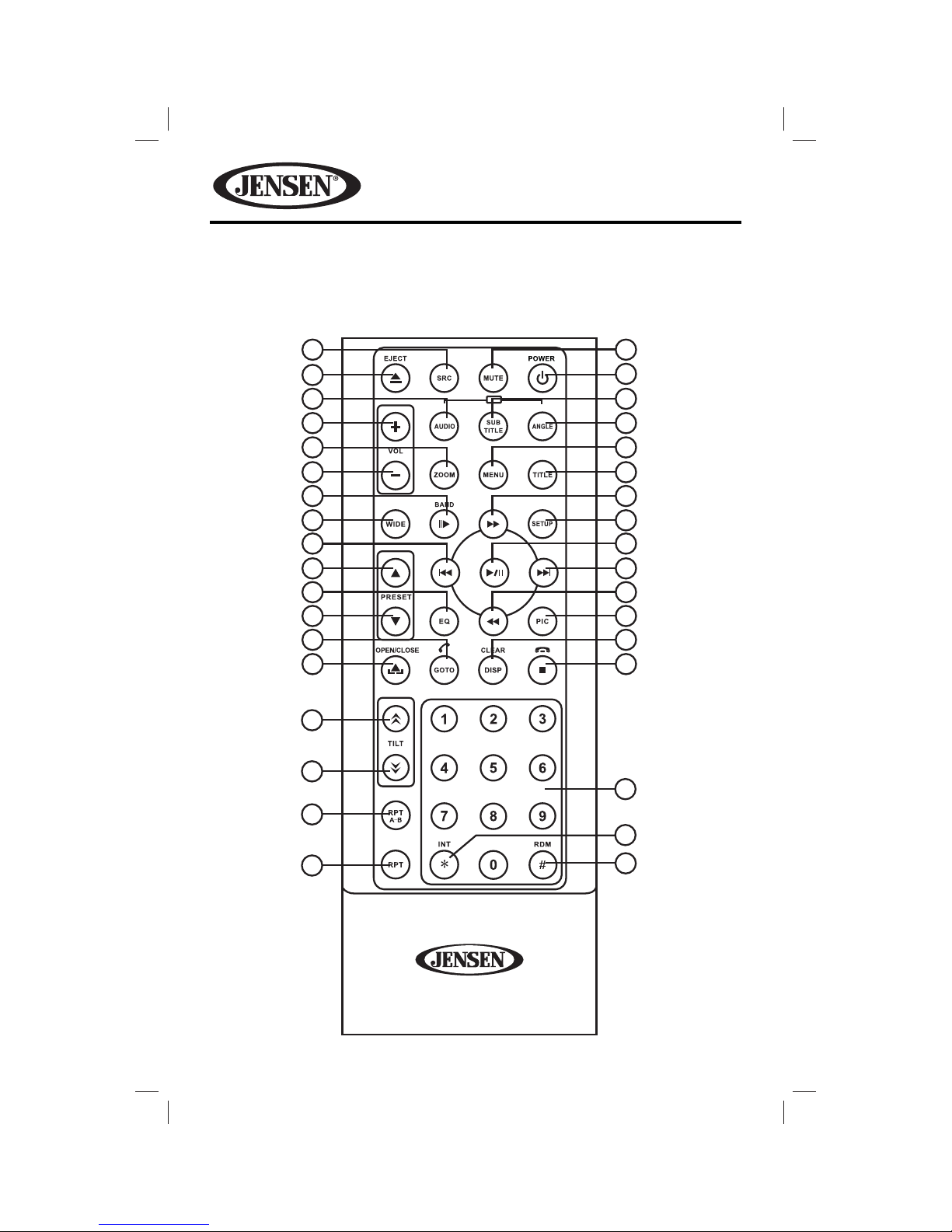

REMOTE CONTROL

See Table 1 for remote control functions.

MUSIC PHOTO

VIDEO

iPod

VM9215BT

Table 1: Remote Control Functions

Button Function

Name # DVD VCD TUNER CD/MP3/

USB

iPod

MENU 1 Enters

the main

menu of

the disc.

Turns on/o

PBC when

playing

VCD.

Selects


mode.

TITLE 2 Enters the

title menu

of the disc.

Plays the

rst ten

seconds

of each

chapter/

title.

Selects

Music

mode.

MUTE 3 Toggles

on/o

audio

output.

Toggles on/

o audio

output.

Toggles on/

o audio

output.

Toggles

on/o

audio

output.

Toggles

on/o

audio

output.

POWER

( )

4 Turns the

power on/

o.

Turns the

power on/

o.

Turns the

power on/

o.

Turns the

power on/

o.

Turns the

power

on/o.

MUSIC/

AUDIO

5 Changes

the audio

language

for disc

playback.

Selects

Music

mode.

REPT A-B 6 Setup to

repeat

playback

from time

frame A

to time

frame B.

Setup to

repeat

playback

from time

frame A

to time

frame B.

REPT 7 Repeats

playback

of current

chapter.

Repeats

playback

of current

chapter.

Repeats

playback

of current

track.

Repeats

playback

of current

track.

SRC 8 Selects

playing

mode.

Selects

playing

mode.

Selects

playing

mode.

Selects

playing

mode.

Selects

playing

mode.

VM9215BT

Table 1: Remote Control Functions

Button Function

Name # DVD VCD TUNER CD/MP3/

USB

iPod

PHOTO/

SUBTITLE

9 Language

selection

for subtitle.

Selects


mode.

DISP/

CLEAR

10 Displays

playing

information.

Delete entry

or move

backwards

to correct

error in

Direct

Access

mode.

Displays

playing

information.

Delete entry

or move

backwards

to correct

error in

Direct Access

mode.

Displays

playing

information.

Delete entry

or move

backwards

to correct

error in

Direct

Access

mode.

Display

playing

information.

Delete entry

or move

backwards

to correct

error in

Direct

Access

mode.

Displays

playing

information.

Delete entry

or move

backwards

to correct

error in

Direct

Access

mode.

PRESET 11 Navigates

the preset

station list.

PRESET 12 Navigates

the preset

station list.

VIDEO/

ANGLE

13 Plays back

disc in

dierent

angle for a

scene.

Plays back


CD with

dierent

angle of


displayed.

Selects

Video

mode.

14 Fast

forwards

the disc

content.

Fast

forwards

the disc

content.

Fast

forwards

the disc

content.

Accesses

iPod

Menu..

VOL - 15 Decreases

volume.

Decreases

volume.

Decreases

volume.

Decreases

volume.

Decreases

volume.

Altri manuali per VM9215BT

Indice

Altri manuali Jensen Ricevitore per auto

Jensen

Jensen VX4014 Manuale utente

Jensen

Jensen VM9214BT Manuale utente

Jensen

Jensen JWM1A Manuale utente

Jensen

Jensen MP6212 - CD/MP3/WMA/Receiver Manuale utente

Jensen

Jensen VM9312HD - DVD Player With LCD Monitor Manuale utente

Jensen

Jensen XCC 6120 Manuale utente

Jensen

Jensen JCD3050 Manuale utente

Jensen

Jensen Phase Linear CD1213 Manuale utente

Jensen

Jensen MP1524BT Manuale utente

Jensen

Jensen BT1613 Manuale utente

Jensen

Jensen MCD4030 Manuale utente

Jensen

Jensen VM9423 - Double DIN 6.5 Touchscreen Multimedia... Manuale utente

Jensen

Jensen VX7022 Scheda tecnica

Jensen

Jensen VM8113R Manuale utente

Jensen

Jensen JWM452 Istruzioni per l'installazione

Jensen

Jensen Phase Linear CD1213 Manuale utente

Jensen

Jensen JDV8035 Manuale utente

Jensen

Jensen MP6312 Manuale utente

Jensen

Jensen VM9424 Manuale utente

Jensen

Jensen VX4010 Manuale utente

Jensen

Jensen CAR110X Istruzioni operative

Jensen

Jensen VX5228 Manuale utente

Jensen

Jensen cd3010x Manuale utente

Jensen

Jensen VM9214R Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
