Jensen VM9224BT Manuale utente

EJECT

MUTE

VM9224BT

A/V INPUT

VM9224BT

Operating Instructions

160 watts peak

40W x 4

iii

VM9224BT

CONTENTS

Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s

manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to

use all the features of your new Jensen VM9224BT Mobile Multimedia Receiver for maximum

enjoyment.

Features................................................................................................................................ 1

Controls and Indicators......................................................................................................... 4

Operating Instructions........................................................................................................... 6

Setup Menu......................................................................................................................... 11

Tuner Operation.................................................................................................................. 17

DVD/VCD Video Operation................................................................................................. 21

DVD/CD Audio Operation ................................................................................................... 27

MP3/WMA Operation.......................................................................................................... 30

iPod®Operation.................................................................................................................. 34

Bluetooth Operation............................................................................................................ 38

Troubleshooting .................................................................................................................. 45

Specifications...................................................................................................................... 49

VM9224BT

FEATURES

Congratulations on your purchase of the Jensen VM9224BT Mobile

Multimedia Receiver.

It’s a good idea to read all of the instructions before beginning the installation.

We recommend having your Jensen VM9224BT installed by a reputable

installation shop.

DVD

• Fast Forward/Reverse - 2X, 4X, 8X and 20X

• Slow Motion Forward/Reverse - 1/2, 1/4, 1/6 and 1/8

• Play, Pause, Stop, Next Chapter and Previous Chapter

CD / MP3 / WMA

• CD-Text Compatible

• ID3 Tag Compatible

• Directory Search (MP3 / WMA Only)

• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW

• Audible Forward / Reverse Track Search (CD-DA Only)

• Random, Repeat and Intro

• Play, Pause, Stop, Next Track and Previous Track

AM-FM

• USA / Europe / Latin America / Asia Frequency Spacing

• 30 Station Presets (18 FM / 12 AM)

• Auto Stereo / Mono

• Local / Distance

• Auto Store / Preview Scan

iPod®

• iPod via USB

• High Speed Direct Connect Interface to Access iPod Playlists, Artists,

Albums and Songs. Play music and view video/photo* files from your iPod.

*Video/photo playback requires jLink-USB iPod interface cable (sold

separately).

• Power Management Charges iPod while Connected

Chassis

• 2.0 DIN (Import / ISO-DIN Mountable)

• Fixed Front Panel

• 6.2" High Definition TFT LCD

• 1,152,000 Sub Pixels (800x3 X 480)

• Beep Tone Confirmation (ON-OFF Option)

• Heat Management System - Forced-Air Cooling To Keep The Chip-Sets

Operating at Nominal Temperatures

General

• Navigation Ready (NAV102)

VM9224BT

• Built-in Bluetooth, providing hands-free profile for safety and convenience

and A2DP profile for streaming music from a PDA/PMP

• One Composite Video Output for Additional Screens

• Front Panel Audio/Video Input

• Three-Band Tone control (Bass, Mid and Treble) with Eight Preset EQ

Curves

• Front Panel A/V Aux Input for Portable Media Devices

• Front, Rear and Subwoofer Line Output

• Programmable Volume Control

• Rear Camera Input (Normal and Mirror Image View)

• Touch Screen Calibration Mode

• 2VRMS Line Output - All Channels

• Rotary Encoder Audio Control

• SWC Interface – Compatible with PAC adapter SWI-PS Steering Wheel

Control Interface (sold separately)

Optional Equipment

•NAV102

The VM9224BT is "navigation ready." Before accessing any navigation

features, you must purchase and install the navigation module (NAV102).

All installation and operating instructions will be included with the

navigation module.

Once the navigation module is connected and operating properly, the NAV

source mode will become active. While the navigation module is not

installed, the NAV option appears gray, indicating the function is not

available.

•Bluetooth Phone

See “Bluetooth Operation” on page 38.

•Rear Camera

The VM9224BT is "camera ready." Before accessing any camera features,

you must purchase and install a rear video camera. Once the camera is

connected and operating properly, the CAMERA source mode will become

active. While the camera is not installed, the CAMERA option appears

gray, indicating the function is not available.

WARNING! Never install this unit where operation and viewing could

interfere with safe driving conditions.

WARNING! To reduce the risk of a traffic accident (except when using for

rear view video camera) never use the video display function while

driving the vehicle. This is a violation of federal law.

VM9224BT

WARNING! Never disassemble or adjust the unit.

WARNING! To prevent injury from shock or fire, never expose this unit to

moisture or water.

WARNING! Never use irregular discs.

WARNING! To prevent damage to the mechanism inside this unit, avoid

impact to the TFT monitor.

WARNING! The monitor employs an automatic motorized mechanism. To

prevent damage to the core mechanism, please do not push, pull or

swivel the monitor manually.

VM9224BT

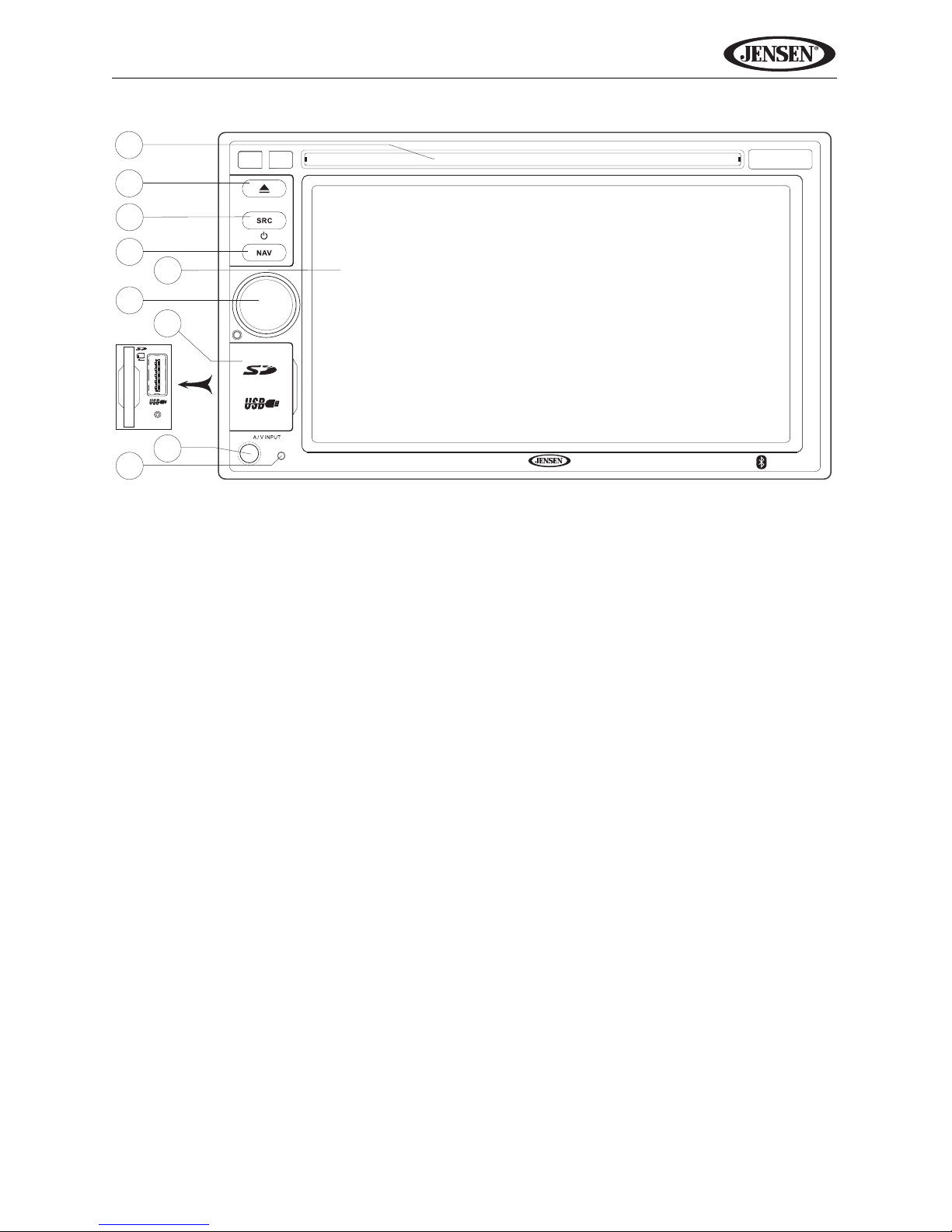

CONTROLS AND INDICATORS

1. Disc Slot

2. RESET

Press to reset system settings to factory default (except password and

parental lock settings).

3. EJECT

Press to eject a disc.

Press and hold to reset core mechanism position.

4. SRC

Press to turn the unit on. Press and hold to turn the unit off.

When on, press once to select playing mode.

5. NAV

Press to display the navigation user interface.

6. TFT Display

7. Rotary Encoder

Rotate to adjust the volume. While in the audio menu, press and release to

enter and/or confirm audio settings.

Press to activate the MUTE function and silence the receiver. Press again to

resume sound.

Press and hold to activate the Local (LOC) setting. Press and hold again to

turn Local reception off.

8. USB/SD Interface Connector

Connect a USB device or insert an SD card for playback of music/video files.

9. A/V Input

Attach a compatible A/V device.

VM9224BT

EJECT

MUTE

OPEN

VM9224BT

OPERATING INSTRUCTIONS

Power On / Off

Press the /SRC button (4) to turn the unit on. The buttons on the front of the

unit light up and the current mode status appears on the LCD (7).

Press and hold the button to power off the unit.

Audible Beep Confirmation

An audible beep tone confirms each function selection. The Beep tone can be

disabled through the Setup menu.

Mute/Line Mute

Press the rotary encoder button (7) to mute the volume from the unit. Press the

rotary encoder button again to restore the volume. “MUTE” is displayed on the

LCD. Adjusting the volume or using any of the audio setup features cancels

the mute function.

If the “MUTE” wire is connected, audio output mutes when a telephone call is

received by the car phone or when verbal navigation is performed (using

optional NAV102).

Playing Source Selection

When the monitor is closed, press the SRC button (4) to change between

available audio playing sources in the following order: RADIO, DISC, USB1,

USB2, SD, BT, NAV, AUX and CAMERA.

Source Menu

You can also use the touch screen to change the source through the SOURCE

MENU. To access the SOURCE MENU, touch the top left corner of the screen

or press the SRC button (4).

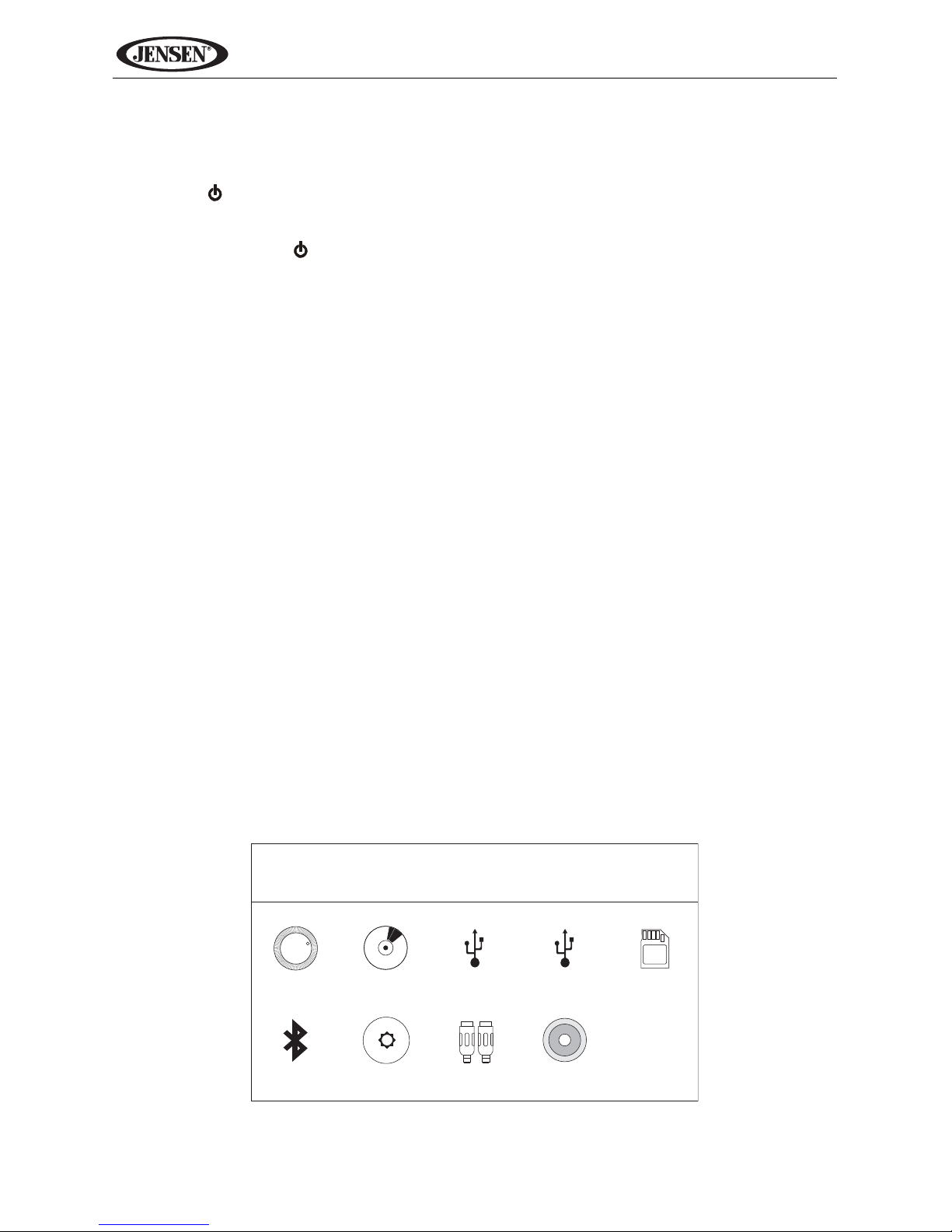

SOURCE MENU

RADIO

DISC

NAV

USB1

AUX

USB2 SD

CAMERA

8GB
