Jensen JDJ-500 Manuale utente

DJ SCRATCH MIXER

MODEL: JDJ-500

USER MANUAL

PLEASE READ THIS USER MANUAL COMPLETELY BEFORE

OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR

FUTURE REFERENCE.

- 1 -

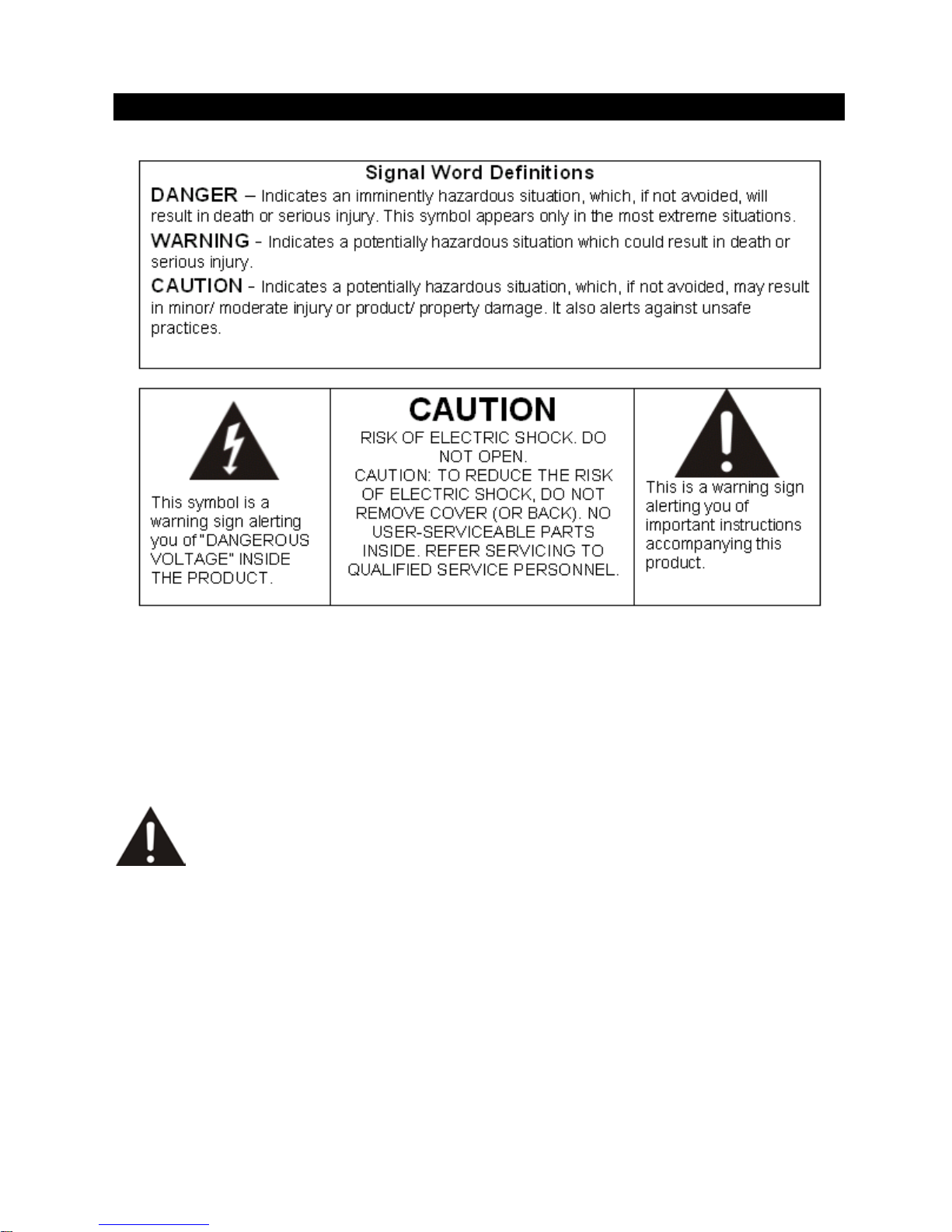

GENERAL SAFETY INSTRUCTION

READ ALL INSTRUCTIONS BEFORE USE

Always follow basic safety precautions when using electrical products, especially

when children are present.

Congratulations on your purchase of this DJ Scratch Mixer. To get the most from your

speaker system, please take a few minutes to read these instructions.

WARNING - To reduce the risk of fire, electric shock or serious personal injury.

Do not open the unit. This product is intended for indoor, non-industrial,

non-commercial use; do not use the product outdoors.

Do not mount this product on a wall or ceiling.

1. Always follow basic safety precautions when using electrical products. Children

should be supervised to ensure that they do not play with appliances.

2. Do not allow children to operate the unit without adult supervision.

3. Read this instruction manual carefully before you attempt to use the unit.

4. Consult your dealer or service personnel if you have further questions about the

operation or safety of the unit.

- 2 -

5. Do not expose the product to temperatures above 104°F (40°C). Keep it in

moderate climates.

6. The apparatus shall not be exposed to dripping or splashing and no objects filled

with liquids, such as vases, shall be placed near the product. Dry location use

only.

7. No naked flame sources, such as candles, should be placed on the product.

8. Keep the power cord and product away from heated surfaces.

9. Keep at least 5 cm of space around the unit for sufficient ventilation.

10. The ventilation holes should not be blocked up by things such as newspapers,

dusters, curtains, etc. Place the product where there is good ventilation.

11. Do not place or drop the product into water or other liquids. If the product falls into

water, immediately unplug it from the electrical outlet; do not pull on the power cord.

12. Do not plug or unplug the AC adaptor in wet hands.

13. Do not place the unit near TV, speakers, and other objects that generate strong

magnetic fields.

14. Do not clean the unit with strong chemical agents.

15. This product has no user-serviceable parts. Do not attempt to dismantle or repair

this unit by yourself. This unit should be repaired by qualified service technician

only.

16. Do not operate the unit if it is not working normally or has been damaged in any way.

Turn the unit off. Unplug it from the power source.And consult service personnel.

17. Do not remove any fixed cover. This will increase the risk of electrical shock.

18. Press the player’s buttons gently. Pressing them or the screen too hard can

damage the player.

19. Do not push any objects into holes, slots, or openings on the unit. This could result

in fatal electric shock.

20. Do not subject the product to harsh impacts. Do not drop the appliance. This may

result in damage to the product and loss of data.

21. Care is required for the use of this apparatus in tropical and/ or moderate climates.

22. Do not use the appliance in an extremely dry environment, as this can lead to static

discharge, which can damage the player.

23. Only use attachments/accessories specified with this unit.

24. Unplug this apparatus during lightning storms or when it is unused for long periods

of time.

- 3 -

COMPLIANCE WITH FCC REGULATIONS

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful Interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio technician for help.

WARNING

Changes or modifications to this unit not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

- 4 -

DEAR JENSEN® CUSTOMER

Selecting fine audio equipment such as the unit you've just purchased is only the start

of your musical enjoyment. Now it's time to consider how you can maximize the fun

and excitement your equipment offers. This manufacturer and the Electronic

Industries Association's Consumer Electronics Group want you to get the most out of

your equipment by playing it at a safe level. One that lets the sound come through

loud and clear without annoying blaring or distortion and, most importantly, without

affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing "comfort level" adapts to higher

volumes of sound. So what sounds "normal" can actually be loud and harmful to your

hearing. Guard against this by setting your equipment at a safe level BEFORE your

hearing adapts.

To establish a safe level:

•Start your volume control at a low setting.

•Slowly increase the sound until you can hear it comfortably and clearly, and

without distortion.

Once you have established a comfortable sound level:

•Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the

future. After all, we want you listening for a lifetime.

We Want You Listening For a Lifetime

Used wisely, your new sound equipment will provide

a lifetime of fun and enjoyment. Since hearing

damage from loud noise is often undetectable until it

is too late, this manufacturer and the Electronic

Industries Association's Consumer Electronics

Group recommend you avoid prolonged exposure to

excessive noise.

Customer's Record:

The serial number of this product is found on its bottom. You should note the serial

number of this unit in the space provided as a permanent record of your purchase to

aid in identification in the event of theft of loss.

Model Number: JDJ-500 Serial Number: ____________________

- 5 -

GETTING STARTED

1. Standard Accessories

Unpack the unit carefully and remove all the accessories from the giftbox. Please

keep the box and packing materials, in case you wish to store the unit. Don’t

remove any labels or sticker on the rear of the unit and adaptor. Before setting up

the unit, verify that the following accessories are present:

Main unit x 1

AC adaptor x 1

User manual x 1

Short Audio cable with 3.5mm plugs

x 1 (about 5” long)

Long Audio cable with 3.5mm plugs x 1

(about 36” long)

RCAcable with 3.5mm plug x 1

(about 42” long)

2. Power source

This unit is supplied with an AC adaptor,

take following steps to connect the

adaptor.

1) Unwind the power cord of the AC

adaptor to its full length.

2) Connect the DC plug of the AC

adaptor to the DC socket on the rear

of the appliance.

3) Then plug the AC adaptor to the AC

outlet (AC120V 60Hz). Connecting

this system to any other power

source may cause damage to the system. For sufficient ventilation, keep other

objects at least 4 inches away from the unit.

4) Turn on the AC Supply at the wall socket.

5) To switch the unit off completely, unplug the AC adaptor from the wall outlet.

Note:

Do not touch the AC adaptor with wet hands.

Once connected to the power supply, the unit will enter standby mode, Press

the MAIN SWITCH button to power the unit on.

Please disconnect the AC adaptor from the power supply if the appliance is

not going to be used for a long period time.

- 6 -

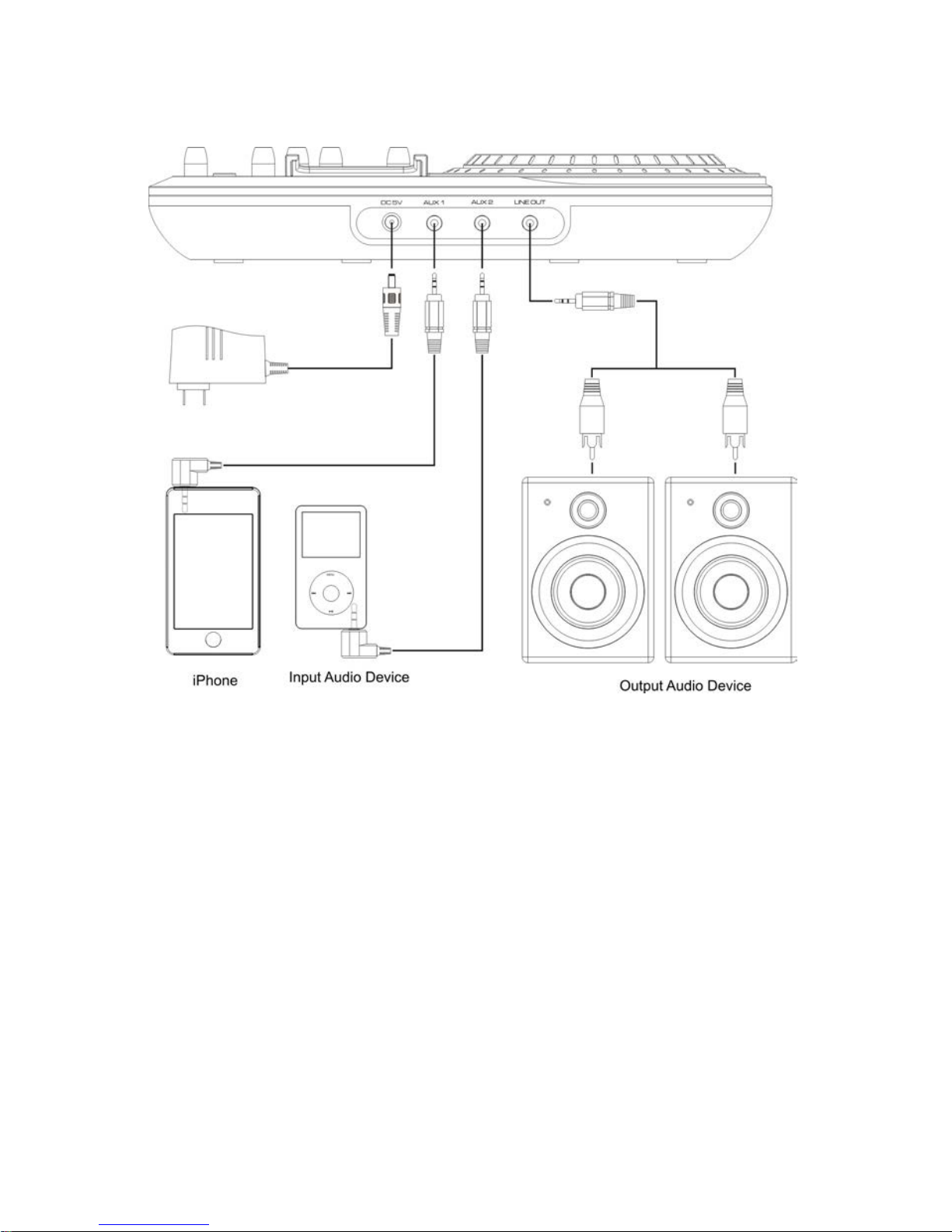

3. Connection Diagram

Before operating this appliance you have to:

a. Connect the appliance with your iPod or iPhone using the supplied Audio

cables.

b. Connect to the external audio system via the supplied RCA cable or 3.5mm

Audio cable.

c. Plug the 3.5mm plug to the line out jack of your DJ Scratch Mixer.

d. Plug the supplied AC adaptor to the mains power outlet. (Note the iPod,

iPhone and speaker systems are not included)

AC adaptor

- 7 -

4. Connect your iPod or iPhone to the DJ Scratch Mixer as shown below:

a. iPod Connection

(1) Insert the short 3.5mm cable through the hole at back of cradle making sure

the3.5mm jack is inserted as shown in the drawing.

(2) Insert the 3.5mm jack through the bracket and connect to the headphone jack of

the iPod.

(3) Connect the iPod to the Deck via the 3.5mm Aux 1 jack.

(4) Put iPod with bracket into the cradle.

- 8 -

b. iPhone Connection

(1) Remove 3.5mm cable from bracket.

(2) Connect the 3.5mm cable to the 3.5mm headphone jack on top of the iPhone.

(3) Connect the iPhone to the Deck via the 3.5mm Aux 1 jack.

(4) Put iPhone with bracket into the cradle.

c. Auxiliary Audio Device Connection

(1) Connect the 3.5mm cable to the 3.5mm headphone jack on the MP3 player or

auxiliary Audio Device.

(2) Connect the MP3 player or auxiliary Audio Device to the Deck via the 3.5mm

Aux 2 jack.

- 9 -

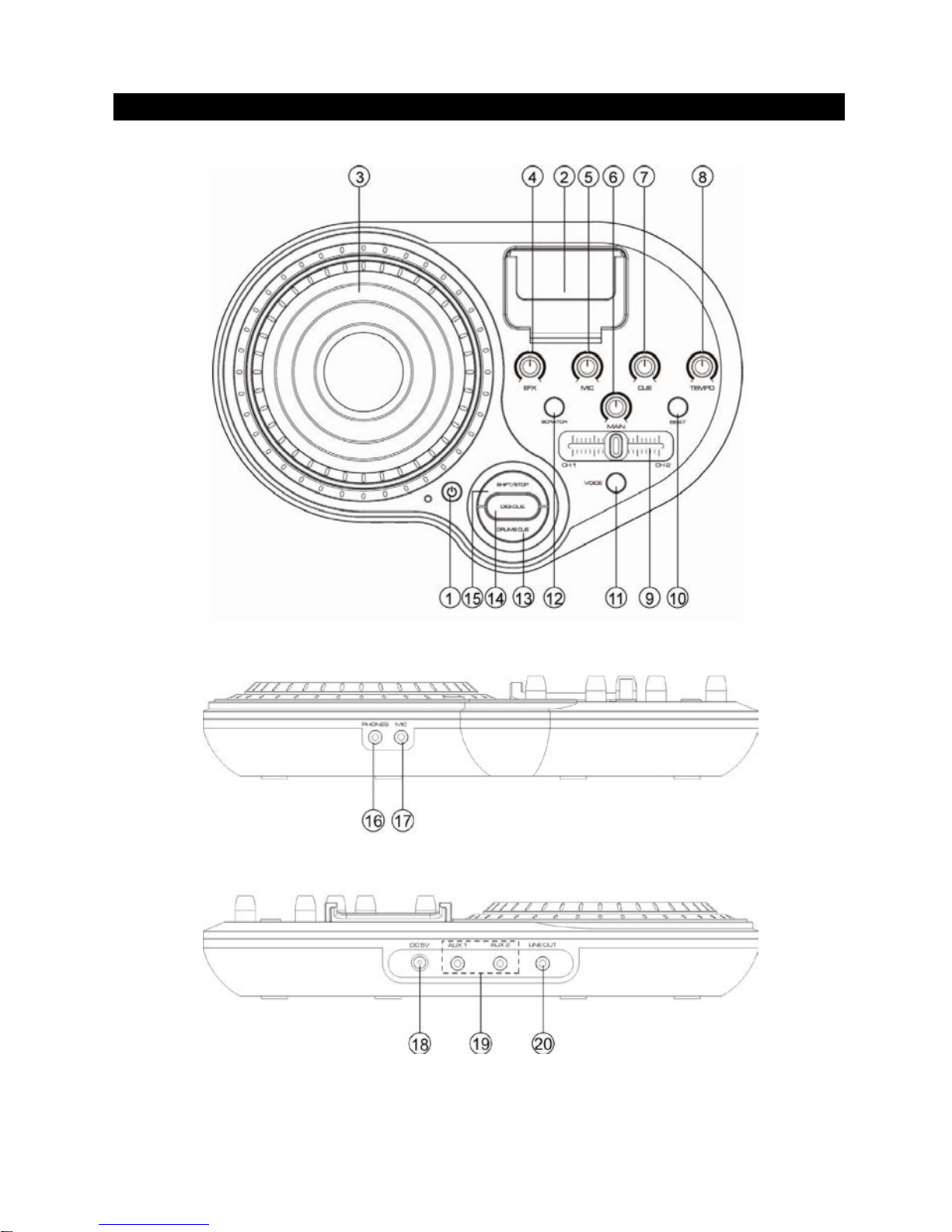

MAIN FEATURES AND BASIC OPERATION
