Congratulations on your new Jetson Journey! The Journey is an innovative

and fun personal transportation device, ready to take on everyday use. Before

your rst ride, check whether the wheels are damaged, or parts are loose.

If there are any abnormalities, please contact Jetson Customer Support at

1-(888) 976-9904 or email us at customerservice@jetsonbike.com.

This product manual can help you understand, use, and maintain your

Journey. In order to avoid danger caused by collisions, falls, and loss of con-

trol, please use caution and learn how to ride the Journey safely. Jetson and

authorized dealers cannot be held liable for injury or damage caused from

riding the Journey. Users ride at their own risk.

The rider is responsible for consequences caused by violating warnings or

improper operations.

If you want to return this product for any reason, be sure to rst call or email

us before taking it back to the store so we can assist you.

INTRODUCTION

INCLUDED IN THE BOX

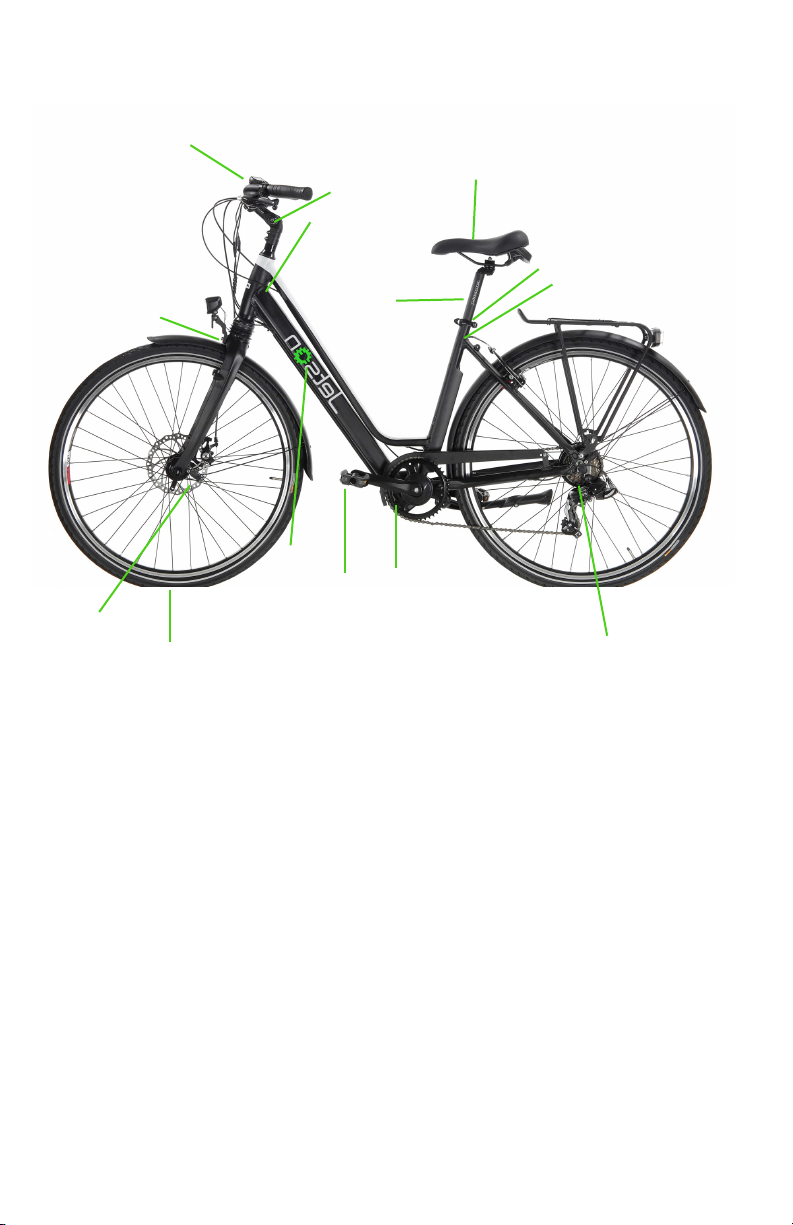

1. Front Fork

2. Handlebar

3. Handlebar Stem

4. Charging Port

5. Frame

6. Saddle Post

7. Saddle

8. Seat Clamping Lever

9. Seat Tube

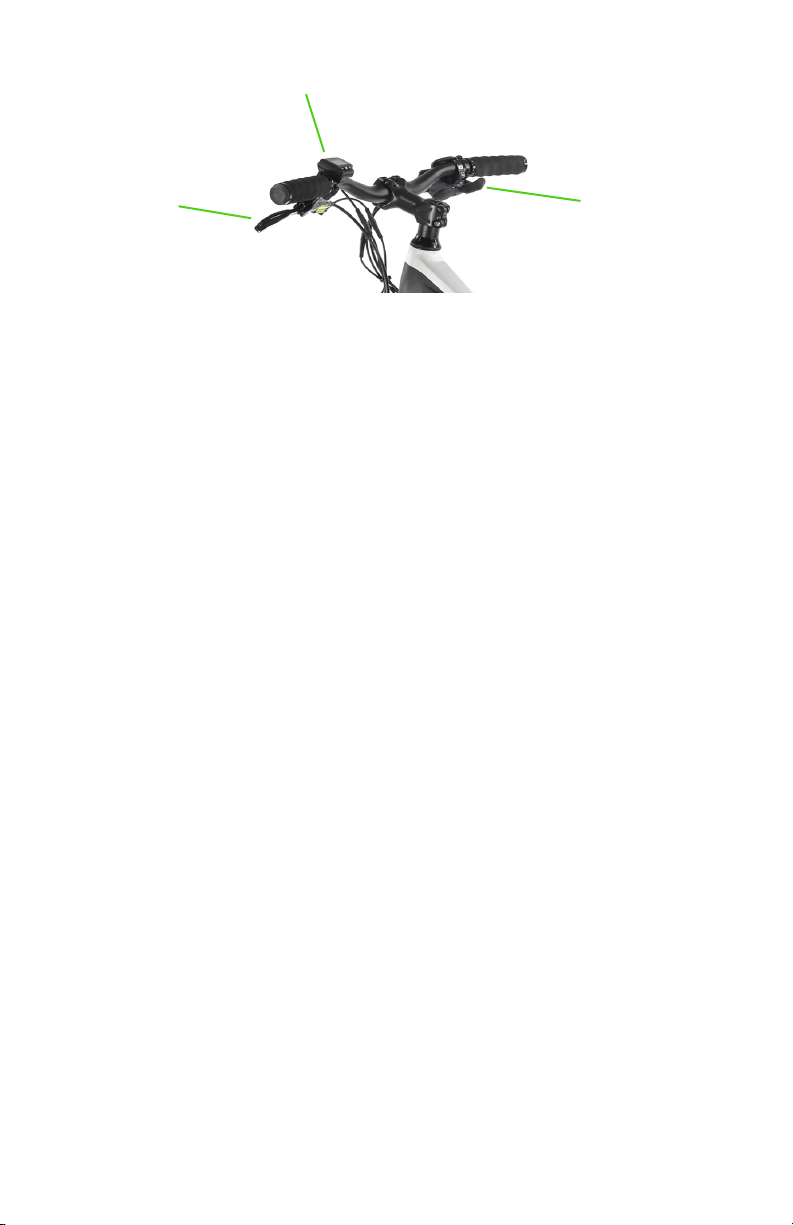

1. Left Brake Lever

2. LCD Display

3. Gear Shifter

10. Rear Derailleur

11. Front Derailleur

12. Pedals

13. Concealed Battery

14. Front Wheel

15. Front Disc Brake

FEATURES AND SPECS

MODEL: JOURNEY

WHEEL DIAMETER: 27.5”

MAX SPEED: 20 MPH

MAX RANGE: 30-35 MILES

BATTERY TYPE: LITHIUM ION

BATTERY RATED VOLTAGE: 36v/ 7.8Ah

MOTOR TYPE: BRUSHLESS

1. Left Brake Lever

2. LCD Display

3. Gear Shifter

MOTOR: 250w

MOTOR RATED RPM: 195

CHARGER: 110-240V

CHARGE TIME: 4-6 HOURS

PRODUCT WEIGHT: 42 LBS

WEIGHT LIMIT: 300 LBS

RECOMMENDED AGE: 14+

ASSEMBLY

The Journey comes partially assembled. In order to fully assemble, you will

need to attach the Handlebars, the Front Wheel, the Disc Brake, and the

Saddle. Please refer to the diagrams on pages 4 and 5 while assembling your

Journey. If you are having difculty assembling the Journey, please call our

customer service or take your Journey to a local bike shop.

Please Note: Pictures may vary slightly from the actual product.

Assembling the Handlebar

• First, make sure the Handlebar Stem is facing forward, towards the Front

Fork.

• Unscrew the 4 bolts in the Handlebar Stem using the provided Allen Key.

Handlebar Stem

• Make sure all the wires are connected according to color.

• Place the Handlebar into the Handlebar Stem and screw the 4 bolts in

using the provided Allen Key.

Connect Wires by Color

• Twist the cap off the Quick Release Clamping Lever and remove it from the

Wheel.

• Place the Quick Release Clamping Lever to the side.

ATTACHING THE FRONT WHEEL

Assembling the Front Disc Brake

• Attach the Front Disc Brake to the Front Fork by screwing in the two bolts.

Bolts

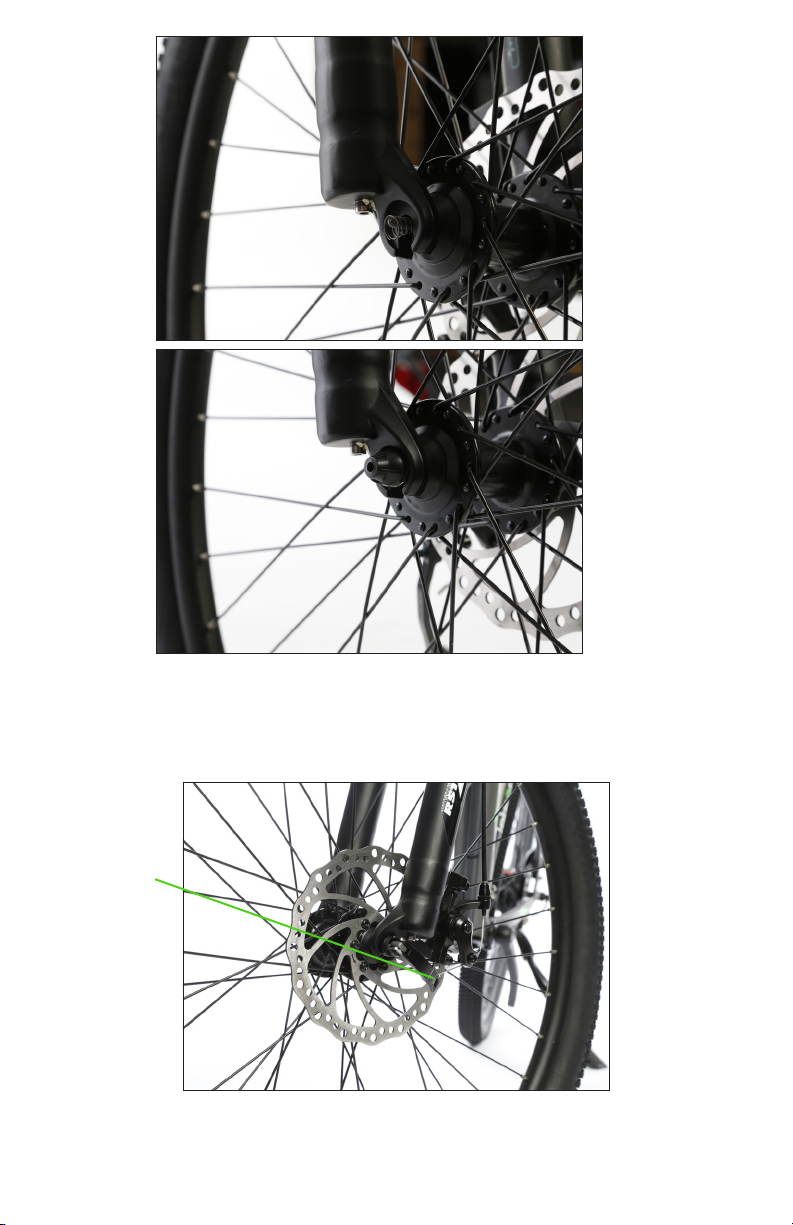

• Slide the front Tire between the Front Fork.

• Hook the Front Fork onto each side of the Tire and slide the Disc Brake into

the Disc.

•Please be careful not to bend the Disc Brake. If you nd that it will not go in

smoothly, please call us for assistance or bring the Journey to your local bike

shop.

Lever

Cap

• Now that the front Tire is t to the Front Fork, slide the Quick Release

Clamping Lever through the Front Wheel. Place the spring back on to the

Quick Release Clamping Lever, with the wide end of the spring facing

outwards, and turn the lever clockwise. Once tight enough, fold over the lever

to secure.

• Make sure the Quick Release Clamping Lever is secure.

• Make sure the Brake is hooked onto the Disc and working properly.

Push Lever in
