Jetview GDV-101SD Manuale utente

JETVIEW

GDV-101SD

2 – Channel SD Card Mini DVR

Instruction Manual

Ver. 1.0

Kit Includes:....................................................................................................................................3

Mini SD DVR Features:..................................................................................................................6

Remote Control of DVR .................................................................................................................9

Go in the set-up menu...............................................................................................................9

DVR Connection ...........................................................................................................................10

Basic Operation.............................................................................................................................11

Configuring Your DVR.................................................................................................................13

Language setting .............................................................................................................13

Beep ................................................................................................................................14

TV Standard ....................................................................................................................14

Power On Channel ..........................................................................................................15

Motion Dection ...............................................................................................................15

Motion Dection Sensitivity.............................................................................................16

Motion Source.................................................................................................................16

Motion Dection Time Slot...............................................................................................17

Motion Dection Record Type..........................................................................................17

Record Clip.....................................................................................................................18

Prerecord.........................................................................................................................18

Photo Quality ..................................................................................................................19

Record Video (Movie) Quality........................................................................................19

File overwrite..................................................................................................................20

Video (Movie) Time Stamp.............................................................................................20

Firmware Version............................................................................................................21

Set the Date and Time.....................................................................................................21

Display Setting................................................................................................................21

Set to default ...................................................................................................................22

Save and Exit Menu........................................................................................................22

Kit Includes:

GDV-101SD-A (with audio)

Part Number Description Qty.

GDV-101SD-Main

DVRainunit

GDV-101SD-A01 AV-in cable with 1 x video in, 1

x audio in and 1 x 12V DC out

GDV-101SD-DC DC Adapter cable

GDV-101SD-A02 AV-output cable

GDV-101SD-RM Remote Controller

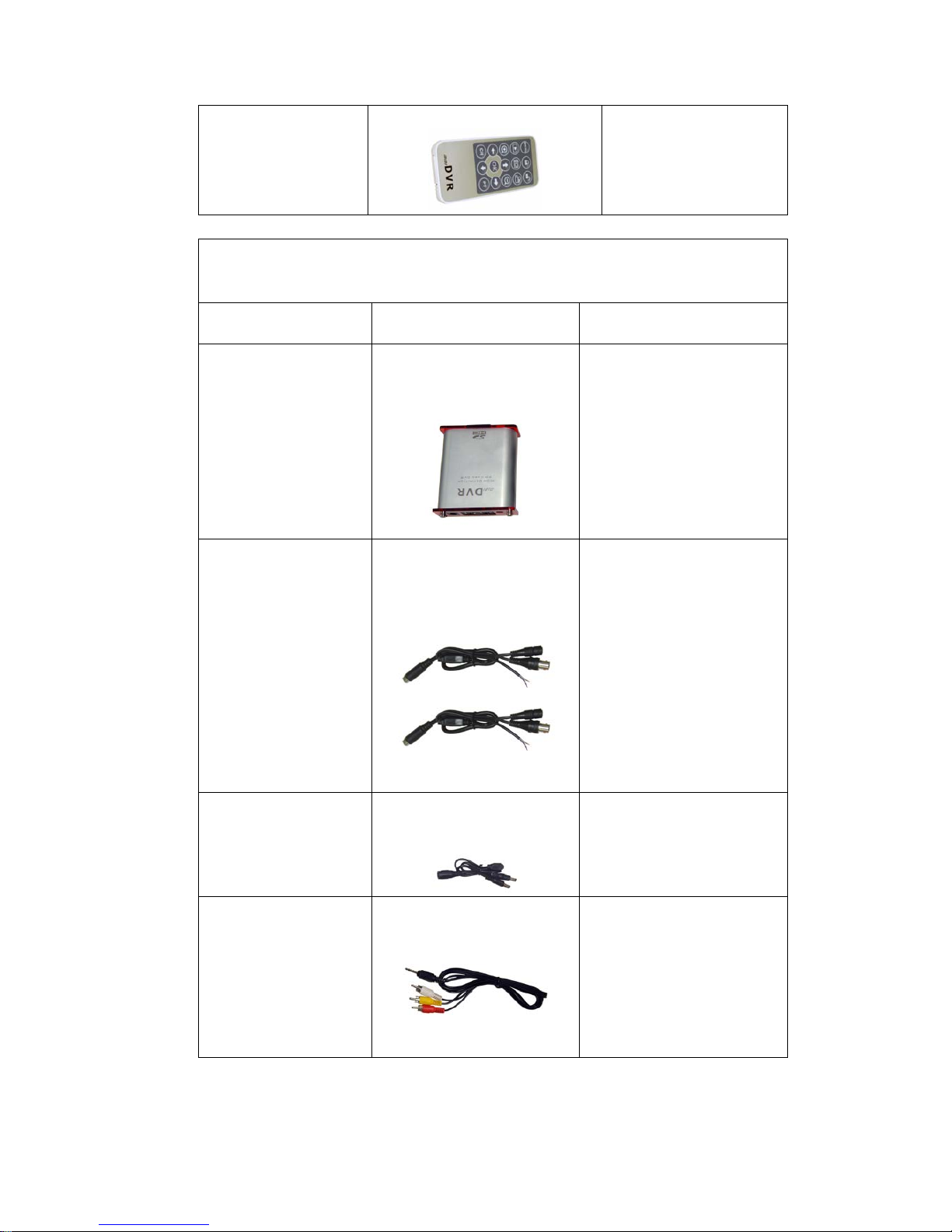

GDV-101SD-R (with RS485 PTZ)

Part Number Description Qty.

GDV-101SD-Main

DVR Main unit

GDV-101SD-R01 AV-in cable with 1 x video

in (BNC), 1 x 12V DC out

and 1 x RS485 for PTZ

GDV-101SD-DC DC Adapter cable

GDV-101SD-A02 AV-output cable

GDV-101SD-RM Remote Controller

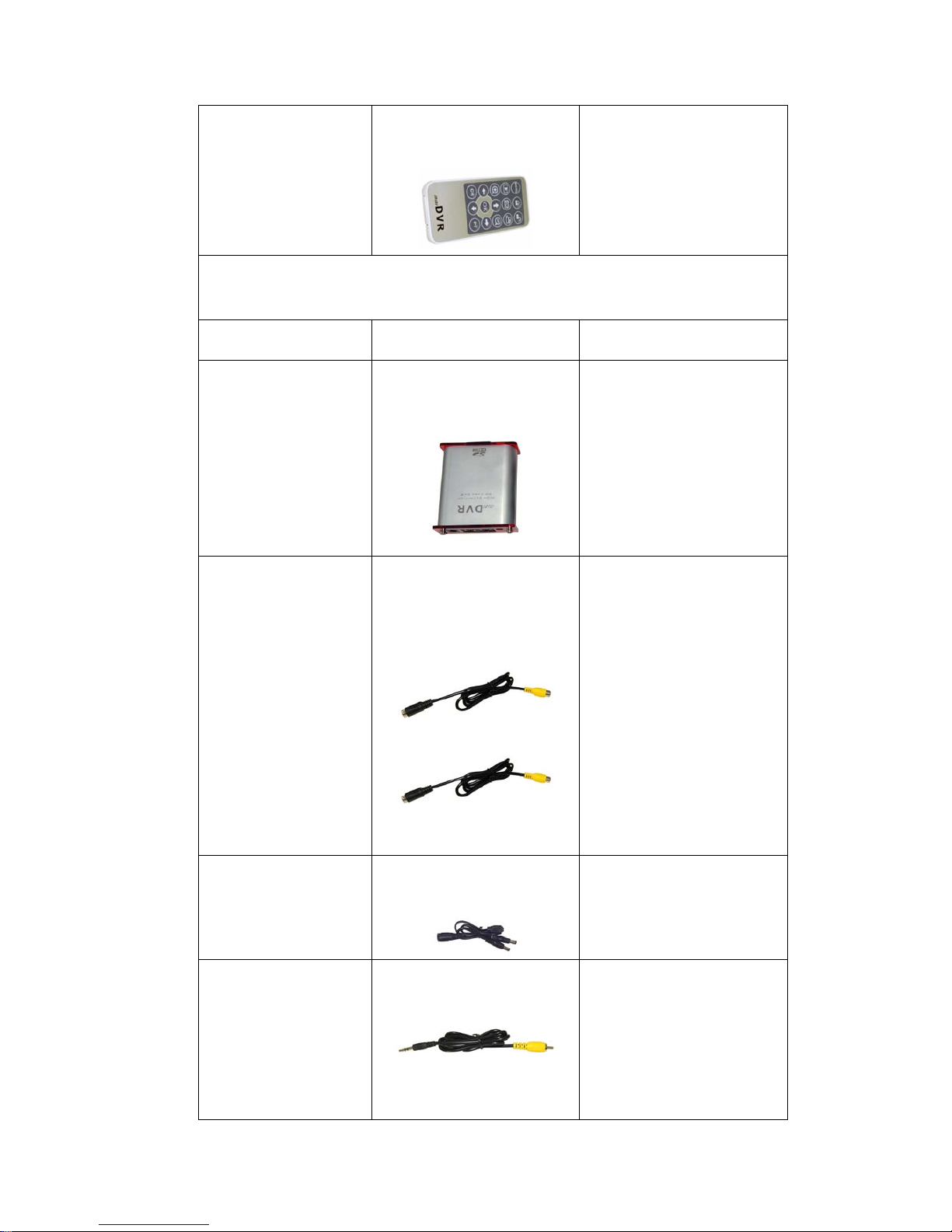

GDV-101SD-V (record video only)

Part Number Description Qty.

GDV-101SD-Main

DVR Main unit

GDV-101SD-R01 AV-in cable with 1 x video

in (BNC), 1 x 12V DC out

and 1 x RS485 for PTZ

GDV-101SD-DC DC Adapter cable

GDV-101SD-A02 AV-output cable

GDV-101SD-RM Remote Controller

1) GVD-101SD-A: This unit records both video and audio

2) GDV-101SD-R: This unit records video only but has a RS485 for PTZ camera control

3) GDV-101SD-V: This unit records video only

GDV-101SD-A and GDV-101SD-R has a AV input cable with power output connector

for providing 12V DC power for camera or other 12V DC device, very convenient to use.

GVD-101SD-V records video only but provides the simplest cable connections for

applications where only video is recorded and no audio or RS485 control is required.

Mini SD DVR Features:

¾Connect up to two cameras or video sources. Record or view one channel at a time

¾Small pocket size design, easy to carry or use

¾Support CIF or D1 resolution

¾Recorded file format .AVI, can be played back on any PC

¾Date & Time stamp on recorded video

¾Using SD card for video storage. Supports up to 32G

¾Time and date display, Real time monitoring

¾Motion detection trigger recording

¾Recording either through motion detection or manually

¾Both video and audio recording (GDV-101SD-A only)

¾Output 12VDC power to camera (GDV-101SD-A and GDV-101SD-R only)

¾PTZ camera control using RS485 data communication (GDV-101SD-R only)

Specifications:

Video compression MPEG-4

Video System PAL / NTSC

Video Inputs 2-channel

Video Output 1-channel

Audio Input * 2-Channel (GDV-101SD-A）

Audio Output * 1-Channel (GDV-101SD-A)

Display Frame Rate 25ftp (PAL) / 30fps (NTSC)

Record Resolution CIF (320 x 240) and D1 (704 x 576)

Record Frame Rate 25fps (PAL) / 30fps (NTSC)

Recording Mode Manual or Motion trigger

Recording clip length 5 min to unlimited

Motion triggered recording

video clip length

Max. 10 sec

Storage media SD flash memory card (upto 32G)

PTZ control ** RS485 standard (supports Pelco-D and P)

12V DC Output Yes (GDV-101SD-A & -R only)

Operation Voltage 12V DC / 800mA

Size (mm) : 86 (L) x 73 (W) x 28 (H)

Weight: 115gram (not including accessories)

* Only supports GDV-101SD-A

** Only support GDV-101SD-R

Front Panel of 2 Channel DVR

Back Panel of 2 Channel DVR

Fig. 1 Front & Back panel of DVR

Remote Control of DVR

Go in the set-up menu

Enable motion detect function, User press this button start

motion alarm mode.

Disable motion detect function, User press this button stop

motion alarm mode.

Go to playback mode, In this mode user can play back

recorded AVI or JPEG file.

Capture a photo, Press this capture a photo like a camera.

Record a AVI file, Press this can start record a AVI file,You

clip movie every 1 min.

Navigate the menu settings, And select target at playback

mode, This key also can select direction at zoom and PT

mode.

Zoom tele function.

Zoom wide function, Also use switch browse mode at

playback.

To confirm your selection in menu and playback mode.

To switch between CH1 and CH2

To go in pan tite control, This function need work together

PTZ camera.

DVR Connection

Fig. 2 DVR Connection Diagram

AV input cable: Video (yellow female RCA), Audio (white female RCA), 12V DC

power-out (male), RS485 out (two-wire)

AV output cable: Video (yellow male RCA), Audio (white male RCA), alarm out (red male

RCA. This feature is currently not available)

DC Adapter split cable: 1in and 2-out. This is to provide an extra 12V DC output for

applications where the 12V DC power outlet is limited.
