Jimmy JV83 Cleaning & Replacing Parts
Assemble the battery pack
Assemble electric floor head with
metal tube
Accessories Assembly
Battery pack assembly: use one hand to
hold handheld vacuum cleaner, one hand to
hold battery pack, align with the guide-track
groove, then install the battery pack until the
“click” sound is heard.Pull hard the battery
pack downwards, if the batter pack remain
tight, which means battery pack assembly
complete.(Picture3)
Hold the floor head with left hand, use right
hand to insert the metal tube vertically into
floor head, align with the conductive needle,
press the tube until a “click” sound is heard.
Attention: Keep the handle and floor head in
the same direction, conductive needle shall
align with the socket.
For ease of use, this product is
specially equipped with accessories
for the hand-held vacuum cleaner.
The handheld can connect to
dierent tools for dierent cleaning
purpose.
This is an important document for Jimmy JV83, keep well. Clients are also required to read their Main Instruction Manual

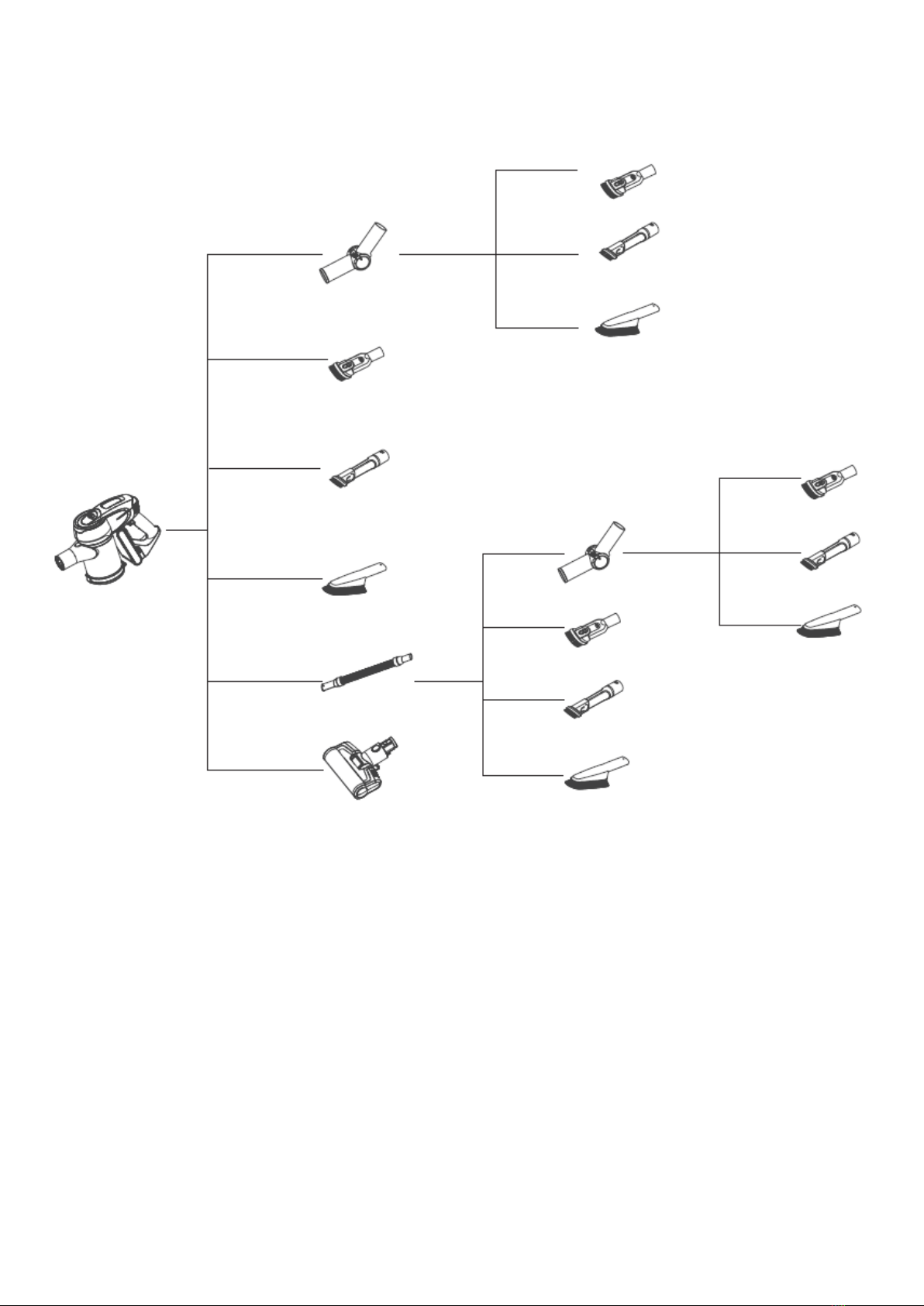

Accessories Connection List
Cleaning and Replacing Parts
Attention:
1. HEPA filter is available for sale from Jimmy Mauritius.
2. It is recommended to clean the dust cup after each use; When the dust cup is full or the HEPA
filter is
clogged, it needs to be cleaned and replaced if necessary.
3. Electric floor head brushroll might be entangled with hair after long time use. It needs to be
cleaned
in time to keep the vacuum working more eciently
This is an important document for Jimmy JV83, keep well. Clients are also required to read their Main Instruction Manual

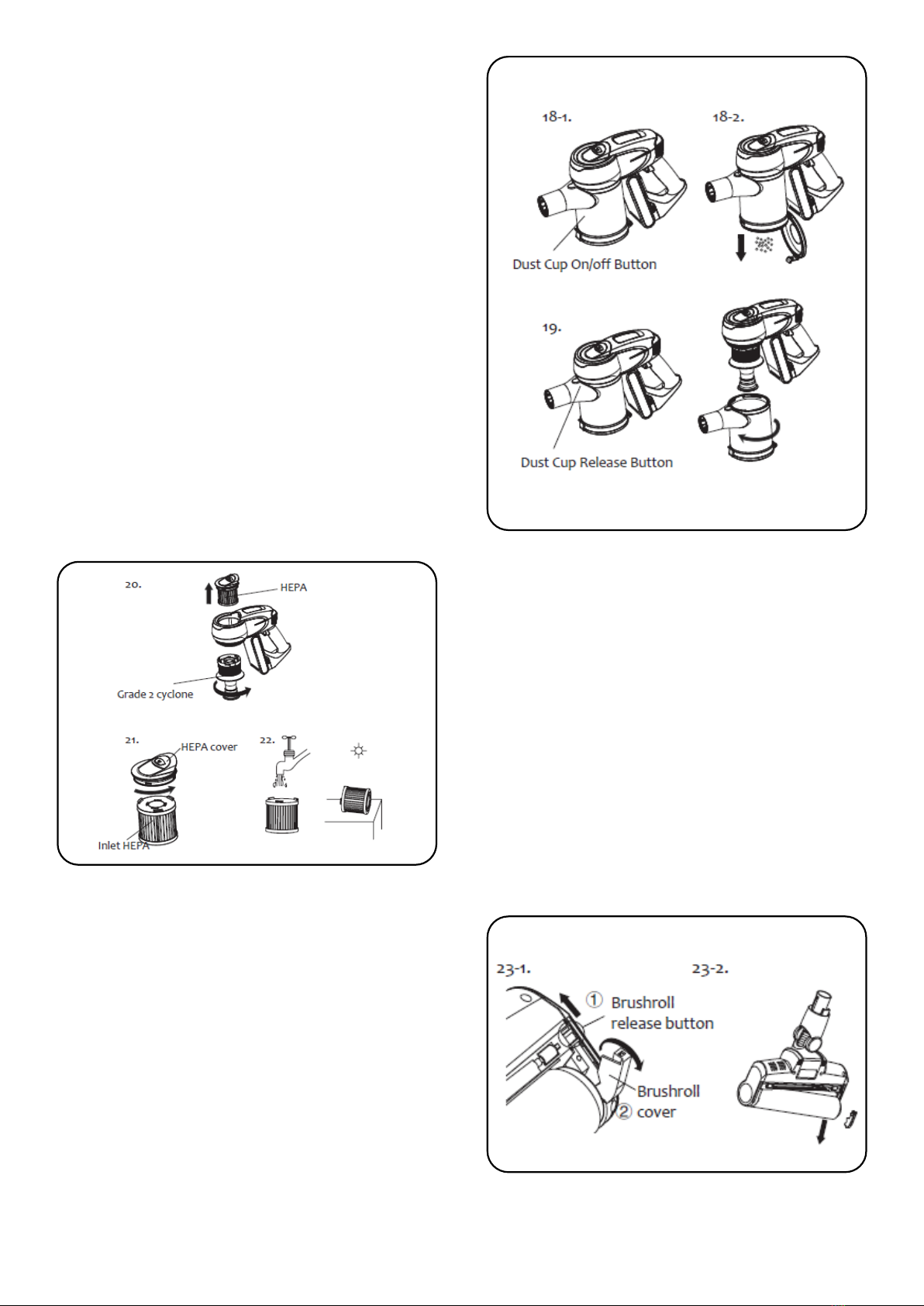

Clean dust cup and filtration system
Clean dust cup
Pull out downwards the dust cup On/ o button
to dump dust in dust cup.(Picture 18)
Press hard the dust cup release button, hold
steady the main body with right hand, rotate
the dust cup in the direction shown on the
picture, remove the dust cup from main body to
further clean the dust cup.(Picture19)
1. Use your finger to release the cup button,
take out the side cover of the cup.
2. After cleaning and replacing, reassemble it.
Clean filter system
Hold the mainbody, take the HEPA upwards as
shown on the picture, take out the HEPA, then
take out Grade 2 cyclone system, clean them.
(Picture20)
Fix inlet HEPA, rotate the HEPA cover in the same
direction shown on the picture, separate the
HEPA cover from inlet HEPA, which will be easily
cleaned. After cleaning and drying, assemble
again.
Cleaning Electric Brushroll
1.Use your finger to release the brushroll button,
take out the side cover of the brushroll.
2.Take out one side of the brushroll in the same
direction as shown on the picture, then brushroll
can be taken out to clean.
3.After cleaning and replacing, reassemble
it.(Picture22&23)
This is an important document for Jimmy JV83, keep well. Clients are also required to read their Main Instruction Manual
