JK Audio BlueDriver-M3 Guida utente

(

)

;

’

”

1311 East 6th Street

Sandwich, IL 60548 USA

Phone: 815 786 2929

Toll Free: 800 552 8346

www.jkaudio.com

JK Audio™

TELEPHONE AUDIO INTERFACE PRODUCTS

BlueDriver-M3™

WIRELESS AUDIO INTERFACE

CONNECT APPLICATIONS

(

)

;

’

”

Mix-Minus-Caller

Audio Back To Caller

Caller Audio

Simply plug the BlueDriver-M3 XLR into

any mic level input of your PA system.

Pair the BlueDriver in “Phone” mode

to your laptop computer and enjoy full

bandwidth Bluetooth A2DP audio from

your web conference. Keep in mind that

Bluetooth A2DP processing adds a 150

millisecond delay, so this application is

more appropriate for pre-recorded or

broadcast applications that do not have

a live mic or interactive conversation.

A2DP is a one-way transmission, with

nothing coming back on the return

channel. Therefore you won’t be able to

send A2DP audio to your laptop.

RECEIVE A2DP AUDIO FROM YOUR LAPTOP INTO YOUR PA

INTERCOM

BlueDriver-M3™

WIRELESS AUDIO INTERFACE

CONNECT APPLICATIONS

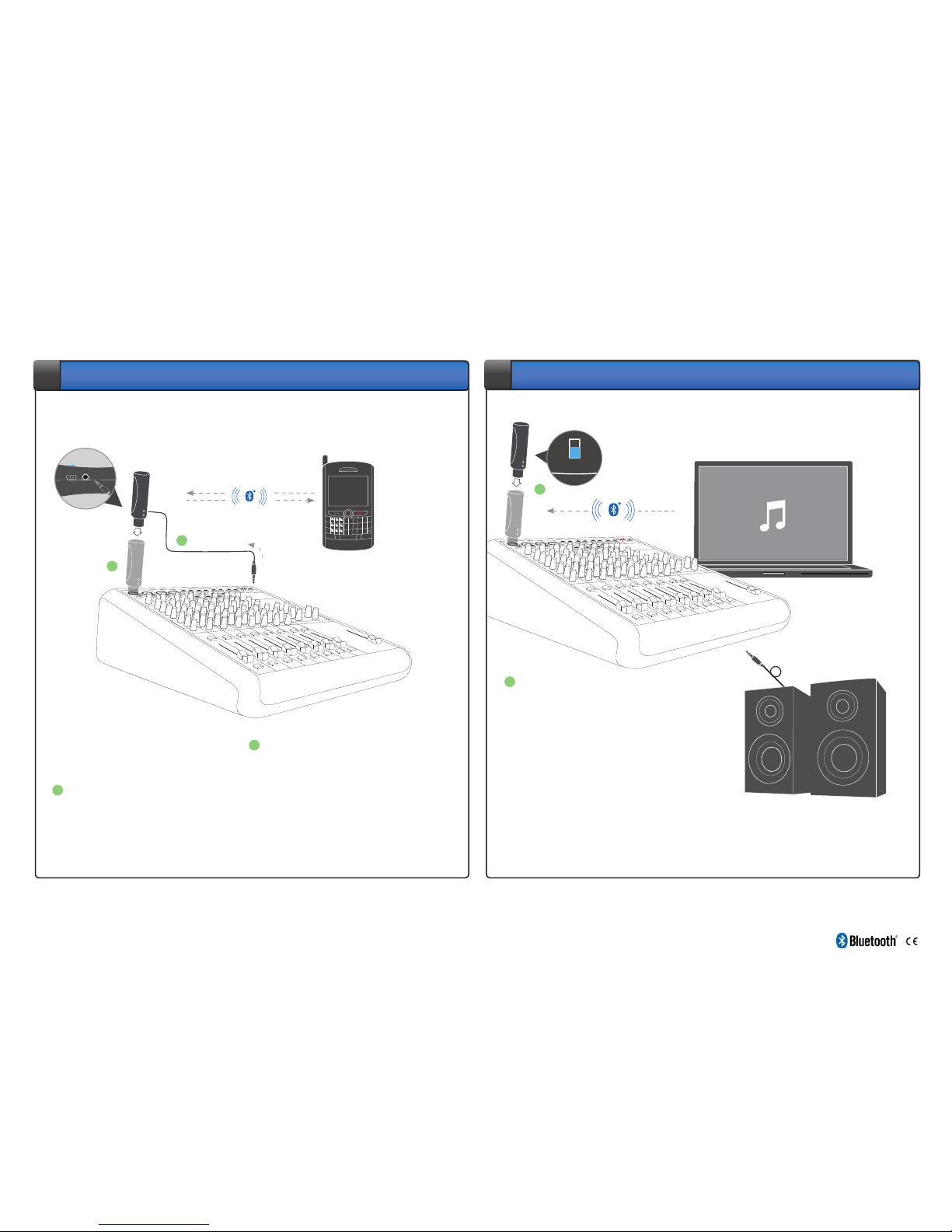

Simply plug BlueDriver-M3 into any

mic level input of your mixer or console.

Pair to your cell phone and get ready to

take calls as you normally would. This

setup allows voice band bi-directional

audio from your cell phone.

TAKE CALLS DURING A LIVE EVENT OR REMOTE BROADCAST

1311 East 6th Street

Sandwich, IL 60548 USA

Phone: 815 786 2929

Toll Free: 800 552 8346

www.jkaudio.com

JK Audio™

TELEPHONE AUDIO INTERFACE PRODUCTS

The mini cable provided with your

BlueDriver allows you to connect a

line output or headphone output of

your mixer to the SEND jack on the

BlueDriver M3. This signal goes back to

the caller, so make sure you don’t send

the Caller’s voice back to the caller.

See the last page of this document or

the Article section on our website for a

quick primer on “Mix-Minus”.

Headset

Connect

Phone

BlueDriver-M3

™

JK Audio

™

Power Send

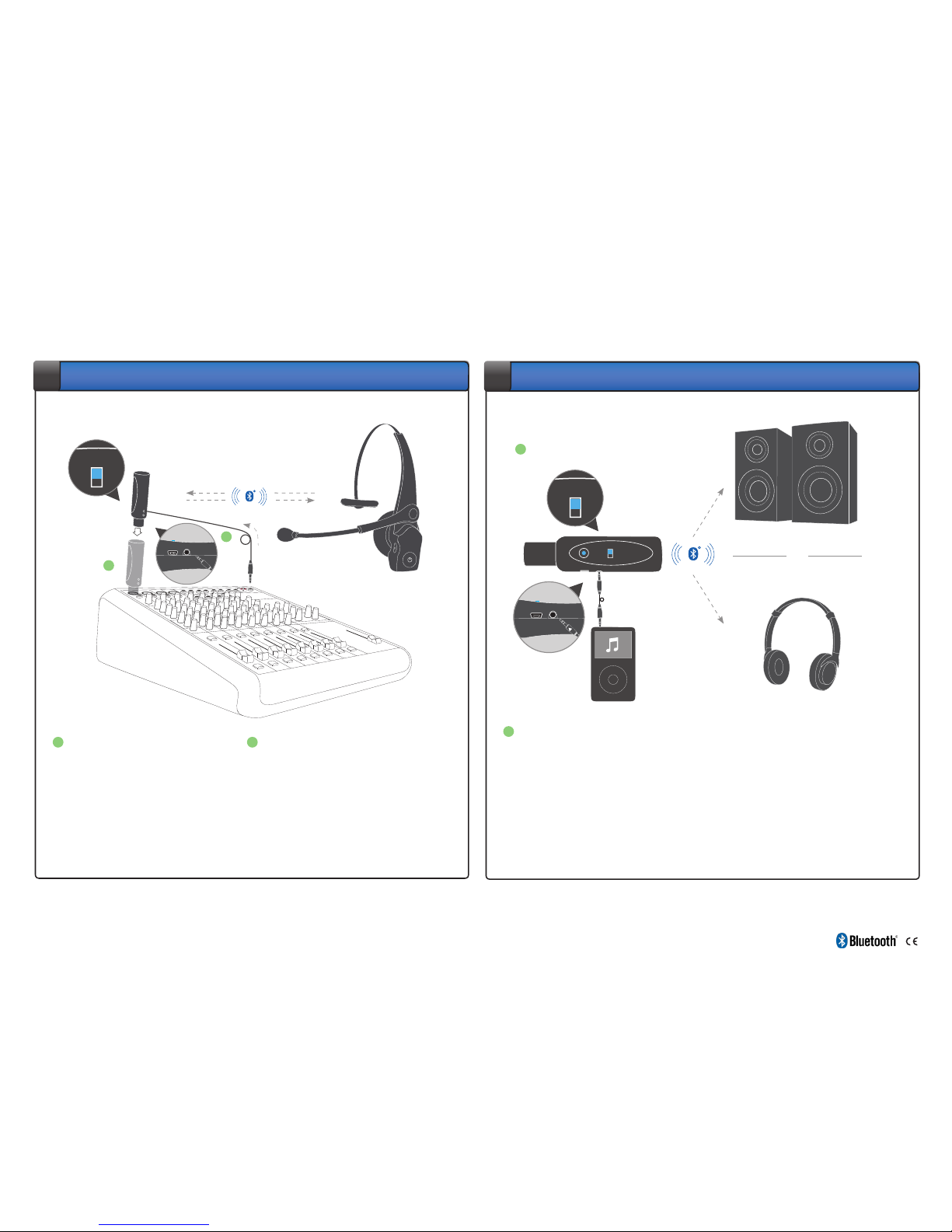

Forget the XLR jack and jump right

to the 3.5 mm socket. The “Headset”

mode of BlueDriver-M3 connects to

Bluetooth headphones or wireless

speakers, and transmits full 20 kHz

audio bandwidth Stereo A2DP audio.

Simply connect the supplied cord

between the SEND mini jack on your

BlueDriver-M3 and the line level or

headphone output jack of your audio

TRANSMIT BLUETOOTH STEREO A2DP AUDIO

source, then pair to your Bluetooth

headphones or speakers. Keep in

mind that Bluetooth A2DP processing

adds a 150 millisecond delay, so this

application is more appropriate for pre-

recorded or broadcast applications that

do not have a live mic or interactive

conversation. A2DP is a one-way

transmission, with nothing coming back

on the return channel.

Need a short range point-to-point

intercom during your next live event?

Simply plug BlueDriver-M3 into

any mic level input of your mixer or

console. Pair to your favorite Bluetooth

Headset (View our Facebook page

for a Discussion on our headset

recommendation). This setup allows

voice-band bi-directional audio up to 30

feet from the BlueDriver.

BLUETOOTH HEADSET AS A TALKBACK INTERCOM

BThe mini cable provided with your

BlueDriver allows you to connect a

line out or headphone output of your

console to the SEND jack on the

BlueDriver-M3. This signal goes back

to the headset, so make sure you don’t

send your voice back to yourself. See

the last page of this document or the

Article section on our website for a

quick primer on “Mix-Minus”.

1311 East 6th Street

Sandwich, IL 60548 USA

Phone: 815 786 2929

Toll Free: 800 552 8346

www.jkaudio.com

JK Audio™

TELEPHONE AUDIO INTERFACE PRODUCTS

BlueDriver-M3™

WIRELESS AUDIO INTERFACE

CONNECT APPLICATIONS

Power Send

Headset

Connect

Phone

BlueDriver-M3

™

JK Audio

™

Headset

Connect

Phone

BlueDriver-F3

™

JK Audio

™

Headset

Connect

Phone

BlueDriver-F3

™

JK Audio

™

MIC

1 2 3/4 5/6 7/8

MIC MIC MIC

L L

R R

TAPE

UNBALANCED

MAIN

METERS

USB

INPUT LEVEL L R

TAPE

OUT

INSERT

LINE IN 1 LINE IN 2

BAL/

UNBAL

BAL/

UNBAL

MONO MONO MONO MONO

POWER

BAL/

UNBAL

BAL/

UNBAL

MID

LOW

BAL/

UNBAL

BAL/

UNBAL

BAL/

UNBAL

BAL/

UNBAL

LINE IN 3

LINE IN 4

LINE IN 5

LINE IN 6

LINE IN 7

LINE IN 8INSERT ST RETURN

GAIN

EQEQEQEQ

AUX

PAN

MUTE MUTE MUTE MUTE MUTE MUTE

PAN PAN PAN PAN

FX MASTER FX TO MON PHONES TAPE LEVEL

AUX AUX AUX AUX

GAINGAINGAINGAIN

FX SEND

MON SEND FOOTSWITCH

MAIN OUT PHONES

PHANTOM

POWER

STEREO GRAPHIC EQ

125 250 500 1K 2K 4K 8K

48V

LOW CUT LOW CUT LOW CUTLOW CUT

MID

LOW

MID

LOW

MID

LOW

MID

LOW

MON

FX FX FX FX FX

MUTE

PRESETS

MON MON MON MON

MON MAIN

1 2 3/4 5/6 7/8 ST RTN FX RTN

UUUU

UUUUU

UUUU

Connect

Phone

Headset

BlueDriver-F3

™

JK Audio

™

BlueDriver-M3™ + BlueDriver-F3™

WIRELESS AUDIO INTERFACE

If you are playing pre-recorded

or broadcast material and can

accept a 150 millisecond delay, our

BlueDriver-F3 (“Headset” mode) and

BlueDriver-M3 (“Phone” mode) can be

paired together to create a mono 20

kHz, full audio bandwidth wireless link.

Range is limited to 30 feet, but this may

be just enough for your application.

A2DP is a one-way transmission,

with nothing coming back on the

return channel.

BROADCAST HIGH QUALITY AUDIO THROUGH OUR WIRELESS LINK

1311 East 6th Street

Sandwich, IL 60548 USA

Phone: 815 786 2929

Toll Free: 800 552 8346

www.jkaudio.com

JK Audio™

TELEPHONE AUDIO INTERFACE PRODUCTS

APPENDIX

On whichever input

channel you have the

BlueDriver-M3™ connected,

turn the corresponding Aux

or FX control to minimum.

All other input channel Aux

controls should be at their

desired settings for the “Mix-

Minus” feed returning to the

BlueDriver-M3™.

Connect the FX Send output

to the Send input on the

BlueDriver-M3™. The FX

Send output will send all audio

except the caller audio.

The Aux or FX Send bus is

completely separate from all

other outputs, so these Aux

controls will not affect what is

heard on the Main outputs or

on any other Aux or FX buses.

MIC

1 2 3/4 5/6 7/8

MIC MIC MIC

L L

R R

TAPE

UNBALANCED

MAIN

METERS

USB

INPUT LEVEL L R

TAPE

OUT

INSERT

LINE IN 1 LINE IN 2

BAL/

UNBAL

BAL/

UNBAL

MONO MONO MONO MONO

POWER

BAL/

UNBAL

BAL/

UNBAL

MID

LOW

BAL/

UNBAL

BAL/

UNBAL

BAL/

UNBAL

BAL/

UNBAL

LINE IN 3

LINE IN 4

LINE IN 5

LINE IN 6

LINE IN 7

LINE IN 8INSERT ST RETURN

GAIN

EQEQEQEQ

AUX

PAN

MUTE MUTE MUTE MUTE MUTE MUTE

PAN PAN PAN PAN

FX MASTER FX TO MON PHONES TAPE LEVEL

AUX AUX AUX AUX

GAINGAINGAINGAIN

FX SEND

MON SEND FOOTSWITCH

MAIN OUT PHONES

PHANTOM

POWER

STEREO GRAPHIC EQ

125 250 500 1K 2K 4K 8K

48V

LOW CUT LOW CUT LOW CUTLOW CUT

MID

LOW

MID

LOW

MID

LOW

MID

LOW

MON

FX FX FX FX FX

MUTE

PRESETS

MON MON MON MON

MON MAIN

1 2 3/4 5/6 7/8 ST RTN FX RTN

UUUU

UUUUU

UUUU

Power Send

“MIX-MINUS” SETUP

(

)

;

’

”

MIC

1 2 3/4 5/6 7/8

MIC MIC MIC

L L

R R

TAPE

UNBALANCED

MAIN

METERS

USB

INPUT LEVEL L R

TAPE

OUT

INSERT

LINE IN 1 LINE IN 2

BAL/

UNBAL

BAL/

UNBAL

MONO MONO MONO MONO

POWER

BAL/

UNBAL

BAL/

UNBAL

MID

LOW

BAL/

UNBAL

BAL/

UNBAL

BAL/

UNBAL

BAL/

UNBAL

LINE IN 3

LINE IN 4

LINE IN 5

LINE IN 6

LINE IN 7

LINE IN 8INSERT ST RETURN

GAIN

EQEQEQEQ

AUX

PAN

MUTE MUTE MUTE MUTE MUTE MUTE

PAN PAN PAN PAN

FX MASTER FX TO MON PHONES TAPE LEVEL

AUX AUX AUX AUX

GAINGAINGAINGAIN

FX SEND

MON SEND FOOTSWITCH

MAIN OUT PHONES

PHANTOM

POWER

STEREO GRAPHIC EQ

125 250 500 1K 2K 4K 8K

48V

LOW CUT LOW CUT LOW CUTLOW CUT

MID

LOW

MID

LOW

MID

LOW

MID

LOW

MON

FX FX FX FX FX

MUTE

PRESETS

MON MON MON MON

MON MAIN

1 2 3/4 5/6 7/8 ST RTN FX RTN

UUUU

UUUUU

UUUU

Caller Audio

Mix-Minus-Caller

Audio back to caller Mix-Minus-Caller Audio

Headset

Connect

Phone

BlueDriver-M3

™

JK Audio

™

Headset

Connect

Phone

BlueDriver-F3

™

JK Audio

™
