JL Audio 94537 Manuale utente

INSTALLATION GUIDE

for the

SB-P-996/13TW5v2

SKU# 94537

1998-2004 Porsche 911 (996)

Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.

With proper installation, your new vehicle-specific enclosed subwoofer system

will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your authorized

JL Audio dealer. The installation professionals employed by your dealer have the necessary tools

and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your

own installation, please read this installation guide completely before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital that

the Stealthbox®be properly mounted to the vehicle according to these

instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure

caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision

or sudden deceleration.

Continued on Next Page

SB-P-996/13TW5v2 INSTR_SKU# 011334

INSTALLATION

DIFFICULTY:

OUT

ESTIMATED TIME:

34 HOURS

SPECIFICATIONS

Enclosure Type: Acoustic Suspension (sealed)

Driver Type: (2) 13TW5v2-4

Nominal Impedance: 2 ohm

Continuous Power Handling: 120 0 wat ts

INCLUDED HARDWARE

REQUIRED TOOLS

(2) 3/8 - 16 x 1-3/4” Hex Bolt (1) Driver Enclosure Bracket

(6) 3/8” Split Lock Washer (1) Pass Enclosure Bracket

(2) 3/8” x 1-1/4” Fender Washer (2) 3/8 - 16 x 1-1/4” Hex Bolt

(4) 3/8” Flat Washer (2) 3/8” Hex Locknut

(2) 3/8” Nylon Washer (2) 3/8” Hex Nut

(2) Flat Bracket (2) Carpeted Panel

(2) U-Nut

(2) 3/8 - 16 x 2-1/4” Set Screw

(2) 3/8” x 1-1/2” Vinyl Cap

(2) Rear Bracket

(1) Driver Front Bracket

(1) Pass Front Bracket

(2) 1/4 - 20 x 1-1/2 Hex Drive Bolt

3/8 Drive Ratchet

3” Extension

8” Extension

12” Extension

3/8 Universal Joint

10mm Socket

15mm Deep Socket

Large Channel Lock Pliers

5/32 Allen Wrench

It is recommended to have a second person assist with the

installation of this model.

SB-P-996/13TW5v2 INSTR_SKU# 011334

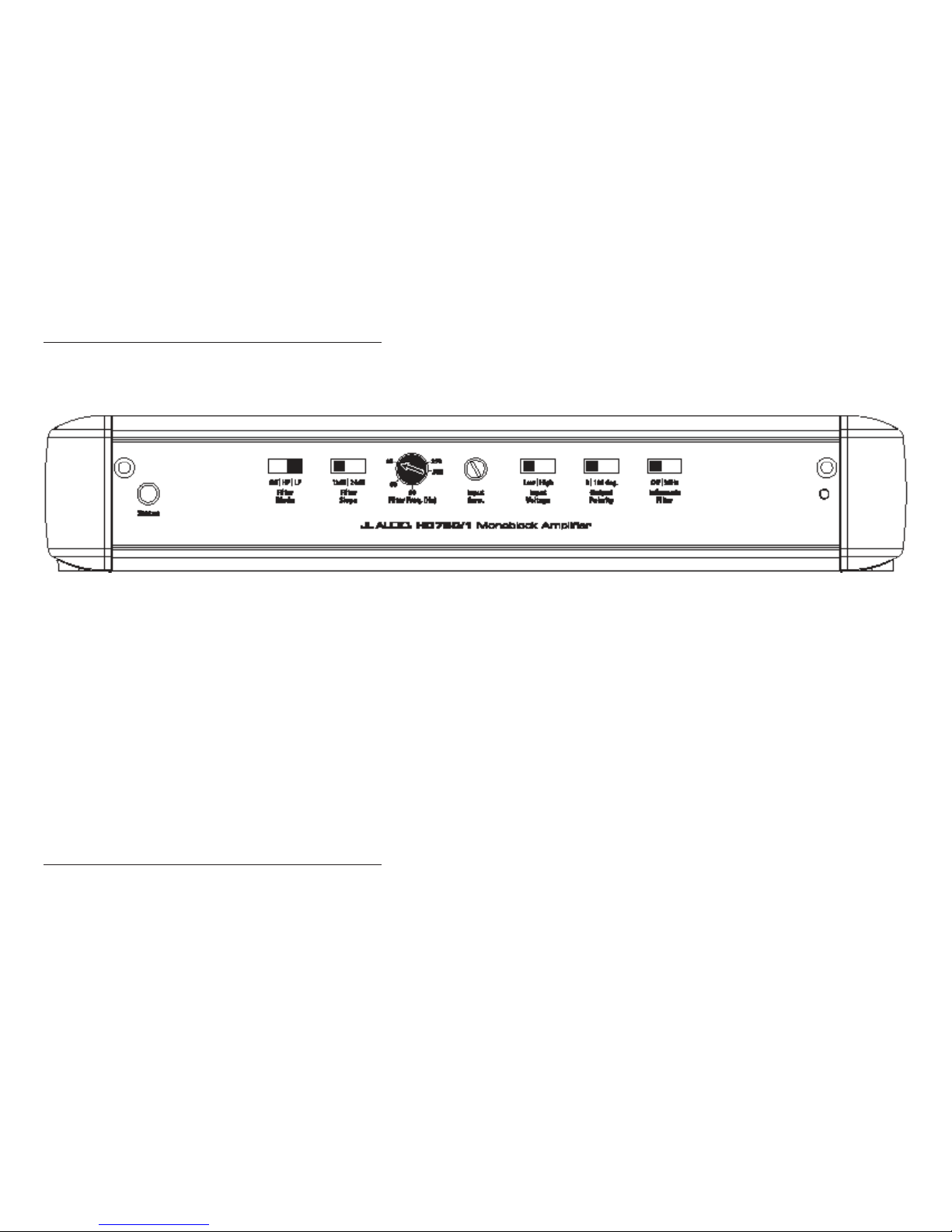

POWER RECOMMENDATION

JL Audio recommends high quality ampliers such as the JL Audio HD750/1. The diagram below shows the recommended crossover settings for the HD750/1. For a detailed description of the amplier settings, consult the

owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.

CONNECTIONS

Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplier. Other kits

are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used that will provide signal for both channels of the amplier. JL Audio

recommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.

Continued on Next PagePage 2 • JL Audio, Inc., 2016

Continued on Next Page

SB-P-996/13TW5v2 INSTR_SKU# 011334

Page 3 • JL Audio, Inc., 2016

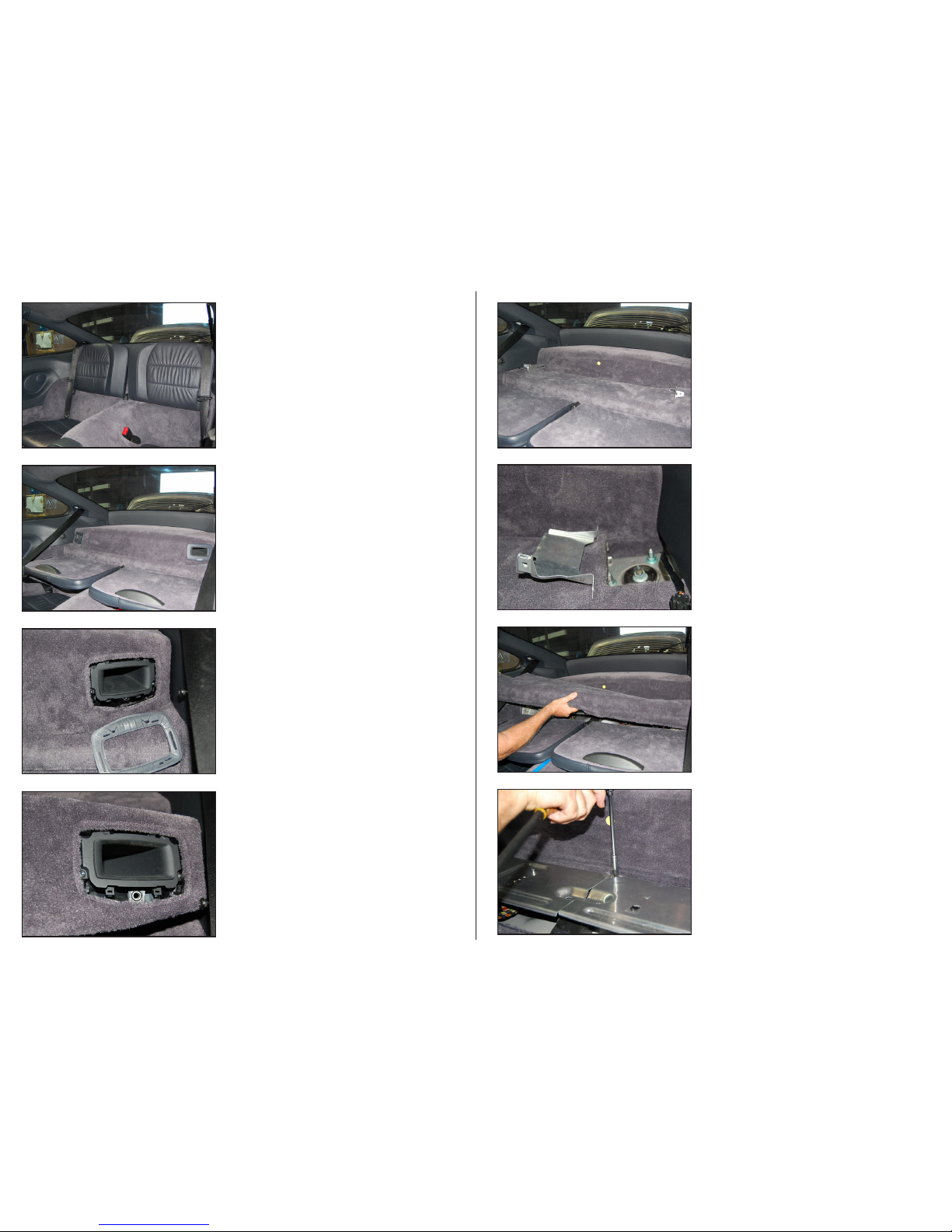

STEP 4

Remove the bolt under each of the enclosure ports.

STEP 8

Remove the center nut to loosen the two metal brackets.

STEP 3

Carefully unclip the trim around each of the enclosure ports

as shown.

STEP 7

Remove the lower carpeted panel as shown.

STEP 2

Fold down the rear seats to gain access to the factory

subwoofer enclosure.

STEP 6

Remove the two small carpeted panels, unbolt the enclosure

brackets, and remove the brackets from the vehicle.

STEP 1

Empty the back seat area.

STEP 5

Unplug and remove the enclosure from the vehicle.

Continued on Next Page

SB-P-996/13TW5v2 INSTR_SKU# 011334

STE P 12

Pictured is the empty cargo area.

STEP 16

From the engine bay, insert the assembly up through the

empty grommet hole.

S T E P 11

Carefully remove the upper carpeted panel.

STEP 15

Place a 3/8” Split Lock Washer, a 3/8” x 1-1/4” Fender Washer,

and a 3/8” Nylon Washer over a 3/8 - 16 x 1-3/4” Hex Bolt.

STEP 10

Reinstall the rear trim panel clips.

STEP 14

From the engine bay, remove the air intake tube as shown.

STEP 9

Carefully unclip the rear trim panel as shown.

STEP 13

Remove the two grommets near the back of the vehicle as

shown.

Page 4 • JL Audio, Inc., 2016

Continued on Next Page

SB-P-996/13TW5v2 INSTR_SKU# 011334

Page 5 • JL Audio, Inc., 2016

STEP 20

Reinstall the air intake tube.

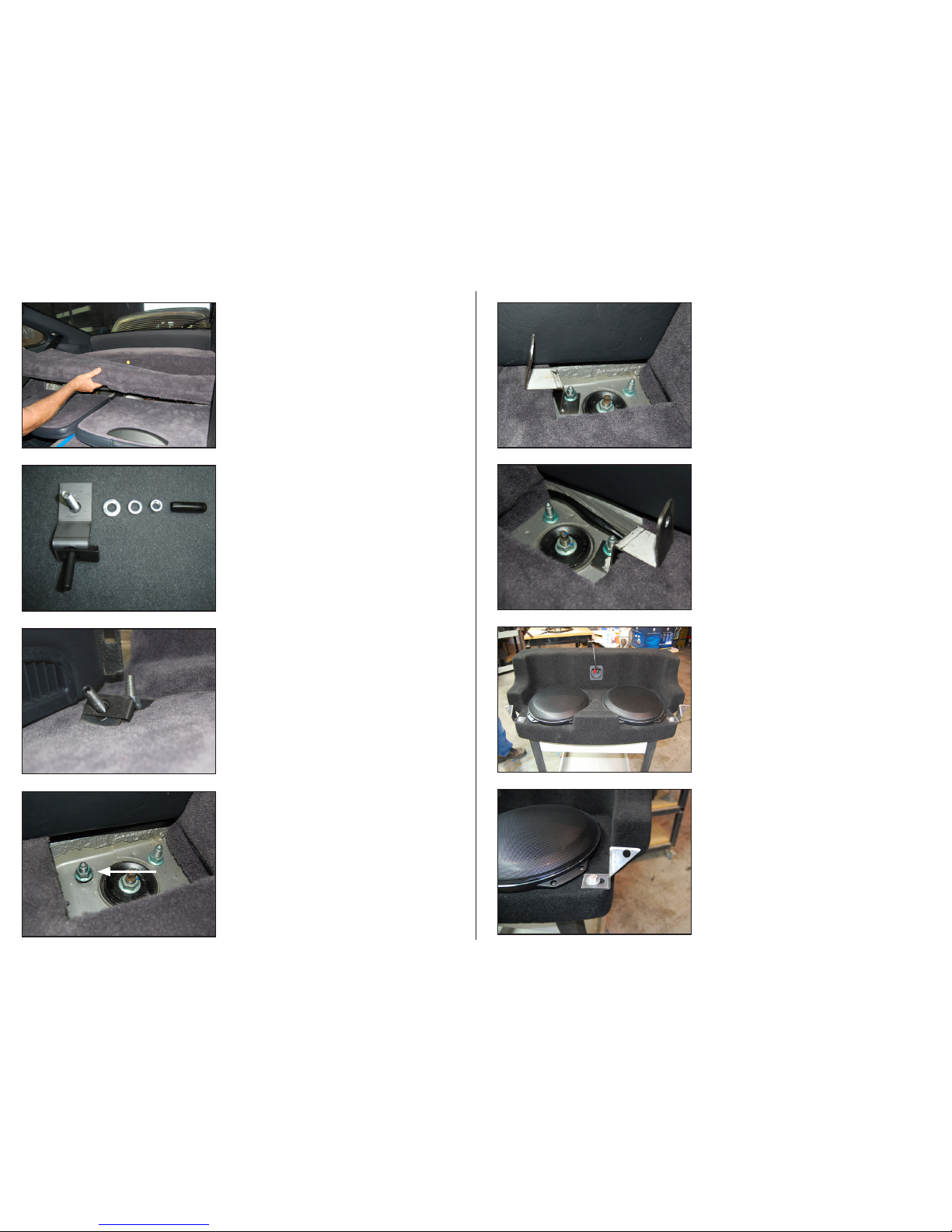

STEP 24

Reinstall the metal brackets with the five factory nuts, but

without the outer enclosure brackets.

STEP 19

One person can hold the Flat Bracket squarely in place with

a pair of channel lock pliers while another can firmly tighten

the 3/8 -16 x 1-3/4” Hex Bolt from the engine bay.

Repeat Steps 15-19 for the opposite side.

STEP 23

Reinstall the upper carpeted panel, allowing the 3/8 - 16 x

1-3/4” Hex Bolts to pass through the holes cut in the previous

step.

STEP 18

Have a second person thread a Flat Bracket over the 3/8 - 16

x 1-3/4” Hex Bolt.

STEP 22

Cut a 1/2” hole in the panel as shown.

STEP 17

The 3/8” Nylon Washer should center the 3/8 - 16 x 1-3/4 Hex

Bolt in the hole.

STEP 21

Locate the indicated indentation on the under side of the

upper carpeted panel.

Continued on Next Page

SB-P-996/13TW5v2 INSTR_SKU# 011334

Page 6 • JL Audio, Inc., 2016

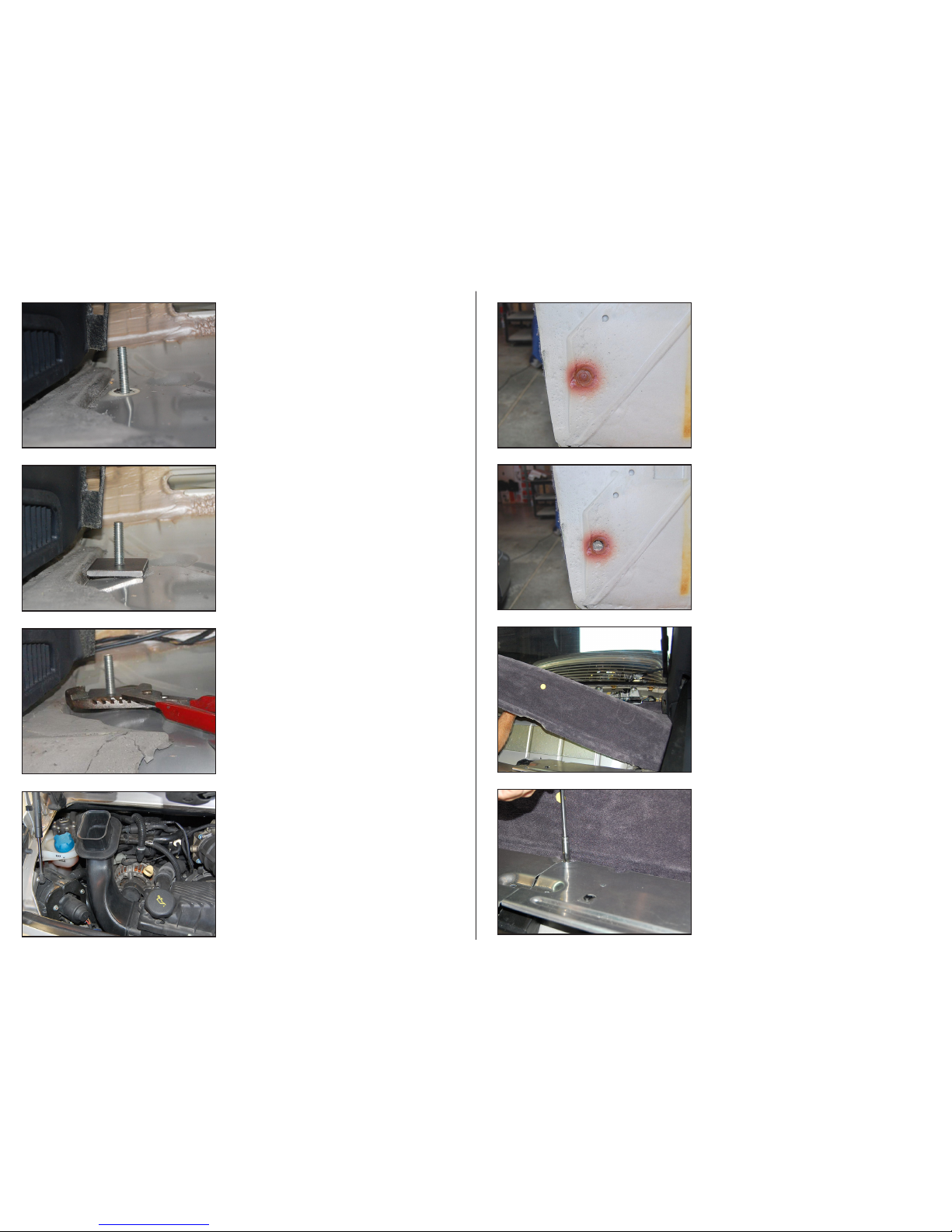

STEP 28

Loosen the front outer strut nut on the passenger side as

indicated.

STEP 32

Align the Driver Enclosure Bracket as shown, and secure it to

the Stealthbox® using a 3/8 - 16 x 1-1/4” Hex Nut, a 3/8” Split

Lock Washer, and a 3/8” Flat Washer.

Repeat for the opposite side using the Passenger Enclosure

Bracket.

STEP 27

Repeat Step 26 for the opposite side, then reinstall the rear

trim panel.

STEP 31

Pictured is the orientation of the Driver and Passenger

Enclosure Brackets when mounted to the Stealthbox®.

STEP 26

Slide a U-Nut over the short end of a Rear Bracket, and thread

a 3/8 - 16 x 2-1/4” Set Screw into the U-Nut as shown. Place

the long end of the Rear Bracket over the 3/8 - 16 x 1-3/4”

Hex Bolt as shown. Align the Rear Bracket so that the short

end faces the front of the vehicle.

Secure the long end of the Rear Bracket to the 3/8 - 16 x

1-3/4” Hex Bolt with a 3/8” Flat Washer, a 3/8” Split Lock

Washer, and a 3/8” Hex Nut. Slide a 3/8” x 1-1/2” Vinyl Cap

over the 3/8 - 16 x 1-3/4” Hex Bolt.

STEP 30

Repeat Steps 28-29 for the driver’s side using the Driver

Front Bracket.

STEP 25

Reinstall the lower carpeted panel.

STEP 29

Slide the Passenger Front Bracket under the nut, align it so

that the upper hole faces the front of the vehicle, and tighten

the nut.

SB-P-996/13TW5v2 INSTR_SKU# 011334

Page 7 • JL Audio, Inc., 2016

MID/HIGH FREQUENCY DRIVER FITMENT

A variety of JL Audio coaxial and component systems will t in the factory speaker locations of you vehicle.

Front Speaker Size / Location: 5-1/4”- Front Doors

Fits JL Audio Models: TR525-CXi, C2-525x, C2-525, C3-525,

C5-525x, C5-525, & ZR570-CSi

Rear Speaker Size / Location: 4”- Side Panels

Fits JL Audio Models: TR400-CXi, C2-400x

All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered

trademarks of JL Audio, Inc.“Ahead of the Curve”and its respective logo is a trademark of JL Audio, Inc.

For more detailed information please visit us online at www.jlaudio.com.

(954) 443-1100

www.jlaudio.com

10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA

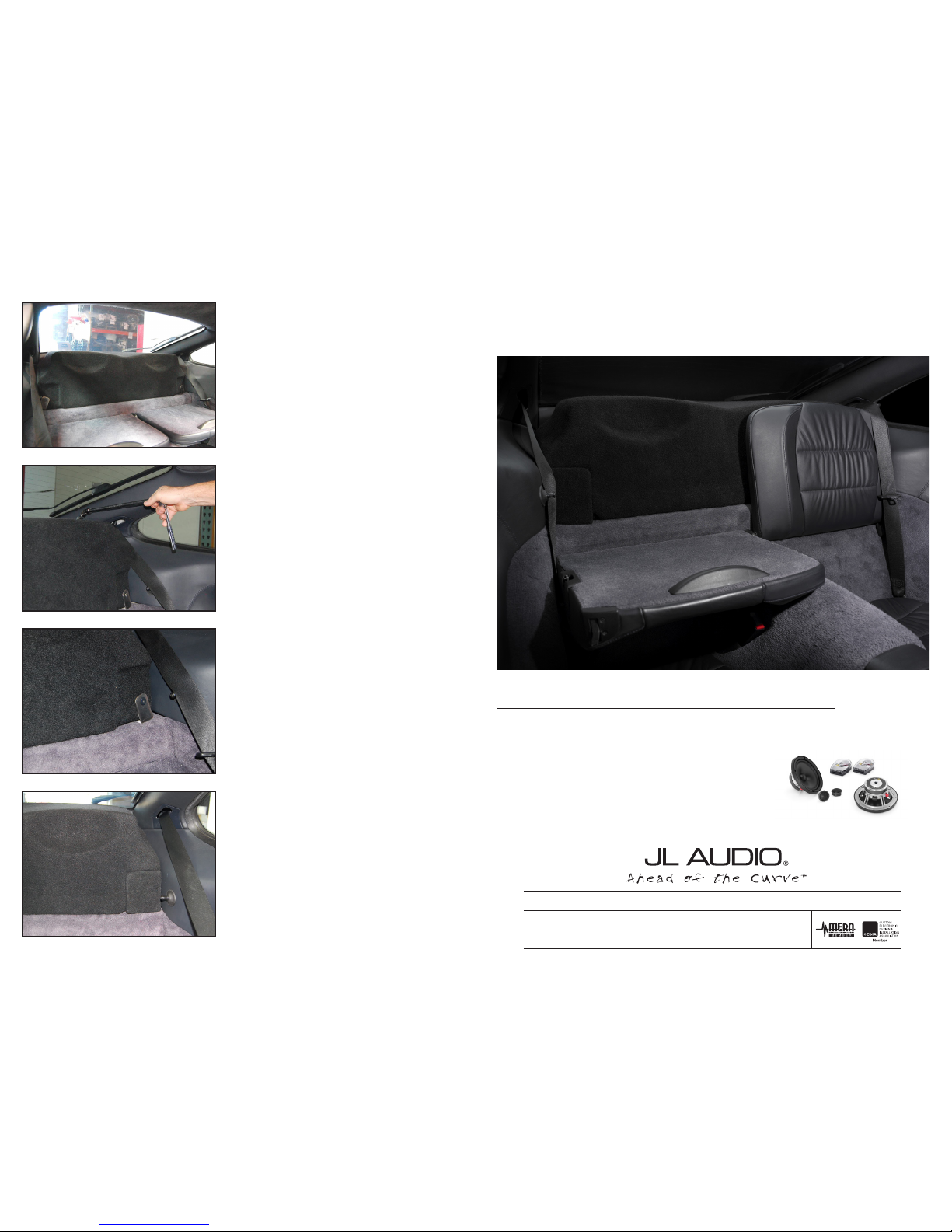

STEP 36

Attach the Carpeted Cover Panels to the enclosure as shown.

STEP 35

Secure the Driver and Passenger Front Brackets to the

enclosure using a pair of 1/4 - 20 x 1-1/2” Hex Drive Bolts.

STEP 34

Thread a 3/8” Hex Locknut over each of the 3/8 - 16 x 2-1/4”

Set Screws, and firmly tighten.

STEP 33

Connect speaker cable to the Stealthbox® and place the

enclosure into position as shown. The holes in the Driver

and Passenger Enclosure Brackets should align with the

3/8 - 16 x 2-1/4” Set Screws, and the holes in the Driver and

Passenger Front Brackets should align with the inserts in the

front of the enclosure.

CONGRATULATIONS!

You have completed the installation for this model! Enjoy your new Stealthbox®!
