JL Audio 94643 Manuale utente

Enclosure Type: Sealed

Driver Type: MX650-CCX-SG-TLD-B

Nominal Impedance: 4 ohms

Continuous Power Handling: 60 watts (RMS method)

Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.

With proper installation, your new vehicle-specific enclosed subwoofer system

will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your

authorized JL Audio dealer. The installation professionals employed by your

dealer have the necessary tools and experience to disassemble and reassemble

your vehicle properly. If you prefer to perform your own installation, please read

this installation guide completely before beginning the process.

If you choose to perform the installation yourself, it is absolutely

vital that the Stealthbox®be properly mounted to the vehicle

according to these instructions. Failure to mount the enclosure

properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the

enclosure caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a

collision or sudden deceleration.

INSTALLATION

DIFFICULT Y:

ESTIMATED TIME:

1 HOUR

Continued on Next Page

OUT

SB-Y-YXZ1SPKR/MX650 INSTR_SKU# 011488

INSTALLATION GUIDE

for the

SB-Y-YXZ1SPKR/MX650

SKU# 94643

2016 & Up Yamaha YXZ1000R

INCLUDED HARDWARE / WIRING INFORMATION

Continued on Next Page

Page 2 • JL Audio, Inc., 2017

SB-Y-YXZ1SPKR/MX650 INSTR_SKU# 011488

Note: For optimum performance, JL Audio recommends applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations.

(hardware pictured for one)

Wire Size Wire Color Use

16 AWG Red/Stripe Speaker Positive (+)

Black/Stripe Speaker Negative (-)

20 AWG

Red Not Used

Green Not Used

Blue LED Positive (+)

Yellow LED Negative (-)

* Pre-installed on enclosure

BOM ID Qty SKU Description

1 4 153820 1/4 - 20 x 1” Stainless Steel Hex Cap Screw

2 4 153819 1/4” Stainless Steel Split Lock Washer

3 4 153738 1/4” Stainless Steel Flat Washer

4* 1 152414 Wire Harness (10’)

- 1 150778 Fuse & Fuse Holder Kit (not shown)

- 1 150249 Foam Tape (not shown)

LED Wire Connections

• For short-circuit protection, install a supplied fuseholder onto EACH

speaker’s BLUE (+12V) LED power connection lead.

• Connect all BLUE (+12V) leads together (parallel) and connect to a

switched +12V supply. Connect all YELLOW (GRD) leads together andd

connect to a negative ground or to the NEGATIVE battery post.

• We recommend activating the speakers’ LEDs thru a lighting circuit that

supplies +12V via an existing switch. If an existing switched circuit is

not available, you may install a dedicated toggle/rocker style switch that

will supply positive (+12V) power. Fuse this connection according to how

many LED circuits you have (LED circuits x 150A).

[GND]

LED

[+12V]

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

LED

Fuse

[GND]

[+12V]

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

LED

Fuse

Diagram shows one speaker pair of

LED circuits connected in parallel.

POWER RECOMMENDATION

JL Audio recommends high quality ampliers such as the JL Audio MX280/4. The diagram below shows the recommended crossover settings for the MX280/4. For a detailed description of the ampli-

er settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.

CONNECTIONS

Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your

Stealthbox® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for

both channels of the amplier. JL Audio recommends using 12 AWG speaker wire for subwoofers such as our XC-BCS12-25.

Continued on Next Page

Page 3 • JL Audio, Inc., 2017

SB-Y-YXZ1SPKR/MX650 INSTR_SKU# 011488

Page 4 • JL Audio, Inc., 2017 Continued on Next Page

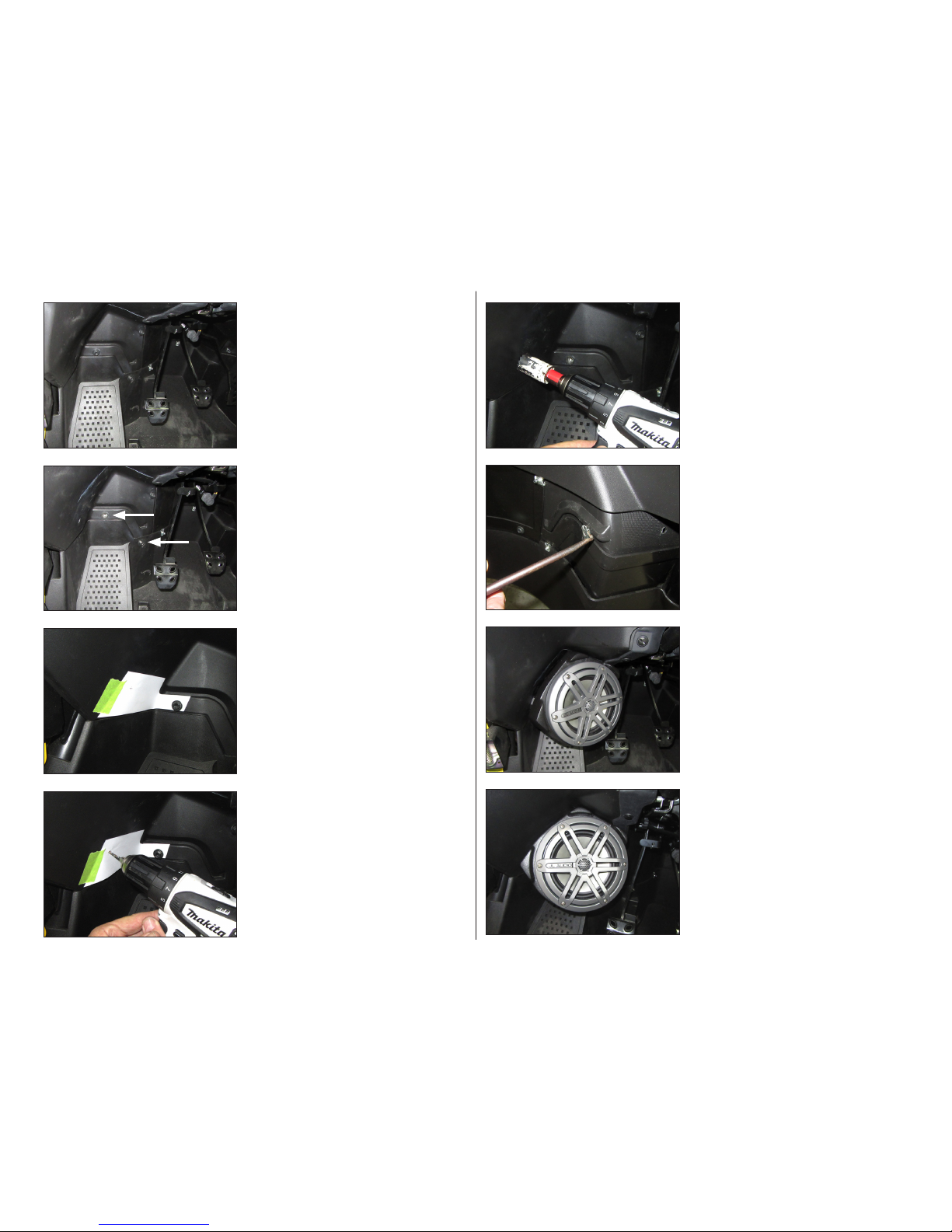

STEP 8

Position the speaker enclosure flush against

the kick panel, allowing the grommet to sit in

the drilled hole. Align the threaded inserts in

the back of the enclosure with the two factory

holes.

STEP 7

Pass the speaker cable exiting the speaker

enclosure through the hole drilled in Step 5.

STEP 6

From outside the vehicle in the wheel well

area, remove the two factory speed clips. These

will not be reused.

STEP 5

Using a 1” hole saw, enlarge the hole drilled in

the previous step.

STEP 4

Using a 1/8” drill bit, carefully drill through the

indicated mark on the Template, through the

plastic panel, to the exterior wheel well area.

Remove the factory bolt, and remove the

Template.

STEP 3

Cut the Template from Page 7 of this manual.

Align the hole in the Template to the factory

hole in the vehicle, and secure using the

factory bolt removed in the previous step.

Align the bottom of the Template with the

horizontal edge of the plastic panel, and secure

with tape, as shown.

STEP 2

Remove the two indicated factory bolts.

STEP 1

The following steps show the installation

procedure for the driver’s side only, but the

procedure is the same for both sides.

Empty the driver’s side of the vehicle.

SB-Y-YXZ1SPKR/MX650 INSTR_SKU# 011488

Page 5 • JL Audio, Inc., 2017

MID/HIGH FREQUENCY DRIVER FITMENT

The SB-Y-YXZ1/10TW3 Stealthbox® subwoofer enclosure is also available for your vehicle. The weatherproof

enclosure is designed for a perfect t and houses a premium JL Audio subwoofer.

SB-Y-YXZ1/10TW3

SKU# 94642

All specifications are subject to change without notice. “JL Audio®”and the JL Audio logo,“Stealthbox®” and the Stealthbox logo, and “How we play®” are registered trademarks of JL Audio, Inc.

“Ahead of the Curve” and its respective logo are trademarks of JL Audio, Inc.

(954) 443-1100

www.jlaudio.com

JLA-SKU# 011484 • ver. 07.25.2017 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA

CONGRATULATIONS!

You have completed the installation for this model! Enjoy your new Stealthbox®!

SB-Y-YXZ1SPKR/MX650 INSTR_SKU# 011488

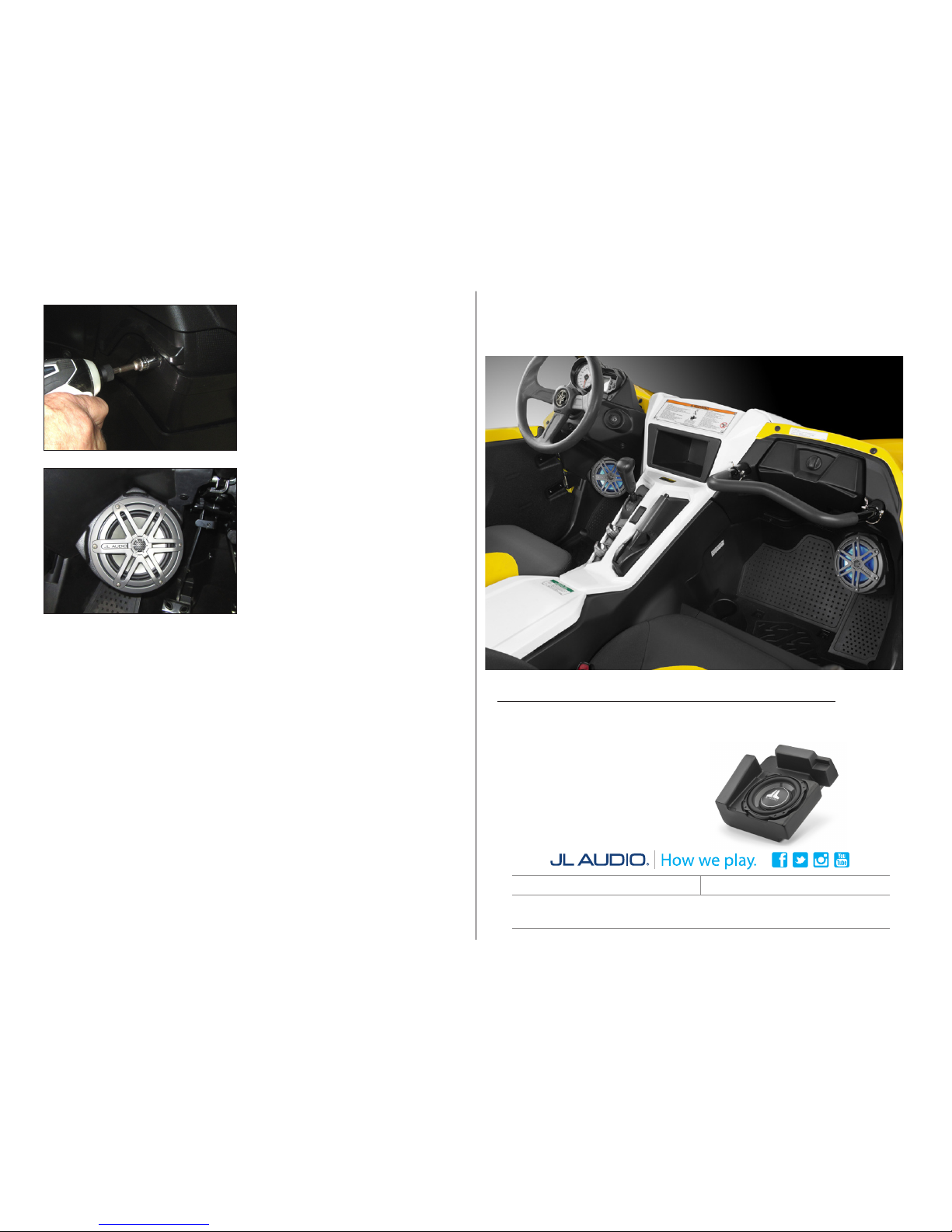

STEP 10

Route the cable as necessary. Refer to Page 2

for wiring information.

Repeat the process for the passenger side.

Note: For optimum performance, we

recommend applying the included Foam Strips

(or sound damping material) to surrounding

plastic panels to reduce unwanted vibrations.

STEP 9

Slide a 1/4” Split Lock Washer and a 1/4” Flat

Washer over each 1/4 - 20 x 1” Hex Cap Screw.

From the exterior wheel well area, pass an

assembly through each of the factory holes,

into the threaded inserts in the back of the

speaker enclosure, and fully tighten.

Page 6 • JL Audio, Inc., 2017

This page is intentionally left blank.

SB-Y-YXZ1SPKR/MX650 INSTR_SKU# 011488

Page 7 • JL Audio, Inc., 2017

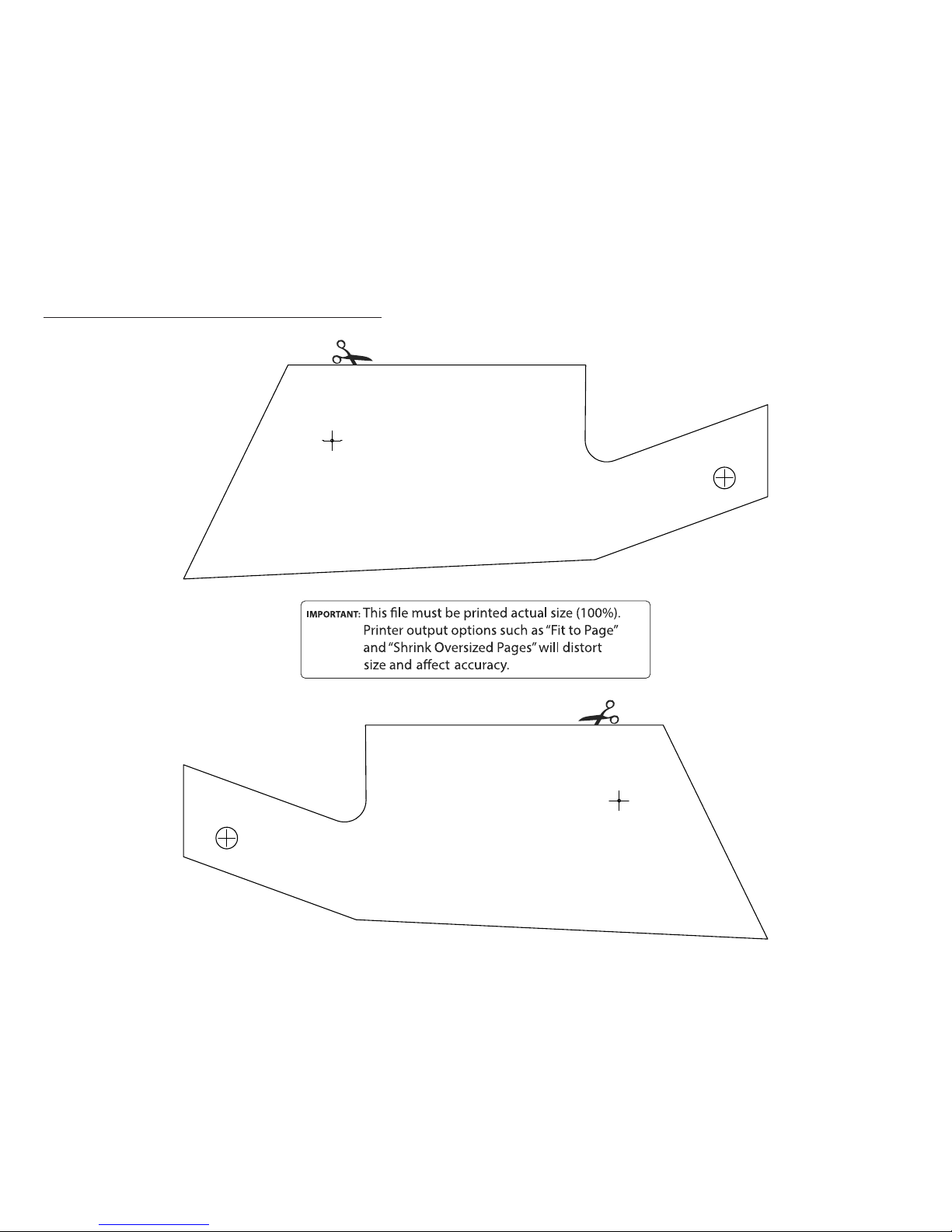

TEMPLATES

Carefully cut out the templates along the indicated lines.

SB-Y-YXZ1SPKR/MX650 INSTR_SKU# 011488

DRIVER SIDE TEMPLATE

PASSENGER SIDE TEMPLATE
