Manual use instruction
This manual contains the details
of the equipment, operation, and
maintenance of the product along
with our advice to you.
Before you start using your new
bike, it is necessary to read through
the instructions. If you are unclear
about any steps, you can always
find additional information and
instructions on our website:
www.jobobike.eu
Table of content
About Us
Our values
Manual Use Instruction
Table of contents
1
2
3
3-4
5-6
7-12
13-16
17-18
18
19
20
English Installation Guide
General Info
Assembly Instructions
Operation instruction
Cautions
Error code definition
Warranty
Main parameters of the bike
37-38
39-44
45-48
49-50
50
51
52
Deutsches Handbuch
Allgemeine Informationen
Montageanleitung
Betriebsanleitung
Vorsichtsmaßnahmen
Fehlercode Definition
Gewährleistung
Wichtigste Parameter
21-22
39-44
29-32
33-34
34
35
36
Instrukcja montażu w języku angielskim
Informacje Ogólne
Instrukcja montażu
Instrukcja obstugi
Środki ostrożności
Kody błędów
Gwarancja
Specyfikacja roweru
53
53-54
55
55
56
Terms and conditions
General provisions
Services
Delivery
Complaints for the goods under warranty
Disclaimer
5 6
1 12 23
2 13 24
3 14 25
4 15 26
5 16 27
6 17 28
7 18 29
8 19 30
9 20 31
10 21
11 22
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15 16
30 31
29
28
27
26
25
24
23
20
19
18
17
21
22
The manual you have received is the basic help for assembling and using your bike. Please read this manual carefully and
follow the instruction. Once you read it and still in need for help, please visit our website, contact us by email, or give us a call
on the phone.
Transer is a 250 watt bike. Please follow all relevant laws and regulations in your country or region when riding this bike.
General Info

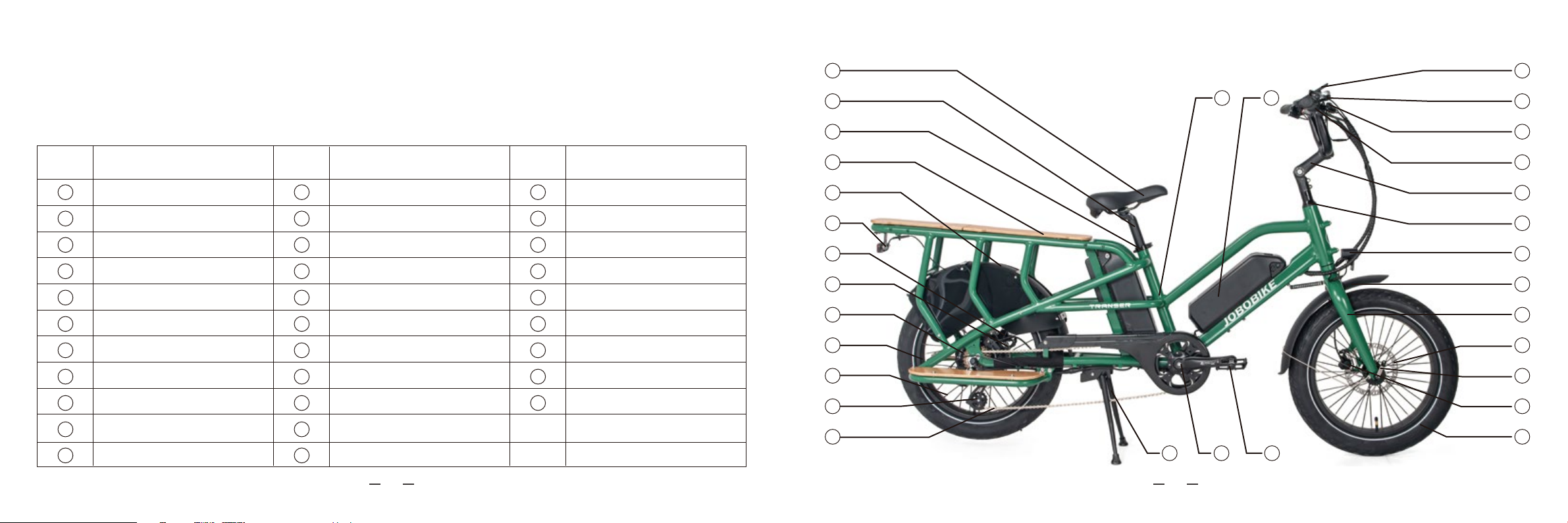

No. ACCESSORY NAME. No. ACCESSORY NAME. No. ACCESSORY NAME.
Saddle Derailleur Front light
Seat post Chain Headset bearings
Seat post clamp Kickstand Handle stem
Rear rack Crank set Grips
Rear fender Pedal Brake lever
Rear light Tire Shift lever
Rear Brake Front brake Display
Rear brake disc Front brake disc Frame
Hub motor Front wheel axle Battery
Rim Front fork
Spoke Front fender
7 8
Open the package and take out all of the parts. Be careful of not
missing even a little piece of part. The parts shall include:

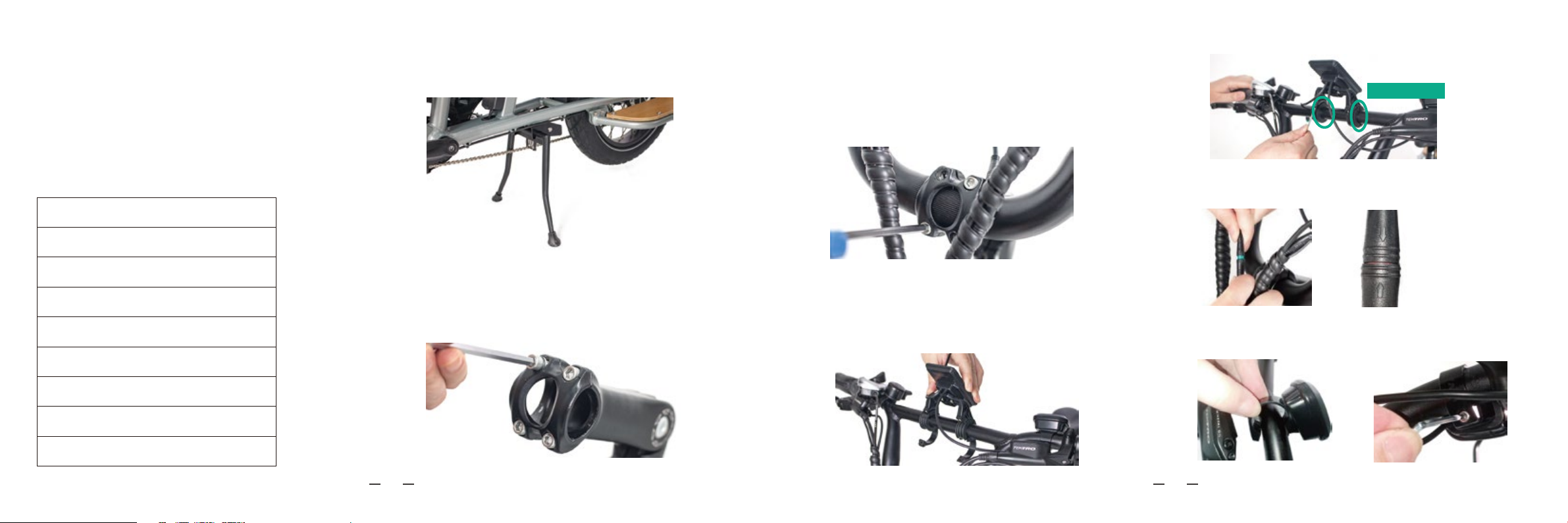

3.1 loose and remove the four bolts.
3.2 Install the handlebar on the stem and screw the four bolts
again with matching wrench. During the installation, adjust the
handlebar to an appropriate angle so that the bike can be
operated comfortably
3.3 Make sure the four bolts are screwed tightly and the handlebar
cannot be moved
4.1 Install the rubber sleeve first and then install the display
on the handlebar.
4.2 Screw the two bolts with matching wrench to fix the display
4.3 Connect the headlight cable. Note: Make the two arrows stay in
a line when pushing the connector
4.4 Install the display control panel on the handlebar and
screw the bolt with matching wrench.
Assembly Instructions Step 2
Step 3 Step 4
Step 1
Install the handlebar Install the display and button
Unpack the bike
Unfolding the bike kickstand to
make the bike stand up
• Frame
• Front wheel
• Front wheel axle
• Pedals
• Charger
• Front light
• Keys
• Toolbag
• Manual
Rubber sleeve
9 10

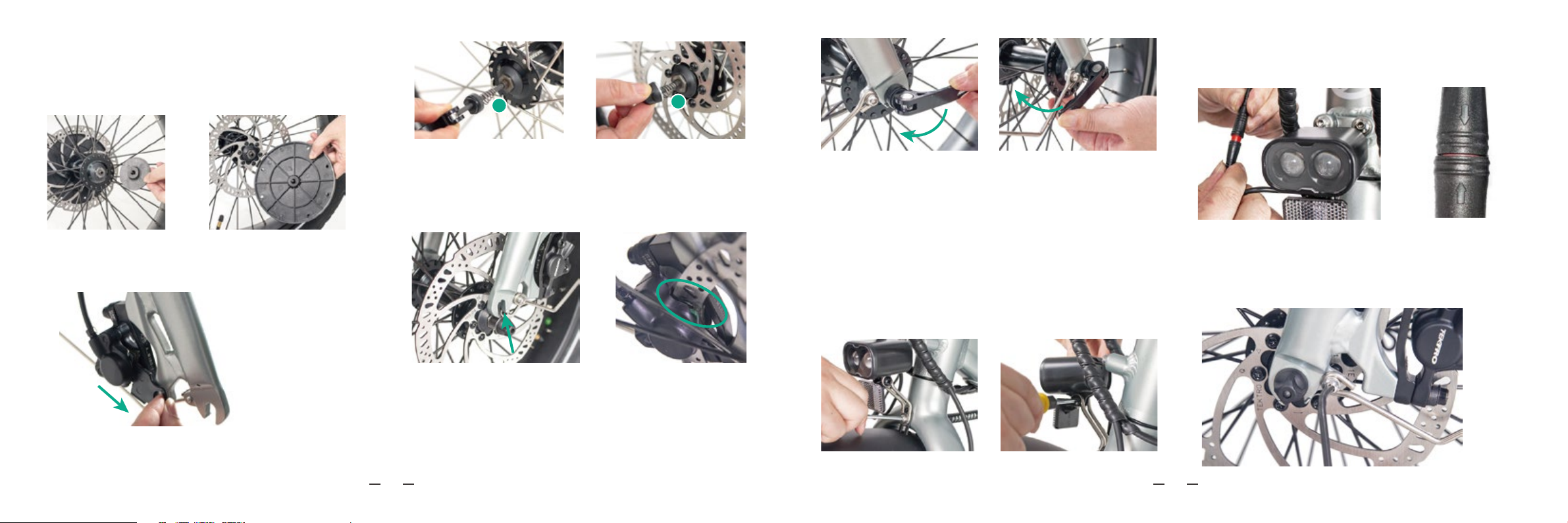

5.1 Remove the two plastic covers that attached to the tire for hub
protection.
5.2 Remove the plastic sheet from the brake caliper.
5.3 Insert the quick release into the front wheel hub axle hole.
Note:There are two springs on the quick release.
5.4 Install the tire into the front fork groove. Note：Make sure the
brake disc is placed between the two brake pads.
5.5 Fix the nut of quick release with right hand and screw the quick
release handle with left hand clockwise,then fold the quick release
handle to fix the tire on the front fork tightly.
Note: Make sure the brake disc of the wheel will not rub the brake pad
when it is rotating under the condition of not taking the brake.
6.1 Install the front fender and headlight on the front fork and
screw the bolt with wrench.
6.2 loose the bolt with a cross wrench to adjust the headlight
angle so the light can illuminate the road ahead. Tighten the bolt
when the adjustment is done.
6.3 Connect the headlight cable.
Note: Make the two arrows stay in a line when pushing the connector.
6.4 Screw the two bolts to fix the side brace of fender.
Step 5
Step 6
Install the front fender and the
headlight
Install the front wheel
12
(6.1) (6.2)
(5.3) (5.3)
11 12

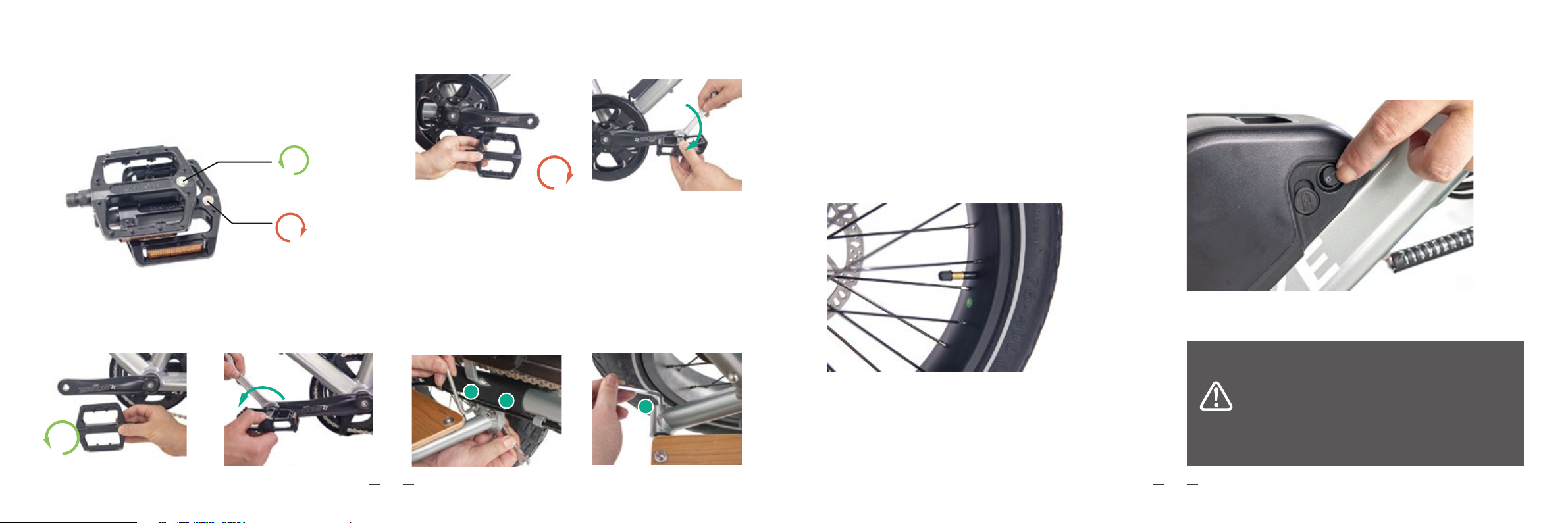

7.1The label with a “L” mark indicate it is the left pedal and the
label with a “R” mark indicate it is the right pedal.
7.2 Screw the left pedal bolt into the left crank with a wrench
anticlockwise.
7.3 Screw the right pedal bolt into the right crank with the wrench
clockwise.
Step 7
Step 8
Step 9
Install the footboard
Inflate the tires Step 10 Press the button to turn on the
battery
Install the pedals
Check whether the tire beads and tires are evenly seated on
the rims.Use a pump with a Schrader valve and pressure
gauge to inflate each tire to the recommended air pressure
which write on the tire sidewall.
Install the footboard to the frame and fix it with three matching
bolts by using a wrench.
NOTICE: Both wheels must be properly secured
before operating your bike.If you are not able to
assembly your bike, please contact us or look for
some help from a certified, reputable local bike
mechanic .Ensure all hardware is tightened
properly. Also ensure that all safety checks in the
following sections are performed before the first
use of the bike.
Note: Do not over inflate or under inflate the tire.
L
R
L
R
123
13 14
Battery power
Speed
Pedal assistance level
Riding parameter

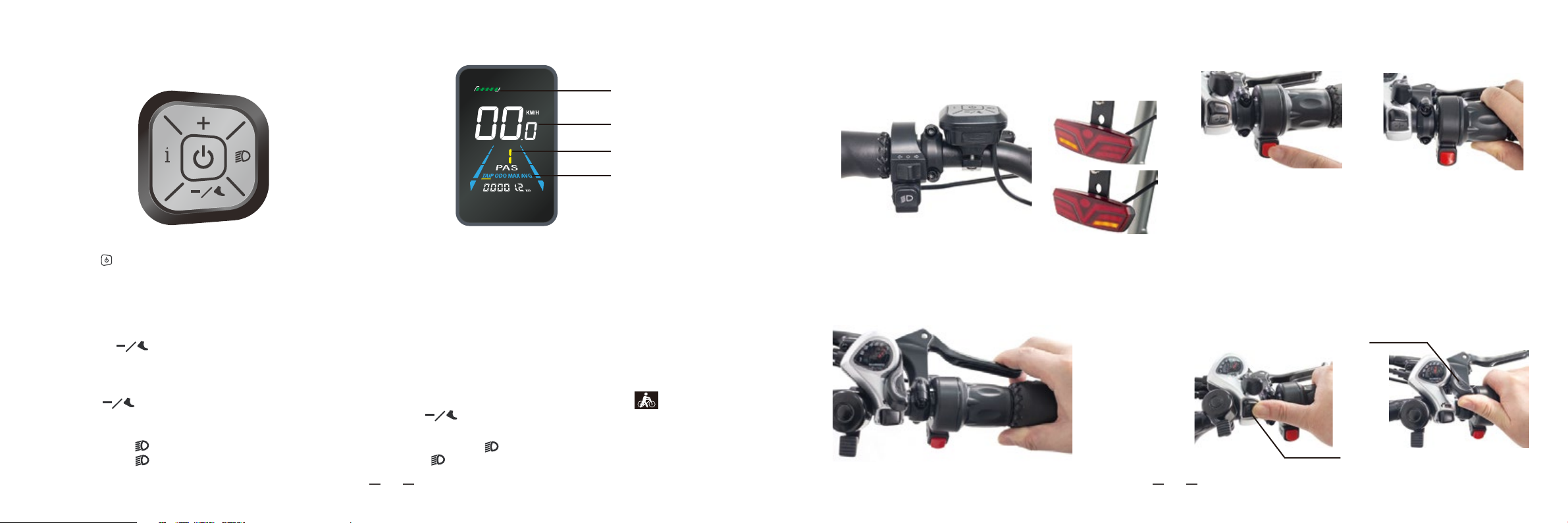

1. Hold the button for about 2s to switch on /o the bike.
2. The bike will switch o automatically when the bike not working in about 10 minutes.
3. Short press the “i” button to check dierent parameter about speed and driving mileage.
TRIP (km) →ODO(km)→MAX (Km/h)→Avg(Km/h).
4. Short press "+" button to add the pedal assistance level.
Short press button to minus the pedal assistance level.
Assist Level “0”: The min pedal assistance level(No assistance provided by motor).
Assist Level “1”: The default pedal assistance level.
Assist Level “5”: The max pedal assistance level.
5. Hold the button all the time to activate the push-assistance function and you will see the function indicator .
The push-assistance function will be disabled as soon as you release the button.
The speed is about 6 Km/h when in the mode of Push-assistance.
6. Short press the button to turn on the front light . The screen shows the indicator when you turn on the front light.
Short press the button again to turn o the front light. the indicator disappears when turn o the front light.
8. Clench the brake handle to slow down or stop the bike.
9. Press the red button and turn the throttle to drive the motor.
7. Shift the button to the left and the left turn light will shine;
Shift the button to the right and the right turn light will shine;
Shift the button to the middle and the turning light will turn o.
10. Switch the shifter by“+ "and“-”button to adjust the speed for
fitting with dierent road conditions.
Operation instruction
-
+
15 16

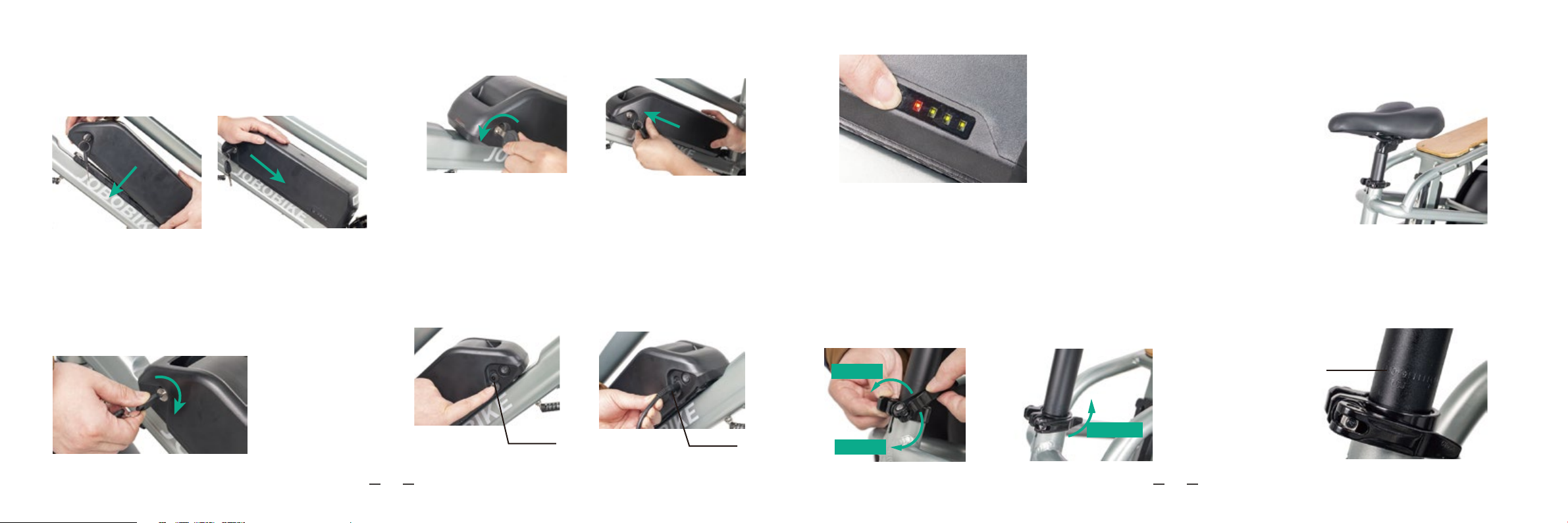

11. Install the battery. 12. Remove the battery, Turn the key anticlockwise and take the
battery out along with the slideway.
13. Charge the battery.
14. Press the button and you will see the battery power Indicator.
15. Adjust the seat height
(15.1) Move the saddle up or down to your desired height，
screw the handle to make it tight or loose, then fold the saddle
quick release to make the saddle post fixed tightly.
(15.2) Do not make the min insert mark exposed.
(13.1) Open the anti-dust cover and plug the charger into the
Battery socket.
(13.2) The red light on the charger will turn on when charging.
(13.3) The red light will turn to green when the charging is
completed.
(11.1) Put the battery into the battery slideway.
(11.2) Push the battery until the it moves to the end.
(11.3) Turn the key clockwise to lock the battery.
Note: Please take good care of your keys .
Battery capacity Indicator:
4 light: 49.5V < Battery voltage ( High power )
3 light: 47.5V < Battery voltage < 49.5V ( Middle power )
2 light: 45.5V < Battery voltage < 47.5V ( Low power )
1 light: 41.5V < Battery voltage < 45.5V ( Must charge )
Press hard
Min insert
Tighten
Loose
(11.1) (11.2)
Charge port Battery Charge
17 18
(1) Make sure the front and rear brakes are sensitive, and the
brake pads are not seriously worn (more than 1/3).
(2) Make sure the tire pressure is sucient and the tire is not
seriously worn.
(3) Make sure the mechanical parts are not broken or loose
especially the handbar, front fork and wheels. make sure all bolts
and fasteners are fastened enough.
(4) Make sure the disc brake disc is not cracked or deformed, make
sure the chain does not touch the wheel.
(5) Make sure that the battery has enough power and the battery
has been firmly stuck in the battery compartment.
(1) Turn the throttle slowly when starting the bike. Starting too
fast will cause excessive current and aect the service life of
components.
(2) Frequent braking and starting shall be minimized to save
electric power consumption and prolong the working life of
electrical components.
(3) In order to reduce the current of the electrical components, it is
better to use pedal assistance when riding on steep slopes.
(4) Stop the bike immediately for inspection when the bike makes
abnormal noise during the riding.
(5) To slow down or stop the bike we recommend you to operate
the rear brake first, and then operate the front brake.
(6) In rainy or snowy weather, kindly suggest to take the brake
slowly in advance rather than taking a sudden brake.
(7) It is recommended to ride in good weather and road conditions.
Do not riding in heavy rain, otherwise the water will get into the
display, battery and other electrical components and cause failure.
(8) Please follow the local trac rules, take safety measures and
wear safety helmets when riding.
(9) Do not ride an bike when you are in poor health.
(1) The bike frame needs to be wiped up for the long-term storage.
Lubricate the flywheel, chain and chain puller if these parts are
lack of lubricating oil.Repaint the bike frame to prevent rusting if
the frame is scratched.
(2) The bike shall be stored in a dry, cool and tidy place.
(3) Turn o the power button to cut o the battery power if there is
a power button on the battery.
(1) Make sure the battery and charger are not damaged when using.
(2) Make sure the battery and charger stay far away from the
environment of fire, immersion, overheating, high humidity,violent
vibration, collision etc.
(3) Make sure the outer substance especially the metal sta will not
penetrate into the charger.
(4) Make sure the charger is being used at rated voltage and
frequency.
(5) Disconnect the charger immediately from the power supply
socket when the charger is in the state of sparks, smoke and other
abnormal conditions.
(6) Make sure the battery is not being stored in the state of low
power.(Charge the battery for every 3 months ).
(7) Make sure the battery is not being excessively discharged and
charge the battery in time when it is running out of power.
(8) Make sure the battery is not being excessively charged and cut
o the power in time when the battery is full of power(led indicator
turns green).
(9) Make sure the charger you used is provided by JOBOBIKE and it
can only be used to charge the matched bike battery.
(10) The battery shall be placed in a dry and cool environment
when charging.
(11) Make sure the battery and the charger are being repaired by
the professional if there are break down.
Error code definition
Cautions
Check before riding
Tips duringthe riding Precautions for long-term storage
Battery and charger operation
Error Code Definition
Current Abnormal
Throttle Abnormal
Motor Phase Abnormal
Motor Hall Signal Abnormal
Brake Abnormal
Communication Abnormal
21
22
23
24
25
30
Indice
Lingue:
Altri manuali JOBOBIKE Bicicletta
JOBOBIKE
JOBOBIKE Eddy-X Manuale utente
JOBOBIKE
JOBOBIKE ROBIN Manuale utente
JOBOBIKE
JOBOBIKE VIVA Manuale utente
JOBOBIKE
JOBOBIKE COMMUTER Manuale utente
JOBOBIKE
JOBOBIKE Eddy Manuale utente
JOBOBIKE
JOBOBIKE Linda Manuale utente
JOBOBIKE
JOBOBIKE ROMER Manuale utente
JOBOBIKE
JOBOBIKE Linda&Lyon Manuale utente
JOBOBIKE
JOBOBIKE Sam Manuale utente
JOBOBIKE
JOBOBIKE Bruno Manuale utente
