IR CONNECTING BLOCK EXPANDER

IR-CBE6

For Expanding any

IR Connecting Block

Input to Six Zones

INSTALLATION & USER GUIDE

IR-CBE6

IR CONNECTING BLOCK EXPANDER

TABLE OF CONTENTS

Features............................................................................................................................1

Product Overview...........................................................................................................2

Package Contents ..........................................................................................................2

Preparing for Installation..............................................................................................2

Installation.......................................................................................................................2

Specifications.................................................................................................................4

Warranty...........................................................................................................................4

FEATURES

nExpands the inputs of an IR Connecting Block by six

nReduces wiring clutter

nTalkback LED indicates system status

n12V DC input for system expansion when using multiple IR-CBE6

Installation friendly design:

nSnap and lock connector secures wire in place without the use of a screwdriver

nMounts in 6" center structured wiring cabinets with the provided “Christmas tree” snap-in plugs

nWings allow for either vertical of horizontal mounting

PRODUCT OVERVIEW

PACKAGE CONTENTS

nIR-CBE6 IR Connecting Block Expander x 1

nSnap-in “Christmas Tree” plugs x 2

nSnap and lock removable connectors x 7

nSelf-Adhesive Rubber Feet x 4

PREPARING FOR INSTALLATION

Make sure that all the IR

Receiver cables and the

Connecting Block cable will

reach the proposed location

of the IR-CBE6 Connecting

Block Expander. Mark the

cables with Wire labels,

describing where the cables

originate from, rather than

where they will terminate.

Tools Required

n1/8" Slotted screwdriver nWire stripper

nWire labels

INSTALLATION

1. Select an appropriate location for the IR-CBE6.

2. Run all the necessary wiring to the IR-CBE6.

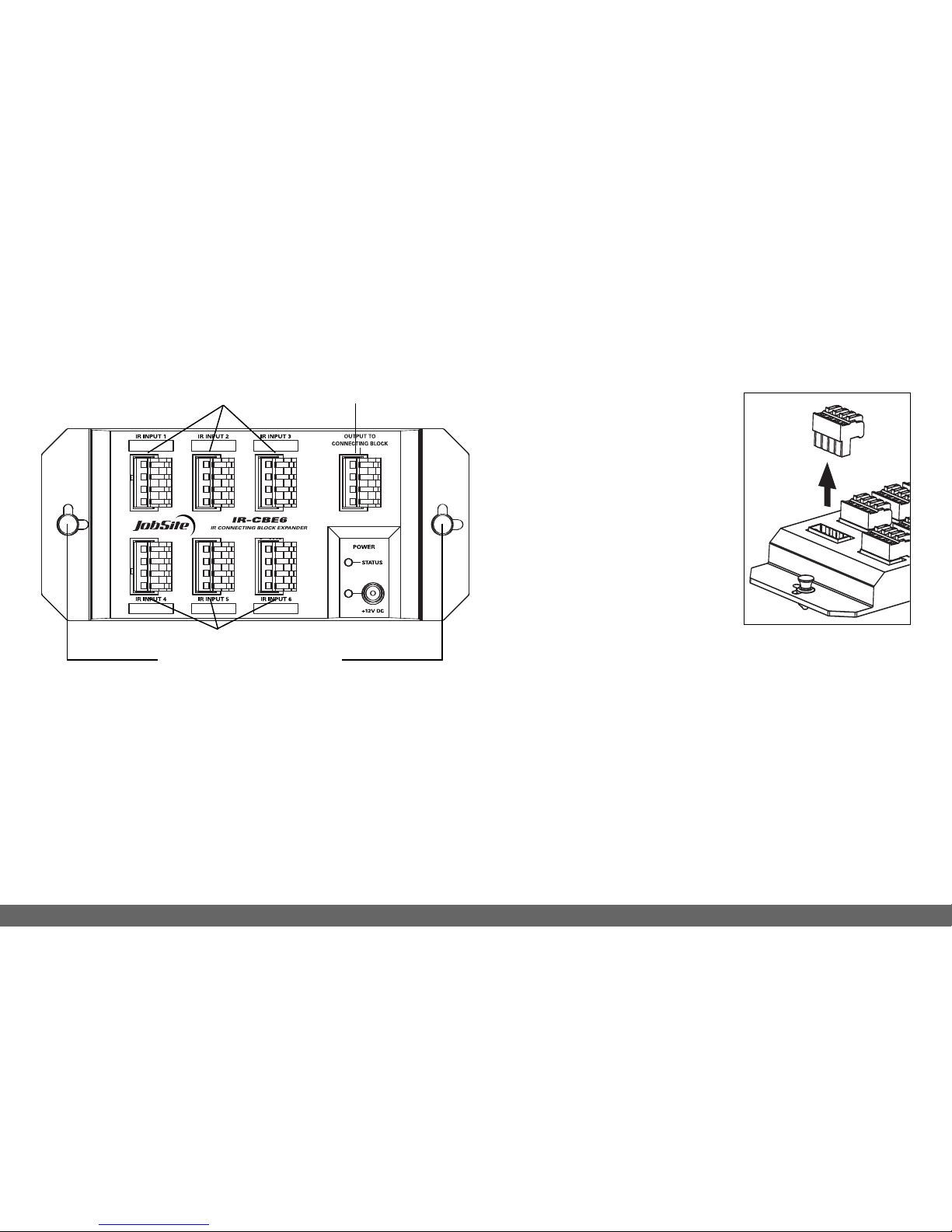

Figure 2

Figure 1

Inputs from IR

receivers

Inputs from IR receivers

Snap-in “Christmas tree” plugs

Output to

Connecting Block

Label the wires for future reference.

3. Strip 1/4" of insulation from the end of each

CAT5 wire.

4. Locate the Snap and lock connectors and remove

them if they are plugged in. See Figure 2.

5. Use a small flathead screwdriver or your thumb to

raise the locking tabs, exposing the holes on the

connectors.

6. Insert each wire into the appropriate hole

and snap down the locking tabs.

7. Insert the smooth side of the connector plug into

the smooth side of the IR-CBE6 socket.

8. Connect the IR Connecting Block Expander to the

connector terminal labeled: OUTPUT TO

CONNECTING BLOCK.

9. Connect the IR Receivers to the terminals labeled:

IR INPUT.

IR-CBE6

JobSite

Receivers

12V DC Power Supply

Plugged into an Unswitched

AC Outlet Powers the System

IR-CB2

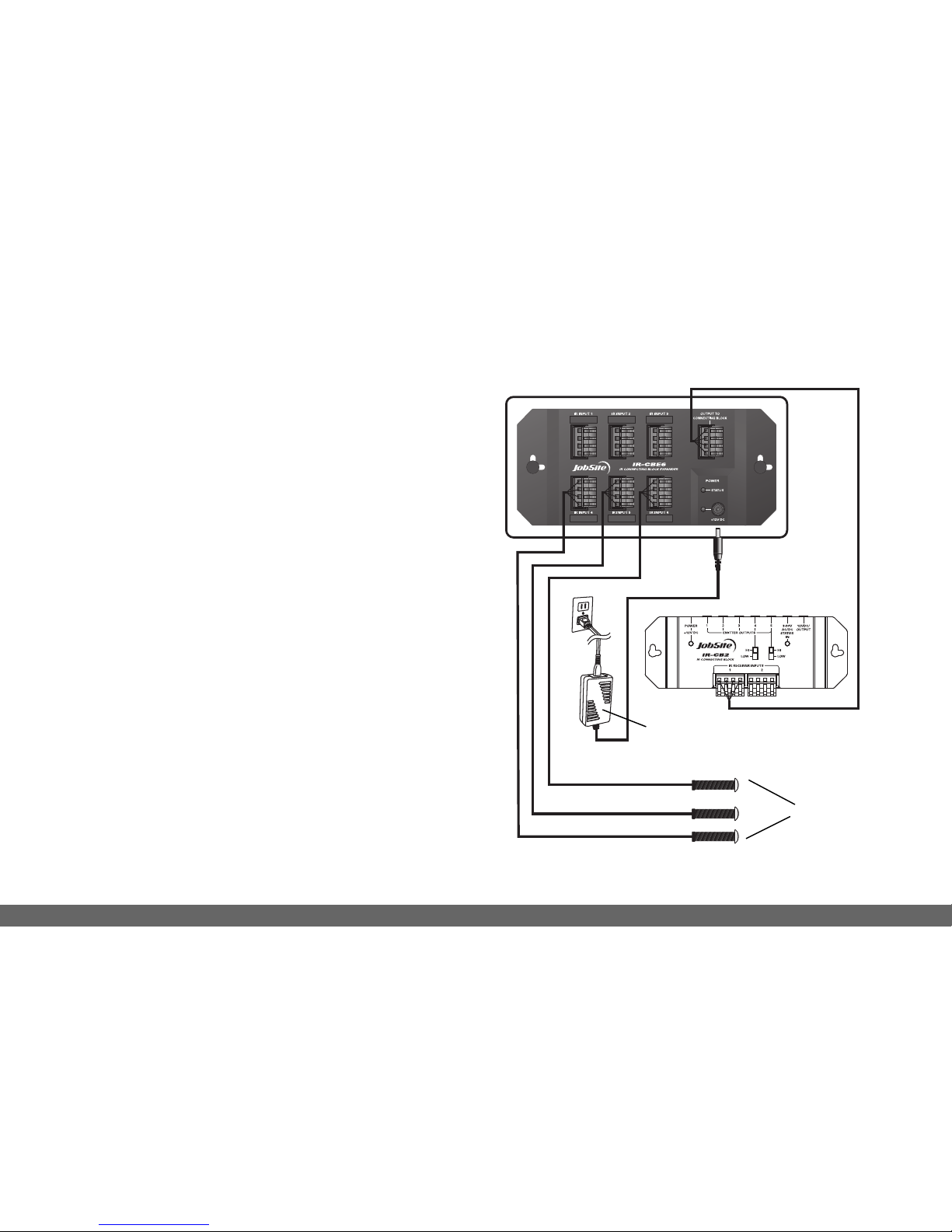

INSTALLATION DIAGRAM

10. Locate the pre-printed Room Labels. Affix the

appropriate label to the recessed area next to

each snap and lock connector.

See installation diagram.

SPECIFICATIONS

Mounting:

In a structured wiring Cabinet using Christmas tree

snap-in plugs (included)

Wall or flat surface:

Use drywall screws

Wiring requirements:

Individual runs of category 5 or better from each

receiver and a single run to the IR Connecting Block

Expander

Unit dimensions:

6-7/8" wide x 1-1/4" high x 3" deep

Warranty: 10 year limited

LIMITED WARRANTY

JobSite Systems (“JOBSITE”), a Niles Audio

Corporation company, warrants its passive products

(those not requiring AC or battery power) to the

original purchaser to be free of manufacturing defects

in material and workmanship for a period of ten years

from date of purchase.

JOBSITE warrants its passive loudspeaker products

(those not requiring AC or battery power) to the

original purchaser to be free of manufacturing defects

in material and workmanship for a period of five years

from date of purchase.

JOBSITE warrants its indoor/outdoor loudspeaker

products to the original purchaser to be free of

manufacturing defects in material and workmanship

for a period of two years from date of purchase.

JOBSITE warrants its all weather rock loudspeaker

products to the original purchaser to be free of

manufacturing defects in material and workmanship

for a period of five years from date of purchase.

JOBSITE warrants its active products (those requiring

AC or battery power) to the original purchaser to be

free of manufacturing defects in material and

workmanship for a period of two years from date of

purchase.

This Warranty is subject to the following additional

conditions and limitations. The Warranty is void and

inapplicable if JOBSITE deems that the product has

been used or handled other than in accordance with

the instructions provided by the manufacturer,

including, but not limited to, damage caused by

accident, mishandling, improper installation, abuse,

negligence, or normal wear and tear, or any defect

caused by repair to the product other than by

JOBSITE or an authorized JOBSITE wholesale

distributor.

To obtain warranty service, you must write to

JOBSITE: Include your name, address, telephone

number, model number and serial number of your unit,

and a brief description of the problem.

Afactory Return Authorization Number will be sent to

you. DO NOT RETURN ANY UNIT WITHOUT FIRST

RECEIVING WRITTEN AUTHORIZATION AND

SHIPPING INSTRUCTIONS FROM JOBSITE.

If the above conditions are met, the purchaser’s sole

remedy shall be to return the product to JOBSITE, in

which case JOBSITE will repair or replace, at its sole

option, the defective product without charge for parts

or labor. JOBSITE will return the unit repaired or

replaced under warranty by shipping it by its usual

shipping method from the factory (only) at its expense

within the United States of America. THERE ARE NO

OTHER WARRANTIES, INCLUDING, WITHOUT

LIMITATION, EITHER EXPRESS OR IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE, WITH RESPECT TO

THE PRODUCT.

REPAIR OR REPLACEMENT AS PROVIDED UNDER

THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE

CONSUMER/PURCHASER. NILES SHALL NOT BE

RESPONSIBLE FOR ANY INCIDENTAL OR

CONSEQUENTIAL DAMAGES EXCEPT TO THE EXTENT

PROVIDED (OR PROHIBITED) BY APPLICABLE LAW.

Some states do not allow the exclusion or limitation of

incidental or consequential damages, so the above

limitation may not apply to you. This warranty gives

you specific legal rights, and you may also have other

rights, which vary from state to state.

For the name of the nearest authorized JOBSITE

wholesale distributor,contact:

JobSite Systems

12331 S.W. 130 Street, Miami, Florida 33186

WWW.JOBSITESYSTEMS.COM

JOBSITE SYSTEMS

12331 S.W. 130 STREET, MIAMI, FLORIDA 33186

P866.4JB.SITE (866.452.7483) – F 305.238.0185

WWW.JOBSITESYSTEMS.COM
