Johansson 9657 Manuale utente

User Manual

AGC & ASC Wideband Amplifier

Ref. 9657

AGC &ASC WIDEBAND AMPLIFIER (REF. 9657)

CONTENTS

1. INTRODUCTION .............................................................................. 3

Product description ............................................................................................ 3

Package contents .............................................................................................. 3

2. INSTALLATION OF THE HARDWARE ...................................................... 4

3. CONFIGURATION OF THE PRODUCT ...................................................... 5

Switches........................................................................................................... 5

Indication LEDs ................................................................................................. 5

4. TECHNICAL SPECIFICATIONS ............................................................. 6

5. SAFETY INSTRUCTIONS .................................................................... 7

6. CONDITIONS OF WARRANTY............................................................... 8

No part of this manual may be copied, reproduced, transmitted, transcribed or translated into any

language without permission.

Unitron reserves the right to change the specifications of the hardware and software described in these

manuals at any time.

Unitron cannot be held liable for any damages resulting from the use of this product. Specifications are

subject to change without notice. 3/20

©Unitron NV - Frankrijklaan 27 - B-8970 Poperinge - Belgium

T +32 57 33 33 63 F +32 57 33 45 24

sales@unitrongroup.com

www.unitrongroup.com

AGC & ASC WIDEBAND AMPLIFIER (REF. 9657)

1. INTRODUCTION

Product description

The AGC & ASC Wideband Amplifier optimizes your Wideband V/H signal in real-time.

To do so, it uses Automatic Gain Control (AGC) and Automatic Slope Control (ASC).

•Automatic Gain Control and Automatic Slope Control on both satellite lines (V/H)

•DC input for powering amplifier and LNB (Optional power supply (ref. 9933))

•Selectable between Wideband LNB (290 - 2400 MHz) and Universal LNB (950 - 2150 MHz)

•Can be used in installations with 4 to 64 passive optical splits

•Output level selectable for up to 16 splits or 64 splits (for Fiber Optic Systems)

Package contents

1x REF.9657 AGC & ASC Wideband Amplifier

AGC &ASC WIDEBAND AMPLIFIER (REF. 9657)

2. INSTALLATION OF THE HARDWARE

AGC & ASC WIDEBAND AMPLIFIER (REF. 9657)

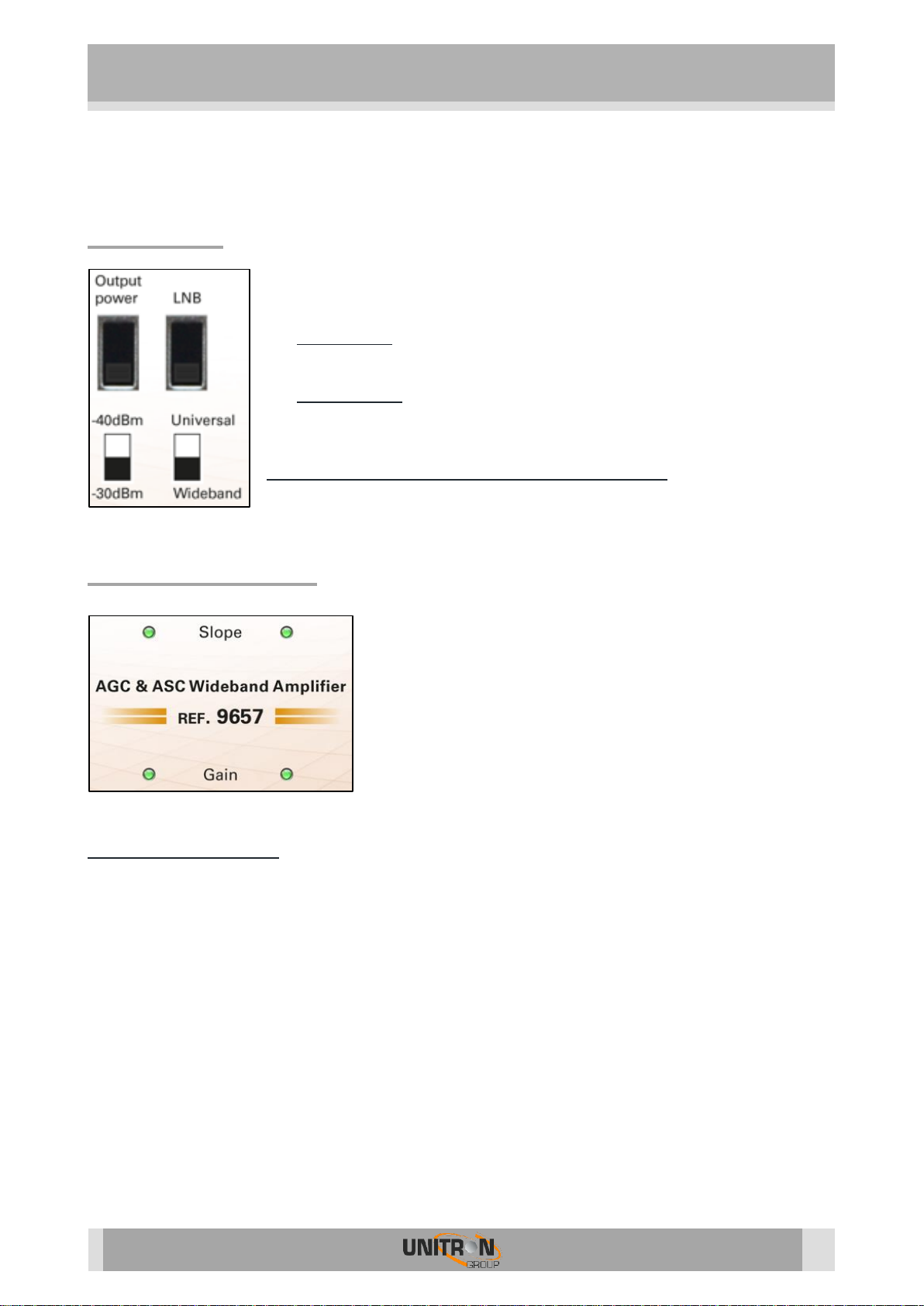

3. CONFIGURATION OF THE PRODUCT

Switches:

The left switch lets you select the output power depending on the number

of splits in your installation.

For 4 to 16 splits, use switch position 1 (-40dBm) which will give 70dBµV

output level per transponder.

For 17 to 64 splits, use switch position 2 (-30 dBm) which will give 77dBµV

output level per transponder.

The right switch lets you select the type of LNB used in your installation.

The LNB selection defines the slope frequency range:

Wideband LNB: 300-800MHz Universal LNB: 950-1300MHz.

Indication LEDs:

The 2 LEDs on the left indicate the Slope and Gain status of

the left SAT input.

The 2 LEDs on the right indicate the Slope and Gain status of

the right SAT input.

GAIN AND SLOPE LED:

SOLID RED: signal too strong: cable to short, move the amplifier further away from the source

BLINKING RED: signal too low: cable too long, move the amplifier more close to the source

SOLID GREEN: within range, signal level has the correct level

BOTH GAIN and SLOPE LED should be green to guarantee that the average output level

has the correct level, generally speaking RED LED (regardless its state) is not a good

situation and its advisable to take steps described above

The SLOPE LED checks the level at 300MHz

The GAIN LED only checks the level around 2000MHz

AGC &ASC WIDEBAND AMPLIFIER (REF. 9657)

4. TECHNICAL SPECIFICATIONS

9657

Inputs

2 SAT (V/H)

Outputs

2 SAT (V/H)

Frequency range

MHz

290-2400 (Wideband) or 950-2150 (Universal)

Gain

Noise figure

Gain adjustment

20 (Automatic Gain Control)

Slope adjustment

15 (Automatic Slope Control)

Output level per Tr

dBµV

70 (Switch position 1 = 4 to 16 splits)

77 (Switch position 2 = 17 to 64 splits)

Consumption

150 mA

from 12-20 VDC external

power supply

or input / output

Dimensions

129 x 114 x 51

Weight

0.300

AGC & ASC WIDEBAND AMPLIFIER (REF. 9657)

5. SAFETY INSTRUCTIONS

Read these instructions carefully before connecting the unit

To prevent fire, short circuit or shock

hazard:

•

Do not expose the unit to rain or moisture.

•

Install the unit in a dry location without infiltration or condensation of water.

•

Do not expose it to dripping or splashing.

•

Do not place objects filled with liquids, such as vases, on the apparatus.

•

If any liquid should accidentally fall into the cabinet, disconnect the power plug.

To avoid any risk of

overheating:

•

Install the unit in a well aery location and keep a minimum distance of 15 cm around the

apparatus for sufficient ventilation

•

Do not place any items such as newspapers, table-cloths, curtains,

on the unit that might cover the ventilation holes.

•

Do not place any naked flame sources, such as lighted candles, on the apparatus

•

Do not install the product in a dusty place

•

Use the apparatus only in moderate climates (not in tropical climates)

•

Respect the minimum and maximum temperature specifications

To avoid any risk of electrical

shocks:

•

Connect apparatus only to socket with protective earth connection.

•

The mains plug shall remain readily operable

•

Pull out power plug to make the different connections of cables

•

To avoid electrical shock, do not open the housing of adapter.

Maintenance

Only use a dry soft cloth to clean the

cabinet.

Do not use solvent

For repairing and servicing refer to qualified

personnel.

Dispose according your local authority’s recycling processes

AGC &ASC WIDEBAND AMPLIFIER (REF. 9657)

6. CONDITIONS OF WARRANTY

Unitron N.V. warrants the product as being free from defects in material and

workmanship for a period of 24 months starting from the date of production indicated on

it. See note below.

If during this period of warranty the product proves defective, under normal use, due to

defective materials or workmanship, Unitron N.V, at its sole option, will repair or replace

the product. Return the product to your local dealer for reparation.

THE WARRANTY IS APPLIED ONLY FOR DEFECTS IN MATERIAL AND

WORKMANSHIP AND DOES NOT COVER DAMAGE RESULTING FROM:

•Misuse or use of the product out of its specifications,

•Installation or use in a manner inconsistent with the technical or safety standards in

force in the country where the product is used,

•Use of non-suitable accessories (power supply, adapters...),

•Installation in a defect system,

•External cause beyond the control of Unitron N.V. such as drop, accidents,

lightning, water, ﬁre, improper ventilation…

THE WARRANTY IS NOT APPLIED IF

•Production date or serial number on the product is illegible, altered, deleted or

removed.

•The product has been opened or repaired by a non-authorized person.

NOTE

Date of production can be found in the product’s serial number code. The format will either

be “YEAR W WEEK” (e.g., 2017W32 = year 2017 week 32) or “YYWW” (e.g., 1732 = year

2017 week 32).

UNITRON NV

Frankrijklaan 27

B-8970 Poperinge

Belgium

T +32 57 33 33 63

F +32 57 33 45 24

sales@unitrongroup.com

www.unitrongroup.com
