Johnson Controls Unitary Products 833101-UTD-B-0612

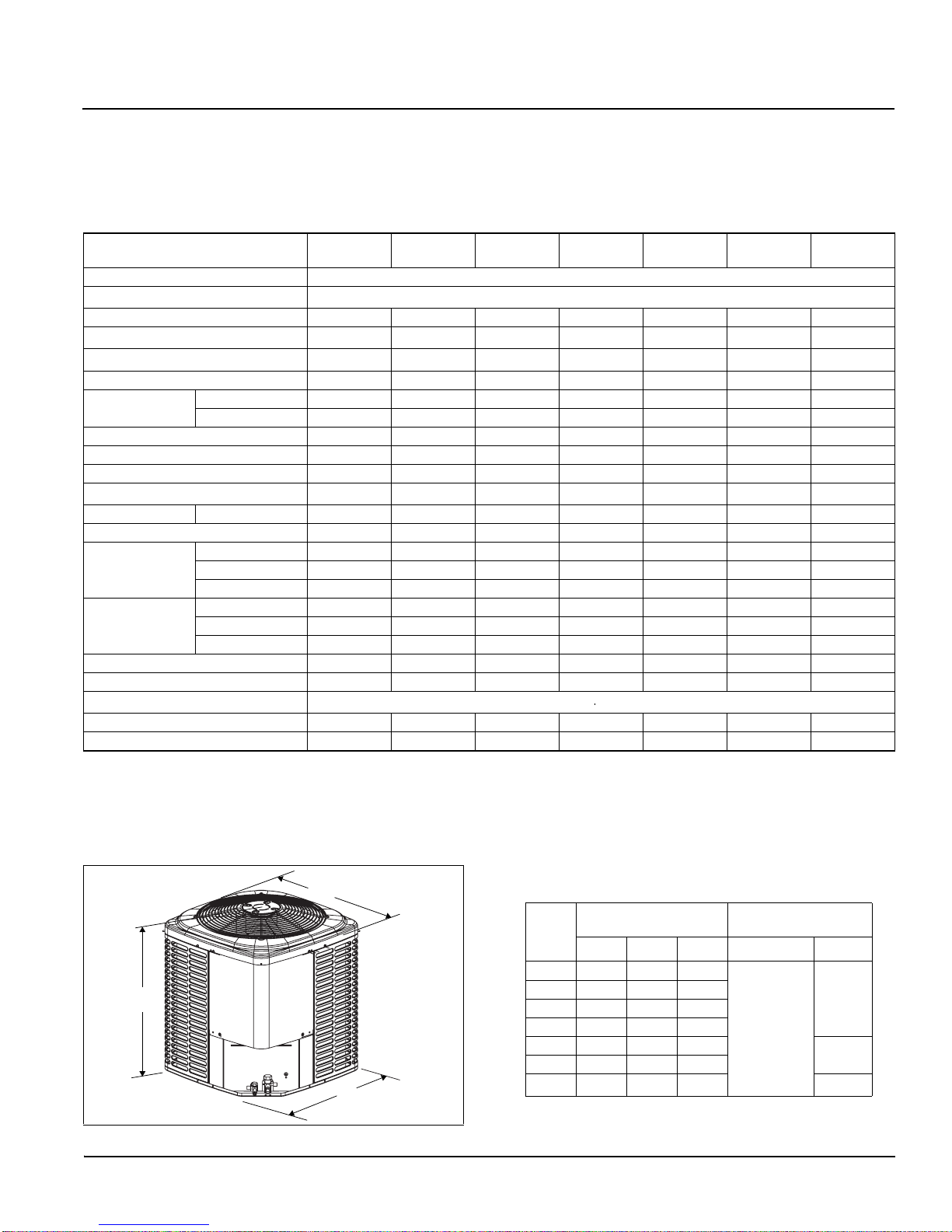

TABULAR DATA SHEET

Outdoor Split System Air Conditioner 1.5 Thru 5 Tons

MODELS: GCGD18* THRU 60

13 SEER – R-22 – 1 PHASE

All dimensions are in inches. They are subject to change without notice.

Certified dimensions will be provided upon request.

Physical and Electrical Data

MODEL GCGD18S

21S2X(E) GCGD24S

21S2X(E) GCGD30S

21S2(E) GCGD36S

21S2(E) GCGD42S

21S2(E) GCGD48S

21S2(E) GCGD60S

21S2(E)

Unit Supply Voltage 208-230V, 1 60Hz

Normal Voltage Range 1187 to 252

Minimum Circuit Ampacity 8.5 13.2 14.0 18.2 19.9 22.7 33.5

Max. Overcurrent Device Amps 215 20 20 30 30 35 50

Min. Overcurrent Device Amps 315 15 15 20 25 25 35

Compressor Type Recip Recip Recip Recip Recip Recip Scroll

Compressor Amps Rated Load 6.4 9.9 10.6 13.4 14.7 17.0 25.6

LockedRotor365461787886150

Crankcase Heater No No No No No No No

Factory External Discharge Muffler No No Yes Yes Yes Yes No

Factory External Check Valve No No No No No No No

HS Kit Required with TXV 4Yes Yes Yes Yes Yes Yes No

Fan Motor Amps Rated Load 0.5 0.8 0.80 1.4 1.5 1.5 1.5

Fan Diameter Inches 18 18 18 18 22 22 22

Fan Motor Rated HP 1/12 1/8 1/8 1/4 1/4 1/4 1/4

Nominal RPM 1100 1075 1075 1100 850 850 850

Nominal CFM 1550 1850 1950 2400 3000 3000 3300

Coil Face Area Sq. Ft. 9.60 9.60 11.30 12.10 16.50 16.50 19.75

RowsDeep 1111111

Fin / Inches 23 23 23 23 23 23 23

Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8

Vapor Line Set OD (Field Installed) 5/8 3/4 3/4 3/4 7/8 7/8 1-1/8

Unit Charge (Lbs. - Oz.) 5See Note 5 Below

Charge Per Foot, Oz. 0.66 0.68 0.68 0.68 0.70 0.70 0.76

Operating Weight Lbs. 130 130 150 160 175 176 200

Models with “E” on the end of the model number have an ElectroFin® coating on the outdoor coil.

1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.

2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.

3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.

4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.

5. Units have been shipped without refrigerant. Remove nitrogen holding charge, evacuate, and charge to the system charge listed on the second page of the data

sheet. System charges listed include 15 feet of lineset.

Unit

Model

Dimensions

(Inches) Refrigerant Connection

Service Valve Size

1. Overall height from bottom of base pan to top of fan guard.

B C Liquid Vapor

18 28 23-1/2 23-1/2

3/8”

3/4”

24 28 23-1/2 23-1/2

30 32 23-1/2 23-1/2

36 34 23-1/2 23-1/2

42 34 29 29 7/8”

48 34 29 29

60 40 29 29 7/8”2

2. Adapter fitting required for 1-1/8” line set.

System Charge for Various Matched Systems

Outdoor Unit GCGD18

S21S2X(E)

GCGD24

S21S2X(E)

GCGD30

S21S2(E)

GCGD36

S21S2(E)

GCGD42

S21S2X(E)

GCGD48

S21S2(E)

GCGD60

S21S2(E)

Required Orifice or

TXV 1,2 0.052/2A1 0.059/2A1 0.065/2A1 0.073/2A1 0.081/2C1 0.084/2C1 0.096/2C1

Units have been shipped without refrigerant. Remove nitrogen holding charge, select Indoor Unit, select orifice or

TXV, evacuate, and charge to the system charge listed below for matching Indoor Unit. System charges listed

include 15 feet of lineset.

Indoor Unit

System Charge, lbs - oz

FC/MC/PC18 3 - 1 -- -- -- -- -- --

FC/MC/PC35-- -- 3 - 11 -- -- -- --

FC/MC/PC43-- -- -- 4 - 3 4 – 2 -- --

FC/MC/62-- -- -- -- -- -- 5 - 4-

Footnotes:

1. For applications requiring a TXV use S1-1TVM*** series kit.

2. Approved orifice(s) shipped with outdoor unit.

3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require blower Time Delay Kit S1-2FD06700224.

4. PC coils cannot be used in downflow or horizontal applications. FC coils cannot be sued in horizontal applications.

Procedures:

1. Units are shipped from the factory without refrigerant. Remove nitrogen holding charge.

2. Verify the TXV or orifice for the specific matched indoor unit in the system using the above table.

3. System charge weights shown are for the outdoor unit, matched indoor unit, and 15 feet of refrigerant tubing.

4. Add or subtract charge for the amount of interconnecting line tubing less than or greater than 15 feet at the rate specified in Physical and

Electrical Data Table.

5. Weigh in the Total System Charge for the specific matched indoor unit and lineset length.

6. Permanently mark the unit nameplate with the Total System Charge. Total System Charge = Base Charge (as shipped) + charge adder for

matched indoor unit + charge adder for lineset.

Important:

Models 18-48 require Hard Start Kits for TXV matches. Refer to the Hard Start Kit Accessory Installation Manual for the Hard Start Kit part number

for each model.

Thermo Products, LLC

5235 West State Road 10

North Judson, IN 46366

www.thermopride.com
