Johnson Controls S1-TTSCC01 Guida rapida

TOUCH SCREEN

COMMUNICATING CONTROL

MODEL: S1-TTSCC01

TECHNICAL

GUIDE

TECHNICAL

GUIDE

Energy Saver

662812-UTG-B-0211

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

DESCRIPTION

Johnson Controls, Unitary Products specializes in creating a

customized home comfort system tailored to the homeowner’s

needs with our broad selection of residential heating and cool-

ing products. The Communicating Control System is the ulti-

mate control center for all of your system components. When

you add a Touch Screen Communicating Control to a compati-

ble modulating variable-speed furnace or air handler, and a pre-

mium air-conditioner or heat pump, you'll enjoy longer heating

and cooling cycles at lower fan speeds for a more consistent

temperature throughout your home, better humidity control, as

well as a more energy-efficient comfort system.

WARRANTY

Standard 5-year limited parts warranty.

FEATURES & BENEFITS

• High definition color, touch screen user interface.

• Incorporates graphics and animation.

• 4-wire installation from each component in the system.

• Intuitive on-screen prompts for ease of installation and ser-

vice.

• Automatic system configuration – plug & play.

• System diagnostics for ease of troubleshooting.

• Detailed system forced operation.

• Complete integration of temperature control, humidity con-

trol, and ventilation in every season.

• Ventilation limits to ensure outside air is not introduced in

extreme hot or cold conditions - no extra heating or cooling

load

• Automatic Humidity Control – set it and forget it. No longer

requiring manual setting for humidification or dehumidifica-

tion – can be switched to be used in manual mode

• Programmable or non-programmable mode selection

- Advanced or normal programmable mode view selection

• 7-day programmability with 2, 3, or 4 periods per day

• Patented pending Quick Heat/Quick Cool functionality

• Day-at-a-glance programming for simplified ease of use

• Seasonal programming

• Easy timed-override schedule

• Simplified vacation schedules

• Programmable fan by period

• Fan speed adjustability - as low as 17% to 100% in 1% incre-

ments

• Energy saving opportunity

• Indoor Air Quality pop-up replacement reminders

• General maintenance reminder messaging

• Comfort Studio software to allow programming the Commu-

nicating Control with the use of a thumb drive

- Allows the dealer to display the company logo

662812-UTG-B-0211

2Johnson Controls Unitary Products

MODEL NUMBER NOMENCLATURE

S1 - T TS C C 01 A

PRODUCT DATA INFORMATION

Physical Characteristics

Dimensions:

See drawing

Appearance:

Plastic, white color, textured

Electrical Characteristics/Communication

Input Volts/Amps 24VAC:

Each device in the communicating system has a four-pin con-

nector labeled A+, R, C, B-. It is recommended that the follow-

ing color code be used when wiring each device:

A+ Green = Data A+

R Red = 24VAC (Hot)

C White = 24VAC (Com)

B- Yellow = Data B-

Environmental Requirements

Operating Temperature/Relative Humidity:

User interface and all sensors: 32F to 104F / 0C to 40C, 95%

RH non-condensing.

Storage Temperature/Relative Humidity:

User interface: -40F to 134F /-40C to 56.7C, 95% RH non-

condensing.

Zone Damper Control Module:

-40F to 185F / -40C to 85C, 41% RH non--condensing.

Wiring Requirements

Power supply:

Dedicated 24VAC, 40 va, 60 Hz, via indoor equipment A+, R, C,

B- Connector. Isolated transformer, field supplied.

Wiring material:

Standard thermostat wire 18 to 24 gauge.

Feature Specifications

• Temperature set point range: 40F to 90F / 4.4C to 32.2C

• Separate heat and cool setpoints

• Programming days: 7 day

• Programming periods:

2 Periods: Day, Away

3 Periods: Day, Away, Sleep

4 Periods: Awake, Away, Return, Sleep

• Non-Programmable

• Auto changeover (may be disabled)

• Programmable fan (installer selectable)

• Humidity Sensor Offsets

• Smart Recovery (in heating and cooling)

• Copy functions: Copy period, day and zone

• Permanent memory

• Humidity display and control

• Temperature sensor offsets (indoor and outdoor)

S1 Source 1

T Tag in a bag

TS Touch Screen

C Communicating

C Control

01 1st Generation

A Revision A

Compatible Communicating Products

Model Description YORK COLEMAN LUXAIRE

Air Conditioning CZE, CZF, CZH AC5, AC6, AC8 AL5, AL6, AL8

Heat Pumps YZB, YZE, YZF, YZH HC5, HC6, HC8 HL5, HL6, HL8

Gas Furnaces YPLC, YP9C CPLC, CP9C LPLC, LP9C

Air Handlers MV, AV* MV, AV* MV, AV*

662812-UTG-B-0211

Johnson Controls Unitary Products 3

PRODUCT DIMENSIONS

EQUIPMENT

5.50 .93

4.36

1.38

Equipment

PART NUMBER DESCRIPTION

S1-TTSCC01 Touch Screen Communicating Control

Repair Parts

PART NUMBER DESCRIPTION

S1-02815904000 Face Plate

S1-02815905000 Rear Housing

S1-02815906000 Mounting Plate

Optional Accessories

PART NUMBER DESCRIPTION

S1-02815909000 Hard Surface Mounting Plate and Decorative Backplate

S1-03102965000 USB Adapter

S1-33102953000 Non-Communicating Furnace and Air Handler Auxiliary Board

S1-02542694000 Wire Harness

S1-CVENTDEH01 ERV/HRV, Ventilation Control Damper and Whole Home Dehudmidifier Auxilliary Board

S1-02543570000 6’ Service Wire Harness

Subject to change without notice. Published in U.S.A. 662812-UTG-B-0211

Johnson Controls Unitary Products

5005 York Drive

Norman, OK 73069

NOTES

Altri manuali per S1-TTSCC01

Altri manuali Johnson Controls Pannello di controllo

Johnson Controls

Johnson Controls Bentel Security tyco ABSOLUTA Plus Guida utente

Johnson Controls

Johnson Controls IFC-200 Manuale utente

Johnson Controls

Johnson Controls IFC-200 Guida di riferimento

Johnson Controls

Johnson Controls Frick QUANTUM Series Guida

Johnson Controls

Johnson Controls Frick QUANTUM LX Guida

Johnson Controls

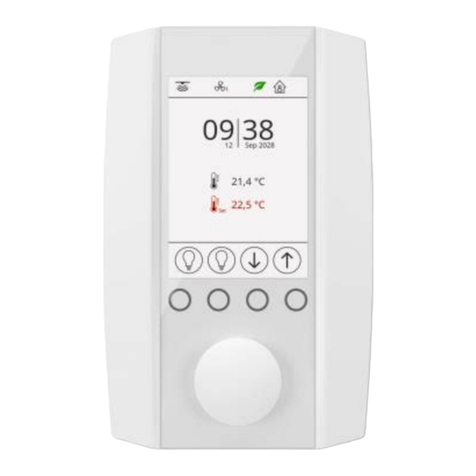

Johnson Controls T20 Manuale utente
