Johnson Controls IQ WIFI Manuale utente
Dependable Wi-Fi coverage for home or business
Johnson Controls IQ Wi-Fi
Version 1.0.0
IQ WIFI INSTALLATION MANUAL
TABLE OF CONTENTS
IQ WIFI OVERVIEW
4- Whats included in the box
5- IQ WIFI overview: exterior
6- IQ WIFI overview: labels
7- Choose your installation type
8- Evaluating network coverage
INSTALLING THE IQ WIFI
10- Connecting the wires
11- Setting up the network
MANAGING IQ WIFI FROM IQ
PANEL
13- Connecting additional agents
14- Software updates
15- Renaming your network name
(SSID)
16- Creating a guest network
17- Testing your speed
18- Rebooting IQ WIFI mesh
19- Renaming controller or agents
20- Viewing connected devices
MANAGING IQ WIFI FROM WEB
INTERFACE
22- Connecting additional agents
from web
23- Software updates from web
24- Renaming default network
name (SSID)
25- Creating a guest network from
web
26- Renaming controller or agents
from web
27- Viewing connected devices
from web
28- WAN settings
29- Connection type
30- LAN settings
31- DHCP server
32- DHCP reservation
33- How to change admin
password
CONNECTING TO THE
NETWORK
35- Connecting to the network
TROUBLESHOOTING
37- Sequence to restart your
network
38- Controller and agents do
not sync
39- You can’t login into the IQ
WIFI
40- How to troubleshoot
network connectivity issues
SPECIFICATIONS
43- Specifications
IQ WIFI OVERVIEW
ABOUT THIS GUIDE
JOHNSON CONTROLS CONFIDENTIAL AND PROPRIETARY
PAGE OF445
?
This document outlines the basic hardware specifications and software directions to install and customize the IQ WiFi.
Note that the information presented is not comprehensive, but is specifically dedicated to those menus, features, and
systems accessible solely to those with the proper installation code. The information contained is confidential and
proprietary, and is solely owned by Johnson Controls. Any reproduction, modification, or distribution without permission
is strictly prohibited.

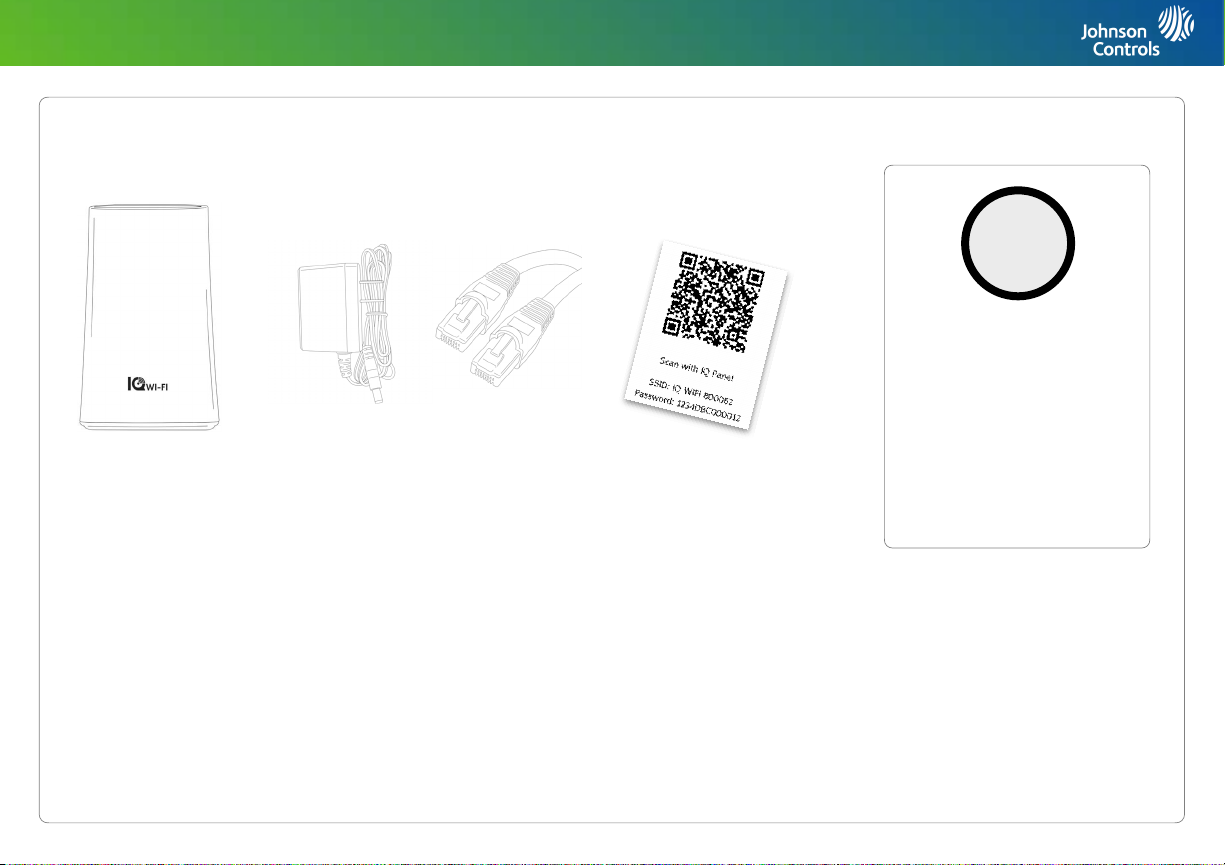

IQ WiFi
Power Supply
Ethernet Cable
SUPPORT
QR code sticker
INCLUDED IN THE BOX
JOHNSON CONTROLS CONFIDENTIAL AND PROPRIETARY
PAGE OF545

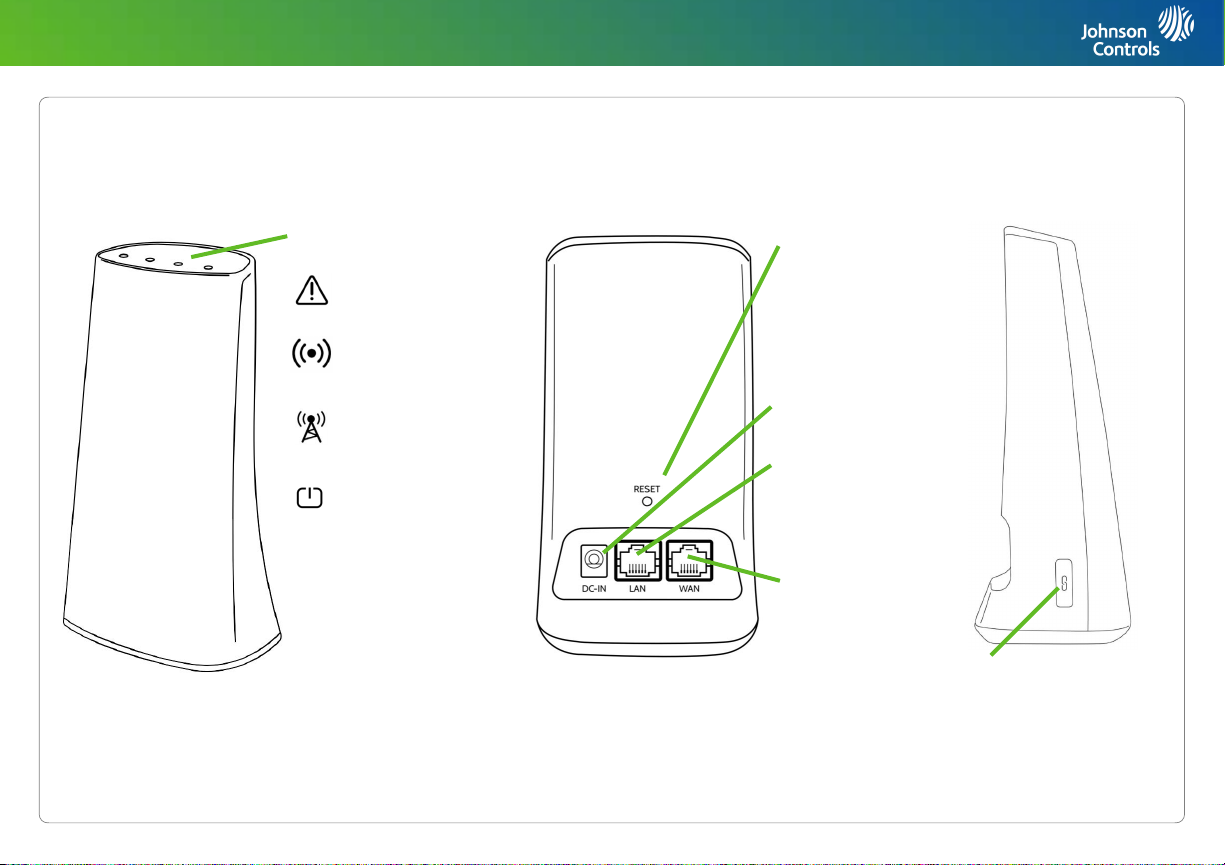

IQ WIFI OVERVIEW: EXTERIOR
Reset Button
Short press: restart
Press/hold 15 sec:
Factory Default
WAN
Wide Area Network
(Internet in)
BACK
LAN
Local Area Network
(Network out)
DC-IN
Power Supply
FRONT
Error
Internet
connected
Broadcasting
wirelessly
Power on
WPS
Once this button has been
pushed you have 2 minutes
to push the WPS button on
a corresponding Wi-Fi
device to connect it to the
network
SIDE
LED Status
Lights
JOHNSON CONTROLS CONFIDENTIAL AND PROPRIETARY
PAGE OF645
The label on the bottom of IQ WiFi shows the device’s MAC address and serial number.
The packaging also includes a QR code that can be scanned by a smartphone camera for easy setup
IQ WIFI OVERVIEW: LABELS
Label on the bottom of each unit
QR code included in the box
EXAMPLE
EXAMPLE

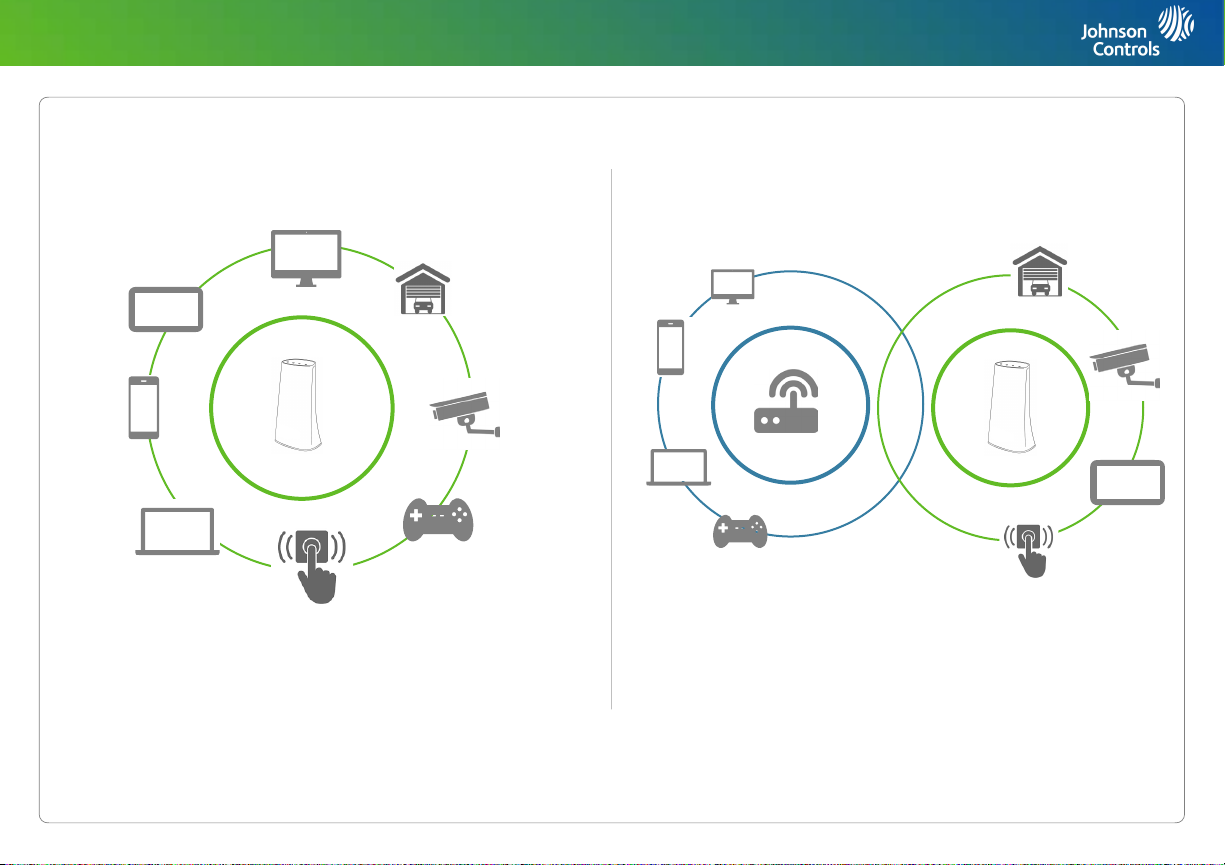

As the only wireless network on the premises:
CHOOSE YOUR INSTALLATION TYPE
In parallel with an existing wireless network:
You can set up the IQ WiFi in either of these ways:
Great for:
-Improving connectivity for ALL Wi-Fi devices on the network
-Offering support for the entire network
Great for:
-Keeping the security and smart-home devices private/hidden
from the rest of the Wi-Fi connected devices on the network
-Making online/remote support easier as only known/authorized
devices should be connected
-Ensuring better connectivity for dealer supported devices
JOHNSON CONTROLS CONFIDENTIAL AND PROPRIETARY
PAGE OF745
If a single IQ WiFi does does not cover the location as
desired, you can add up to eight (8) additional nodes to
eliminate dead spots and boost overall network performance.*
*IQ WiFi will not increase the speed coming from the
customer’s ISP (Internet Service Provider) but can ensure the
customer is getting the best coverage throughout their
location. Please note that not all buildings are the same, and
building materials, wireless interface, and other factors can
limit Wi-Fi range.
EVALUATING NETWORK COVERAGE
1 unit covers up to
1,500 sq ft
Add up to 8 units
Controller
Agent 2
Agent 1
INSTALLING
THE IQ WIFI
3. Connect the opposite end of the
provided ethernet cable into the
“ETHERNET” port on the modem*.
CONNECTING THE WIRES
4
1. Plug the barrel jack end of the
power supply into the “DC-IN” port
2. Connect the provided ethernet
cable into the “WAN” port
4. Plug in your power supply
to the wall outlet. System
may take up to 3 minutes
to power up.
MODEM*
3
*Please note: If you are installing IQ WiFi to run in parallel to the customer’s primary network, plug the ethernet cable into
an available port on the customer’s existing router
JOHNSON CONTROLS CONFIDENTIAL AND PROPRIETARY
PAGE OF10 45
1
2
