JOLIN LAB BATA Manuale utente

JOLJN LAB

BATÀ

build guide v1.0

∞

Hi fellow!

Just a quick intro before starting,

A useful tool that can help you find the components on the boards is the interactive BOM linked

here:

tinyurl.com/batabom

Download it and open the .html file with a browser. You can use it to check where a component is

located on the board. It works also offline.

now let’s begin!

resistors:

They are placed in vertical position.

The body of the resistor goes on top of the white circle marked on the PCB.

If two resistors are placed mirrored one in front of the other and both their legs don’t fit into the hole

don’t worry: cut the bent leg of one of the two resistors and solder it from the top.

tip: they don’t have a polarity; this precaution is due to avoid them touching while soldered.

R19, R20

33r

R7, R8, R9

100r

R18

649r

R2, R5, R6, R11, R14, R15, R17, R22

R1, R3, R4, R10, R12, R13, R16, R21

2.2k

R23, R24, R25, R26, R27, R28, R29, R30

100k

film capacitors:

Snap them in. Don’t mind their polarity.

C1, C2, C3, C4, C5, C8, C9, C10

100n

C6, C7

220n

C12

470n

C11

680n

vactrols:

Match the short leg of the vactrol with the squared solder pad on the PCB.

tip: it’s easier to bend at 90° degree all the four legs before trying to fit the vactrol in place.

U1, U2, U3, U4, U5, U6, U7, U8

VTL5C1

ok, flip the board. we are almost done

jack sockets:

Wait to solder them: just place all of them in the right place and move to the next step.

J1, J2, J3, J4, J5, J6, J7, J8, J9, J10, J11, J12, J13, J14, J15, J16, J17, J18, J19,

J20, J21, J22, J23, J24

PJ398SM

LEDs:

Short leg goes into the square pin. Don’t solder them yet

D1, D4

Green_3mm

D7, D8

Yellow_3mm

D3, D5

Orange_3mm

D2, D6

Red_3mm

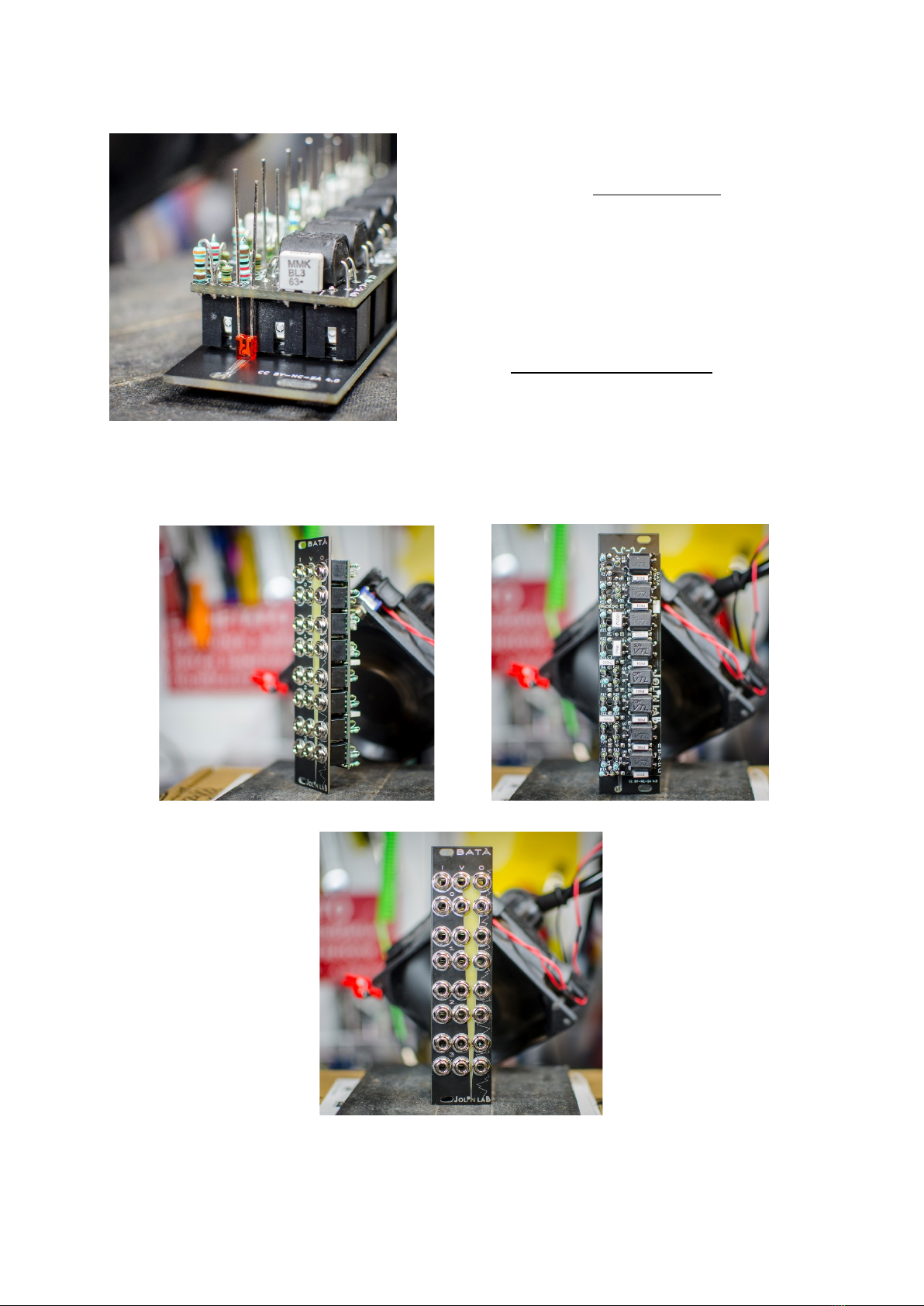

At last put the panel on - check its direction - tighten the

nuts and then solder all the jacks and LEDs -the closer to

the panel, the more they will be evident on the panel’s

hollow line.

tip: we are soldering them now to ensure that all the jack

sockets and LEDs are aligned with the panel

check if everything is in place

done! enjoy your new

BATÀ

find us:

web ⇒www.jolinlab.com

e-mail ⇒[email protected]

Instagram ⇒@jolinlab
