JRC DGPS224 Manuale utente

DGPS224(JLR-4341)

1/20

DGPS SENSOR

JLR-4341

In order to ensure safe and correct use of the equipment, symbols in this manual and on the

equipment itself alert the user to important operational precautions that could prevent personal

injury or damage. The followings show such symbols and their meanings. Please read this

manual carefully and take note of these symbols.

Other Symbols and Their Meanings:

This symbol indicates that the action is prohibited.

This symbol indicates that the action must be taken.

CODE : 7ZPNA4162 JRC

WARNING This symbol indicates warning items that, if ignored,

may result in serious personal injury or even death.

Thank you for choosing the JRC GPS sensor DGPS224.

This manual describes Model DGPS224, JRC DGPS Sensor and Beacon receiver with Built-In

Antenna and SBAS capability.

•To ensure correct operation of the DGPS224, please read this Instruction Manual carefully before starting

to use.

•This manual should be kept on hand to provide as quick reference whenever you need it.

•It will also help you if you come across any problems in its operation.

This symbol indicates cautionary items that, if

ignored, may result in personal injury or physical

damage.

CAUTION

Prohibited

Do This

ＤＧＰＳ２２４

DGPS224(JLR-4341)

2/20

SECTION 1 GENERAL INFORMATION

1.1 Function

By receiving GPS signals from up to twelve satellites, DGPS224 sensor provides highly accurate

position fixing. Furthermore, the DGPS224 can implement DGPS measurement by receiving the

correction data, and can achieve the measurement of high accuracy than the GPS measurement.

1.2 Features

•Built-In Beacon receiver

The DGPS224 can implement DGPS measurement by receiving the correction data from

Beacon station, and can achieve the measurement of high accuracy than the GPS

measurement.

•SBAS function

The DGPS224 can implement DGPS measurement by receiving the correction data from SBAS

satellite (WAAS/EGNOS/MSAS), and can achieve the measurement of high accuracy than the

GPS measurement.

•RAIM function

The accuracy of position fixes is self-tested by the equipment. (RAIM function)

This function assures higher reliability to the position fix than conventional method.

•Twelve-channel, twelve-satellite tracking, and all in view

Highly accurate position fixing is ensured by simultaneous tracking of up to twelve satellites by

twelve channels.

•Switching between IEC61162-1，NMEA0183 versions 1.5, 2.1 and 2.3.

The data output conforms to IEC61162-1 or NMEA 0183, and version switching is possible. This

feature allows the unit to be connected with various types of marine equipment including radars,

fish finders, and plotters.

1.3 Items Supplied

Table 1-1 indicates a listing of items that are included with your DGPS224.

Table 1-1 Components of the DGPS224

No. Name Model Code Q'ty Notes

1 DGPS Sensor JLR-434１JLR-434１1 Including 15m (49.5ft) cable with

connector

2 Instruction Manual 7ZPNA4162 7ZPNA4162 1

3 Cable Guard Rubber MPPK31468 MPPK31468 1

4 Warranty Card

Europe

North America

Asia/Oceania

7ZPBS2901C

7ZPBS2902D

7ZPBS2903C

Option

1 Extension Cable CFQ-9000 CFQ-9000 1 15m cable with connector

DGPS224(JLR-4341)

3/20

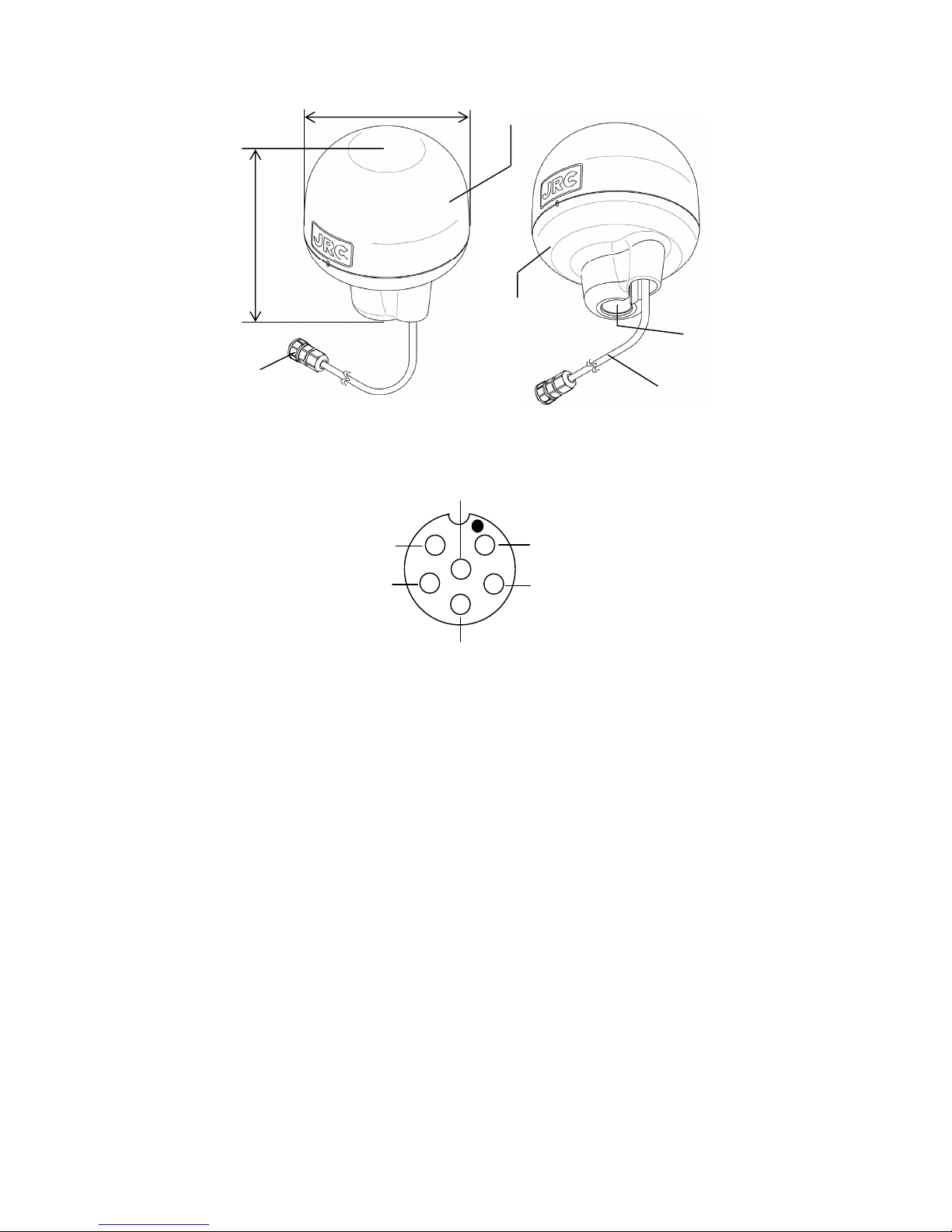

SECTION 2 PARTS AND FUNCTIONS

１

２

３

４

６

５

①SENSOR: GPS signals from up to twelve satellites and provides highly accurate position fixing.

②CABLE: Supplies DC power for the sensor and inputs/outputs data to a navigation equipment.

6-wirecable

③BASE: Mount unit which conforms to 1"×14 NPT standards.

With this, the sensor can be installed onto a antenna mount or extension mast.

④CONNECTOR: Hooks up the sensor to a navigation equipment. 6-pin

12VDC/24VDC (Red)

0VDC (Black)

Data Common (White)

Data Output (Green)

Set Data Input (Yellow)

Not Use (Brown)

Fig. 2.2 Arrangement of Connector

①Sensor

②Cable 15m

③Base

④Connector

φ134mm

155mm

Mounting Screw

1"-14UNS-2B

Fig. 2.1 Parts of DGPS224

Mass：Approx. 1.7Kg

DGPS224(JLR-4341)

4/20

SECTION 3 INSTALLATION

3.1 Unpacking and Checking

Take out the DGPS224 from the packing case carefully. Check each item listed in Table 1-1 is

contained in the case. Save the case and the packing material until the equipment will be installed

successfully. In case the equipment is to be returned, kindly use the kept packing material.

3.2 Locating the Position for Installation

When connecting the cable attached to the equipment, do not bend it

acutely, twist it, or impart excessive force. Doing so sometimes causes

cracks or damage to the coating, resulting in fire or electrocution.

Do not install the sensor where there is excessive vibration.

Vibration may cause sensor failure.

Do not paint the sensor.

Doing so may result in reception problems.

Install the sensor where there are no obstacles, in order to ensure that

GPS signals can be directly received from satellites without

interference or reflection of signals from surrounding objects.

Whenever possible, select a place with the following characteristics.

If it is difficult to find an ideal site, select a place temporarily and install the

equipment. Conduct a test to make sure that the proper performance can be

obtained and then fix the equipment in position. If it is installed at an improper

place, reception accuracy may be impaired.

1. An open space, which allows uniform reception of satellite signals.

2. Far away from any high power transmission antennas.

3. Outside radar beams.

4. Away from the INMARSAT antenna by at least 5 meters and outside the

INMARSAT beam.

5. Away from the antenna of a VHF transmitter and a direction finder

by at least 3 meters.

6. Away from a Magnetic Compass by at least 1 meters.

7. 3 meter or more away from amateur radio antennas.

CAUTION

DGPS224(JLR-4341)

5/20

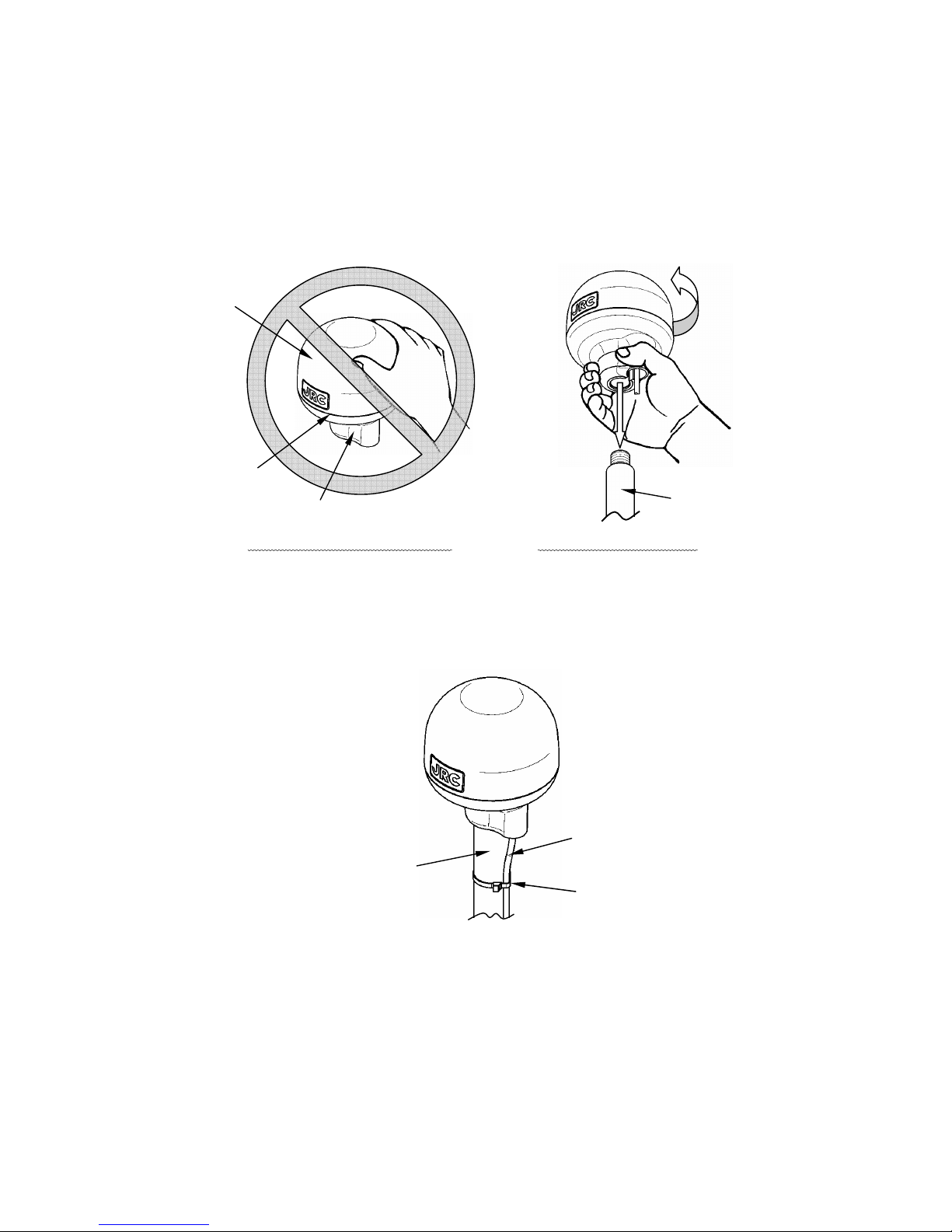

3.3 Installation Procedure

3.3.1 Installation of the Sensor

The sensor base contains 1 inch 14UNS-2B screw holes. It can be attached to poles with cut male

screws, or off-the-shelf adapters.

(1) When performing attachment, always hold and turn the sensor base. Holding and turning the

radome may result in a large amount of force applied at the junction of the base and the radome,

resulting in damage to the sensor.

Do not apply force to the joint. Hold and turn the base.

(2) Secure the sensor cable in position with a clamp band as shown below to protect it against damage

due to vibration.

(3) When connecting an extension cable to the DGPS sensor, always seal with self-bonding tape in

order to waterproof the connector, and wrap this section with vinyl tape to protect it.

Radome

Base

Joint

Off-the-shelf

adapter, etc

Off-the-shelf

adapter, etc Clamp band

Cable

Fig.3-1 Installation

Fig. 3-2 Appearance

DGPS224(JLR-4341)

6/20

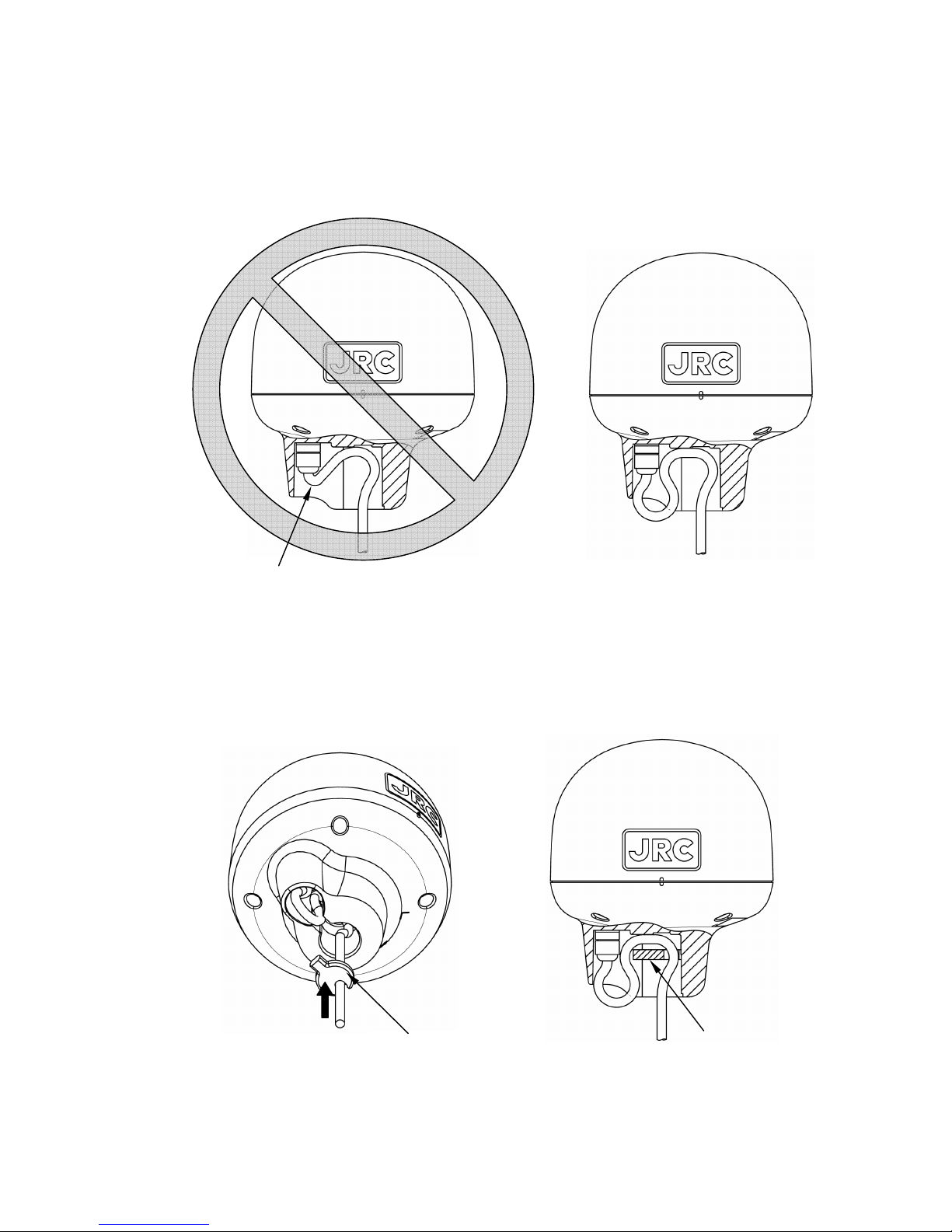

3.3.2 Installation of the Sensor to pass a cable through a pole

It is possible to pass cable into pole, when DGPS sensor attached to poles with cut male

screws. (1”-14 UNS-2A). In this case, Cable guard rubber (attached article) used.

(1) The cable is installed as following figure.

Do not bend the cable acutely. Doing so may result in damage to the cable.

Cable installation figure

(2) Cable guard rubber is set in DGPS sensor. See below.

Do not bend it acutely

Cable guard rubber

(attached article) Push all the way in

Fig. 3-4 How to fit Cable guard rubber in DGPS sensor

Fig. 3-3 How to Cable form

DGPS224(JLR-4341)

7/20

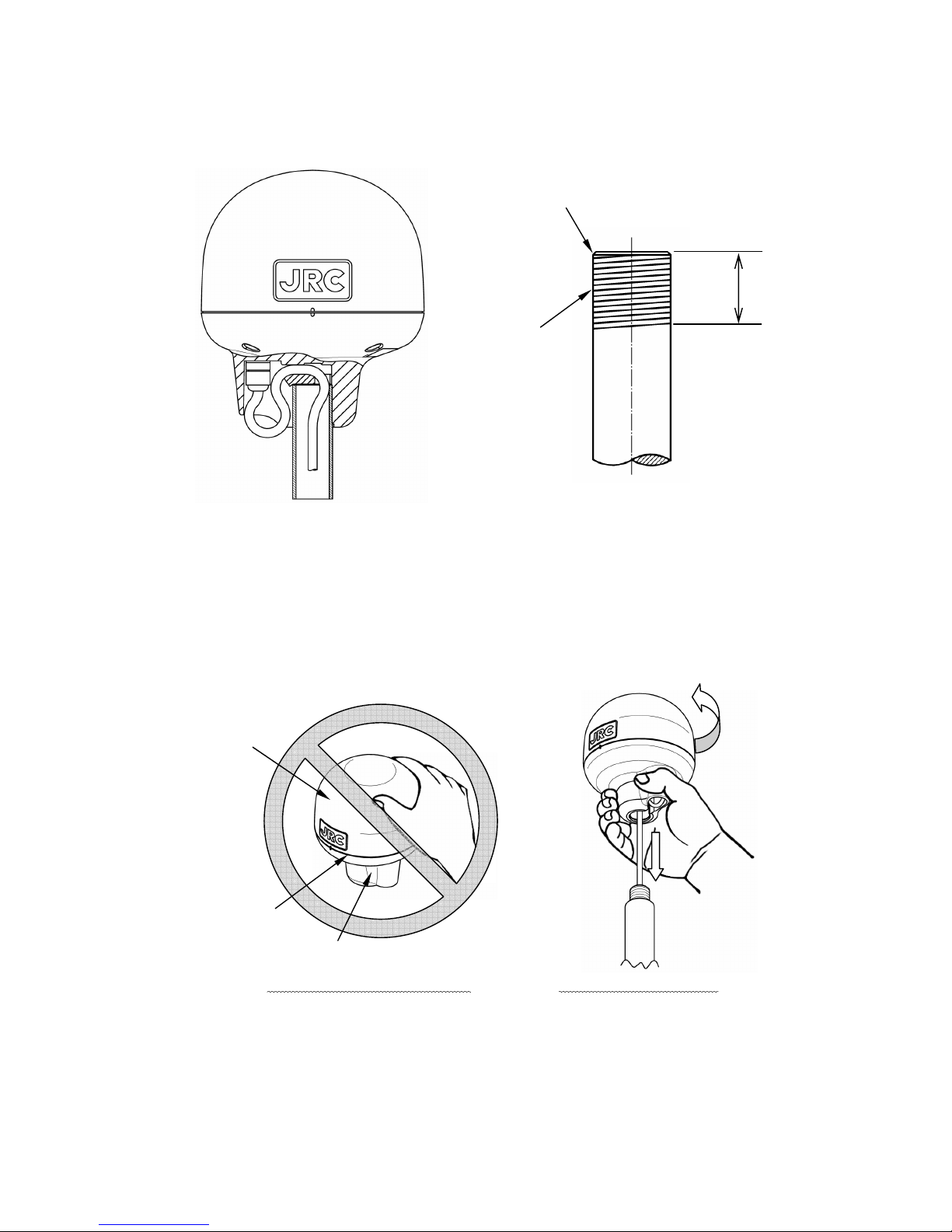

(3) When DGPS sensor attached to poles with cut male screws, round off the corners. See below.

(4) When performing attachment, always hold and turn the sensor base. Holding and turning the

radome may result in a large amount of force applied at the junction of the base and the

radome, resulting in damage to the sensor.

Do not apply force to the joint. Hold and turn the base.

1”14-UNS－2A

About 25mm

round off the corners

Radome

Base

Joint

Fig. 3-5 How to attached to poles and work example

Fig. 3-6 Attention at installation

DGPS224(JLR-4341)

8/20

3.4 Cable connection

3.4.1 Connection to Navigation Equipment that can be connected directly

CAUTION

When you connect the DGPS224 to the navigation equipment that is

possible to connect directly, confirm the type of connector and pin

arrangement beforehand. If the possibility of direct connection with

DGPS224 is not described in the manual of the navigation equipment,

confirm the all pin assignment. Incorrect pin connection may cause a

damage of the equipment.

When the DGPS224 is connected to directly connectable GPS navigation equipment, 12 VDC is

supplied from the equipment to the DGPS224. In this case, connect the 6-pin connector to the plug

where the GPS/DGPS label is attached on the rear panel of the equipment.

3.4.2 Connection to Navigation equipment that cannot be connected directly

CAUTION

Connect it taking care about the polarity of the power supply.

The faulty wiring might damage the DGPS224.

DGPS 224 is designed for the power supply of 12/24VDC.

If the power supply of over 40V is fed to the equipment,

It might be damaged.

Normally, the 12/24VDC power is supplied out of the DC power switchboard or main battery.

As the normal current of the equipment is approximately 0.15A, it is recommended using a fuse not

exceeding 2A in the power line.

When the initialization is not provided, leave pin 5 open.

Fig. 3.7 shows the connection with the equipment that cannot be connected directly.

①

②

③

④

⑤

⑥

3 White Data Common

4 Green Data Output

5 Yellow Set Data Input

6 Brown Not Use

6-Pin Connector

Circuit Breaker

Battery

12/24VDC

＋

－

1 Red 12/24VDC

2 black/Shield

0VDC

DGPS224(JLR-4341)

9/20

3.5 NMEA Version Switching

When the equipment is shipped from the factory, the NMEA output version is set to the version 1.5. If

you want to change the output data, please carry out the following procedure:

1. Connect pin 4 and pin 5 of the connector.

2. Turn on the DGPS224.

3. The output data is switch.

(If procedures 1-3 are repeated, the output data is switched to NMEA0183 Ver1.5, Ver2.1, Ver2.3,

IEC*1 and Beacon correction data sequentially.)

*1:IEC61162-1

SECTION 4 AFTER-SALES SERVICE

If the DGPS224 appears to be defective, check the connection again. If the equipment still

appears faulty after that, stop using the equipment and contact our representative or our sales

office directly.

During the warranty period, JRC representative or our company replaces your DGPS224

sensor free of charge. This warranty does not cover damage, which has occurred in transit, or

results from alteration, accident, misuse or abuse.

JRC needs to have the following information:

•Product name, model name, serial number, and purchase date

•Detailed failure conditions

•Name of the company/organization, address, and telephone number

•Contact name

For further information on after-sales service, please contact JRC representative,

JRC branch office or sales office. For details, see "Place of Contact" (page 10).

SECTION 5 DISPOSAL

Disposal of the DGPS224

The DGPS224 contains a lithium battery for memory backup.

Observe all the laws and regulations concerned when you dispose of the GPS sensor.

WARNING

Do not remove the cover of the DGPS224 otherwise it may cause fire,

electric shock, and malfunction. It may also cause poor

waterproofing.

WARNING

Do not throw lithium battery into the fire and overheat it.

It may cause an explosion and ignition.

DGPS224(JLR-4341)

10/20

SECTION 6 SPECIFICATIONS

・Sensor Type ：Multichannel 12ch＋SBAS 1ch

・Maximum Number of

Tracked Satellites ：12 Satellites

・Accuracy ：13m 2DRMS （HDOP≦4 SA off）

5m 2DRMS (Beacon DGPS)

7m 2DRMS （SBAS）

・SBAS ：WAAS, MSAS, EGNOS

・Geodetic Datum ：Selection among 46 geodetic datum (Default：WGS-84）

・Data input ：Initial input, SBAS Setting input, Beacon Setting input

・Data output ：Selection among NMEA0183, IEC61162-1

Selection among NMEA0183 Version 1.5, 2.1, 2.3 (Default：Version 1.5)

NMEA0183 Version 1.5：GGA,RMC,GLL,VTG

NMEA0183 Version 2.1：GGA,VTG,RMC,GLL,GSV,GSA,DTM,MSS

NMEA0183 Version 2.3：GGA,VTG,RMC,ZDA,GSV,GSA,DTM,MSS,GLL,

GBS,GRS,GST,GNS

IEC61162-1 ：GGA,VTG,RMC,ZDA,GSV,GSA,DTM,MSS,GLL,

GBS,GRS,GST,GNS

・Reception Beacon Frequency ：283.5～325kHz

・Selection of Beacon Station ：Automatic or manual

・Power Supply Voltage ：DC12/24V（+30%,-10%）

・Power Consumption ：less than 2.5W

・Dimension ：φ134m×155Hmm

・Mass ：Approximately 1.7Kg

・Operation Temperature ：-25℃～+55℃

・Storage Temperature ：-25℃～+70℃

・Vibration ：IEC60945 ed.4 conformant

・EMC ：IEC60945 ed.4 comformant

・Waterproof ：IP56

When the Lithium battery runs out, the settings are restored to the default values. In addition, it will take

about a minute for position fix. The battery life expires in about 10 years under the normal use

condition, but it may differ depending on the environment or use conditions.

PLACE OF CONTACT

TOKYO OFFICE

SEATTLE BRANCH OFFICE

AMSTERDAM BRANCH OFFICE

Nittochi Nishi-Shinjuku bldg.

10-1, Nishi-Shinjuku 6-chome, Shinjuku-ku,

Tokyo 160-8328 JAPAN

Phone : +81-3-3348-4126

Fax : +81-3-3348-4183

Web : http://www.jrc.co.jp

1021 SW Klickitat Way, Bldg. D,

Suite 101, SEATTLE, WA98134 USA

Phone : +1 (206) 654-5644

Fax : +1 (206) 654-7030

Web : http://www.jrcamerica.com

Cessnalaan 40-42 1119NL Schiphol-Rijk

THE NETHERLANDS

Phone : +31-(0) 20-658-0750

Fax : +31-(0) 20-658-0755

Web : http://www.jrceurope.com/

Indice

Altri manuali JRC Attrezzatura nautica

JRC

JRC Fleet F77 Manuale utente

Manuali Attrezzatura nautica popolari di altre marche

Ideal Windlass

Ideal Windlass CWM Guida

Access

Access BIMINI Manuale utente

Floe

Floe VSD 6000 Manuale utente

Faun

Faun C40 Trackway Manuale utente

Exalto

Exalto 240BS Manuale utente

Hobie

Hobie Mirage 360 Manuale utente

Dowco

Dowco V322 CC - 2019 Manuale utente

Humphree

Humphree HCS-5 Manuale utente

Vetus

Vetus BOW4512D Scheda tecnica

Dock Doctors

Dock Doctors SLIDING BOARDING STEP Manuale utente

Mastervolt

Mastervolt Mass Combi 12/2000-100 Istruzioni operative originali

Zattini Group

Zattini Group bamar BOXTRON E14S Guida utente

SeaView

SeaView PM5-FMD-8 Manuale utente

Vetus

Vetus HTANK Manuale utente

Grammer

Grammer AVENTO MSG 65/511 Istruzioni operative

Furuno

Furuno TZTL12F Manuale utente

Harken

Harken 944 Manuale utente

ShoreLand'r

ShoreLand'r DUB 2314 Manuale utente
