Juniper MP Manuale utente
MP
Occasional Tables
Angled Post Leg & X-Base
General Installation Guide
TABLE OF CONTENTS
Edition Code
Angled Post Leg
36” Round Surface.................................................................................... 3
42” Round Surface.................................................................................... 4
48” Round Surface.................................................................................... 5
36”x36” Squared Surface....................................................................6
49”x48” Squared Surface.....................................................................7
X-Base
Round Surface............................................................................................ 11
Square Surface.......................................................................................... 12
Angled Post Leg Tables
Overview
Occasional Tables
All parts listed are for a single table; additional parts
will be needed for additional tables.
1
2

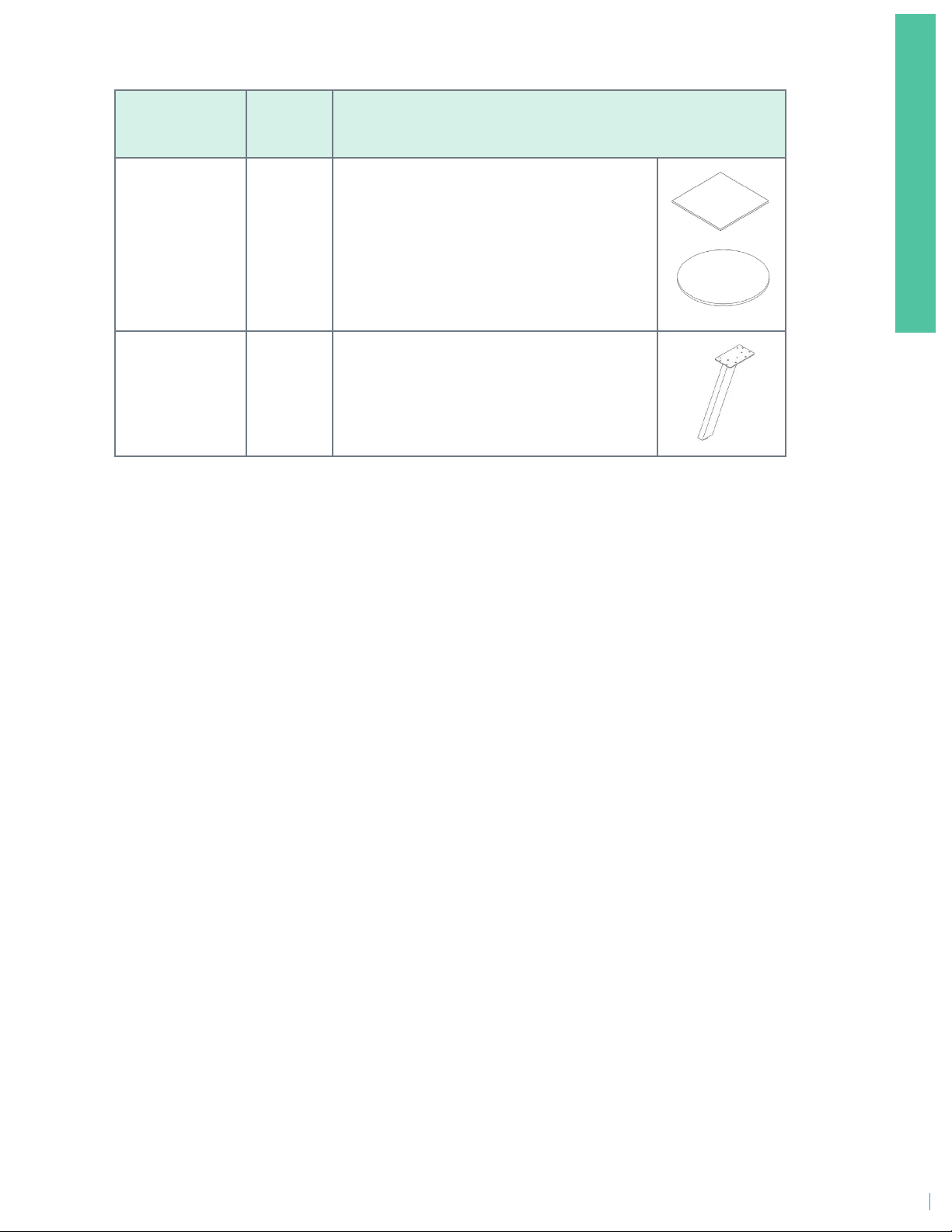

ANGLED POST LEGS
Code Qty. Description
GB#### 1Main Surface (Round or Square)
APL or
APLSH 3 or 4* Angled Post Leg
(Sitting or Standing-Height)
Parts List
*Tables will have 3 or 4 legs depending on surface size.
3
ANGLED POST LEGS
ANGLED POST LEGS
36”Round Standing-Height Table
Find center of surface by measuring 18” from the edge. Once found,
measure 5 3/4” from center of surface to edge of leg plate.
36”Round Sitting-Height Table
Find center of surface by measuring 18” from edge. Once found,
measure 2 1/4” from center of surface to the edge of leg plate.
21/
4”
53/
4”
53/
4”
53/
4”
4
ANGLED POST LEGS
42”Round Sitting-Height Table
Find center of surface by measuring 21” from edge. Once found,
measure 5 5/16” from center of surface to edge of leg plate.
42”Round Standing-Height Table
Find center of surface by measuring 21” from edge. Once found,
measure 8 1/4” from center of surface to edge of leg plate.
55/16”
55/16”
55/16”
81/
4”
81/
4”
81/
4”
5
ANGLED POST LEGS
ANGLED POST LEGS
48”Round Standing-Height Table
Find center of surface by measuring 24” from the edge. Once found,
measure 11” from center of surface to edge of leg plate.
48”Round Sitting-Height Table
Find center of surface by measuring 24” from edge. Once found,
measure 7 3/4” from center of surface to the edge of leg plate.
73/
4”
73/
4”
73/
4”
73/
4”
11”
11”
11”
11”
6
ANGLED POST LEGS

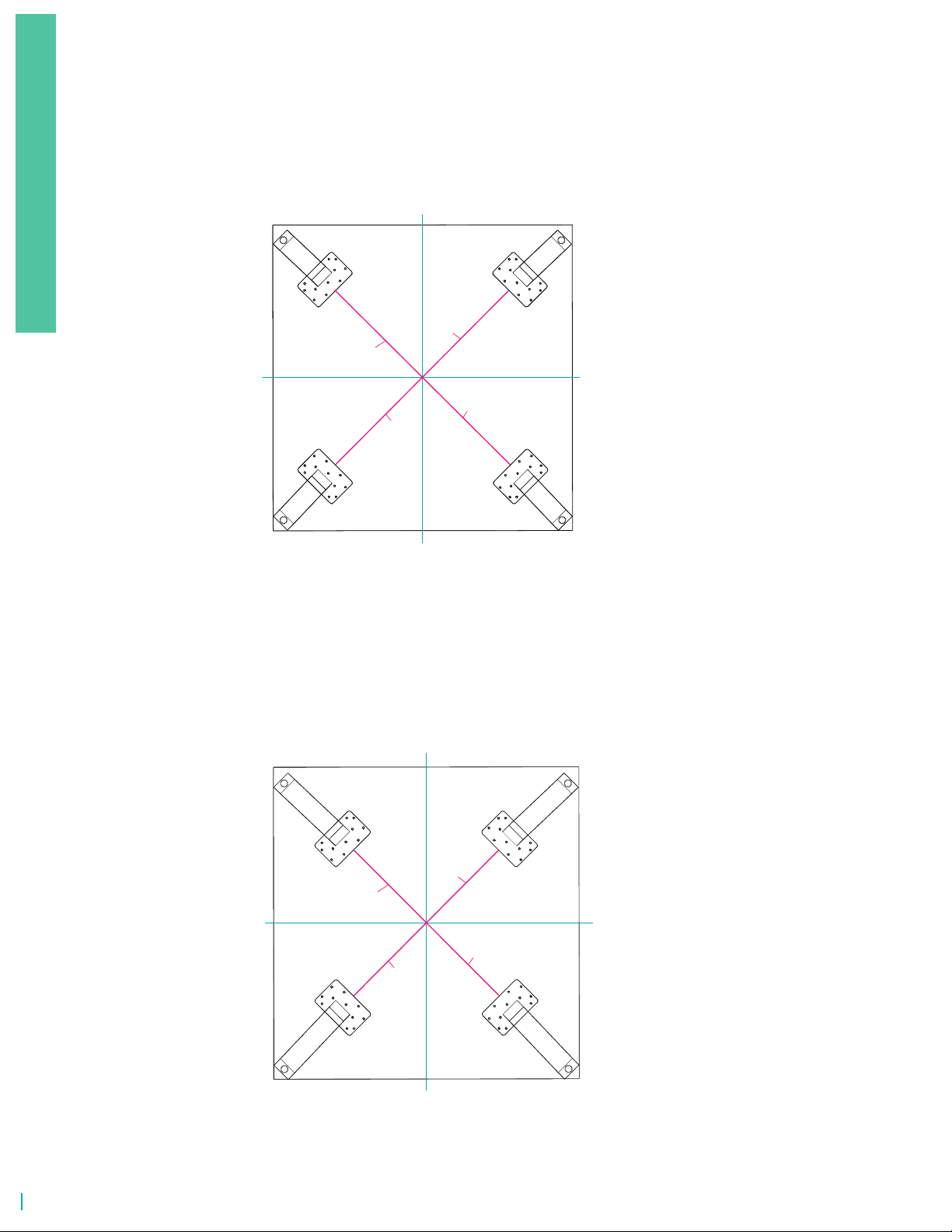

36” x 36”Square Sitting-Height Table
Find center of surface by measuring 18” from edge. Once found,
measure 11 1/4” from center of surface to edge of leg plate.
36” x 36”Square Standing-Height Table
Find center of surface by measuring 18” from edge. Once found,
measure 7 1/2” from center of surface to edge of leg plate.
11 1/
4”
11 1/
4”
11 1/
4”
11 1/
4”
71/2”
71/2”
71/2”
71/2”
7
ANGLED POST LEGS
ANGLED POST LEGS
49” x 48”Square Standing-Height Table
Find center of surface by measuring 24” from the edge. Once found,
measure 16” from center of surface to edge of leg plate.
49” x 48”Square Sitting-Height Table
Find center of surface by measuring 24” from edge. Once found,
measure 19 4/5” from center of surface to the edge of leg plate.
194/5”
19 4/5”
19 4/5”
19 4/5”
16”
16”
16”
16”
