Juniper THIN Suspension Manuale utente
24" THES, 2 CONNECTED SECTIONS
24" THES, 3 CONNECTED SECTIONS
24" THES, 4 CONNECTED SECTIONS
THIN Suspension
Center Power Feed
Remote Installation Guide
SHOWN ARE EXAMPLES OF CONFIGURATION POSSIBLITIES. SPECIFIC FIXTURE CONFIGURATION MAY VARY.
1
MINI MOUNTING PLATE
FOR IN-CEILING WIRING AND FIXTURES
SUSPENDED FROM THE CEILING.
SEE
STEP 2B
FOR DETAILED INSTALLATION
AND WIRING INFORMATION.
FIGURE 3
CANOPY PLATE
FOR FIXTURES WIRED TO A JUNCTION
BOX.
SEE
STEP 2A
FOR DETAILED INSTALLATION
AND WIRING INFORMATION.
FIGURE 2
24" OR 36"
24" OR 36" 24" OR 36"

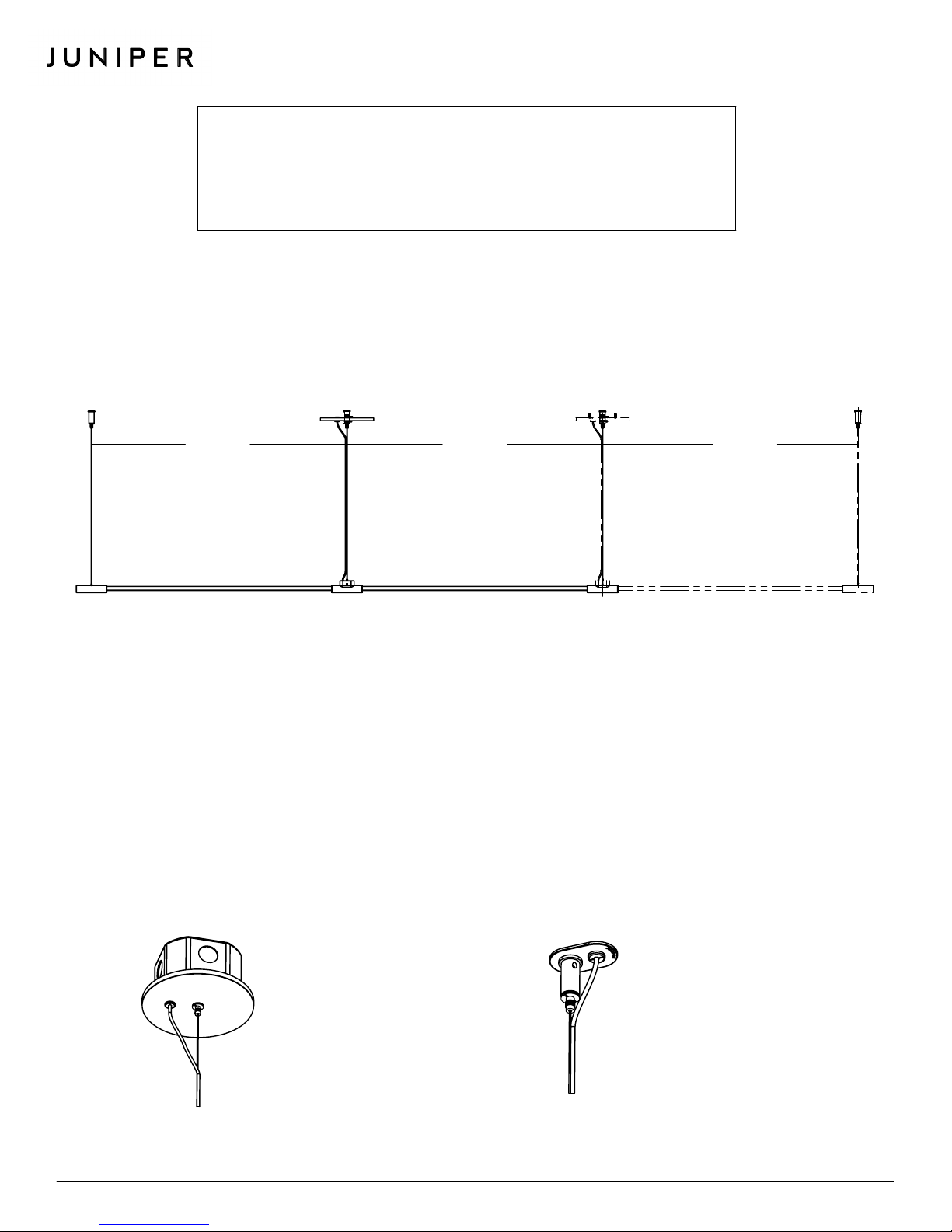

FIGURE 1
KEY
A
B
C
CENTER POWER SLEEVES
MOUNTED BENEATH CANOPY PLATE OR MINI MOUNTING PLATE AT ANY LOCATION BETWEEN THE END SLEVES
(SEE POWER FEED OPTIONS)
.*
PASSTHROUGH SLEEVES
USED TO CONNECT SEGMENTS TOGETHER. MOUNTED IN BETWEEN CENTER POWER SLEEVES AND END SLEEVES
.
END SLEEVES
MOUNTED AT BOTH ENDS OF THE FIXTURE
.
C
A/BA/B
C
WARNING
A LICENSED ELECTRICIAN SHOULD PERFORM INSTALLATION.
DISCONNECT MAIN POWER AT THE SOURCE PRIOR TO INSTALLATION.
INSTRUCTIONS MEANT FOR A REMOTE CLASS 2 DRIVER.
STEP 1: MARK MOUNTING POINTS
POWER FEED OPTIONS
Carefully mark the mounting points with a pencil or marker, using the spacing in Figure 1.
It is highly recommended to
use a laser alignment/ measuring tool to ensure that mounting parts are properly distanced and fall on a straight line.
* In order to install the fixture with the canopy at either end of the fixture, please refer to "THIN Suspension Remote Installation
Guide" or contact Juniper for instructions.
THIN SUSPENSION INSTALLATION GUIDE
2
WWW.JUNIPER-DESIGN.COM | [email protected] | +1 347 799-2915 | 68 33RD STREET, UNIT 11, BROOKLYN, NY 11232 WWW.JUNIPER-DESIGN.COM | [email protected] | +1 347 799-2915 | 68 33RD STREET, UNIT 11, BROOKLYN, NY 11232
Remove gripper from the canopy
cover to release the crossbar.
1
FIGURE 4
Attach the crossbar to the junction box
using provided screws.
2 3
FIGURE 5
"+ RED"
"- BLACK"
+ 24VDC lead from remote driver
- 24VDC lead
from remote driver
4
REMOTE
LED
DRIVER
+
-
OUTPUT
+
-
INPUT
Low voltage wires from LED driver
AC - LINE - Black
AC - NEUTRAL - White
Bushing
FIGURE 7
Red
Black
FIGURE 6
Unscrew
safety nut
Press the
safety nut
upwards to
pass aircraft
cable through
the gripper
FIGURE 9
5
FIGURE 8
FIGURE 10
Strain relief
Partly loosen safety nut on cable gripper.
Feed aircraft cable through the gripper.
Do this for all aircraft cable ends.
Pass power cable, through bushing and strain relief as shown. Connect wires
according to diagram (wire nuts provided).
Length of power cord should be
adjusted for desired suspension height. Wires to and from the driver are not included.
Place wires inside junction box and screw
gripper into crossbar to attach canopy plate
to junction box.
Connect the ground wire to
ground screw on crossbar.
Install ceiling posts at all B and C mounting points using
provided screws. Screw grippers into ceiling posts.
Woodscrews are provided for default installation. Alternate
screws may be used at the recommendation of an electrician.
Use laser alignent/ measuring tool to ensure accurate
placement of the ceiling post.
6
Adjust aircraft cable length as needed. Press safety nut on
gripper to loosen aircraft cable. Tighten safety nut in completely
when finished.
Do not cut extra aircraft cable until full fixture is
assembled and desired suspension height is achieved.
7
STEP 2A: JUNCTION BOX COVER PLATE INSTALLATION INSTRUCTIONS
THIN SUSPENSION INSTALLATION GUIDE
3
WWW.JUNIPER-DESIGN.COM | [email protected] | +1 347 799-2915 | 68 33RD STREET, UNIT 11, BROOKLYN, NY 11232
FIGURE 13
FIGURE 15
INSTALL AT "A"
MOUNTING POINTS ONLY
INSTALL AT "B" & "C"
MOUNTING POINTS
FIGURE 12
3
4
"
DRILL
1/2" HOLE
FOR BUSHING
"A" MOUNTING POINT
FIGURE 14
Low voltage wires
to LED driver
O-Rings
Light Tube
Partly unscrew safety nut
on gripper and feed
aircraft cables through.
Screw grippers into ceiling posts. Adjust aircraft cable lengths as
needed. Press safety nut on gripper to release aircraft cable. Tighten
safety nut when finished.
Do not cut extra aircraft cable until fixture is
fully assembled and desired suspension height is achieved.
Drill hole for bushing according to diagram.
Install using provided screws according
to diagram.
Pass power cord through bushing and connect
to electrician-provided 18AWG in-wall rated
cable (recommended).
2. Push following passthrough
sleeve onto illuminated light
tubes. Add light tubes and
sleeves as needed according
to your segment
configuration.
1. Reconnect main power
and insert light tubes into
the power end. Push light
tubes in carefully until they
illuminate.
3. Slide the end
sleeves onto the last
set of light tubes.
STEP 3: LIGHT TUBE INSTALLATIONS
The THIN Suspension fixture is designed with an innovative magnetic connection. Simply insert the light tubes into their sleeves for
electrical contact to be made.
2
4 5
13
CARE INSTRUCTIONS
Brass will patina over
time like other natural
metals and regular care
is required in order to
retain the quality finish of
your THIN fixture for years
to come.
Gently wipe with a damp
cloth to remove dirt,
dust, and fingerprints.
Do not use any chemical
cleaning solution.
Use indoors only.
STEP 2B: MINI MOUNTING PLATE INSTALLATION INSTRUCTIONS
FIGURE 11
FIGURE 16
4. Space the O-rings apart
on the power sleeve along
the length of the cable to
constrain the power cord
to aircraft cable.
THIN SUSPENSION INSTALLATION GUIDE
4
WWW.JUNIPER-DESIGN.COM | [email protected] | +1 347 799-2915 | 68 33RD STREET, UNIT 11, BROOKLYN, NY 11232
