Juniper CTP2000 Series Istruzioni per l'installazione

CTP2000 Series Circuit to Packet Platforms

Hardware Guide

Published

2020-08-31

Juniper Networks, In.

1133 Innovation Way

Sunnyvale, California 94089

USA

408-745-2000

www.juniper.net

Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc.

and/or its affiliates in the United States and other countries. All other trademarks may be property of their respective

owners.

Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks reserves the right

to change, modify, transfer, or otherwise revise this publication without notice.

CTP2000 Series Circuit to Packet Platforms Hardware Guide

Revision History

February 2017—Revision 2

January 2019—Revision 3

The information in this document is current as of the date on the title page.

END USER LICENSE AGREEMENT

The Juniper Networks product that is the subject of this technical documentation consists of (or is intended for use with)

Juniper Networks software. Use of such software is subject to the terms and conditions of the End User License Agreement

(“EULA”) posted at https://support.juniper.net/support/eula/. By downloading, installing or using such software, you

agree to the terms and conditions of that EULA.

Table of Contents

Overview

CTP2000 Series Platform Overview | 2

Introducing CTP Series Platforms | 2

CTP2000 Series Processor | 2

CTP2008 Platform | 3

CTP2024 Platform | 5

CTP2056 Platform | 7

CTP2000 Series Interface Modules | 11

CTP2000 Serial Interface Modules | 11

CTP2000 Multiservice Interface Module | 12

CTP2000 T1/E1 Interface Module | 13

CTP2000 Compression Module | 13

CTP2000 4WE&M Interface Module | 14

Supervisory Signaling | 18

CTP2000 2W-FXS and 2W-FXO Interface Modules | 20

Required Cables and Pinouts | 22

Analog FXS/FXO Loop-Start Signaling | 22

Answer Supervision | 22

Disconnect Supervision | 22

Analog FXS/FXO Ground-Start Signaling | 23

Digital Signaling | 23

Digital FXS/FXO Loop-Start Signaling | 23

Digital FXS/FXO Ground-Start Signaling | 24

CTP2000 8P-IRIG Interface Module | 26

CTP2000 Clock Interface Modules | 27

External Reference Clock | 29

Installation Notes for Clock Interface Modules | 30

CTP2000 PMC Module | 30

iii

Planning

System Specifications | 33

CTP2008 Platform Specifications and Certification | 33

CTP2024 Platform Specifications and Certification | 35

CTP2056 Platform Specifications and Certification | 38

Planning and Preparing the Site | 40

Before You Install a CTP Platform | 40

CTP2000 Environmental Requirements | 40

Equipment Rack Requirements | 42

CTP2000 Rack Requirements | 42

CTP2000 Mechanical Requirements | 42

CTP2000 Space Requirements | 43

CTP2000 Rack Installation | 43

CTP Cabling Recommendations | 44

Cable and Pinout Specifications | 45

CTP2000 4WE&M Interface Connector Pinouts | 45

CTP2000 4WE&M RTM Connector A Pinouts | 45

CTP2000 4WE&M Connector B Pinouts | 46

CTP2000 FXS and FXO Interface Module Cables and Pinouts | 48

Required Cables | 48

RTM Pinout Locations | 48

FXS Connector Pinouts | 49

FXO Connector Pinouts | 50

T1/E1 Interface Module Pinouts | 51

CTP2000 Serial Interface Module Pinouts | 52

CTP2000 Series Console Cable Pinouts | 63

CTP Fast Ethernet and Power Cables | 68

Fast Ethernet Cables | 69

DC Power Cables | 69

Terminal Block and Circuit Breaker Specifications | 69

Safety

General Safety Guidelines and Warnings | 72

CTP Safety Guidelines and Warnings | 72

Module Installation Safety Guidelines and Warnings | 74

Safety Guidelines and Warnings for Installing CTP Modules | 74

Hardware Compliance | 76

Declaration of Conformity for CTP2000 Platforms | 76

Federal Communications Commission (FCC) Statement | 78

FCC Requirements for Consumer Products | 78

Food and Drug Administration, Center for Devices and Radiological Health | 79

Compliance with Canadian Regulations | 79

Industry Canada Notice | 79

Industry Canada Notice CS-03 | 80

Avis CS-03 d'Industrie Canada | 80

Canadian Department of Communications Explanatory Notes | 81

DOC Explanatory Notes: Equipment Attachment Limitations | 81

Notes explicatives du ministère des Communications: limites visant les accessoires | 81

Statements of Volatility for Juniper Network Devices | 82

Installation

Unpacking and Inspecting the CTP Platform | 87

Before You Unpack the CTP Platform | 87

Unpacking the CTP Device | 87

Inspecting Platform Components and Accessories | 88

If You Detect or Suspect Damage | 89

Contacting Juniper Networks | 89

Installing the Chassis | 90

Before You Install the CTP2000 Platform | 90

Installing the CTP2000 Platform in Freestanding Mode | 91

Special Guidelines for Installing CTP2056 Chassis in a Rack | 91

Installing the CTP2000 Platform in a Rack | 92

Installing Modules | 93

CTP2000 Modules Installation Overview | 93

Protecting CTP2000 Modules and Slots | 94

Required Tools and Safety Items for Installing CTP Modules | 95

Installing a CTP Interface Module, Processor Module, or Clock Module | 95

Removing a CTP Interface Module, Processor Module, or Clock Module | 96

Installing or Removing a CTP2000 Series CompactFlash Card | 98

Installing a PMC on CTP2000 Platforms | 99

Installing and Removing SFPs in a CTP Module | 102

Installing SFPs in a CTP2000 Module | 102

Removing SFPs in a CTP2000 Module | 104

Upgrading Components for Memory Upgrades | 106

Upgrading CTP2000 Series Components for Memory Upgrades | 106

Cabling | 108

Cabling the CTP2000 Platform Overview | 108

Required Tools, Wires, and Cables for the CTP2000 Platform | 109

CTP2000 Management Ports | 110

Cabling a CTP2000 T1/E1 Interface Module | 111

Cabling the CTP Platform for DC Power | 111

Task 1: Turning Off All CTP Platform Power | 112

Task 2: Connecting the Grounding Cable to the CTP Platform (CTP2056 Platform Only) | 112

Task 3: Connecting the Power Cables to the CTP2000 Platform | 113

Powering On | 115

Before You Power On the CTP2000 Platform | 115

Powering On the CTP2000 Platform | 116

Powering Off the CTP Platform | 119

Configuration

Accessing the CTP2000 Platform | 121

Setting Up Management Access on the CTP2000 Platform | 121

CTP2000 Console Port Setup | 122

Using HyperTerminal with the CTP2000 Platform | 123

Connecting Directly to the CTP2000 Platform | 124

CTP2000 Platform SSH Setup | 125

Maintenance

Maintaining Components | 127

Required Tools for Maintaining the CTP Platform | 127

Storing CTP Modules and Other Components | 127

Cleaning the CTP Platform | 128

Replacing an AC Power Supply | 129

Product Reclamation and Recycling | 131

Product Reclamation and Recycling Program | 131

Replacing Fan Trays | 133

Removing a CTP2000 Fan Tray | 133

Installing a CTP2000 Fan Tray | 133

Packing and Returning Hardware | 135

Return Procedure | 135

Returning CTP Products for Repair or Replacement | 136

Troubleshooting

Troubleshooting Power Failures | 138

CTP Platform Does Not Power On | 138

CTP Platform Shuts Down | 139

Contacting Customer Support | 140

Locating CTP Component Serial Numbers | 141

Information You Might Need to Supply to JTAC | 141

vii

PART

Overview

CTP2000 Series Platform Overview | 2

CTP2000 Series Interface Modules | 11

CHAPTER 1

CTP2000 Series Platform Overview

IN THIS CHAPTER

Introducing CTP Series Platforms | 2

CTP2000 Series Processor | 2

CTP2008 Platform | 3

CTP2024 Platform | 5

CTP2056 Platform | 7

Introducing CTP Series Platforms

Juniper Networks CTP Series Circuit to Packet platforms provide advanced technology and features

required to reliably transport legacy time-division multiplexing (TDM) and other circuit-based applications

across next-generation IP networks. CTP Series platforms create an IP packet flow from a serial data or

analog voice connection at one end and provide the necessary processing to re-create the serial bit stream

or analog signal from the received packet flow at the other end.

CTP Series platforms provide compact and lightweight chassis, high port density, and multiple Ethernet

interfaces. Each CTP Series platform runs the CTP operating system (CTPOS) and can be managed by the

Juniper Networks CTPView Network Management System. The CTPView Network Management System

is a secure, Web-based management tool for provisioning, managing, running diagnostics, monitoring, and

reporting on all CTP Series devices and circuits in the network.

CTP2000 Series Processor

Starting with CTPOS Release 6.6, Juniper Networks CTP2000 Series Circuit to Packet platforms support

the PP833 processors (see Figure 1 on page 3) in addition to the older PP310 and PP332 family of

processors.

The front panel of the PP833 processor comprises the following components (see Figure 1 on page 3):

•PMC—Both PMC slots are available to support compatible fiber PMC modules. For more information

about the PMC module, see “CTP2000 PMC Module” on page 30 and “Installing a PMC on CTP2000

Platforms” on page 99.

•Ethernet connection—Provides the 1-Gbps Ethernet connection to the IP network by means of a local

Ethernet switch or router.

•Console connection—Provides an asynchronous tty connection for locally configuring the CTP Series

device. Because of front panel space limitations, the PP833 processor provides an RS232 serial console

via a supplied USB-to-DB9 cable (p/n 720-071594), in which the DB-9 connector has the same pinout

as a standard RS-232 DTE port.

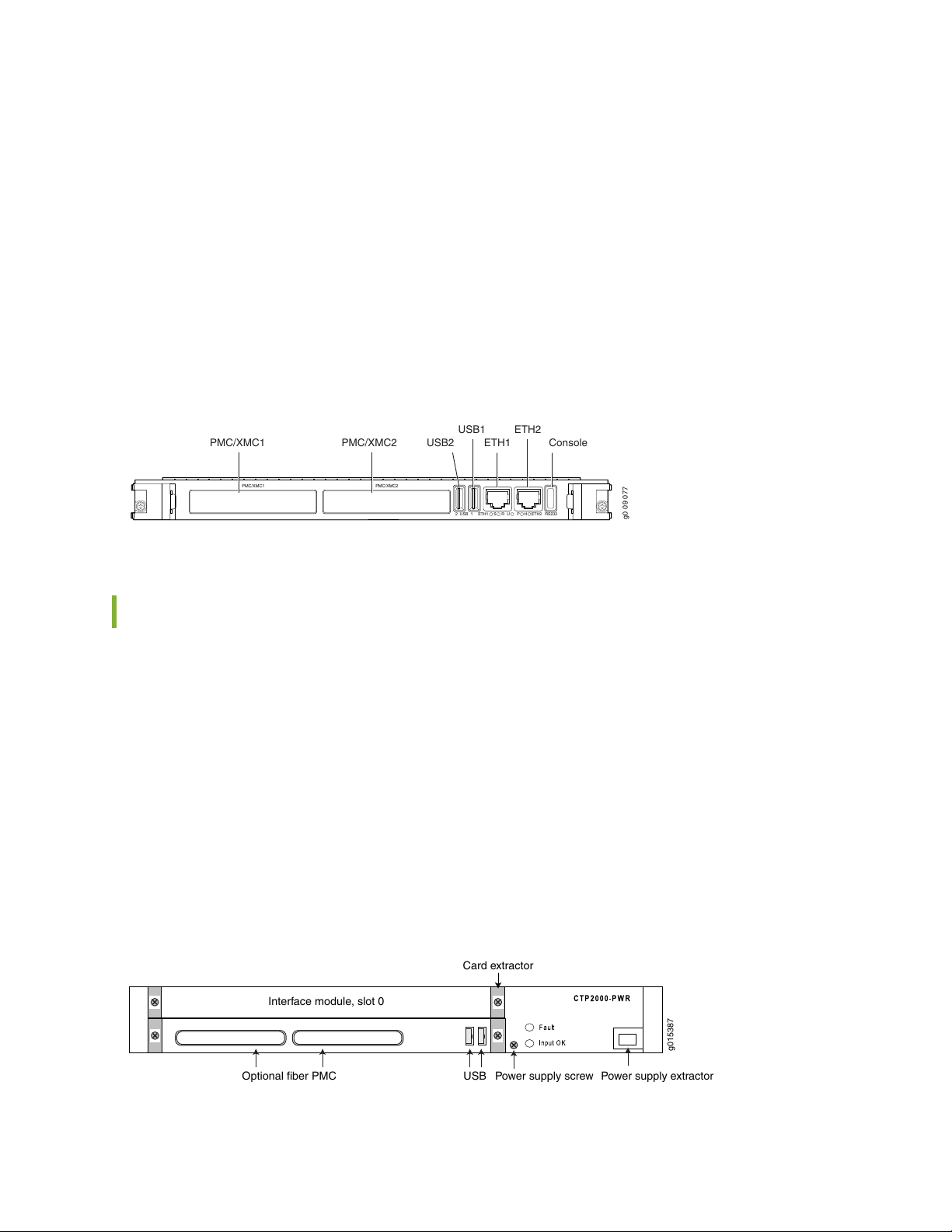

Figure 1: PP833 Processor (AC and DC Version, Front View)

g0 0 9 0 77

PMC/XMC1 PMC/XMC2

2 USB 1 ETH1 ETH2S R U P RS232H

PMC/XMC1 PMC/XMC2

USB1

USB2 ETH1

ETH2

Console

CTP2008 Platform

The Juniper Networks CTP2008 Circuit to Packet platform is a 3-U high, full-rack wide chassis designed

for tabletop or shelf installation. It can also be installed in a rack with the supplied rack-mounting kit. The

CTP2008 platform has one removable interface module and one removable processor module, and is

available in both AC-powered and DC-powered versions. It has a removable fan tray, and airflow is

side-to-side. Figure 2 on page 3,Figure 3 on page 4, and Figure 4 on page 5 show the CTP2008 chassis

containing the PP332 processor (which requires an RTM card for Ethernet and console port accesses).

The new PP833 processor module does not require an RTM card. All PP833 module access is located on

the front panel with all CTP serial and T1/E1 ports. If you are upgrading from the old PP310 or PP332

processor to the PP833 processor, the RTM card may be left in the node. But, none of the interfaces

(Ethernet or serial ports) on the RTM panel are functional.

Figure 2: CTP2008 Chassis Containing the PP332 Processor (AC and DC Version, Front View)

USBOptional fiber PMC

Interface module, slot 0

Card extractor

Power supply screw Power supply extractor

g015387
