Juniper M20 Manuale utente
M20 Internet Router
PIC Guide
Juniper Networks, Inc.
1194 North Mathilda Avenue
Sunnyvale, California 94089
USA
408-745-2000
www.juniper.net
Part Number: 530-022506-01, Revision 1
This guide provides an overview and description of the Physical Interface Cards (PICs)
supported by the Juniper Networks M20 Internet router. The PICs are described
alphabetically. Table 1 on page 3 lists the PICs supported by the M20 Internet router
by PIC family.
PICs provide the physical connection to various network media types. The PICs are
mounted on Flexible PIC Concentrators (FPCs), which are inserted into a slot in a
router. A PIC typically occupies a single slot on an FPC. PICs receive incoming packets
from the network and transmit outgoing packets to the network. During this process,
each PIC performs framing and high-speed signaling for its media type. Before
transmitting outgoing data packets, the PICs encapsulate the packets received from
the FPCs. Each PIC is equipped with a media-specific ASIC that performs control
functions tailored to the PIC's media type. For complete information about installing
PICs and transceivers, see the PIC and Transceiver Installation Instructions located at
http://www.juniper.net/techpubs/.
Blank PICs resemble other PICs, but do not provide any physical connection or
activity. When a slot is not occupied by a PIC, you must insert a blank PIC to fill the
empty slot and ensure proper cooling of the system.
The M20 router supports the Type 1 FPCs listed in “FPCs Supported”on page 5.
Table 3 on page 6 provides a PIC/FPC compatibility matrix for the current PICs
supported by the M20 router.
For a complete list of end-of-life FPCs and end-of-life Enhanced FPCs for M-series
and T-series routing platforms, see the M-series and T-series Routing Platforms
End-of-Life FPC Guide located at http://www.juniper.net/techpubs/.
2■
M20 Internet Router PIC Guide
Table 1: PICs Supported in the M20 Internet Router
Page
PIC
Slots RequiredFPC Support
First JUNOS
SupportPortsPIC Family and Type
ATM2 IQ
131 slotType 16.14ATM2 DS3 IQ
151 slotType 16.14ATM2 E3 IQ
171 slotType 15.52ATM2 OC3/STM1 IQ
201 slotType 15.51ATM2 OC12/STM4 IQ
Channelized
281 slotType 14.01Channelized OC12
Channelized IQ
221 slotType 15.64Channelized DS3 IQ
241 slotType 15.610Channelized E1 IQ
261 slotType 17.11Channelized OC3 IQ
301 slotType 15.61Channelized OC12 IQ
321 slotType 15.71Channelized STM1 IQ
341 slotType 17.410Channelized T1 IQ
DS3, E1, and T1
361 slotType 13.14DS3
381 slotType 14.14E1
661 slotType 14.14T1
E3 IQ
401 slotType 16.14E3 IQ
Ethernet
461 slotType 14.14Fast Ethernet
461 slotType 15.28Fast Ethernet
461 slotType 15.112Fast Ethernet
491 slotType 16.31Gigabit Ethernet with SFP
Ethernet IQ
511 slotType 16.01Gigabit Ethernet IQ with
SFP
Ethernet IQ2
■3
Table 1: PICs Supported in the M20 Internet Router (continued)
Page
PIC
Slots RequiredFPC Support
First JUNOS
SupportPortsPIC Family and Type
531 slotType 17.6R34Gigabit Ethernet IQ2 with
SFP
Services
81 slotType 16.40Adaptive Services II
101 slotType 17.50Adaptive Services II Layer
2 Services
441 slotType 15.20ES
561 slotType 15.60Link Services
671 slotType 13.30Tunnel Services
Serial
421 slotType 15.62EIA-530
SONET/SDH
571 slotType 13.14SONET/SDH OC3c/STM1
601 slotType 13.11SONET/SDH OC12c/STM4
63Entire FPC slotType 16.11SONET/SDH
OC48c/STM16 with SFP
4■
M20 Internet Router PIC Guide
FPCs Supported
The M20 router supports the Type 1 FPCs listed in Table 2 on page 5. Inserting a combination of PICs with an aggregate
higher than the maximum throughput per FPC is supported, but constitutes oversubscription of the FPC.
Table 2: FPCs Supported by the M20 Router
First JUNOS
Release
Maximum
Throughput per FPC
Maximum Number of
PICs Supported per
FPC
FPC Model NumberFPC Name
7.23.2 Gbps4M20-FPC1-EPEnhanced Plus FPC1
FPCs Supported ■5
FPCs Supported
PIC/FPC Compatibility
Table 3 on page 6 provides a PIC/FPC compatibility matrix for the current PICs supported by the M20 router. The table lists
the first JUNOS release in which the FPC supports the PIC. For example, JUNOS 7.2 is the first release in which the M20-FPC1-EP
supports the ATM2 OC3/STM1 IQ, 2-port PIC.
Table 3: M20 PIC/FPC Compatibility
M20-FPC1-EPNumber of PortsPIC Type
ATM2 IQ PICs
7.24ATM2 DS3 IQ
7.24ATM2 E3 IQ
7.22ATM2 OC3/STM1 IQ
7.21ATM2 OC12/STM4 IQ
Channelized PICs
7.21ChOC12
Channelized IQ PICs
7.24ChDS3 IQ
7.210ChE1 IQ
7.21ChOC3 IQ
7.21ChOC12 IQ
7.21ChSTM1 IQ
7.210ChT1 IQ
T1, DS3, E1, E3 PICs
7.24DS3
7.24E1
7.24T1
E3 IQ PIC
7.24E3 IQ
Ethernet PICs
7.24Fast Ethernet
7.28Fast Ethernet
7.212Fast Ethernet
6■PIC/FPC Compatibility
M20 Internet Router PIC Guide
Table 3: M20 PIC/FPC Compatibility (continued)
M20-FPC1-EPNumber of PortsPIC Type
7.21Gigabit Ethernet, SFP
Ethernet IQ PICs
7.21Gigabit Ethernet IQ, SFP
Ethernet IQ2 PICs
7.6R34Gigabit Ethernet IQ2, SFP
Services PICs
7.20Adaptive Services II
7.5
0Adaptive Services II (AS)
Layer 2 Services
7.20ES
7.20Link Services
7.20Tunnel Services
SONET/SDH PICs
7.24OC3c/STM1
7.21OC12c/STM4
7.21OC48c/STM16, SFP
PIC/FPC Compatibility ■7
PIC/FPC Compatibility
Adaptive Services II PIC
■JUNOS 6.4 and laterSoftware release
■Supports tunnel services. This feature is included with the PIC and does not require an
individual license.
■Individual licenses must be purchased for additional services.
■Power requirement: 0.4 A @ 48 V (19 W)
Description
■Support for up to 2000 service sets
■Active monitoring on up to 1 million flows
■Support for MTUs up to 9192 bytes for Gigabit Ethernet and SONET interfaces
Hardware features
Depending on your JUNOS release and individual licenses, software features for this PIC can
include the features listed in Table 4 on page 8. For more information about the software
features available for services PICs, see the JUNOS Services Interfaces Configuration Guide.
Software features
Status LED, one tricolor:
■Off—PIC is offline and it is safe to remove it from the chassis.
■Green—PIC is operating normally.
■Amber—PIC is initializing.
■Red—PIC has an error or failure and no further harm can be done by removing it from
the chassis.
Application LED, one bicolor:
■Off—Service is not running.
■Green—Service is running under acceptable load.
■Amber—Service is overloaded.
LEDs
Table 4: Adaptive Services PICs Software Features
Adaptive Services
II Layer 2 Services
PIC
Adaptive Services II
PIC
Software Feature
––GRE Key
––GRE dont-fragment
8■Adaptive Services II PIC
M20 Internet Router PIC Guide
Table 4: Adaptive Services PICs Software Features (continued)
–6.4Stateful firewall with packet inspection: detects
SYN attacks, ICMP and UDP floods, and ping of
death attacks
–6.4Network Address Translation (NAT) for IP
addresses
–6.4Port Address Translation (PAT) for port numbers
–6.4IP Security (IPSec) encryption
–7.0Active flow monitoring exports cflowd version
5 and version 8 records
–8.3Active flow monitoring exports version 9
records, based on RFC 3954 (IP v4 templates
only)
––Passive flow monitoring
––Passive flow collection
–8.1Flow-tap
––Dynamic flow capture
–8.3Real-time performance monitoring
7.57.3Link services
7.56.4Tunnel services:
■IP-IP unicast tunneling
■GRE unicast tunneling—Supports GRE
fragmentation
■Protocol Independent Multicast (PIM) sparse
mode unicast tunneling
–6.4Virtual tunnel interface for Layer 3 VPNs
––Layer 2 Tunneling Protocol (L2TP)
7.57.3Voice services:
■Compressed Real-Time Transport Protocol
(CRTP)
–6.4Encapsulations:
■Multilink Frame Relay (MLFR)
■Multilink Point-to-Point Protocol (MLPP)
Adaptive Services II PIC ■9
Adaptive Services II PIC

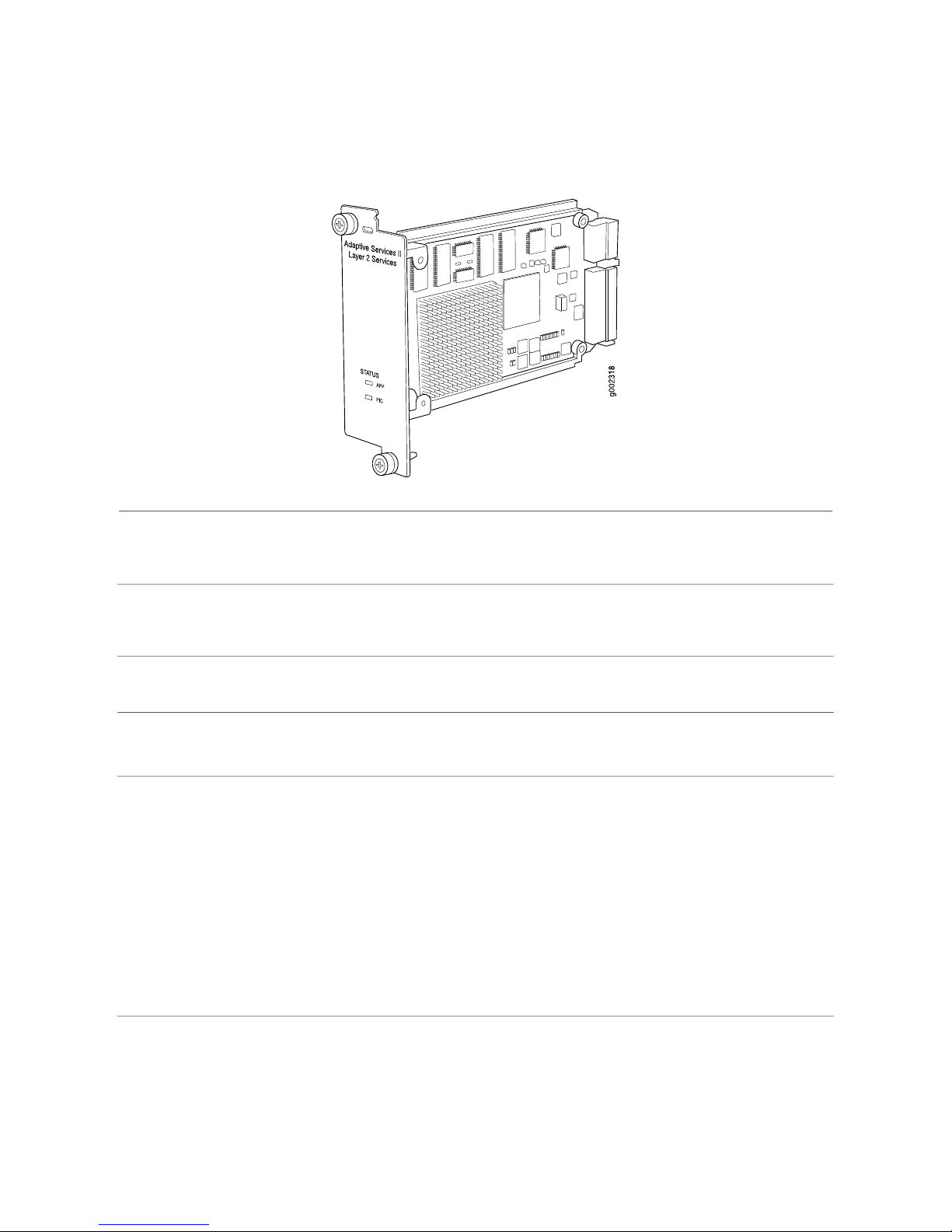

Adaptive Services II Layer 2 Services PIC
■JUNOS 7.5 and laterSoftware release
■Supports Layer 2 Service package only. Tunnel services are included with the PIC. Other
services require an individual license.
■Power requirement: 0.4 A @ 48 V (19 W)
Description
■Support for up to 2000 service sets
■Support for MTUs up to 9192 bytes for Gigabit Ethernet and SONET interfaces
Hardware features
Depending on your JUNOS release and individual licenses, software features for this PIC can
include the features listed in Table 5 on page 11. For more information about the software
features available for services PICs, see the JUNOS Services Interfaces Configuration Guide.
Software features
Status LED, one tricolor:
■Off—PIC is offline and it is safe to remove it from the chassis.
■Green—PIC is operating normally.
■Amber—PIC is initializing.
■Red—PIC has an error or failure and no further harm can be done by removing it from
the chassis.
Application LED, one bicolor:
■Off—Service is not running.
■Green—Service is running under acceptable load.
■Amber—Service is overloaded.
LEDs
10 ■Adaptive Services II Layer 2 Services PIC
M20 Internet Router PIC Guide
