GIGA 5 – Quick Reference Guide

The ‘GIGA 5 Instructions for Use’ together with these short instructions

‘GIGA 5 – Quick Reference Guide’ has been awarded the seal of approval

by the independent German Technical Inspection Agency, TÜV SÜD, due

to its easy-to-understand style, its thoroughness and coverage of safety

aspects.

All manuals and user guides at all-guides.com

all-guides.com

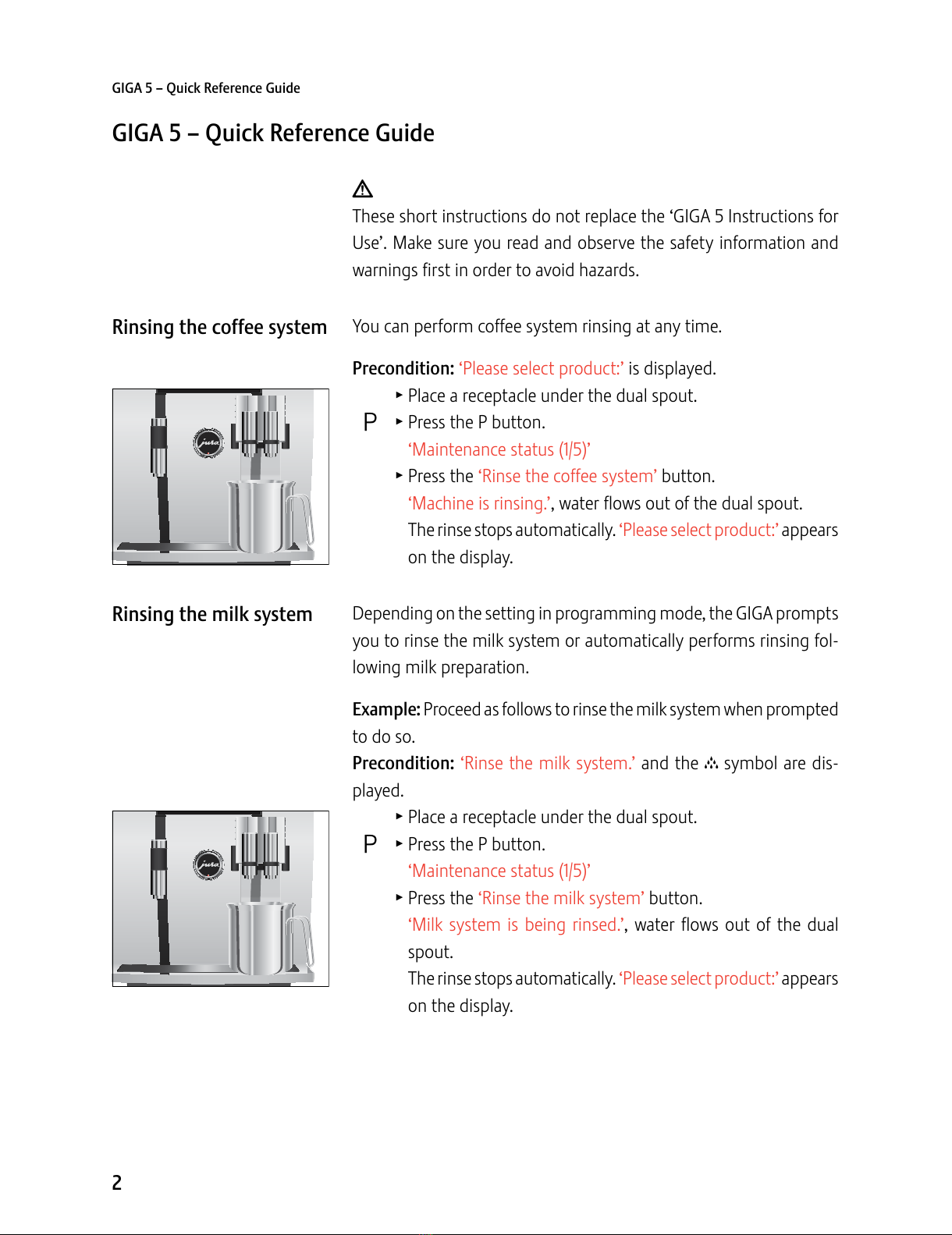

GIGA 5 – Quick Reference Guide

These short instructions do not replace the ‘GIGA 5 Instructions for

Use’. Make sure you read and observe the safety information and

warnings first in order to avoid hazards.

You can perform coffee system rinsing at any time.

Precondition: ‘Please select product:’ is displayed.

TPlace a receptacle under the dual spout.

OTPress the P button.

‘Maintenance status (1/5)’

TPress the ‘Rinse the coffee system’ button.

‘Machine is rinsing.’, water flows out of the dual spout.

Therinse stopsautomatically. ‘Please select product:’appears

on the display.

Depending on the setting in programming mode, the GIGA prompts

you to rinse the milk system or automatically performs rinsing fol-

lowing milk preparation.

Example: Proceed as follows to rinse the milk system when prompted

to do so.

Precondition: ‘Rinse the milk system.’ and the csymbol are dis-

played.

TPlace a receptacle under the dual spout.

OTPress the P button.

‘Maintenance status (1/5)’

TPress the ‘Rinse the milk system’ button.

‘Milk system is being rinsed.’, water flows out of the dual

spout.

Therinse stopsautomatically. ‘Please select product:’appears

on the display.

Rinsing the coffee system

Rinsing the milk system

All manuals and user guides at all-guides.com

GIGA 5 – Quick Reference Guide

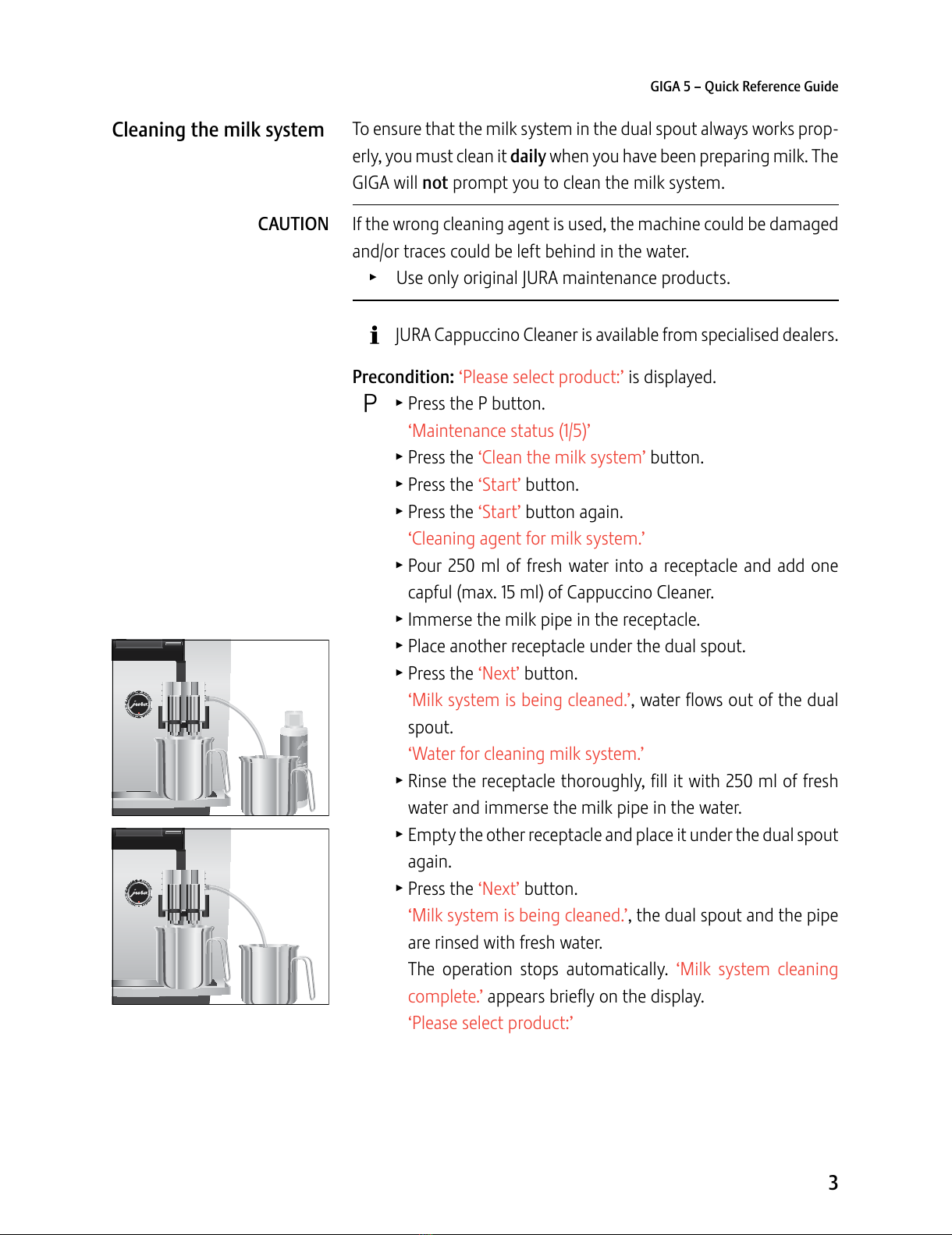

To ensure that the milk system in the dual spout always works prop-

erly, you must clean it daily when you have been preparing milk. The

GIGA will not prompt you to clean the milk system.

If the wrong cleaning agent is used, the machine could be damaged

and/or traces could be left behind in the water.

TUse only original JURA maintenance products.

EJURA Cappuccino Cleaner is available from specialised dealers.

Precondition: ‘Please select product:’ is displayed.

OTPress the P button.

‘Maintenance status (1/5)’

TPress the ‘Clean the milk system’ button.

TPress the ‘Start’ button.

TPress the ‘Start’ button again.

‘Cleaning agent for milk system.’

TPour 250 ml of fresh water into a receptacle and add one

capful (max. 15 ml) of Cappuccino Cleaner.

TImmerse the milk pipe in the receptacle.

TPlace another receptacle under the dual spout.

TPress the ‘Next’ button.

‘Milk system is being cleaned.’, water flows out of the dual

spout.

‘Water for cleaning milk system.’

TRinse the receptacle thoroughly, fill it with 250 ml of fresh

water and immerse the milk pipe in the water.

TEmpty the other receptacle and place it under the dual spout

again.

TPress the ‘Next’ button.

‘Milk system is being cleaned.’, the dual spout and the pipe

are rinsed with fresh water.

The operation stops automatically. ‘Milk system cleaning

complete.’ appears briefly on the display.

‘Please select product:’

Cleaning the milk system

CAUTION

All manuals and user guides at all-guides.com

GIGA 5 – Quick Reference Guide

The dual spout must be dismantled and rinsed daily if milk has been

prepared to make sure it functions perfectly and also in the interests

of hygiene.

TRemove the milk pipe and rinse it thoroughly under running

water.

TPress the releasing devices and pull the cover of the dual

spout up and off.

TCarefully pull the bottom part of the milk system down and

off.

TRemove the milk system from the dual spout.

TRemove the air intake pipe.

Dismantling and rinsing

the dual spout

All manuals and user guides at all-guides.com

GIGA 5 – Quick Reference Guide

TDismantle the milk system into its individual parts.

TRinse all the parts under running water. If there are severely

dried-on milk residues, firstly immerse the individual parts

in JURA Cappuccino Cleaner and then rinse them thoroughly.

TReassemble the milk system. When doing this, note the

arrows (circled in red in the picture) on the individual parts.

TFit the air intake pipe.

TFit the assembled individual parts back in the dual spout and

press it firmly.

TAttach the bottom part of the milk system to the part already

inserted from below.

All manuals and user guides at all-guides.com

GIGA 5 – Quick Reference Guide

TFit the cover of the dual spout. It will click into place audibly.

TInsert the milk pipe into the dual spout.

Your GIGA no longer has to be descaled if you are using the CLARIS

Blue filter cartridge. If the water hardness is 10° dH or more, we rec-

ommend using the filter cartridge.

If you did not activate the filter cartridge the first time you used the

machine, you can do this now as follows.

EPerform the ‘inserting the filter’ operation without any inter-

ruptions. This will ensure that your GIGA always produces its

best.

Precondition: ‘Please select product:’ is displayed.

OTPress the P button.

‘Maintenance status (1/5)’

gTTurn the Rotary Switch until the programme item ‘Machine

settings (3/5)’ is displayed.

TPress the ‘Maintenance settings’ button.

TPress the ‘Filter’ button.

‘Filter’

TPress the ‘Active’ button.

TPress the ‘Save’ button.

‘Saved’ appears briefly on the display.

‘Insert filter.’ / ‘Press the Rotary Switch.’

TRemove the filter cartridge extension from the Welcome

Pack.

Inserting and activating

the filter

All manuals and user guides at all-guides.com

all-guides.com

GIGA 5 – Quick Reference Guide

TFit the filter extension on top of a CLARIS Blue filter cartridge.

TRemove and empty the water tank.

TOpen the filter holder and insert the filter cartridge into the

water tank, exerting slight pressure.

TClose the filter holder. It will click into place audibly.

TFill the water tank with fresh, cold water and reinsert the tank.

kTPress the Rotary Switch.

‘Filter is being rinsed.’, the filter is rinsed. Rinsing of the filter

stops automatically. ‘Empty drip tray.’ appears on the display.

TEmpty the drip tray and coffee grounds container and put

them back into the machine.

‘Filter’ / ‘Filter rinsing complete.’

The machine heats up. ‘Please select product:’ appears on the

display. Your GIGA is once more ready for use.

EAfter 50 litres of water have flowed through or after two

months, the filter will cease to work. Your GIGA will automati-

cally prompt you to change the filter.

EIf the CLARIS Blue filter cartridge is not activated in program-

ming mode, you will not be prompted to change the filter.

Example: Proceed as follows to change the filter when prompted to

do so.

Precondition: ‘Change the filter’ and the csymbol are displayed.

OTPress the P button.

‘Maintenance status (1/5)’

TPress the ‘Change the filter’ button.

TPress the ‘Start’ button.

TPress the ‘Start’ button again.

‘Change filter.’ / ‘Press the Rotary Switch.’

TRemove and empty the water tank.

TOpen the filter holder and remove the old CLARIS Blue filter

cartridge and filter extension.

TFit the filter extension on top of a new filter cartridge.

Changing the filter

All manuals and user guides at all-guides.com

GIGA 5 – Quick Reference Guide

TInsert the filter cartridge into the water tank, exerting slight

pressure.

TClose the filter holder. It will click into place audibly.

TFill the water tank with fresh, cold water and reinsert the tank.

kTPress the Rotary Switch.

‘Filter is being rinsed.’, the filter is rinsed. Rinsing of the filter

stops automatically. ‘Empty drip tray.’ appears on the dis-

play.

TEmpty the drip tray and coffee grounds container and put

them back into the machine.

‘Change the filter’ / ‘Filter rinsing complete.’

The machine heats up. ‘Please select product:’ appears on

the display.

After 220 preparations or 80 switch-on rinses, the GIGA will prompt

you to clean it.

If the wrong cleaning agent is used, the machine could be damaged

and/or traces could be left behind in the water.

TUse only original JURA maintenance products.

EThe cleaning programme lasts approximately 20 minutes.

EDo not interrupt the cleaning programme. The quality of

cleaning will be impaired if you do so.

EJURA cleaning tablets are available from specialised dealers.

Example: Proceed as follows to clean when prompted to do so.

Precondition: ‘Clean machine.’ and the csymbol are displayed.

OTPress the P button.

‘Maintenance status (1/5)’

TPress the ‘Clean’ button.

TPress the ‘Start’ button.

TPress the ‘Start’ button again.

‘Empty coffee grounds container.’

TEmpty the drip tray and coffee grounds container and put

them back into the machine.

‘Press the Rotary Switch.’.

Cleaning the machine

CAUTION

All manuals and user guides at all-guides.com

GIGA 5 – Quick Reference Guide

TPlace a receptacle under the dual spout.

kTPress the Rotary Switch.

‘Machine is being cleaned.’, water flows out of the dual spout.

The operation is interrupted, ‘Add cleaning tablet.’.

TOpen the cover of the filler funnel for ground coffee.

TInsert a JURA cleaning tablet into the filler funnel.

TClose the cover of the filler funnel.

‘Press the Rotary Switch.’

kTPress the Rotary Switch.

‘Machine is being cleaned.’, water flows out of the dual spout

repeatedly.

The operation is interrupted, ‘Empty coffee grounds con-

tainer.’.

TEmpty the drip tray and coffee grounds container and put

them back into the machine.

‘Clean’ / ‘Cleaning complete.’

Cleaning is now complete. Your GIGA is once more ready for

use.

The GIGA builds up deposits of limescale over time and automati-

cally prompts you to descale it when necessary. The degree of calci-

fication depends on the hardness of your water.

If the descaling agent comes into contact with the skin or eyes, this

can cause irritation.

TAvoid contact with the skin or eyes.

TRinse off the descaling agent with clean water. Should you get

any descaling agent in your eye, see a doctor.

If the wrong descaling agent is used, the machine could be dam-

aged and/or traces could be left behind in the water.

TUse only original JURA maintenance products.

If the descaling operation is interrupted, there may be damage to

the machine.

TAllow the descaling programme to run to the end.

Descaling the machine

JCAUTION

CAUTION

All manuals and user guides at all-guides.com

GIGA 5 – Quick Reference Guide

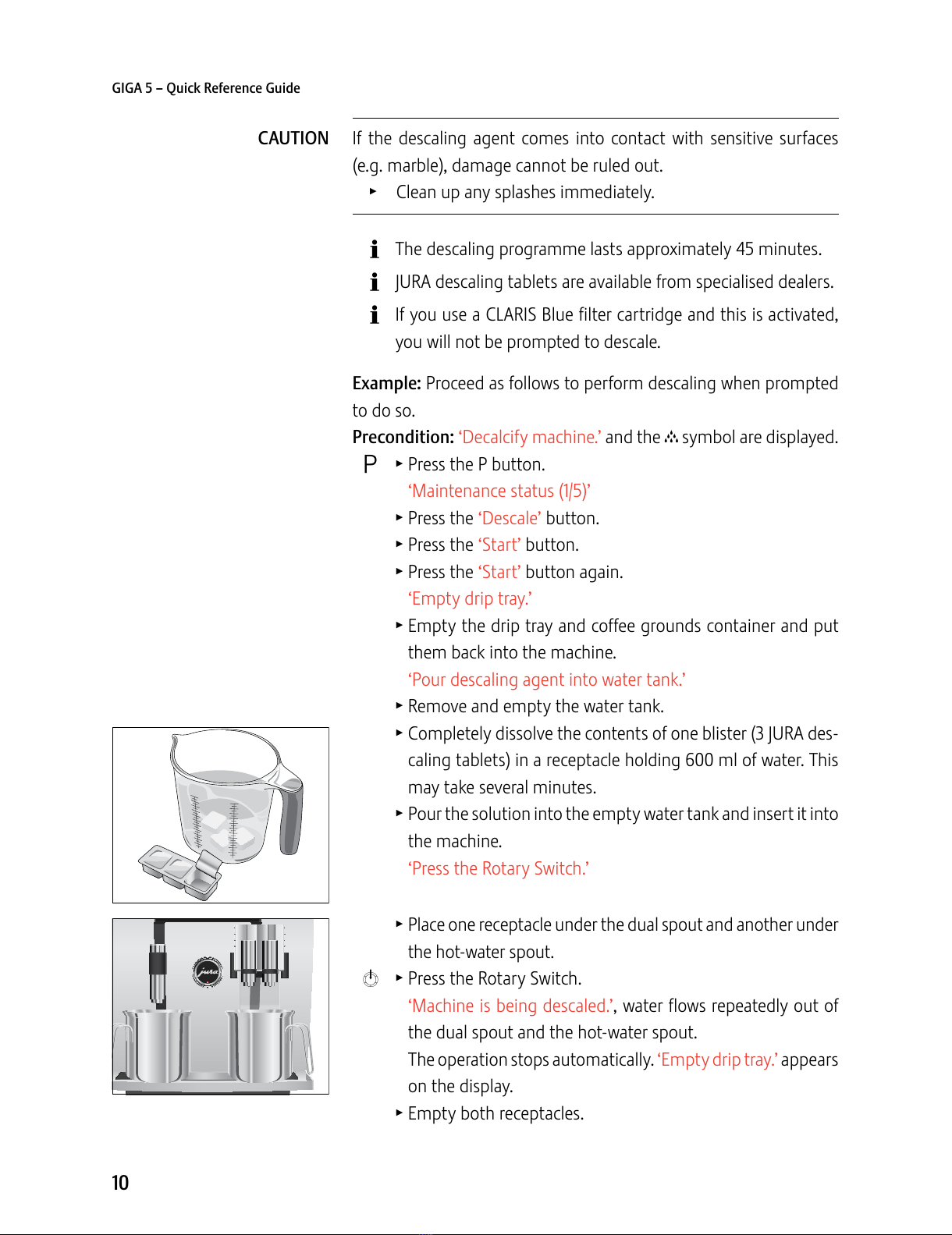

If the descaling agent comes into contact with sensitive surfaces

(e.g. marble), damage cannot be ruled out.

TClean up any splashes immediately.

EThe descaling programme lasts approximately 45 minutes.

EJURA descaling tablets are available from specialised dealers.

EIf you use a CLARIS Blue filter cartridge and this is activated,

you will not be prompted to descale.

Example: Proceed as follows to perform descaling when prompted

to do so.

Precondition: ‘Decalcify machine.’ and the csymbol are displayed.

OTPress the P button.

‘Maintenance status (1/5)’

TPress the ‘Descale’ button.

TPress the ‘Start’ button.

TPress the ‘Start’ button again.

‘Empty drip tray.’

TEmpty the drip tray and coffee grounds container and put

them back into the machine.

‘Pour descaling agent into water tank.’

TRemove and empty the water tank.

TCompletely dissolve the contents of one blister (3 JURA des-

caling tablets) in a receptacle holding 600 ml of water. This

may take several minutes.

TPour the solution into the empty water tank and insert it into

the machine.

‘Press the Rotary Switch.’

TPlace one receptacle under the dual spout and another under

the hot-water spout.

kTPress the Rotary Switch.

‘Machine is being descaled.’, water flows repeatedly out of

the dual spout and the hot-water spout.

The operation stops automatically. ‘Empty drip tray.’ appears

on the display.

TEmpty both receptacles.

CAUTION

All manuals and user guides at all-guides.com

Altri manuali per GIGA 5

Indice

Altri manuali Jura Macchina per il caffè

Jura

Jura GIGA X8 Professional Manuale utente

Jura

Jura IMPRESSA A5 One Touch Manuale utente

Jura

Jura IMPRESSA E80 Manuale utente

Jura

Jura GIGA W3 Professional Specifiche tecniche

Jura

Jura IMPRESSA X90 Manuale utente

Jura

Jura WE6 Professional Manuale

Jura

Jura Impressa S guide Manuale utente

Jura

Jura IMPRESSA S9 One Touch Manuale utente

Jura

Jura D4 Manuale utente

Jura

Jura IMPRESSA X7-S Manuale utente

Jura

Jura IMPRESSA J5 Manuale utente

Jura

Jura IMPRESSA J9.4 One Touch TFT Manuale utente

Jura

Jura 14011 Manuale utente

Jura

Jura GIGA X8 Professional Manuale utente

Jura

Jura IMPRESSA C5 Manuale utente

Jura

Jura ENA Micro Series Manuale utente

Jura

Jura 748 Manuale utente

Jura

Jura ENA Micro 1 Manuale

Jura

Jura IMPRESSA Z7 Manuale utente

Jura

Jura IMPRESSA XJ9 OT TFT Professional Manuale

Jura

Jura IMPRESSA XJ9 Professional Manuale utente

Jura

Jura Z6 Manuale utente

Jura

Jura WE6 Professional Manuale utente

Jura

Jura IMPRESSA J9.3 One Touch TFT Manuale utente

Manuali Macchina per il caffè popolari di altre marche

Taurus

Taurus Livorno 6 Manuale utente

Delta-q

Delta-q QUICK Manuale utente

Bunn

Bunn LCA-1 Guida alla risoluzione dei problemi

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Istruzioni per l'installazione

Saeco

Saeco Vienna Plus Sup 018M Manuale utente

DeLonghi

DeLonghi DC300 Manuale utente

INCAPTO

INCAPTO BXCO1470E Manuale utente

Bosch

Bosch TASSIMO finesse TAS16B Series Manuale utente

Exido

Exido 245-072 Manuale utente

Animo

Animo OptiVend Choco Manuale utente

Siemens

Siemens TQ505DF Series Manuale utente

DeLonghi

DeLonghi ECI341 Manuale utente

Krups

Krups KT406511 Manuale utente

Cimbali

Cimbali M32 Classic Manuale utente

Philips

Philips HL3844N Manuale utente

Bosch

Bosch TES 515 SERIES Manuale utente

Tekmatix

Tekmatix TMFM - 65 Manuale utente

Scarlett

Scarlett SC-CM33005 Manuale utente
