KS-AX3205D

5-Channel Class D Power Amplifier

The 5-ch amplifier is a digital 4-ch amp and a mono amp in one, a highly versatile unit with a High Input terminal for various

setup. The compact size is 10% smaller than JVC’s other amplifiers, allowing easy installation for a new system or an addition

to upgrade your existing one. The input mode can be switched between 5ch/4ch on the unit.

Key Benefits

5-Channel

1000W Max.

✹Compact 5-channel mode Amplifier

This versatile digital 5-channel amp, which offers the characteristics of

both a 4-channel amp and a mono amp, can accommodate a variety of

systems. In addition to being a core unit in a newly configured system,

this amp has high input capacity together with switchable 4ch and 5ch

modes, so that it can be easily incorporated into existing car audio

systems. What’s more, its compact body size has been reduced by 10%

compared to previous JVC amps to enable flexible installation in a

variety of locations.

Variable

Bass Boost

Sound Dynamics

Design

Compact

Design Class-D

High Input

Input Mode

5ch 4ch

✹High Input Terminal

JVC amplifiers are equipped with high input terminals, making it

easy to integrate the amp into a car’s factory-installed audio system

with existing headunit and speakers, without having to implement a

major rewiring of the system to enjoy upgraded sound.

KS-AX3205D

4-ch

Class-D

Amplifier

Mono

Class-D

Amplifier

4-ch Amplifier

Mono Amplifier

High-Input Connector

Included

drvn AX3205D Amplifiers

NTK-0929-16

Key Specifications

KS-AX3205D

Topic Features

Operation Channel [4CH PART] 4, 3, or 2 / [MONO PART] 1

Max. Power Output 1000W

RMS Power Output @ 4ΩBridged [4CH PART] 130W RMS × 2

CEA-2006 compliant @ 4Ω[4CH PART] 50W RMS × 4 / [MONO PART] 200W RMS × 1

@ 2Ω [4CH PART] 65W RMS × 4 / [MONO PART] 300W RMS × 1

Circuit Class Class-D

Frequency Response (0, -3dB) [4CH PART] 5 - 30,000Hz / [MONO PART] 20 - 200Hz

THD (Total Harmonic Distortion) [4CH PART]< 0.04% @ 4Ω, 1,000Hz

[MONO PART]< 0.08% @ 4Ω, 100Hz

Line Input: Level/Impedance 2V/21kΩ

Pre-Output -

Crossover

HPF [4CH PART] 50 - 200Hz, -12dB/oct (Variable)

LPF [MONO PART] 50 - 200Hz, -18dB/oct (Variable)

Subsonic Filter ✔[MONO PART]

Other Controls

Variable Bass Boost Control ✔ [MONO PART] 45Hz, 0 - 18dB

Generals

Anti-Pop Circuit ✔

Power On Indicator/Protector Indicator Power On (GREEN)/Protector (OFF)

Dimensions (W x H x D) 13 7/16” × 2 1/8” × 7 5/16”

(340 × 53.5 × 185 mm)

Heatsink Dimensions (W x H x D) 11 13/16” × 2 1/16” × 7 5/16”

(300 × 52 × 185mm)

Weight 2.9kg (6.4 lbs.)

✹Variable Bass Boost Control

You can control your subwoofer’s bass

boost level (45Hz/0dB – -18dB) for a

customized sound.

✹Input Sensitivity (5V – 0.2V)

Input sensitivity has been improved over previous

models, with the new 0.2V setting enabling an

increased sense of volume.

KS-AX3205D 12-5/16 inch (312 mm)

11-13/16 inch (300 mm)

13-7/16 inch (340 mm)

7-5/16 inch (185 mm)

6-5/16 inch (160 mm)

2-1/8 inch

(53.5 mm)

3/16 inch (4.5 mm) x

4 HOLES

Dimensions

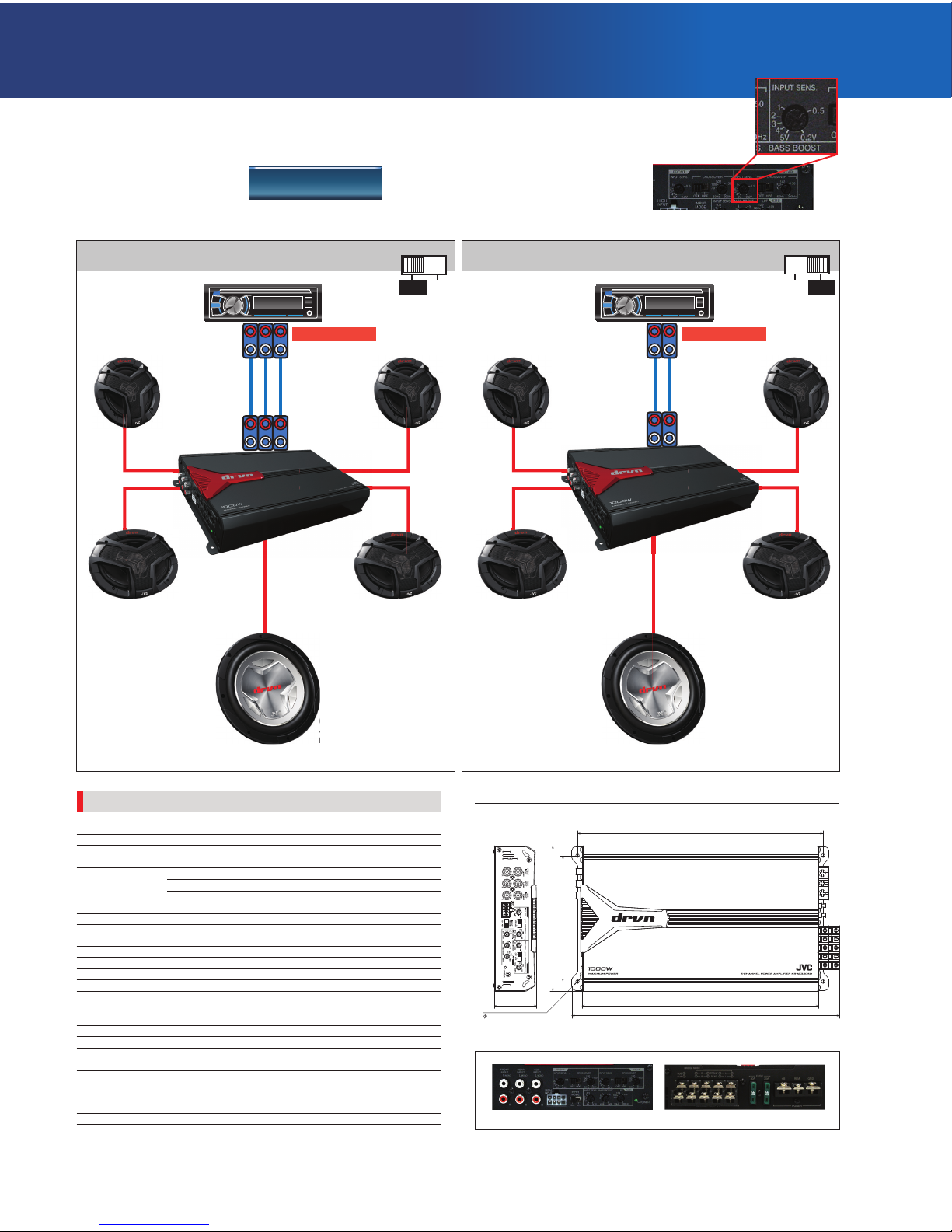

5-Channel Mode System 4-Channel Mode System

CS-V628

Input ModeAmplifierAmplifier

CS-V628

CS-GD1210

400W(RMS) 4Ω+4Ω

Parallel (2Ω)

CS-GD1210

400W(RMS) 4Ω+4Ω

Parallel (2Ω)

CS-V6948CS-V6948

CS-V628CS-V628

CS-V6948CS-V6948

CS-GD1210

400W(RMS) 4

Parallel (2

5ch 4ch

Input Mode

5ch 4ch

(0 – -18dB)

45Hz

Rear PanelControl Panel

3 Pre-Outputs 2 Pre-Outputs
