CD RECEIVER KD-S32
RECEPTOR CON CD KD-S32
For canceling the display demonstration, see page 8.
Para cancelar la demostración en pantalla, consulte la página 8.
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
For customer Use:
Enter below the Model
No. and Serial No. which
are located on the top or
bottom of the cabinet.
Retain this information for
future reference.
Model No.
Serial No.
GET0321-001A
[J]
Cover_KD-S32[J]f.indd 2Cover_KD-S32[J]f.indd 2 7/11/05 2:17:56 PM7/11/05 2:17:56 PM
2
ENGLISH

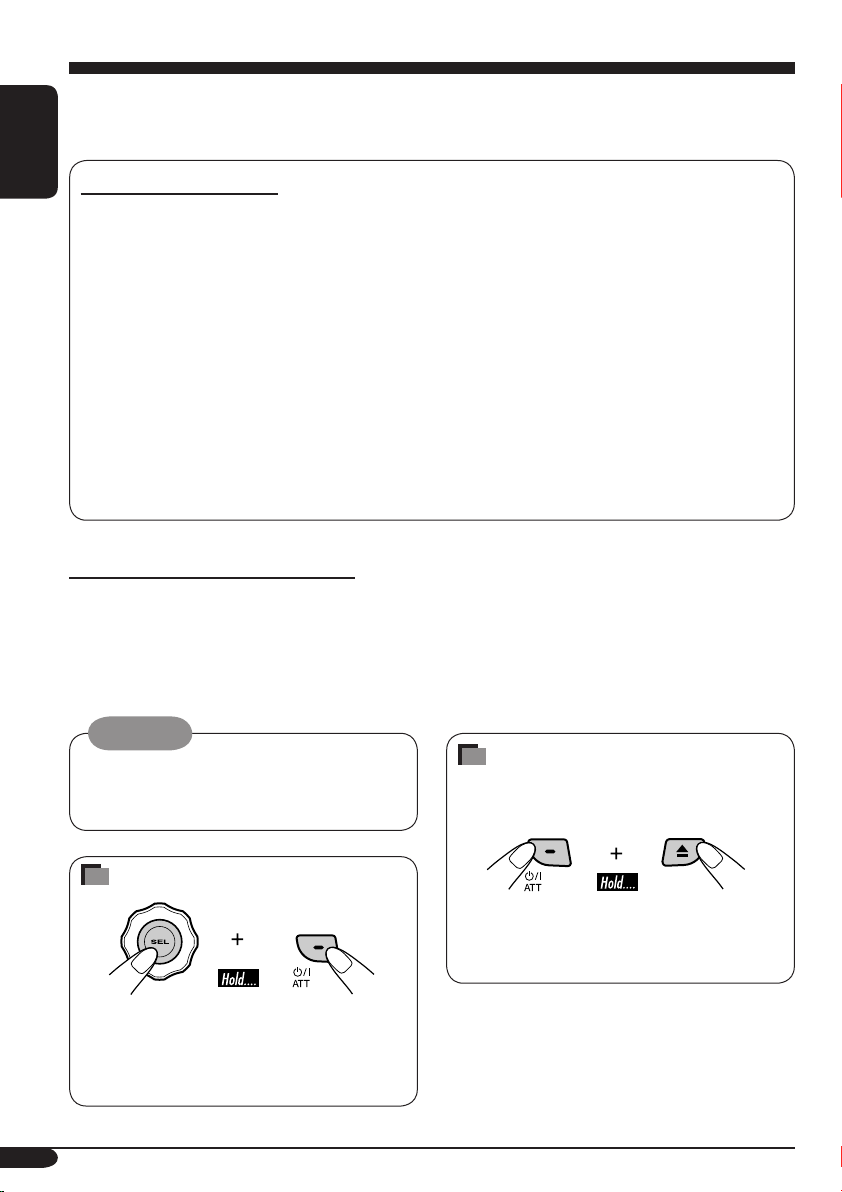

How to forcibly eject a disc
If a disc cannot be recognized or cannot be
ejected, eject the disc as follows.
• If this does not work, reset your unit.
• Be careful not to drop the disc when it
ejects.
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
INFORMATION (For U.S.A.)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and unit.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
Warning:
If you need to operate the unit while driving,
be sure to look ahead carefully or you may
be involved in a traffic accident.
How to reset your unit
• This will reset the microcomputer. Your
preset adjustments will also be erased.
• If a disc is loaded, it will eject. Be careful
not to drop the disc.
EN02-05_KD-S32[J]f.indd 2EN02-05_KD-S32[J]f.indd 2 7/11/05 2:18:17 PM7/11/05 2:18:17 PM
3
ENGLISH
How to reset your unit ........................... 2
How to forcibly eject a disc................... 2
How to read this manual........................ 4
How to use the MODE button ............... 4
How to detach/attach the control
panel................................................... 4
Control panel — KD-S32 ........... 5
Parts identification................................. 5
Remote controller — RM-RK60
... 6
Main elements and features ................... 6
Getting started....................... 7
Basic operations.................................. 7
Canceling the display demonstrations ... 8
Setting the clock .................................... 8
Radio operations ................... 9
Listening to the radio........................... 9
Storing stations in memory.................... 9
Listening to a preset station ................... 10
Disc operations ...................... 11
Playing a disc in the unit ..................... 11
Playing discs in the CD changer ........... 12
Other main functions ............................. 13
Changing the display information ......... 14
Selecting the playback modes................ 15
Sound adjustments ................ 16
Selecting preset sound modes
(C-EQ: custom equalizer) .................. 16
Adjusting the sound ............................... 16
General settings — PSM .........17
Basic operations..................................... 17
External component operations
... 19
Playing an external component ............ 19
SIRIUS
®
radio operations
............ 20
Listening to the SIRIUS®radio.............. 21
Storing channels in memory .................. 21
Listening to a preset channel ................. 21
Maintenance .......................... 22
More about this unit............... 23
Troubleshooting ..................... 25
Specifications ......................... 27
For safety....
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operations.
Contents
Temperature inside the car....
If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating the
unit.
EN02-05_KD-S32[J]f.indd 3EN02-05_KD-S32[J]f.indd 3 7/11/05 2:18:19 PM7/11/05 2:18:19 PM
4
ENGLISH
How to read this manual
The following methods are used to make the
explanations simple and easy-to-understand:
• Some related tips and notes are explained in
“More about this unit” (see page 23).
• Button operations are mainly explained with
the illustrations as follows:
Press briefly.
Press repeatedly.
Press either one.
Press and hold until
your desired response
begins.
Press and hold both
buttons at the same
time.

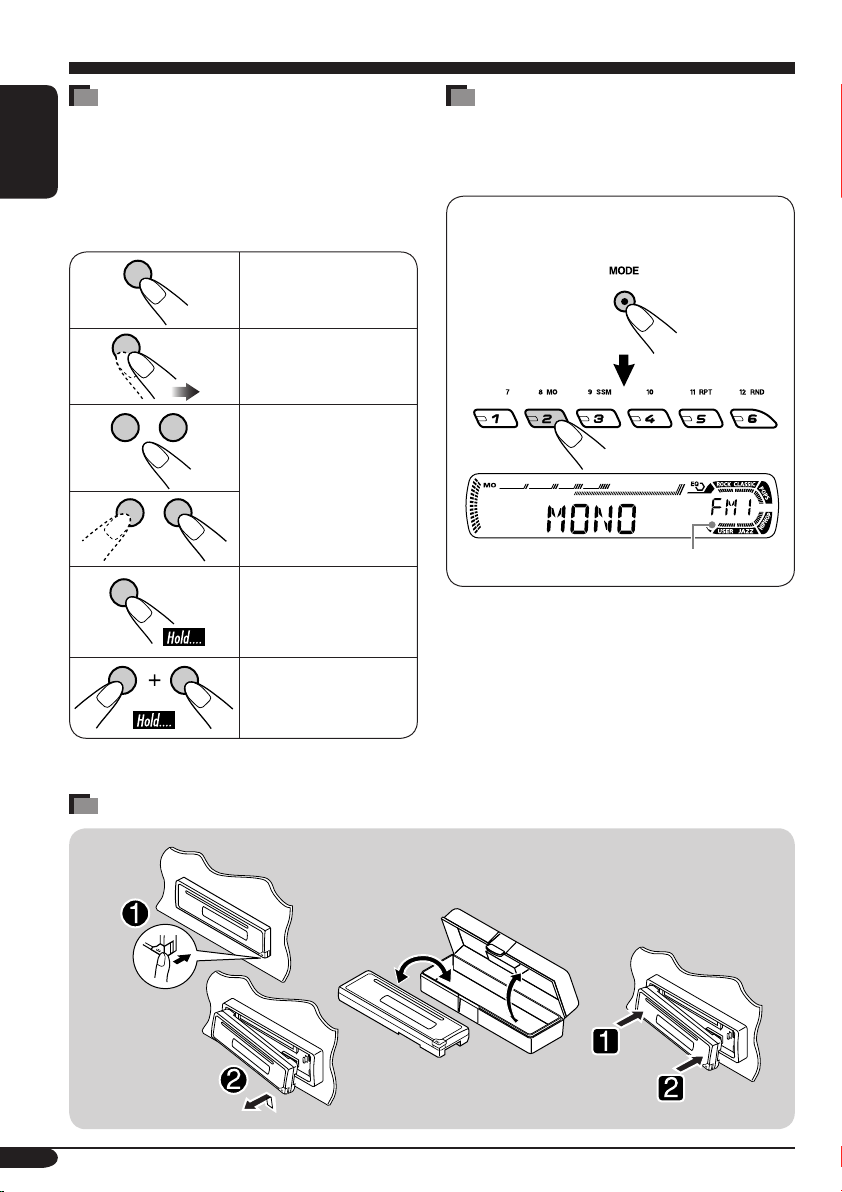

How to use the MODE button
If you press MODE, the unit goes into functions
mode, then the number buttons and 5/∞
buttons work as different function buttons.
Ex.: When number button 2 works as
MO (monaural) button.
Time countdown indicator
To use these buttons for their original
functions again after pressing MODE, wait
for 5 seconds without pressing any of these
buttons until the functions mode is cleared.
• Pressing MODE again also clears the
functions mode.
How to detach/attach the control panel
Detaching....
Attaching....
EN02-05_KD-S32[J]f.indd 4EN02-05_KD-S32[J]f.indd 4 7/11/05 2:18:20 PM7/11/05 2:18:20 PM
5
ENGLISH

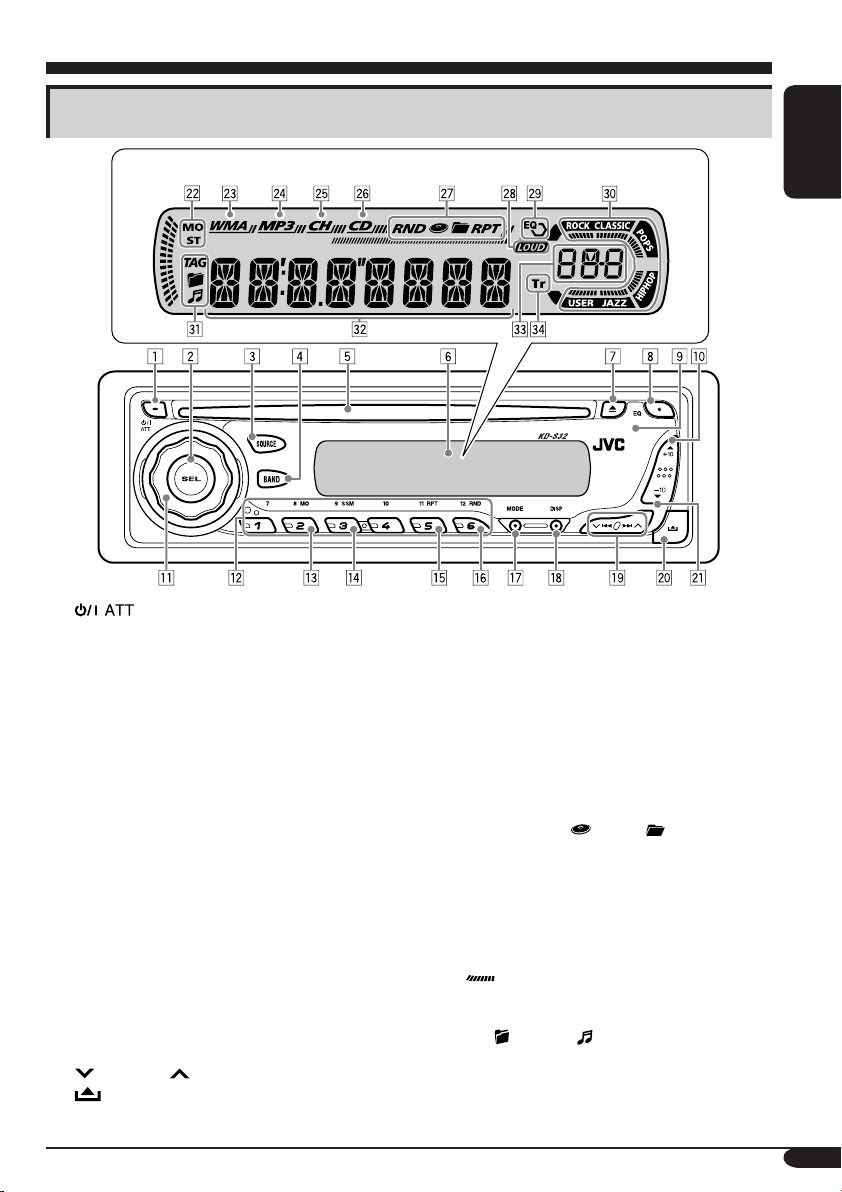

Control panel — KD-S32
Display window
1(standby/on attenuator) button
2SEL (select) button
3SOURCE button
4BAND button
5Loading slot
6Display window
70(eject) button
8EQ (equalizer) button
9Remote sensor
• DO NOT expose the remote sensor to
strong light (direct sunlight or artificial
lighting).
p5(up) button / +10 button
qControl dial
wNumber buttons
eMO (monaural) button
rSSM (Strong-station Sequential Memory)
button
tRPT (repeat) button
yRND (random) button
uMODE button
iDISP (display) button
o4/¢buttons
;(control panel release) button
a∞(down) button / –10 button
Display window
sTuner reception indicators—
MO (monaural), ST (stereo)
dWMA indicator
fMP3 indicator
gCH (CD changer) indicator
• Lights up only when CD-CH is selected
for the playback source.
hCD indicator
jPlayback mode / item indicators—
RND (random), (disc), (folder),
RPT (repeat)
kLOUD (loudness) indicator
lEQ (equalizer) indicator
/Sound mode (C-EQ: custom equalizer)
indicators—ROCK, CLASSIC, POPS,
HIP HOP, JAZZ, USER
• also works as the time countdown
indicator.
zDisc information indicators—TAG (ID3
Tag), (folder), (track/file)
xMain display
cSource display / Volume level indicator
vTr (track) indicator
Parts identification
EN02-05_KD-S32[J]f.indd 5EN02-05_KD-S32[J]f.indd 5 7/11/05 2:18:20 PM7/11/05 2:18:20 PM
6
ENGLISH
Remote controller — RM-RK60
Installing the lithium coin battery
(CR2025)
• Aim the remote controller directly at the
remote sensor on the unit. Make sure there
is no obstacle in between.
Warning:
• Do not install any battery other than
CR2025 or its equivalent; otherwise, it
may explode.
• Store the battery in a place where children
cannot reach to avoid risk of accident.
• To prevent the battery from over-heating,
cracking, or starting a fire:
– Do not recharge, short, disassemble,
heat the battery, or dispose of it in a fire.
– Do not leave the battery with other
metallic materials.
– Do not poke the battery with tweezers or
similar tools.
– Wrap the battery with tape and insulate
when throwing away or saving it.
Caution:
Main elements and features
1(standby/on attenuator) button
• Turns the power on if pressed briefly or
attenuates the sound when the power is
on.
• Turns the power off if pressed and held.
2SRC (source) button
• Selects the source.
3R (reverse) / F (forward) buttons
• Searches for stations if pressed briefly.
• Fast-forwards or reverses the track if
pressed and held.
• Changes the tracks of the disc.
• While listening to the SIRIUS radio:
– Changes the channels if pressed briefly.
– Changes the channels rapidly if pressed
and held.
4SOUND button
• Selects the sound mode (C-EQ: custom
equalizer).
5U (up) / D (down) buttons
• Changes the FM/AM bands with U (up)
only.
• Changes the preset stations with D (down)
only.
•
Changes the folder of the MP3/WMA discs.
• While playing an MP3 disc on an
MP3-compatible CD changer:
– Changes the disc if pressed briefly.
– Changes the folder if pressed and held.
• While listening to the SIRIUS radio:
– Changes the categories.
6VOLUME +/– buttons
• Adjusts the volume level.
EN06-11_KD-S32[J]f.indd 6EN06-11_KD-S32[J]f.indd 6 7/15/05 9:47:05 AM7/15/05 9:47:05 AM
7
ENGLISH
~
Ÿ
You cannot select some sources if they
are not ready.
!• For FM/AM tuner
• For SIRIUS®radio
* Select “CD-CH” when using an
Apple iPod®or a JVC D. player
(see page 19).
iPod is a registered trademark of
Apple Computer, Inc.
⁄Adjust the volume.
Volume level appears.
Volume level indicator
@Adjust the sound as you want.
(See page 16.)
To drop the volume in a moment (ATT)
To restore the sound, press
it again.
To turn off the power
Caution on volume setting:
Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
Getting started
Basic operations
EN06-11_KD-S32[J]f.indd 7EN06-11_KD-S32[J]f.indd 7 7/13/05 3:53:01 PM7/13/05 3:53:01 PM
8
ENGLISH

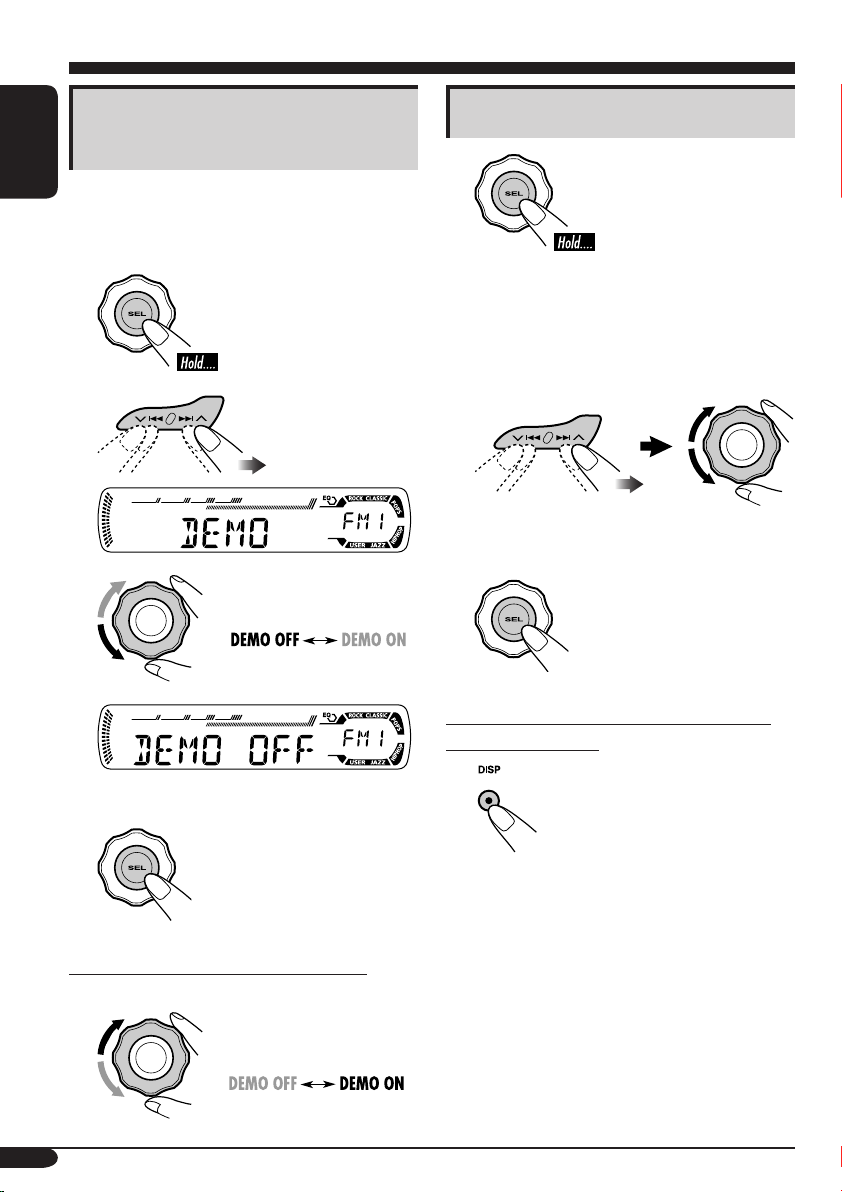

Canceling the display
demonstrations
If no operations are done for about 20 seconds,
display demonstration starts.
[Initial: DEMO ON]—see page 17.
1
2
3
4Finish the procedure.
To activate the display demonstration
In step 3above...
Setting the clock
1
2Set the hour and minute.
1Select “CLOCK H” (hour), then
adjust the hour.
2Select “CLOCK M” (minute),
then adjust the minute.
3Finish the procedure.
To check the current clock time when the
power is turned off
EN06-11_KD-S32[J]f.indd 8EN06-11_KD-S32[J]f.indd 8 7/11/05 2:18:44 PM7/11/05 2:18:44 PM
9
ENGLISH

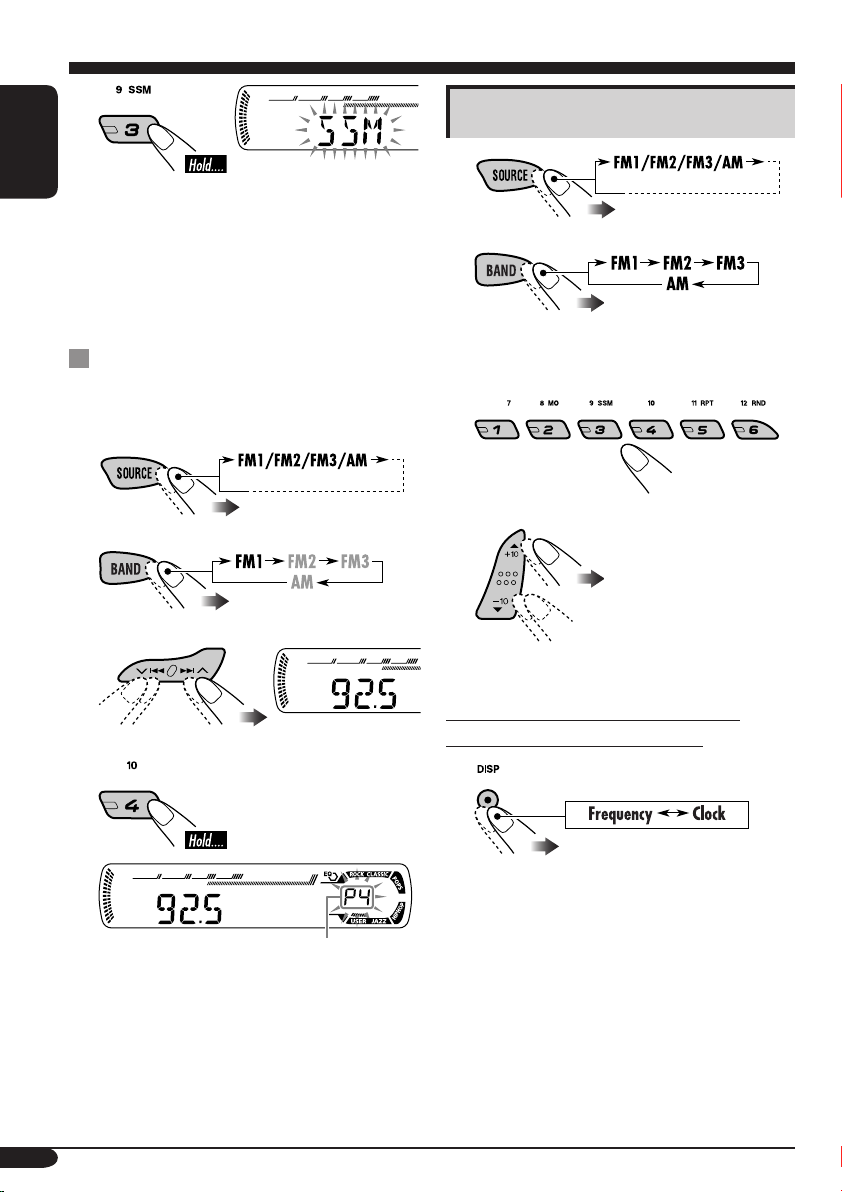

Radio operations
~
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
Selected band appears.
ŸStart searching for a station.
When a station is received, searching
stops.
To stop searching, press the same
button again.
To tune in to a station manually
In step Ÿabove...
1
2Select the desired station frequencies.
Listening to the radio When an FM stereo broadcast is hard to
receive
1
2
Lights up when monaural mode is activated.
Reception improves, but stereo effect will
be lost.
To restore the stereo effect, repeat the same
procedure so that the MO indicator goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting—
SSM (Strong-station Sequential
Memory)
1
2Select the FM band (FM1 – FM3)
you want to store into.
3
To be continued...
EN06-11_KD-S32[J]f.indd 9EN06-11_KD-S32[J]f.indd 9 7/11/05 2:18:45 PM7/11/05 2:18:45 PM
10
ENGLISH
4
“SSM” flashes, then disappears when
automatic presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset
number 4 of the FM1 band.
1
2
3
4
Preset number flashes for a while.
Listening to a preset station
1
2
3Select the preset station (1 – 6) you
want.
or
To check the current clock time while
listening to an FM or AM station
EN06-11_KD-S32[J]f.indd 10EN06-11_KD-S32[J]f.indd 10 7/11/05 2:18:46 PM7/11/05 2:18:46 PM
Questo manuale è adatto per i seguenti modelli
1
Indice
Lingue:
Altri manuali JVC Ricevitore per auto
JVC
JVC KD-G465 Manuale utente
JVC
JVC KD-G311 Guida
JVC
JVC KD-X70BT Manuale di istruzioni
JVC
JVC KD-AR470 - Radio / CD Guida
JVC
JVC KD-S21 Manuale utente
JVC
JVC KD-S13 Manuale utente
JVC
JVC 0210DTSMDTJEIN Manuale utente
JVC
JVC KD-AR760 - Arsenal CD Receiver Manuale utente
JVC
JVC KD-S73R Manuale utente
JVC
JVC KW-R510 Manuale utente
