JVC KD-AR270J Manuale utente
ENGLISH
ESPAÑOL
FRANÇAIS
CD RECEIVER KD-AR270/KD-G220
RECEPTOR CON CD KD-AR270/KD-G220
RECEPTEUR CD KD-AR270/KD-G220
For canceling the display demonstration, see page 5.
Para cancelar la demostración en pantalla, consulte la página 5.
Pour annuler la démonstration des affichages, référez-vous à la page 5.
For installation and connections, refer to the separate manual.
Para la instalación y las cone iones, refiérase al manual separado.
Pour l’installation et les raccordements, se référer au manuel séparé.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
For customer Use:
Enter below the Model
No. and Serial No. which
are located on the top or
bottom of the cabinet.
Retain this information
for future reference.
Model No.
Serial No.
GET0335-001A
[J]
KD-AR270
KD-G220
Cover_KD-AR270_G220[J]f.indd 2Cover_KD-AR270_G220[J]f.indd 2 10/4/05 6:21:14 PM10/4/05 6:21:14 PM

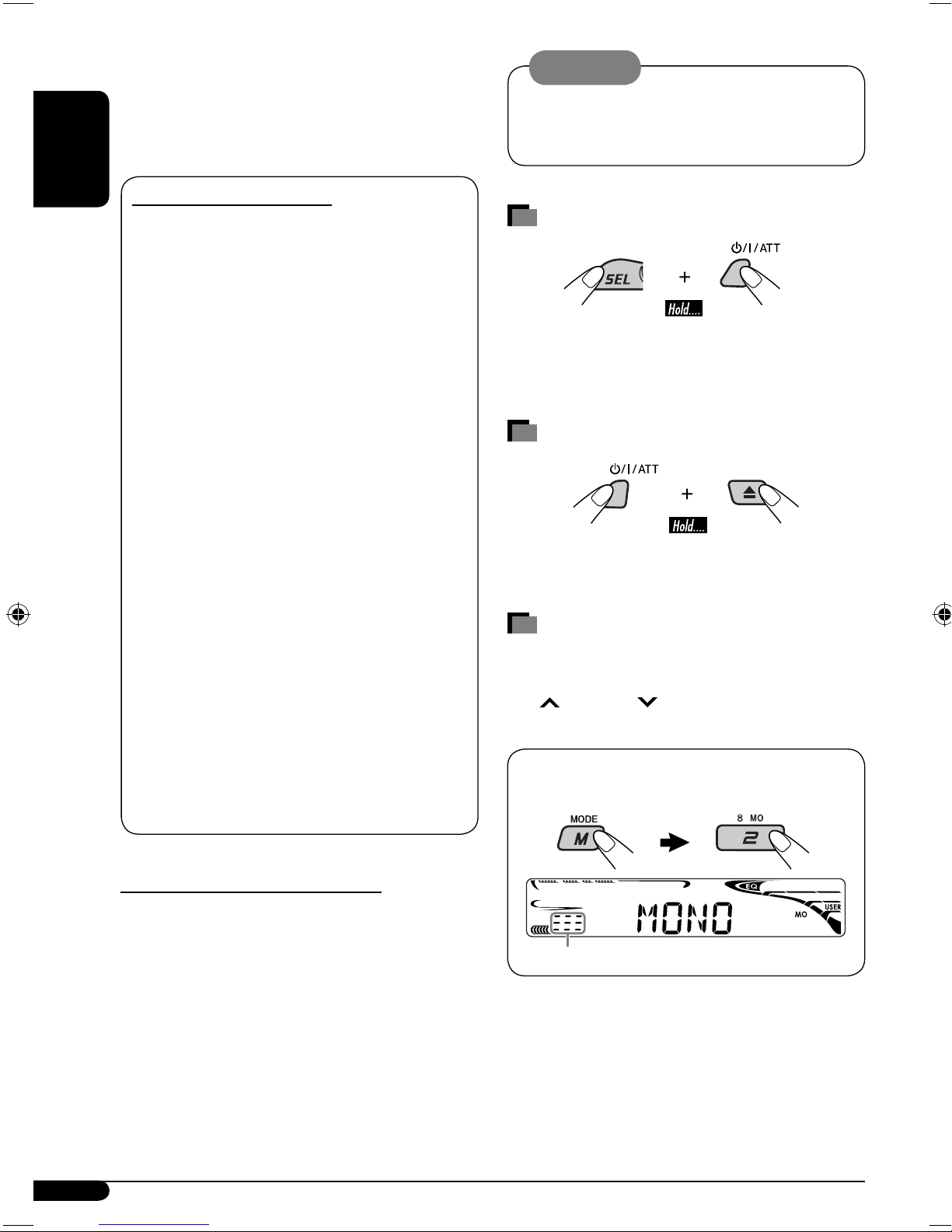

ENGLISH
2
Thank you for purchasing a JVC product.
Please read all instructions carefully
before operation, to ensure your complete
understanding and to obtain the best possible
performance from the unit.
INFORMATION (For U.S.A.)
This equipment has been tested and found
to comply with the limits for a Class B digital
de ice, pursuant to Part 15 of the FCC
Rules. These limits are designed to pro ide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. Howe er, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference
to radio or tele ision reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
– Reorient or relocate the recei ing antenna.
– Increase the separation between the
equipment and recei er.
– Connect the equipment into an outlet on
a circuit different from that to which the
recei er is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top co er.
There are no user ser iceable parts inside
the unit; lea e all ser icing to qualified
ser ice personnel.
3. CAUTION: Visible and in isible laser
radiation when open and interlock failed or
defeated. A oid direct exposure to beam.
Warning:
If you need to operate the unit while dri ing,
be sure to look ahead carefully or you may be
in ol ed in a traffic accident.
How to re et your unit
• Your preset adjustments will also be erased.
• If a disc is loaded, it will eject. Be careful not to
drop the disc.
How to forcibly eject a di c
• If this does not work, reset your unit.
• Be careful not to drop the disc when it ejects.
How to u e the M MODE button
If you press M MODE, the unit goes into
functions mode, then the number buttons
and ¢/4 buttons work as different
function buttons.
Ex.: When number button 2 works as
MO (monaural) button.
To use these buttons for their original
functions again after pressing M MODE, wait
for 5 seconds without pressing any of these
buttons until the functions mode is cleared or
press M MODE again.
Time countdown indicator
EN02-05_KD-AR270_G220[J]f.indd 2EN02-05_KD-AR270_G220[J]f.indd 2 10/4/05 6:21:22 PM10/4/05 6:21:22 PM

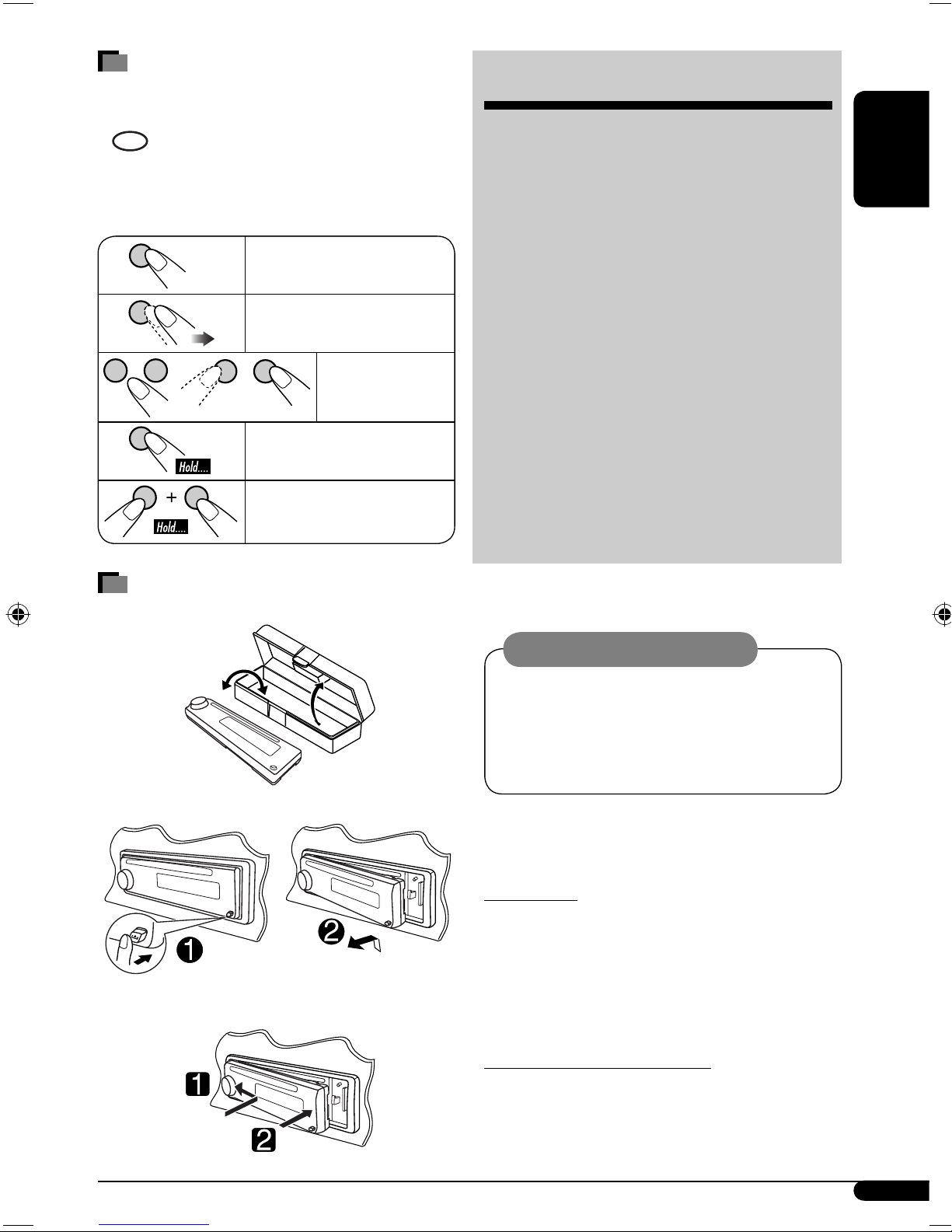

ENGLISH
3
CONTENTS
Control panel — KD-AR270 and KD-G220 ....... 4
Getting tarted ................................. 5
Basic operations .................................................... 5
Radio operation .............................. 6
Di c operation ................................. 7
Playing a disc in the unit ....................................... 7
Sound adju tment ........................... 9
General etting — PSM ................... 10
Remote controller — RM-RK60 .............. 12
Maintenance .................................... 13
More about thi unit ......................... 14
Trouble hooting ............................... 16
Specification ................................... 17
Caution on volume etting:
Discs produce ery little noise compared
with other sources. Lower the olume
before playing a disc to a oid damaging
the speakers by the sudden increase of the
output le el.
For afety...
• Do not raise the olume le el too much, as
this will block outside sounds, making dri ing
dangerous.
• Stop the car before performing any
complicated operations.
Temperature in ide the car...
If you ha e parked the car for a long time in hot
or cold weather, wait until the temperature in
the car becomes normal before operating the
unit.
How to read thi manual
• Button operations are mainly explained with
the illustrations in the table below.
• is used to indicate an indicator is
displayed for the corresponding operation.
• Some related tips and notes are explained in
“More about this unit” (see pages 14 and 15).
Press briefly.
Press repeatedly.
Press either
one.
Press and hold until your
desired response begins.
Press and hold both
buttons at the same time.
How to detach/attach the control
panel
Detaching...
Attaching...
EN02-05_KD-AR270_G220[J]f.indd 3EN02-05_KD-AR270_G220[J]f.indd 3 10/4/05 6:21:25 PM10/4/05 6:21:25 PM
ENGLISH
4

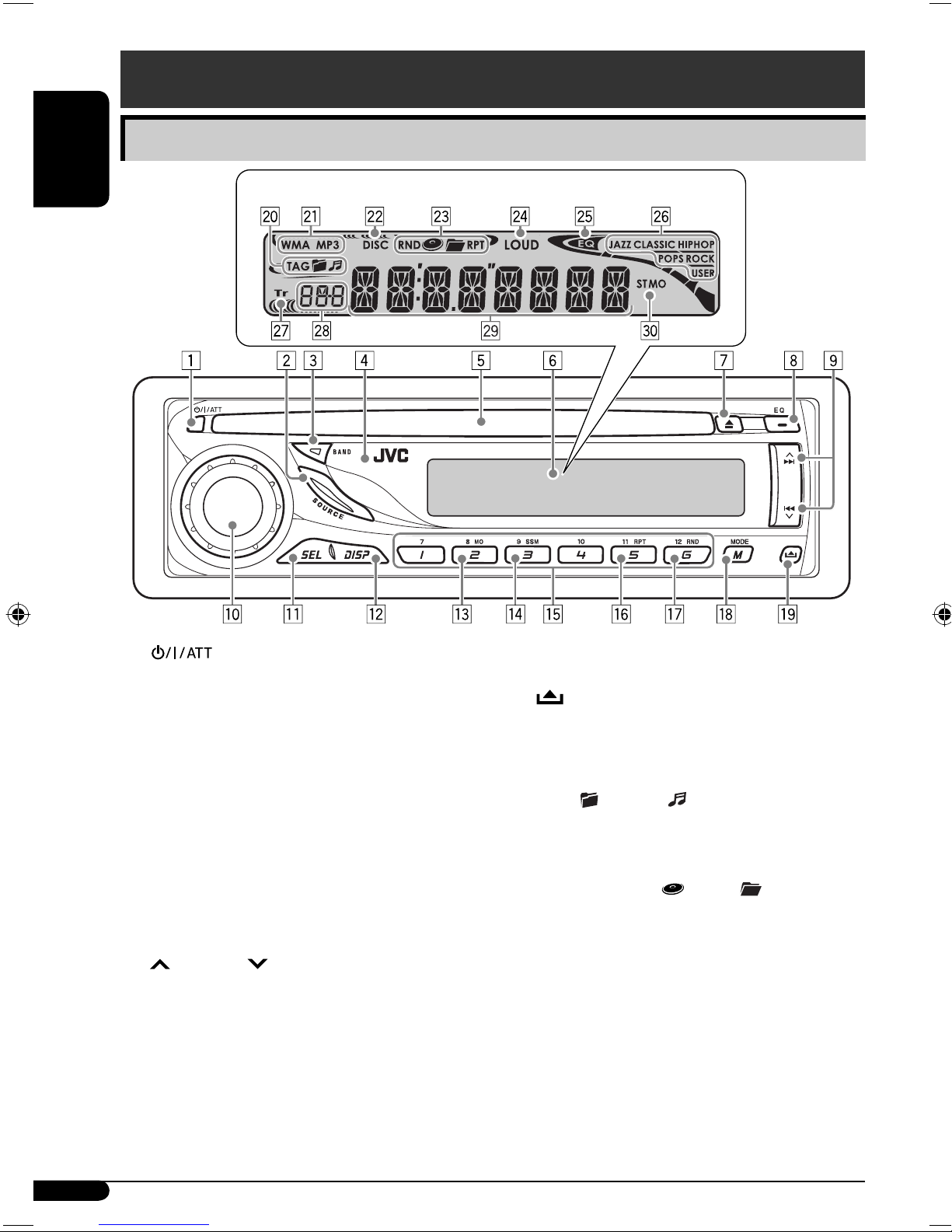

Control panel — KD-AR270 and KD-G220
1 (standby/on/attenuator) button
2 SOURCE button
3 BAND button
4 Remote sensor
• You can control this unit with an
optionally purchased remote controller. For
details, see page 12.
• DO NOT expose the remote sensor to
strong light direct sunlight or artificial
lighting).
5 Loading slot
6 Display indo
7 0 (eject) button
8 EQ (equalizer) button
9 ¢/4 buttons
p Control dial
q SEL (select) button
w DISP (display) button
e MO (monaural) button
r SSM (Strong-station Sequential Memory)
button
t Number buttons
y RPT (repeat) button
u RND (random) button
i M MODE button
o (control panel release) button
Display window
; Disc information indicators—TAG (ID3
Tag), (folder), (track/file)
a Disc type indicators—WMA, MP3
s DISC indicator
d Playback mode / item indicators—
RND (random), (disc), (folder),
RPT (repeat)
f LOUD (loudness) indicator
g EQ (equalizer) indicator
h Sound mode (C-EQ: custom equalizer)
indicators—JAZZ, CLASSIC, HIP HOP,
POPS, ROCK, USER
j Tr (track) indicator
k Source display / Volume level indicator /
Time countdo n indicator
l Main display
/ Tuner reception indicators— ST (stereo),
MO (monaural)
Parts identification
Display window
EN02-05_KD-AR270_G220[J]f.indd 4EN02-05_KD-AR270_G220[J]f.indd 4 10/14/05 11:35:30 AM10/14/05 11:35:30 AM

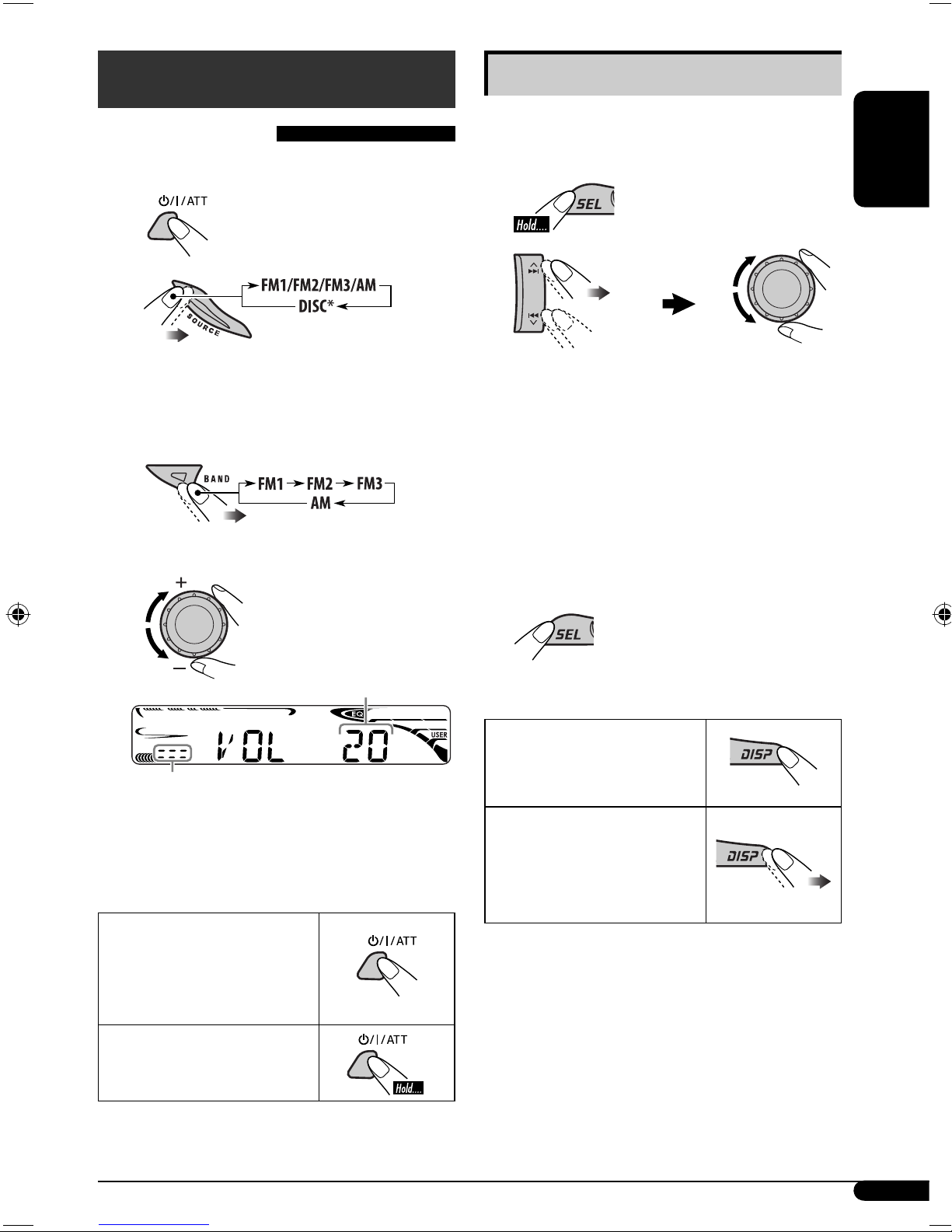

ENGLISH
5
Basic settings
• See also “General settings — PSM” on pages
10 and 11.
1
2
1 Canceling the display
demonstrations
Select “DEMO,” then “DEMO OFF.”
2 Setting the clock
Select “ LO K H” (hour), then adjust
the hour.
Select “ LO K M” (minute), then
adjust the minute.
3 Finish the procedure.
To check the current clock
time while the power is
turned off
To check the other
information while
listening to the radio
Clock Ô Frequency
Getting started
Basic operations
~ Turn on the power.
Ÿ
* You cannot select “DISC” as the
playback source if there is no disc in the
unit.
! For FM/AM tuner
⁄ Adjust the volume.
@ Adjust the sound as you want. (See
page .)
To drop the volume in a
moment (ATT)
To restore the sound, press
it again.
To turn off the power
Volume level appears.
Volume level indicator
EN02-05_KD-AR270_G220[J]f.indd 5EN02-05_KD-AR270_G220[J]f.indd 5 10/18/05 4:22:25 PM10/18/05 4:22:25 PM

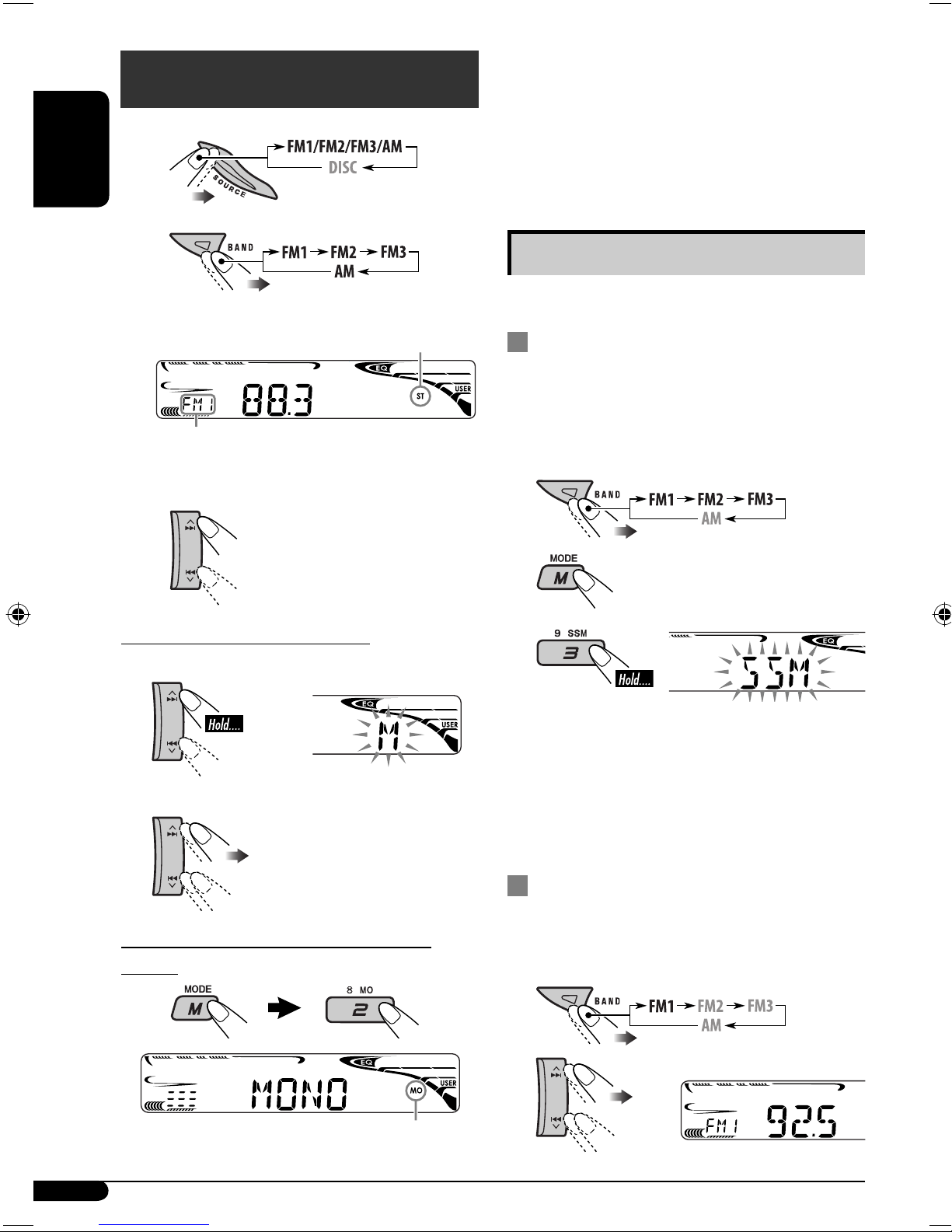

ENGLISH
6
Radio operations
~
Ÿ
! Start searching for a station.
When a station is received,
searching stops.
To stop searching, press the
same button again.
To tune in to a station manually
In step ! above...
1
2 Select the desired station frequencies.
When an FM stereo broadcast is hard to
receive
Reception improves, but stereo effect will be
lost.
To restore the stereo effect, repeat the same
procedure. “MONO OFF appears and the MO
indicator goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting —
SSM (Strong-station Sequential
Memory)
1 Select the FM band (FM1 – FM3) you
ant to store into.
2
3
“SSM flashes, then disappears when
automatic presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset
number 4 of the FM1 band.
1
2
Lights up when monaural mode is activated.
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
Selected band appears.
EN06-11_KD-AR270_G220[J]f.indd 6EN06-11_KD-AR270_G220[J]f.indd 6 10/14/05 11:35:52 AM10/14/05 11:35:52 AM
ENGLISH

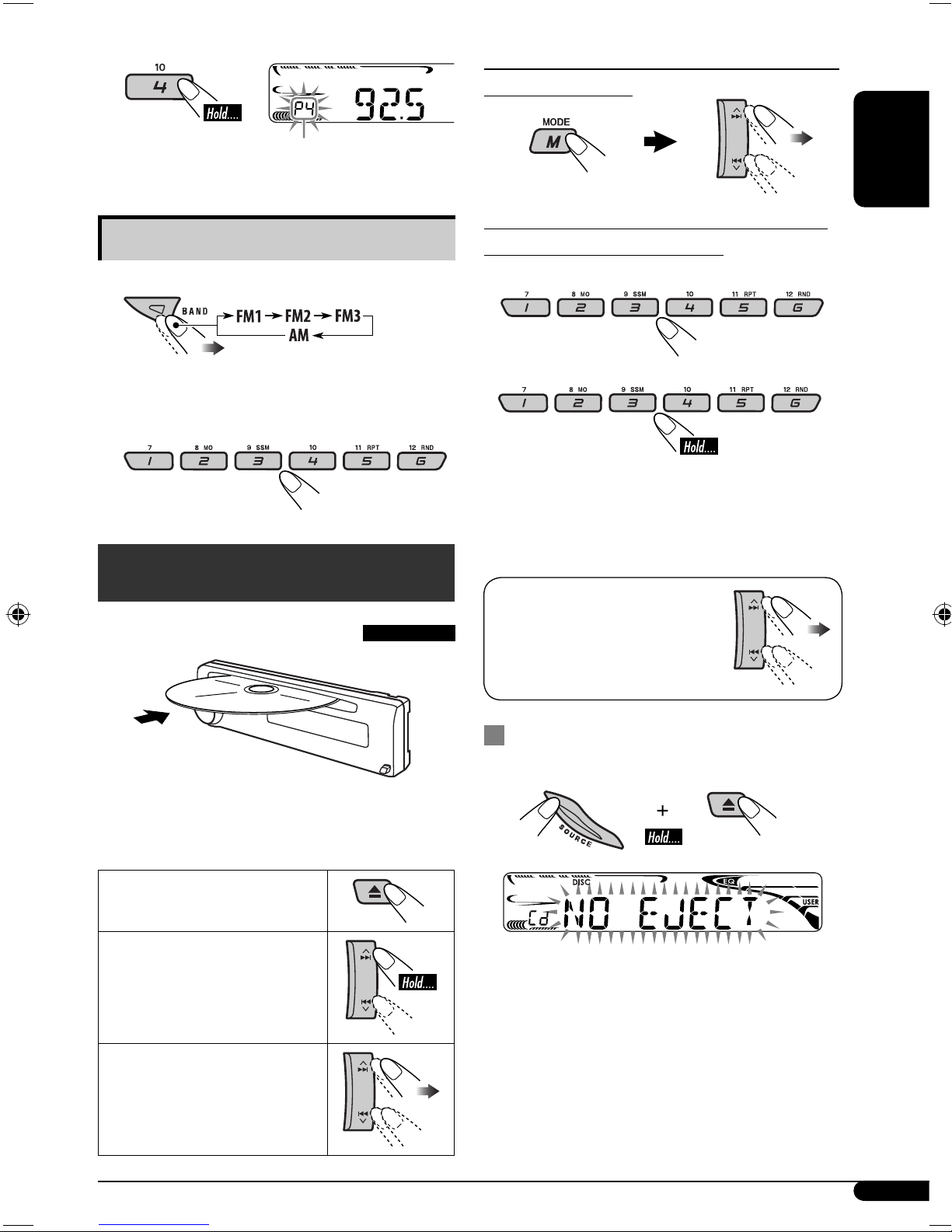

7
3
Listening to a preset station
1
2 Select the preset station (1 – 6) you
want.
Disc operations
Playing a disc in the unit
All tracks will be played repeatedly until you
change the source or eject the disc.
To stop play and eject the
disc
To fast-forward or reverse
the track
To go to the next or
previous tracks
To go to the next or previous folders (only for
MP3 or WM discs)
To locate a particular track (for CD) or folder
(for MP3 or WM discs) directly
To select a number from 01 – 06:
To select a number from 0 – 12:
• To use direct folder access on MP3/WMA
discs, it is required that folders are assigned
with 2-digit numbers at the beginning of their
folder names—01, 02, 03, and so on.
To select a particular track in
a folder (for MP3 or WMA
disc):
Prohibiting disc ejection
You can lock a disc in the loading slot.
To cancel the prohibition, repeat the same
procedure.
Preset number flashes for a while.
EN06-11_KD-AR270_G220[J]f.indd 7EN06-11_KD-AR270_G220[J]f.indd 7 10/18/05 4:18:21 PM10/18/05 4:18:21 PM

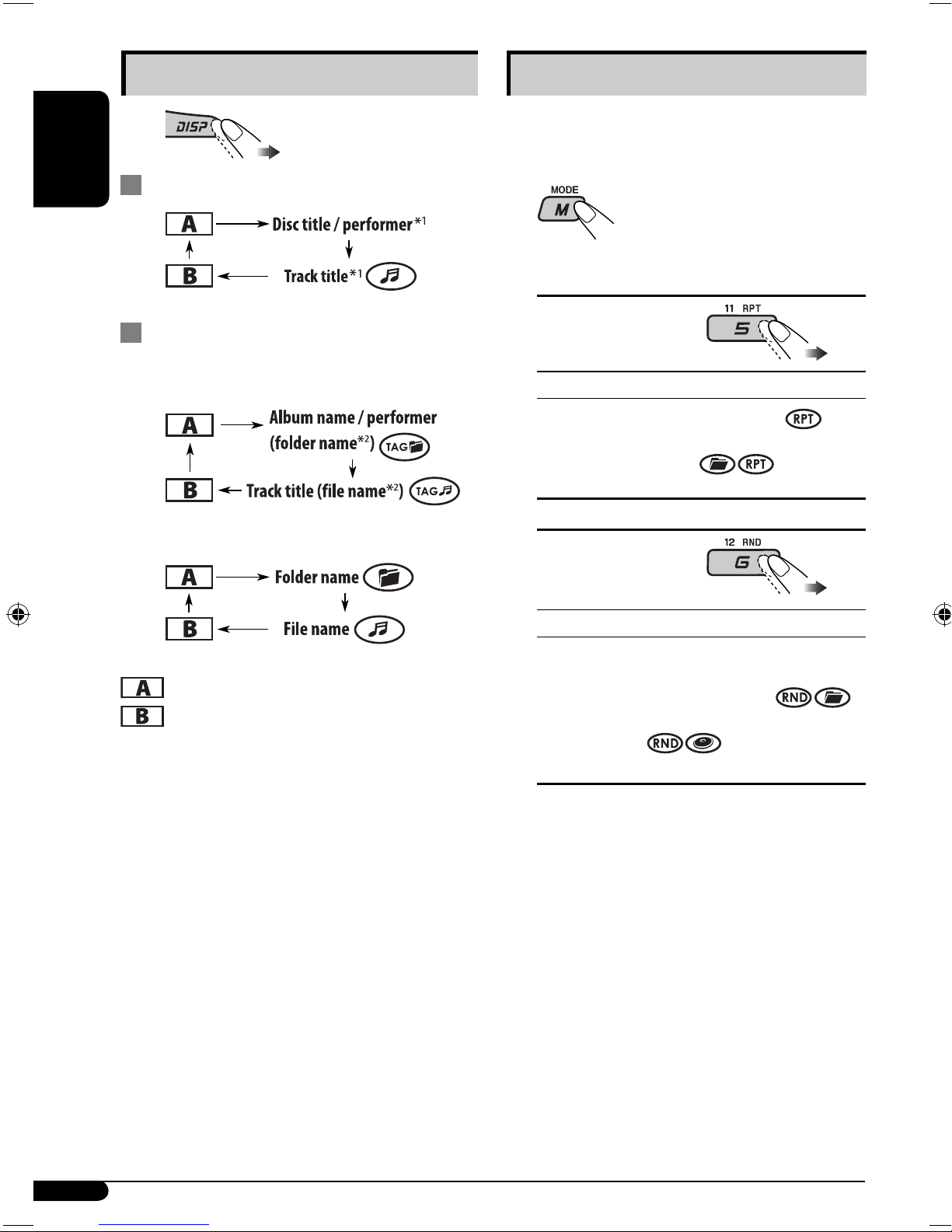

ENGLISH
8
Selecting the playback modes
You can use only one of the following playback
modes at a time.
1
2 Select your desired playback mode.
7 Repeat play
Mode lays repeatedly
TRK RPT : The current track.
FLDR RPT*3 : All tracks of the current
folder.
RPT OFF : Cancels.
7 Random play
Mode lays at random
FLDR RND*3 : All tracks of the current
folder, then tracks of the next
folder and so on.
DISC RND : All tracks of the current disc.
RND OFF : Cancels.
*3 Only while playing an MP3 or a WMA
disc.
Changing the display information
While playing an audio CD or a CD Text
While playing an M 3 or a WMA disc
• When “TAG DISP” is set to “TAG ON”
(see page 11)
• When “TAG DISP” is set to “TAG OFF”
: Clock ith the current track number
: Elapsed playing time ith the current
track number
*1 If the current disc is an audio CD,
“ O AME” appears.
*2 If an MP3/WMA file does not have ID3 tags,
folder name and file name appear. In this
case, the TAG indicator will not light up.
EN06-11_KD-AR270_G220[J]f.indd 8EN06-11_KD-AR270_G220[J]f.indd 8 10/4/05 6:21:45 PM10/4/05 6:21:45 PM
ENGLISH
9

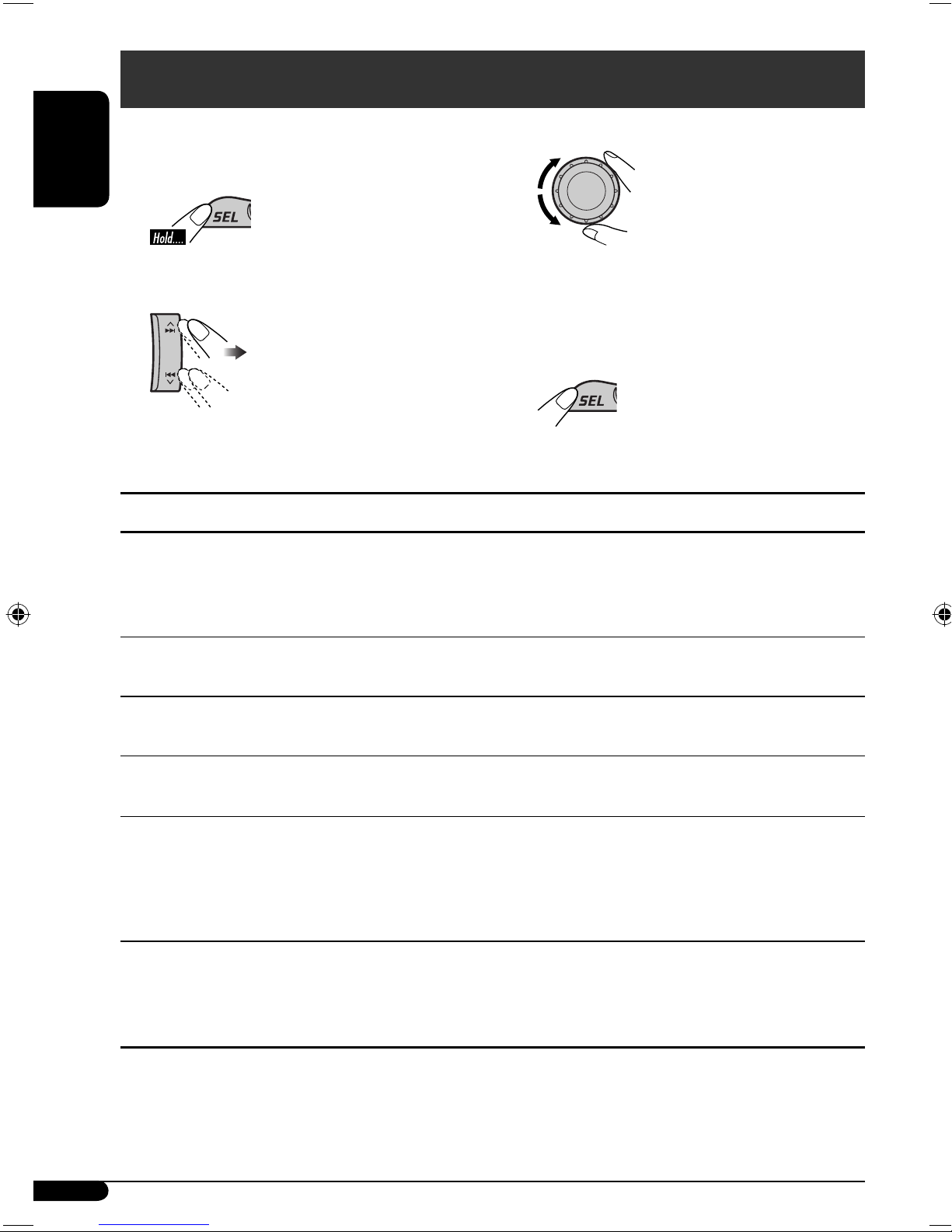

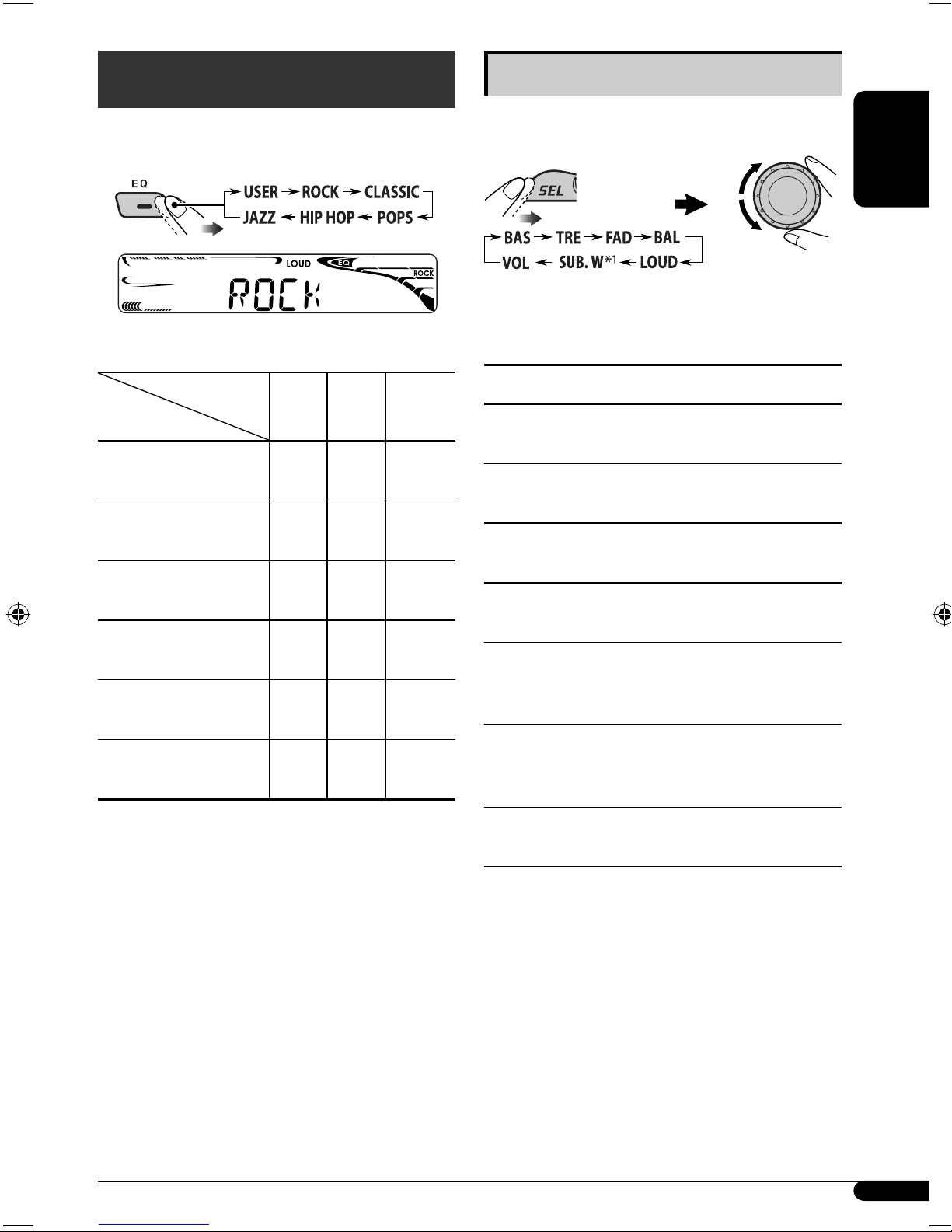

Sound adjustments
You can select a preset sound mode suitable to
the music genre (C-EQ: custom equalizer).
BAS
(bass)
TRE
(treble)
LOUD
(loudness)
USER
(Flat sound) 00 00 FF
ROCK
(Rock or disco music) +03 +01 N
CLASSIC
(Classical music) +01 –02 FF
POPS
(Light music) +04 +01 FF
HIP HOP
(Funk or rap music) +02 00 N
JAZZ
(Jazz music) +02 +03 FF
Adjusting the sound
You can adjust the sound characteristics to your
preference.
*1 Displayed only when “L/O MODE” is set to
“WOOFER” (see page 11).
Indication, [Range]
BAS*2 (bass), [–06 to +06]
Adjust the bass.
TRE*2 (treble), [–06 to +06]
Adjust the treble.
FAD*3 (fader), [R06 to F06]
Adjust the front and rear speaker balance.
BAL*4 (balance), [L06 to R06]
Adjust the left and right speaker balance.
LOUD*2 (loudness), [L UD N or L UD FF]
Boost low and high frequencies to produce a
well-balanced sound at low volume level.
SUB. W
*5
(subwoofer), [00 to 08]
Adjust the subwoofer output level when a
subwoofer is connected.
VOL (volume), [00 to 30 or 50*6]
Adjust the volume.
*2 When you ad ust the bass, treble, or loudness,
the ad ustment you have made is stored for
the currently selected sound mode (C-EQ)
including “USER.”
*3 If you are using a two-speaker system, set the
fader level to “00.”
*4 This ad ustment cannot affect the subwoofer
output.
*5 This takes effect only when a subwoofer is
connected.
*6 Depending on the amplifier gain control
setting. (See page 11 for details.)
Preset va ues
Indication (For)
Ex.: When “ROCK” is selected
EN06-11_KD-AR270_G220[J]f.indd 9EN06-11_KD-AR270_G220[J]f.indd 9 10/14/05 11:36:21 AM10/14/05 11:36:21 AM
ENGLISH
10
Indications Selectable settings, [reference page]
DEMO
Display
demonstration
DEMO ON : [Initial]; Display demonstration will be activated
automatically if no operation is done for about 20 seconds,
[5].
DEMO OFF : Cancels.
CLOCK H
Hour adjustment
– 2, [5]
[Initial: 1 (1:00)]
CLOCK M
Minute adjustment
00 – 59, [5]
[Initial: 00 (1:00)]
DIMMER
Dimmer
ON : Dims the display illumination of this unit.
OFF : [Initial]; Cancels.
SCROLL*
Scroll
ONCE : [Initial]; Scrolls the disc information once.
AUTO : Repeats scrolling (5-second intervals in between).
OFF : Cancels.
• Pressing DISP for more than one second can scroll the display regardless
of the setting.
WOOFER*2
Subwoofer cutoff
frequency
LOW : Frequencies lower than 55 Hz are sent to the subwoofer.
MID : [Initial]; Frequencies lower than 85 Hz are sent to the
subwoofer.
HIGH : Frequencies lower than 5 Hz are sent to the subwoofer.
* Some characters or symbols will not be shown correctly (or will be blanked) on the display.
*2 Displayed only when L/O MODE” is set to WOOFER.”
General settings — PSM
You can change PSM (Preferred Setting Mode)
items listed in the table that follows.
1
2 Select a PSM item.
3 Adjust the PSM item selected.
4 Repeat steps 2 and 3 to adjust other
PSM items if necessary.
5 Finish the procedure.
EN06-11_KD-AR270_G220[J]f.indd 10EN06-11_KD-AR270_G220[J]f.indd 10 10/18/05 11:03:05 AM10/18/05 11:03:05 AM
Altri manuali per KD-AR270J
1
Questo manuale è adatto per i seguenti modelli
3
Indice
Altri manuali JVC Ricevitore per auto
JVC
JVC KD-R301 Manuale utente
JVC
JVC KW-V40BT Manuale utente
JVC
JVC KD-ABT22 Manuale utente
JVC
JVC KD-T952BT Manuale utente
JVC
JVC GET0260-003B Manuale utente
JVC
JVC KD-SX1500R Manuale utente
JVC
JVC KD-AVX11 - EXAD - DVD Player Manuale utente
JVC
JVC KD-R406 Guida
JVC
JVC KD-DV6404 Manuale utente
JVC
JVC KD-G152 Manuale utente
JVC
JVC kd-s5058 Manuale utente
JVC
JVC KW-XC888 Manuale utente
JVC
JVC KW-XC828 Manuale utente
JVC
JVC KW-XC88 Manuale utente
JVC
JVC KD-G126 Manuale utente
JVC
JVC KW-XG500J Manuale utente
JVC
JVC KD-LX30R Manuale utente
JVC
JVC KD-LX50R Manuale utente
JVC
JVC CD Receiver KD-SHX701 Manuale utente
JVC
JVC KD-G405SU Manuale utente
