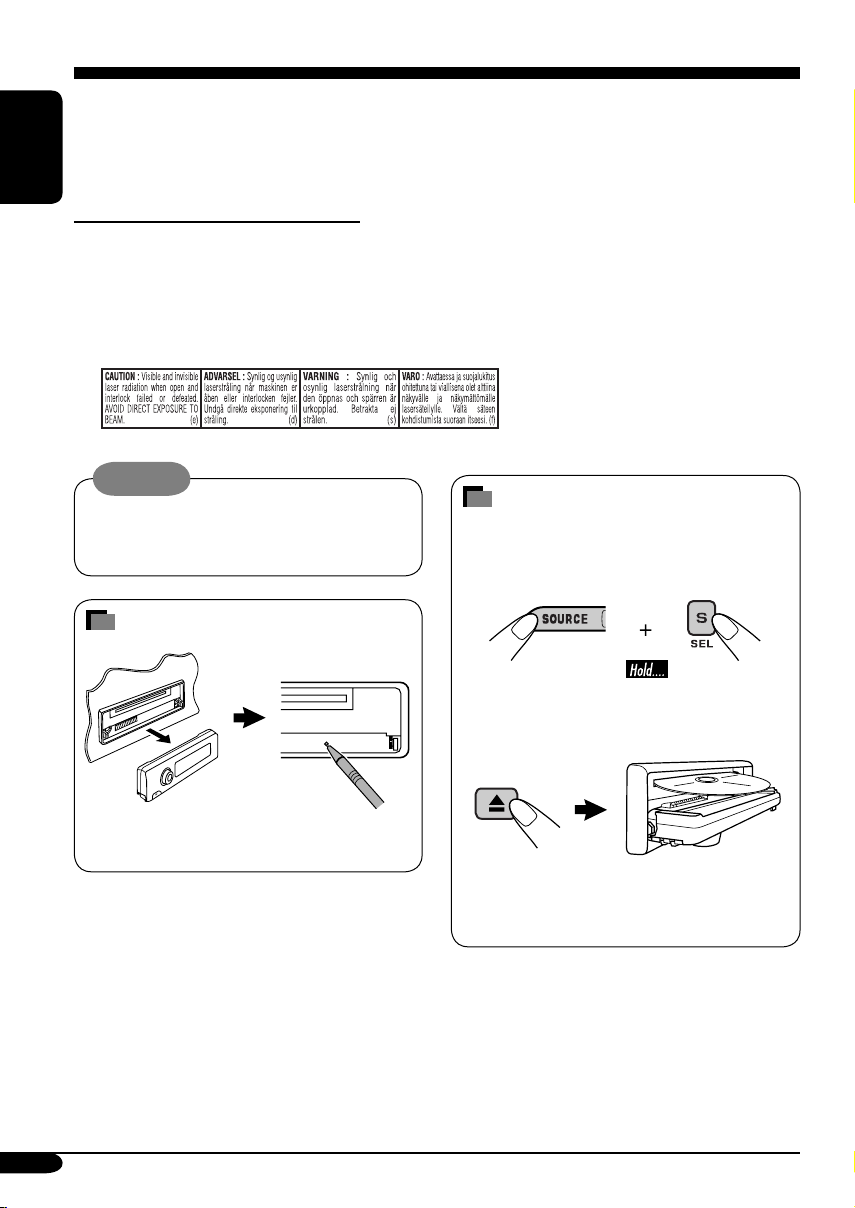

How to forcibly eject a disc
If a disc cannot be recognized by the
receiver or cannot be ejected, ejects the disc
as follows.
“PLEASE” and “EJECT” appear alternately
on the display.
• If this does not work, reset your receiver.
• Be careful not to drop the disc when it
ejects.
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
Warning:
If you need to operate the receiver while
driving, be sure to look ahead carefully or
you may be involved in a traffic accident.
How to reset your unit
This will reset the microcomputer. Your
preset adjustments will also be erased.
EN02-05_G617[EE]f.indd 2EN02-05_G617[EE]f.indd 2 1/11/05 5:26:38 PM1/11/05 5:26:38 PM
3
ENGLISH
How to reset your unit ........................... 2
How to forcibly eject a disc................... 2
How to read this manual........................ 4
How to use the M MODE button........... 4
Control panel —
KD-G617
......... 5
Parts identification................................. 5
Remote controller —
RM-RK50
... 6
Main elements and features ................... 6
Getting started....................... 7
Basic operations.................................. 7
Canceling the display demonstrations ... 8
Setting the clock .................................... 8
Radio operations ................... 9
Listening to the radio........................... 9
Storing stations in memory.................... 10
Listening to a preset station ................... 10
FM RDS operations................. 11
Searching for your favorite FM RDS
programme
....................................... 11
Storing your favorite programmes......... 12
Using the standby receptions................. 12
Tracking the same programme
—Network-Tracking Reception ........ 13
Disc operations ...................... 14
Playing a disc in the receiver ............... 14
Playing discs in the CD changer ........... 15
Other main functions ............................. 17
Changing the display information ......... 18
Selecting the playback modes................ 19
Sound adjustments ................ 20
Selecting preset sound modes
(C-EQ: custom equalizer) .................. 20
Adjusting the sound ............................... 21
General settings — PSM ......... 22
Basic procedure ..................................... 22
Other main functions ............. 25
Assigning titles to the sources ............... 25
Detaching the control panel................... 26
External component operations
... 27
Playing an external component ............ 27
DAB tuner operations
................ 28
Listening to the DAB tuner ................... 28
Storing DAB services in memory.......... 29
Tuning in to a preset DAB service ........ 29
Tracing the same programme
—Alternative Reception .................... 29
Maintenance .......................... 30
More about this receiver ........ 31
Troubleshooting ..................... 34
Specifications ......................... 37
*Temperature inside the car....
If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating the
unit.
Contents
*For safety....
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operations.
EN02-05_G617[EE]f.indd 3EN02-05_G617[EE]f.indd 3 1/11/05 5:26:40 PM1/11/05 5:26:40 PM
4
ENGLISH
How to read this manual
The following methods are used to make the
explanations simple and easy-to-understand:
• Some related tips and notes are explained in
“More about this receiver” (see pages
31 – 33).

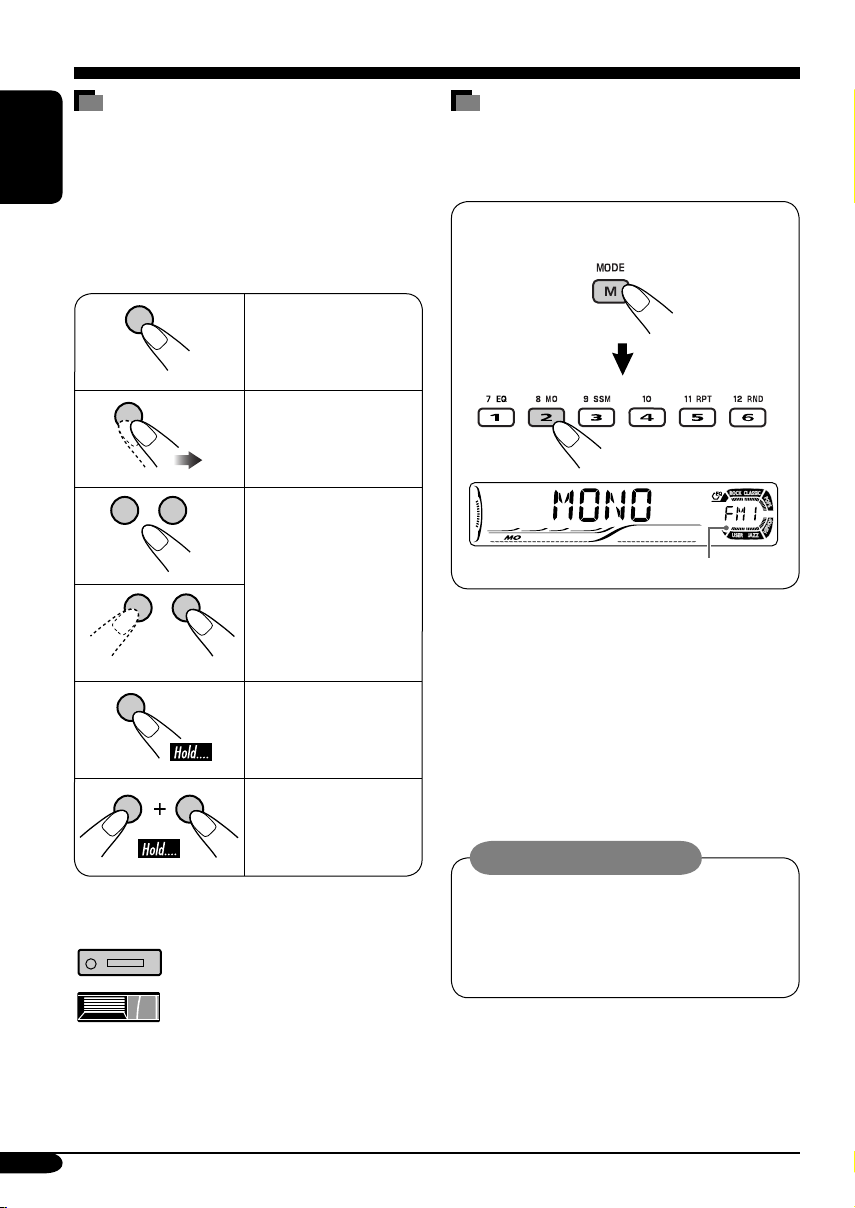

• Button operations are mainly explained with
the illustrations as follows:
Press briefly.
Press repeatedly.
Press either one.
Press and hold until
your desired response
begins.
Press and hold both
buttons at the same
time.
The following marks are used to indicate...
: Built-in CD player operations.
: External CD changer operations.
How to use the M MODE button
If you press M MODE, the receiver goes into
functions mode, then the number buttons and
5/∞buttons work as different function buttons.
Ex.: When number button 2 works as
MO (monaural) button.
Time countdown indicator
To use these buttons for original functions
again after pressing M MODE, wait for
5 seconds without pressing any of these buttons
until the functions mode is cleared.
• Pressing M MODE again also clears the
functions mode.
Caution on volume setting:
Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
EN02-05_G617[EE]f.indd 4EN02-05_G617[EE]f.indd 4 1/11/05 5:26:40 PM1/11/05 5:26:40 PM
5
ENGLISH

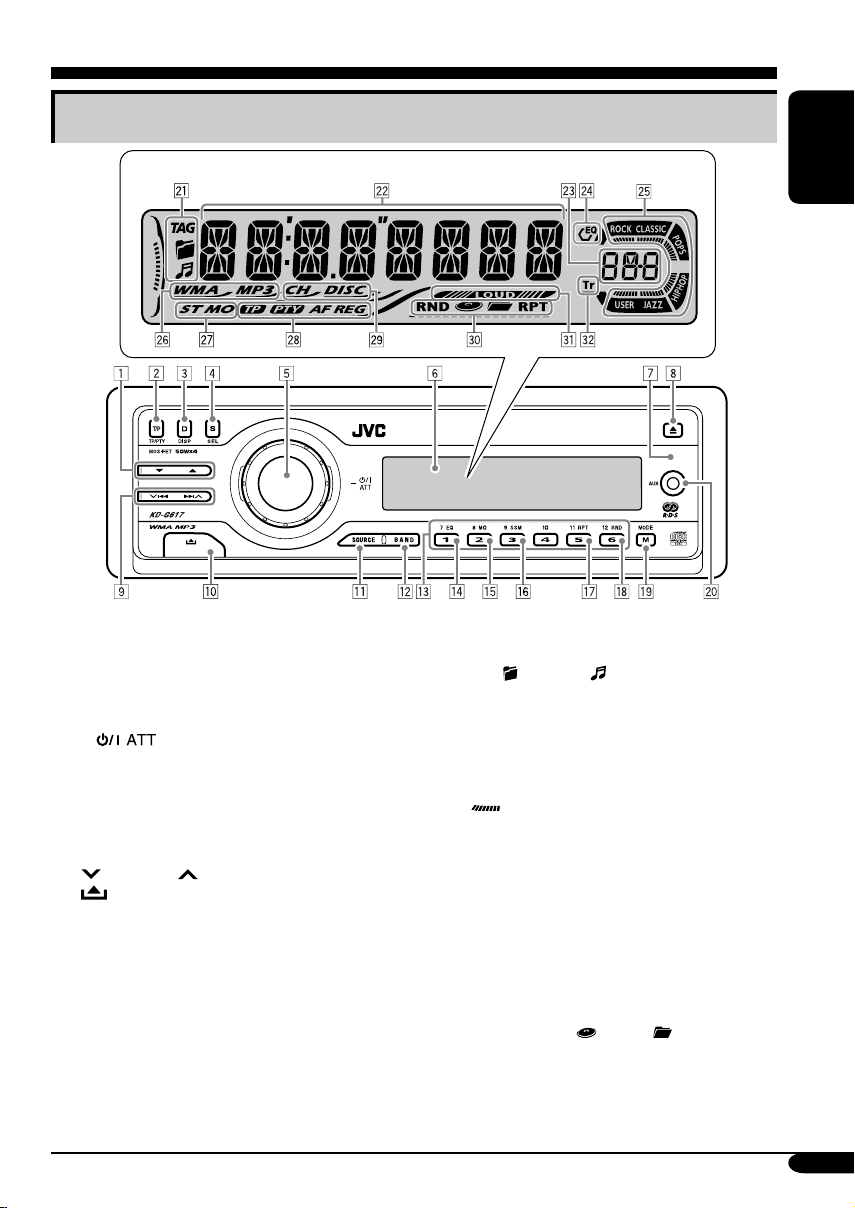

Control panel — KD-G617
15(up) / ∞(down) buttons
2T/P TP/PTY (traffic programme/programme
type) button
3D DISP (display) button
4S SEL (select) button
5• Control dial
• (standby/on attenuator) button
6Display window
7Remote sensor
• DO NOT expose the remote sensor to
strong light (direct sunlight or artificial
lighting).
80(eject) button
94/¢buttons
p(control panel release) button
qSOURCE button
wBAND button
eNumber buttons
rEQ (equalizer) button
tMO (monaural) button
ySSM (Strong-station Sequential Memory)
button
uRPT (repeat) button
iRND (random) button
oM MODE button
;
AUX (auxiliary) input jack
• NOT compatible with digital signals.
Display window
aDisc information indicators—TAG (ID3
Tag), (folder), (track/file)
sMain display
dSource display / Volume level indicator
fEQ (equalizer) indicator
gSound mode (C-EQ: custom equalizer)
indicators—ROCK, CLASSIC, POPS,
HIP HOP, JAZZ, USER
• also works as the time countdown
indicator and level meter during play (see
page 23).
hDisc type indicators—WMA, MP3
jTuner reception indicators—ST (stereo),
MO (monaural)
kRDS indicators—TP, PTY, AF, REG
lPlayback source indicators—
CH: Lights up only when CD-CH is selected
as the playback source.
DISC: Lights up for the built-in CD player.
/Playback mode / item indicators—
RND (random), (disc), (folder),
RPT (repeat)
zLOUD (loudness) indicator
xTr (track) indicator
Parts identification
Display window
EN02-05_G617[EE]f.indd 5EN02-05_G617[EE]f.indd 5 1/11/05 5:26:40 PM1/11/05 5:26:40 PM
6
ENGLISH
Remote controller — RM-RK50
Main elements and features
1(standby/on/attenuator) button
• Turns on and off the power and also
attenuates the sound.
25U (up) / D (down) ∞buttons
• 5U: Changes the FM/AM/DAB bands.
• D ∞: Changes the preset stations (or
services).
• Changes the folder of the MP3/WMA
discs.
• While playing an MP3 disc on an
MP3-compatible CD changer:
– Changes the disc if pressed briefly.
– Changes the folder if pressed and held.
3VOL – / VOL + buttons
• Adjusts the volume level.
4SOUND button
• Selects the sound mode (C-EQ: custom
equalizer).
5SOURCE button
• Selects the source.
62R (reverse) / F (forward) 3buttons
• Searches for stations (or services) if
pressed briefly.
• Searches for ensembles if pressed and
held.
• Fast-forwards or reverses the track if
pressed and held.
• Changes the tracks of the disc.
Installing the lithium coin battery
(CR2025)
• When operating, aim the remote controller
directly at the remote sensor on the
receiver. Make sure there is no obstacle in
between.
Warning:
• Store the battery in a place where children
cannot reach to avoid risk of accident.
• To prevent the battery from over-heating,
cracking, or starting a fire:
– Do not recharge, short, disassemble, or
heat the battery or dispose of it in a fire.
– Do not leave the battery with other
metallic materials.
– Do not poke the battery with tweezers or
similar tools.
– Wrap the battery with tape and insulate
when throwing away or saving it.
Caution:
EN06-11_G617[EE]f.indd 6EN06-11_G617[EE]f.indd 6 1/11/05 5:26:52 PM1/11/05 5:26:52 PM
7
ENGLISH
~
Ÿ
You cannot select some sources if they
are not ready.
!• For FM/AM tuner only
• For DAB tuner only
⁄
Volume level appears.
Volume level indicator
@Adjust the sound as you want.
(See pages 20 and 21.)
To drop the volume in a moment (ATT)
To restore the sound,
press it again.
To turn off the power
Getting started

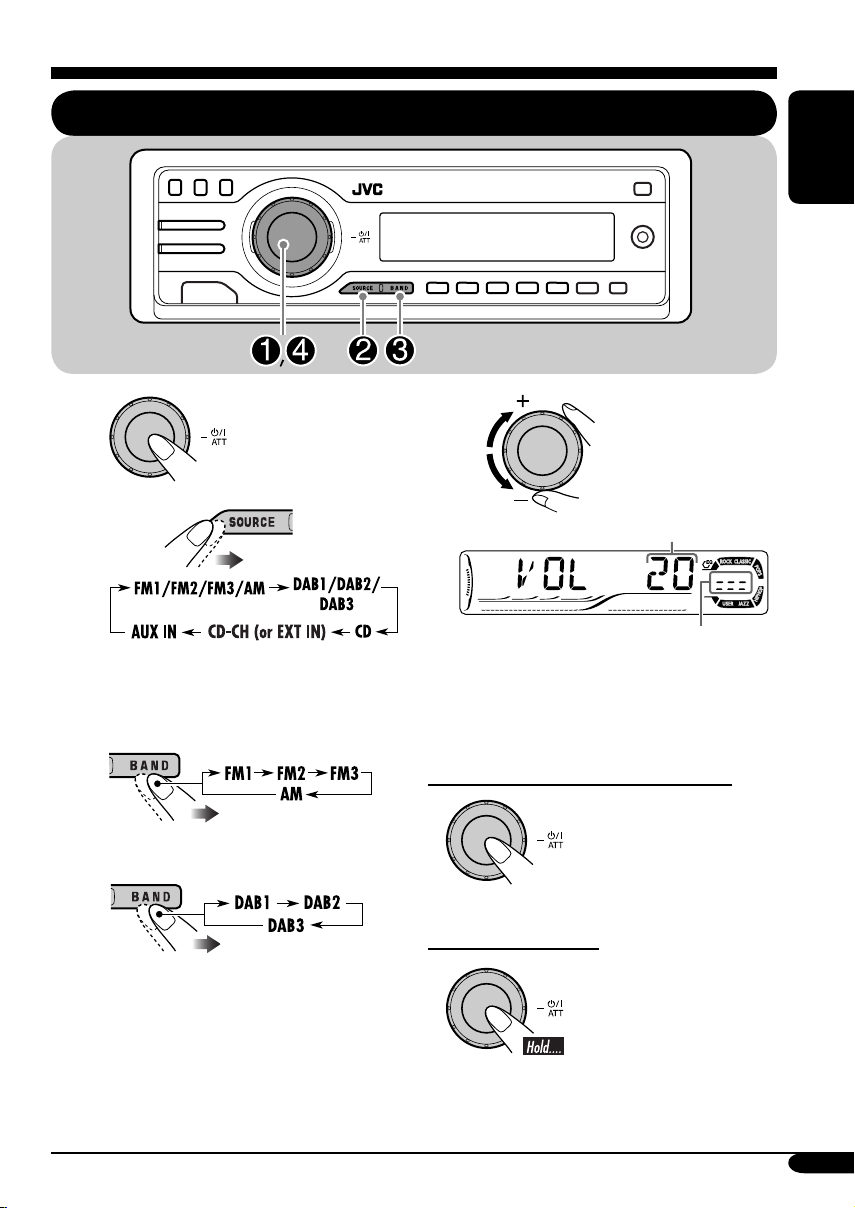

Basic operations
EN06-11_G617[EE]f.indd 7EN06-11_G617[EE]f.indd 7 1/11/05 5:26:53 PM1/11/05 5:26:53 PM
8
ENGLISH
Canceling the display
demonstrations
If no operations are done for about 20 seconds,
display demonstration starts.
[Initial: DEMO ON]—see page 22.
1
2
3
4Finish the procedure.
To activate the display demonstration
In step 3above...
Setting the clock
1
2Set the hour, minute, and clock
system.
1Select “CLOCK H” (hour), then
adjust the hour.
2Select “CLOCK M” (minute),
then adjust the minute.
3Select “24H/12H,” then select
“24H” (hour) or “12H” (hour).
3Finish the procedure.
To check the current clock time when the
power is turned off
EN06-11_G617[EE]f.indd 8EN06-11_G617[EE]f.indd 8 1/11/05 5:26:54 PM1/11/05 5:26:54 PM
9
ENGLISH
To tune in to a station manually
In step !on the left...
1
2Select the desired station frequencies.
When an FM stereo broadcast is hard to
receive
1
2
Lights up when monaural
mode is activated.
Reception improves, but stereo effect will
be lost.
To restore the stereo effect, repeat the same
procedure. “MONO OFF” appears and the MO
indicator goes off.
Radio operations
Listening to the radio
~
Ÿ
Selected band appears.
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
!Start searching for a station.
When a station is received, searching
stops.
To stop searching, press the same
button again.
Note:
FM1 and FM2: 87.5 MHz – 108.0 MHz
FM3: 65.00 MHz – 74.00 MHz
EN06-11_G617[EE]f.indd 9EN06-11_G617[EE]f.indd 9 1/11/05 5:26:54 PM1/11/05 5:26:54 PM
10
ENGLISH
2
3
4
Preset number flashes for a while.
Listening to a preset station
1
2
3Select the preset station (1 – 6) you
want.
To check the current clock time while
listening to an FM (non-RDS) or AM station
• For FM RDS stations, see page 13.

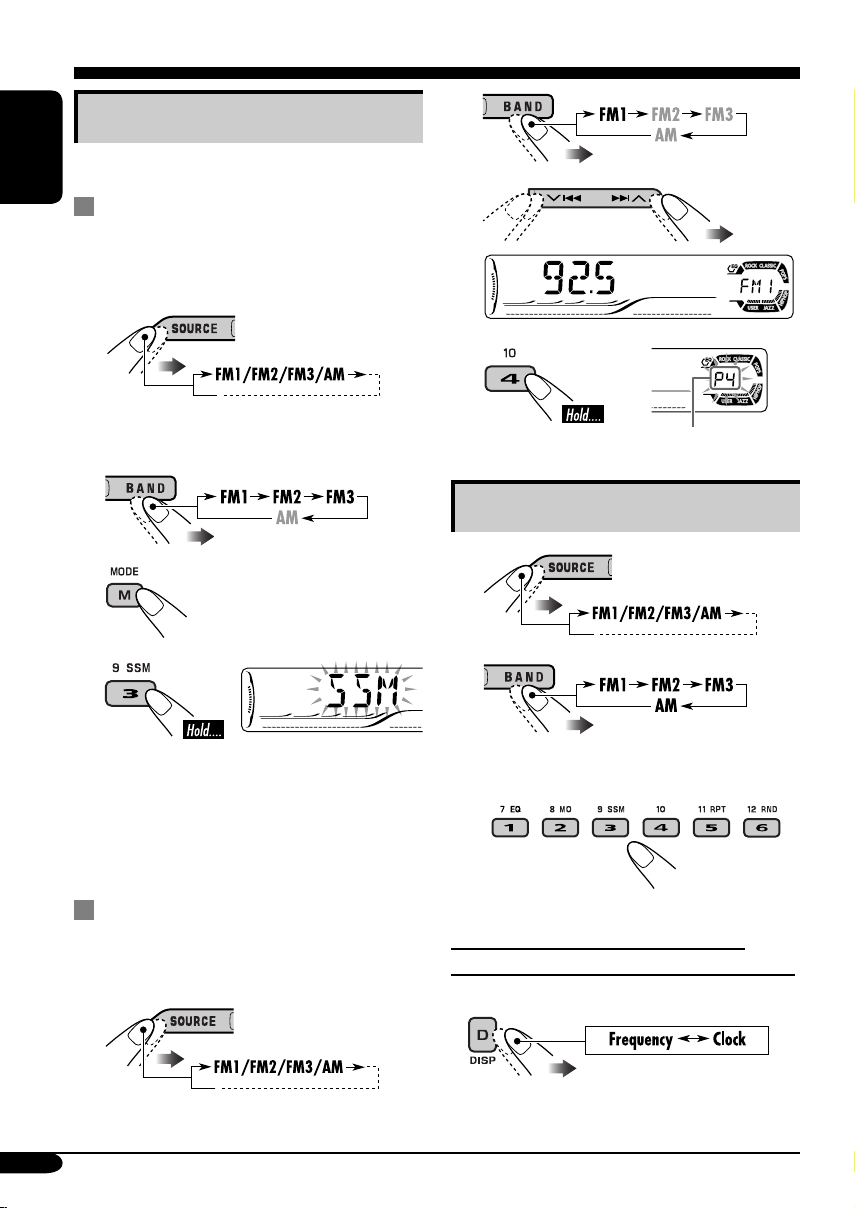

Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting—
SSM (Strong-station Sequential
Memory)
1
2Select the FM band (FM1 – FM3)
you want to store into.
3
4
“SSM” flashes, then disappears when
automatic presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
Manual presetting
Ex.: Storing FM station of 92.5 MHz into the
preset number 4 of the FM1 band.
1
EN06-11_G617[EE]f.indd 10EN06-11_G617[EE]f.indd 10 1/11/05 5:26:55 PM1/11/05 5:26:55 PM
Indice
Lingue:
Altri manuali JVC Ricevitore per auto
JVC
JVC KD-S48 Guida
JVC
JVC KS-FX200 Manuale utente
JVC
JVC EXAD KD-SHX851 Manuale utente
JVC
JVC KD-HDW10 Manuale utente
JVC
JVC KD-AVX1 Guida
JVC
JVC KDG430 - Radio / CD Manuale utente
JVC
JVC KD-BT11 - Radio / CD Manuale utente
JVC
JVC LH910 - Radio / CD Manuale utente
JVC
JVC KD-S32J Manuale utente
JVC
JVC KD-LX333 Manuale utente
JVC
JVC KD-SX8250 Manuale utente
JVC
JVC KD-G311 Manuale utente
JVC
JVC KD-R701 Guida
JVC
JVC KD-G801 Manuale utente
JVC
JVC KW-XR416 Manuale utente
JVC
JVC KD-SX995 Manuale utente
JVC
JVC KD-G511 Guida
JVC
JVC KD-AVX2 - DVD Player With LCD Monitor Manuale utente
JVC
JVC KD-G120 - Radio / CD Player Guida per l'amministratore
JVC
JVC KD-G534 Manuale utente
