ENGLISH

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to

ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

How to reset your unit .................................................................... 3

BASIC OPERATIONS .................................................... 4

RADIO OPERATIONS ................................................... 5

Listening to the radio ..................................................................... 5

Storing stations in memory ............................................................ 6

FM station automatic preset: SSM .............................................. 6

Manual preset .............................................................................. 7

Tuning into a preset station ........................................................... 8

Other convenient tuner functions ................................................. 9

Scanning broadcast stations ....................................................... 9

Selecting FM reception sound ..................................................... 9

TAPE OPERATIONS ................................................... 10

Listening to a tape ........................................................................ 10

Finding the beginning of a tune ................................................... 12

Other convenient tape functions ................................................. 13

Skipping the blank portions on the tape .................................... 13

Playing the current tune repeatedly ........................................... 13

Prohibiting cassette ejection ...................................................... 13

SOUND ADJUSTMENTS ............................................. 14

Adjusting the sound ...................................................................... 14

Turning on/off the loudness function .......................................... 15

Using the Sound Control Memory .............................................. 16

Selecting and storing the sound modes .................................... 16

Recalling the sound modes ....................................................... 17

Storing your own sound adjustments ......................................... 18

OTHER MAIN FUNCTIONS ......................................... 19

Setting the clock ............................................................................ 19

Changing the general settings (PSM) ........................................ 20

Basic Procedure ........................................................................ 20

Cancelling Advanced SCM ........................................................ 21

Selecting the level display ......................................................... 21

Selecting the dimmer mode ....................................................... 22

Selecting the external component to use .................................. 22

Selecting the telephone muting ................................................. 23

Detaching the control panel ......................................................... 24

To be continued on the next page

EN02-04.KS-FX901/801[U]f 20/1/01, 12:30 AM2

ENGLISH

BEFORE USE

*For safety....

• Do not raise the volume level too much, as this

will block outside sounds, making driving

dangerous.

• Stop the car before performing any complicated

operations.

*Temperature inside the car....

If you have parked the car for a long time in hot

or cold weather, wait until the temperature in the

car becomes normal before operating the unit.

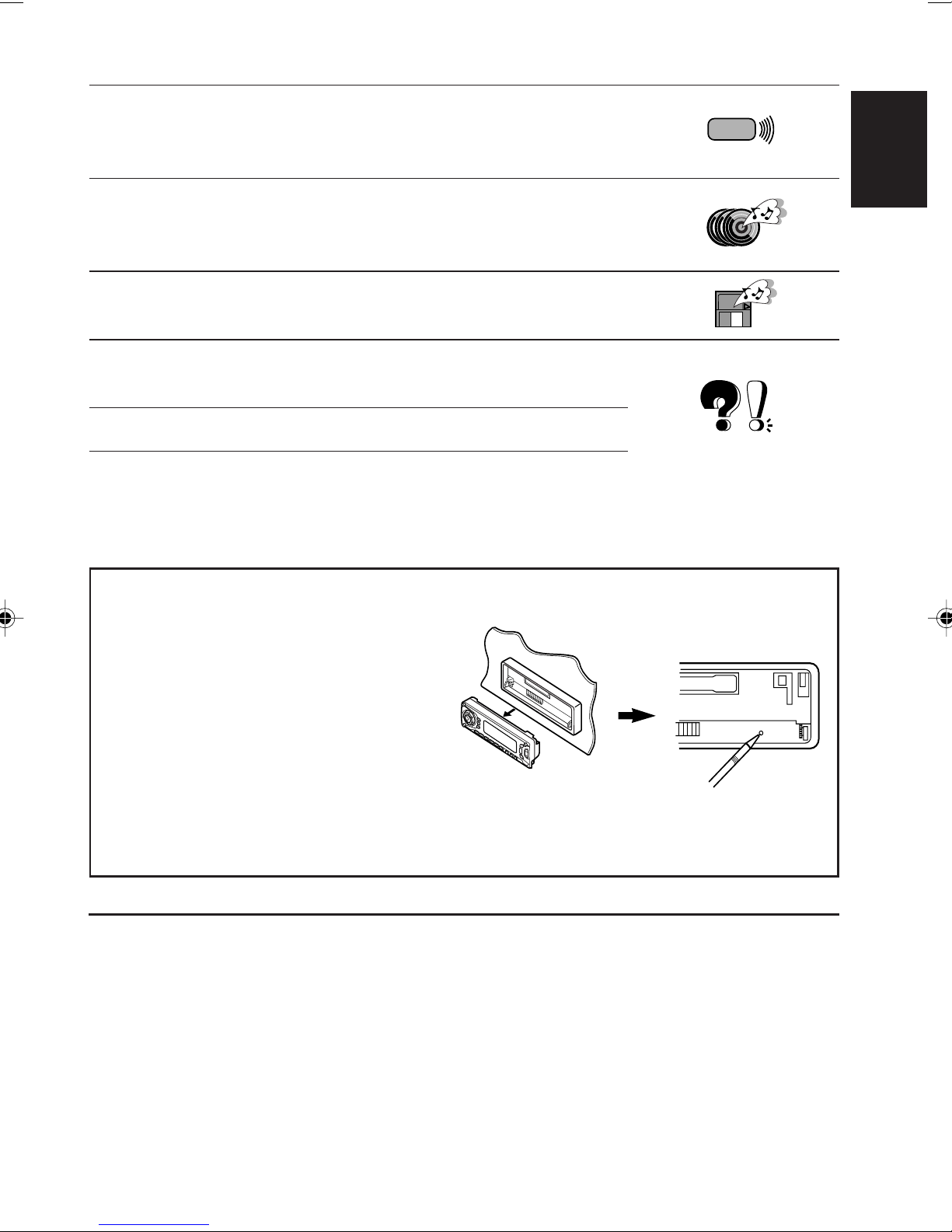

How to reset your unit

After detaching the control panel, press reset

button on the panel holder using a ball-point

pen or similar tool.

This will reset the built-in microcomputer.

NOTE:

Your preset adjustments — such as preset channels

or sound adjustments will also be erased.

REMOTE OPERATIONS .............................................. 25

Installing the batteries .................................................................. 25

Using the remote controller ......................................................... 26

CD CHANGER OPERATIONS ...................................... 27

Playing CDs ................................................................................... 27

Selecting CD playback modes ..................................................... 29

EXTERNAL COMPONENT OPERATIONS ...................... 30

Playing an external component ................................................... 30

MAINTENANCE ........................................................ 31

To extend the lifetime of the unit ................................................. 31

TROUBLESHOOTING ................................................. 32

SPECIFICATIONS ....................................................... 33

EN02-04.KS-FX901/801[U]f 20/1/01, 12:30 AM3

ENGLISH

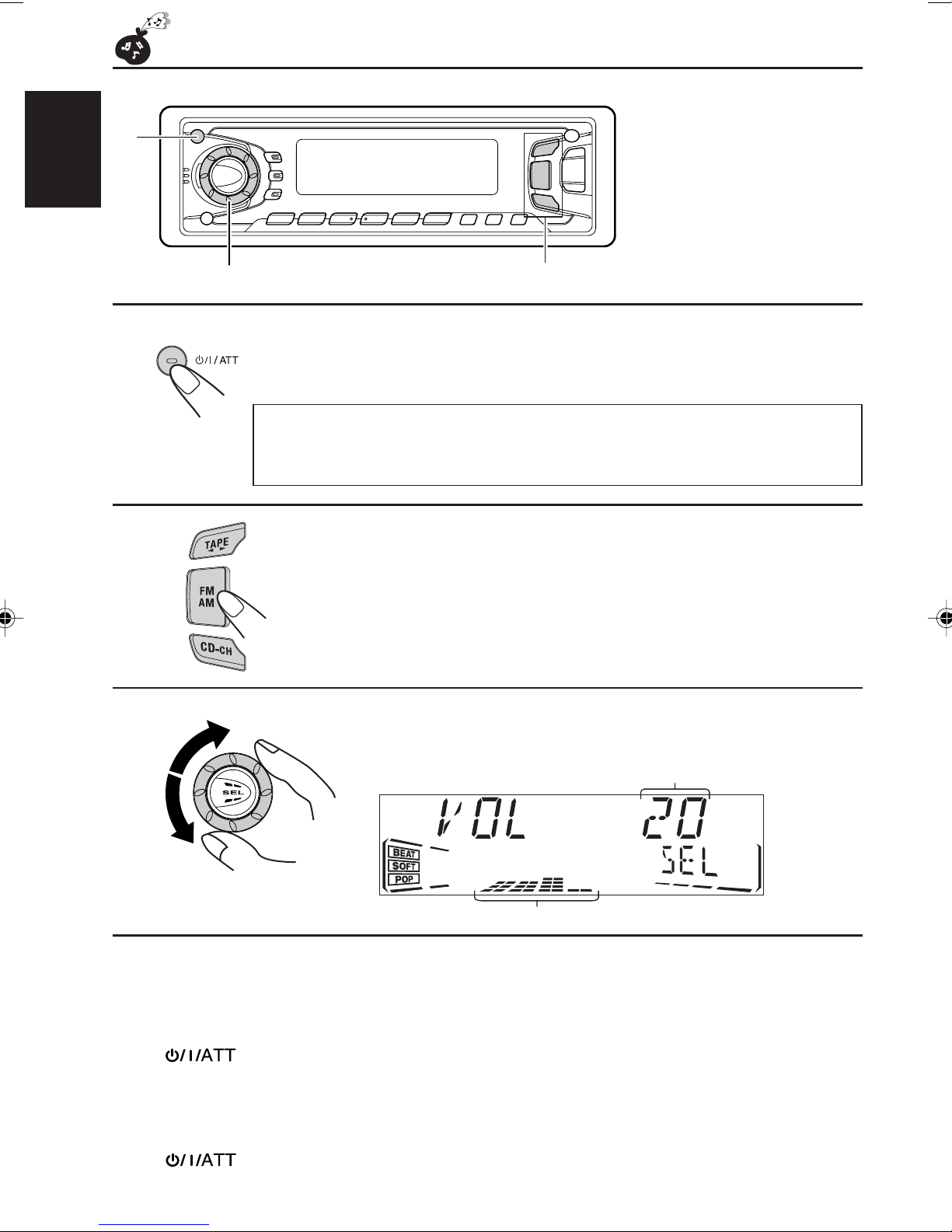

Turn on the power.

“HELLO” appears on the display.

Select the source.

To operate the tuner, see pages 5 – 9.

To operate the cassette deck, see pages 10 – 13.

To operate the CD changer, see pages 27 – 29.

To operate the external component, see page 30.

Adjust the volume.

Adjust the sound as you want (see pages 14 – 18).

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display, and

the volume level will drop in a moment.

To resume the previous volume level, press the button briefly again.

To turn off the power

Press for more than 1 second.

BASIC OPERATIONS

Note:

When you use this unit for the

first time, set the built-in clock

correctly. (See page 19.)

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on.

You do not have to press this button to turn on the power.

Volume level indicator

Volume level appears

EN02-04.KS-FX901/801[U]f 20/1/01, 12:30 AM4

ENGLISH

RADIO OPERATIONS

Listening to the radio

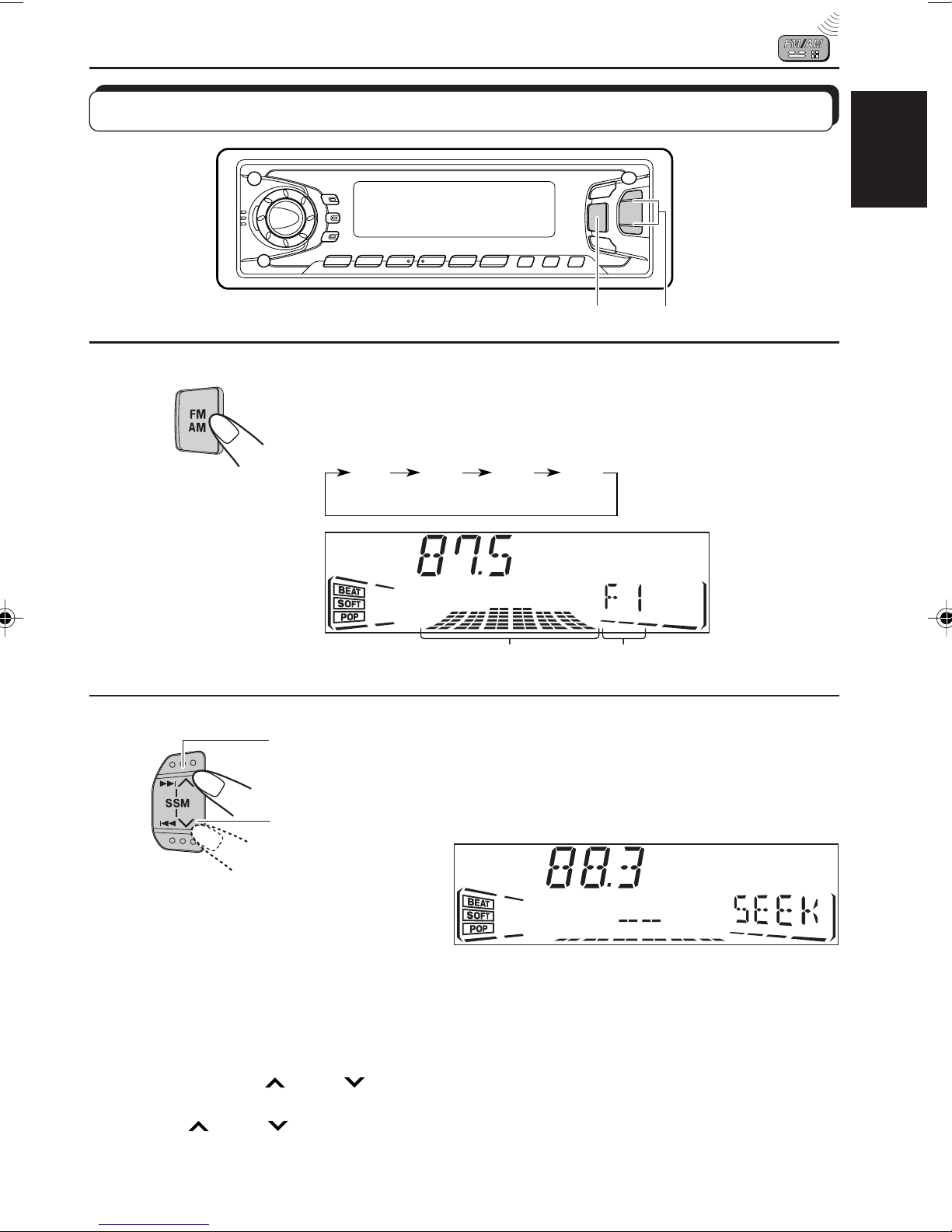

Select the band (FM1, FM2, FM3 or AM).

You can select any one of FM1, FM2, and FM3 to listen to an FM

station.

Start searching a station.

While searching stations, “SEEK” appears

on the display.

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have pressed

for searching.

To tune in a particular frequency without searching:

1Press FM/AM repeatedly to select the band (FM or AM).

2Press and hold ¢or 4until “MANU (Manual)” starts flashing on the display.

Now you can manually change the frequency while “MANU” is flashing.

3Press ¢or 4repeatedly until the frequency you want is reached.

• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and

in 9 kHz intervals for AM) until you release the button.

To search stations

of higher

frequencies.

To search

stations of lower

frequencies.

Audio (see page 21) or

volume level indicator

Selected band (or clock time:

see page 19) appears

(FM1)

(FM2)

(FM3)

EN05-09.KS-FX901/801[U]1 24/3/05, 10:17 PM5

ENGLISH

Select the FM band number (FM1, FM2 or

FM3) you want to store FM stations into.

Press and hold both buttons for more than

2 seconds.

Local FM stations with the strongest signals are searched and stored automatically in the

band number you have selected (FM1, FM2 or FM3). These stations are preset in the number

buttons —No. 1 (lowest frequency) to No. 6 (highest frequency).

When automatic preset is over, the station stored in number button 1 will be automatically

tuned in.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

•Automatic preset of FM stations: SSM (Strong-station Sequential Memory)

•Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2 and FM3).

“SSM”appears, then disappears when

automatic preset is over.

(FM1)

(FM2)

(FM3)

EN05-09.KS-FX901/801[U]1 24/3/05, 10:17 PM6

ENGLISH

Manual preset

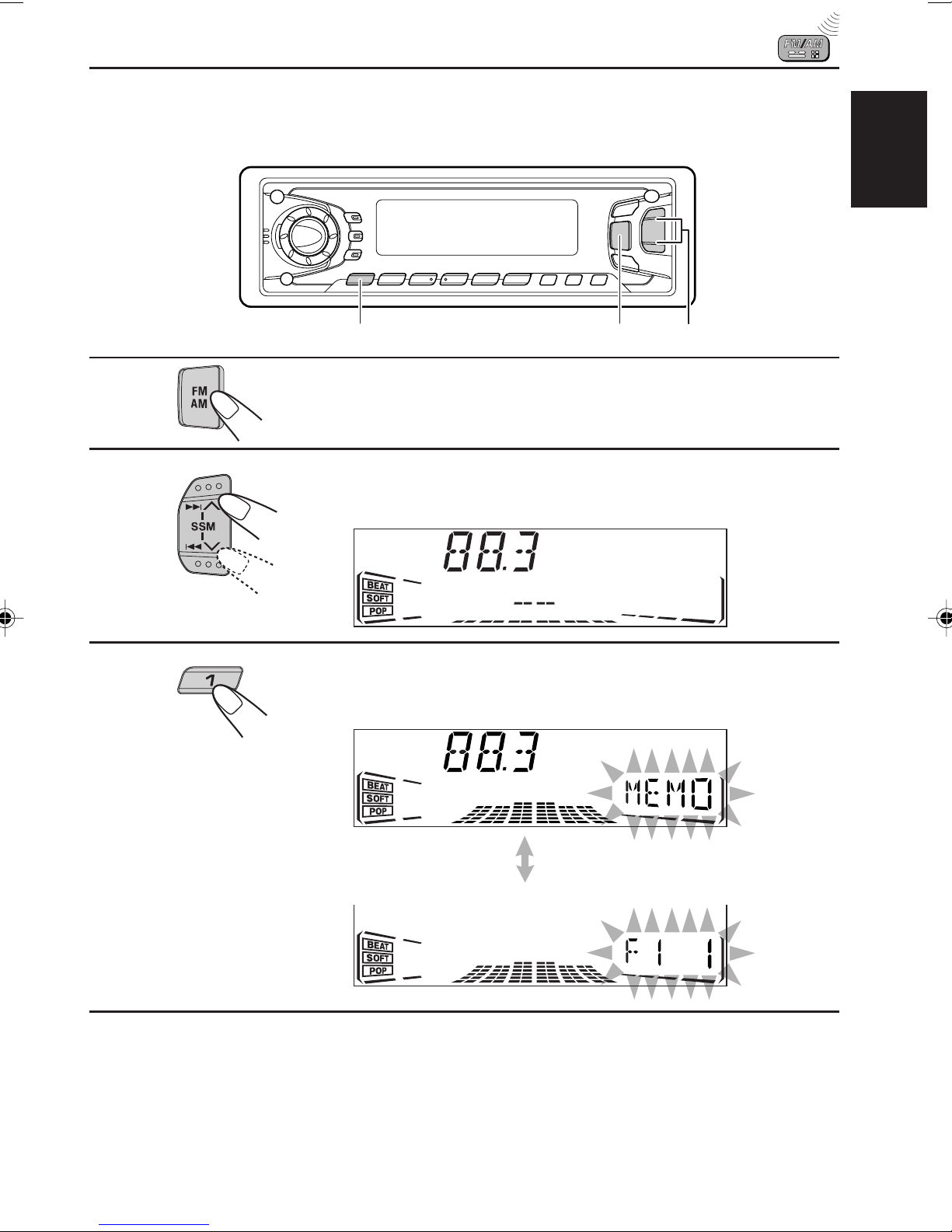

You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually.

EXAMPLE: Storing an FM station of 88.3 MHz into the preset channel number 1 of the FM1 band

Select the FM1 band.

Tune into a station of 88.3 MHz.

See page 5 to tune into a station.

Press and hold the number button (in this

example, 1) for more than 2 seconds.

Repeat the above procedure to store other stations into other

preset channel numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset channel number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example,

during battery replacement). If this occurs, preset the stations again.

132

Selected band, preset number and

“MEMO”flash alternately for a while.

EN05-09.KS-FX901/801[U]1 24/3/05, 10:17 PM7

ENGLISH

You can easily tune into a preset station.

Remember that you must store stations first. If you have not stored them yet, see pages 6

and 7.

Select the band (FM1, FM2, FM3 or AM)

you want.

Select the number (1 –6) for the preset station

you want.

(FM1)

(FM2)

(FM3)

Tuning into a preset station

EN05-09.KS-FX901/801[U]1 24/3/05, 10:17 PM8

ENGLISH

Scanning broadcast stations

When you press SCAN while listening to the radio, station scanning starts. Each time a

broadcast is tuned in, scanning stops for about 5 seconds (tuned frequency flashes on the

display), and you can check what program is now being broadcasted.

If you want to listen to that program, press the same button again to stop scanning.

Selecting FM reception sound

When an FM stereo broadcast is hard to receive:

Press MO RND (Monaural/Random) while listening to an FM stereo broadcast. The MONO

indicator lights up on the display. The sound you hear becomes monaural but reception will

be improved.

To restore the stereo effect, press the same button again.

Other convenient tuner functions

SCAN MO RND

Lights up when receiving an FM broadcast in stereo.

EN05-09.KS-FX901/801[U]1 24/3/05, 10:17 PM9

ENGLISH

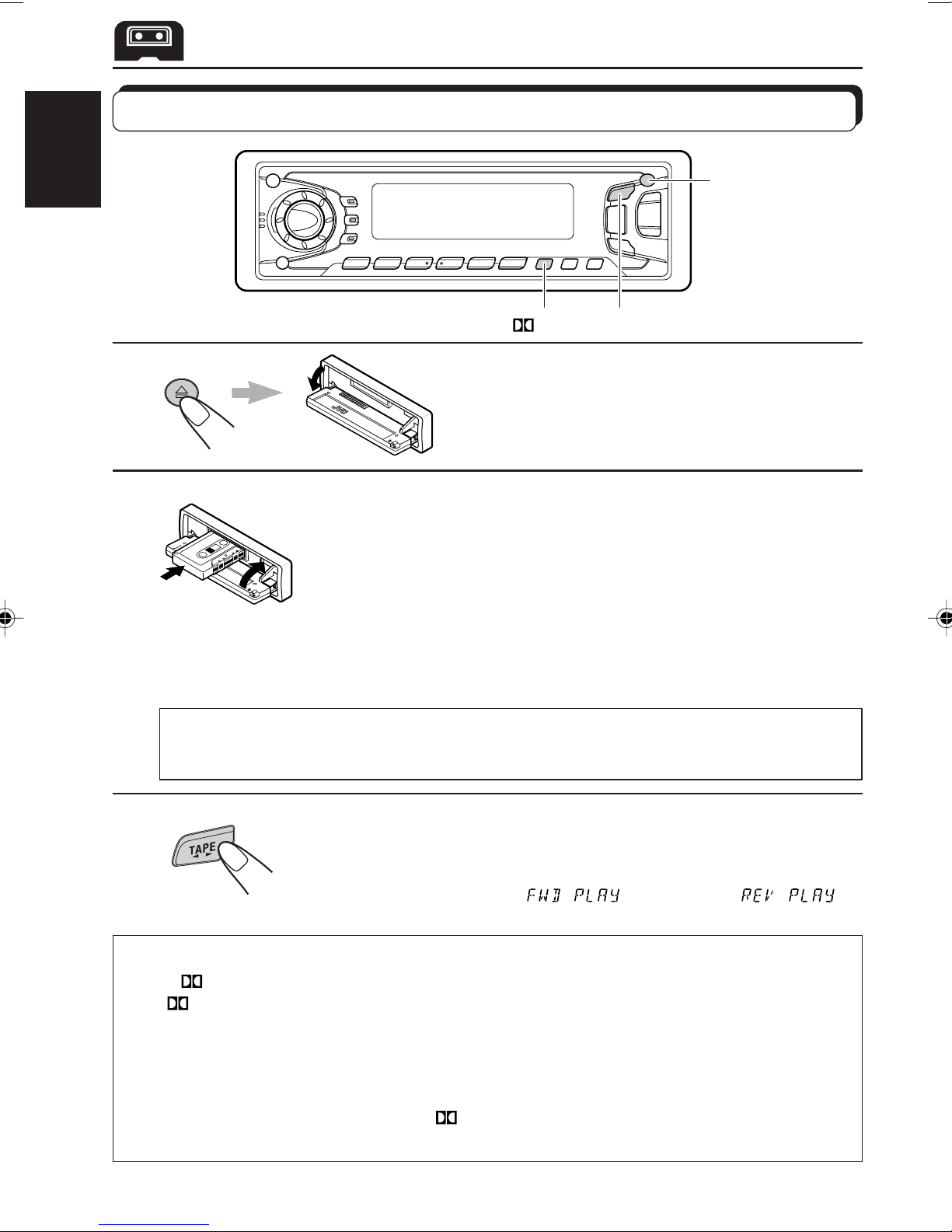

Open the control panel.

1. Insert a cassette into the cassette

compartment.

The unit turns on and tape play starts automatically.

2. Close the control panel by hand.

• When one side of the tape reaches its end during play, the other side of the tape

automatically starts playing. (Auto Reverse)

Select the tape direction.

Each time you press the button, the tape direction changes

alternately – forward ( ) and reverse ( ).

TAPE OPERATIONS

Listening to a tape

Note on One-Touch Operation:

When a cassette is already in the cassette compartment, pressing TAPE 23 turns on the

unit and starts tape play automatically.

To play back tapes recorded with the Dolby B NR

Press RPT (Dolby NR/Repeat) for more than 2 seconds to set the Dolby B NR* system.

The indicator lights up, and “DOLBY B” appears on the display for several seconds.

To cancel the Dolby B NR, press the same button again.

* Dolby noise reduction manufactured under license from Dolby Laboratories Licensing

Corporation.

“DOLBY” and the double-D symbol are trademarks of Dolby Laboratories Licensing

Corporation.

RPT

EN10-13.KS-FX901/801[U]2 24/3/05, 10:19 PM10

Questo manuale è adatto per i seguenti modelli

Indice

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente

Medion

Medion Car Audio Manuale utente
