CD/CASSETTE RECEIVER KW-XC406/KW-XC405
KW-XC406/KW-XC405
For canceling the display demonstration, see page 8.
For installation and connections, refer to the separate manual.
INSTRUCTIONS
GET0327-001A
[U]
Cover_KW-XC406_5_001A_f.indd 2Cover_KW-XC406_5_001A_f.indd 2 8/3/05 10:37:10 AM8/3/05 10:37:10 AM
2
ENGLISH
Warning:
If you need to operate the unit while driving,
be sure to look ahead carefully or you may
be involved in a traffic accident.
How to reset your unit
This will reset the microcomputer. Your
preset adjustments will also be erased.
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
Caution on volume setting:
Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
How to forcibly eject a disc
If a disc cannot be recognized or cannot be
ejected, eject the disc as follows.
• If this does not work, reset your unit.
• Be careful not to drop the disc when it
ejects.
EN02-05_KW-XC406_405[U]f.indd 2EN02-05_KW-XC406_405[U]f.indd 2 7/26/05 9:27:21 AM7/26/05 9:27:21 AM
3
ENGLISH
How to reset your unit ........................... 2
How to forcibly eject a disc................... 2
How to read this manual........................ 4
How to use the MODE button ............... 4
Control panel —
KW-XC406/KW-XC405............... 5
Parts identification................................. 5
Remote controller — RM-RK50
... 6
Main elements and features ................... 6
Getting started....................... 7
Basic operations.................................. 7
Canceling the display demonstrations ... 8
Setting the clock .................................... 8
Radio operations ................... 9
Listening to the radio........................... 9
Storing stations in memory.................... 9
Listening to a preset station ................... 10
Scanning broadcast stations................... 10
Assigning titles to the stations ............... 11
Disc operations ...................... 12
Playing a disc in the unit ..................... 12
Playing discs in the CD changer ........... 13
Other main functions ............................. 15
Changing the display information ......... 15
Selecting the playback modes................ 16
Tape operations ..................... 17
Playing a tape..................................... 17
Finding the beginning of a tune............. 17
Other convenient tape functions ............ 17
Sound adjustments ................ 18
Selecting preset sound modes
(EQ: equalizer)................................. 18
Adjusting the sound ............................... 18
Storing your own sound adjustments..... 19
General settings — PSM .........20
Basic procedure ..................................... 20
External component operations
... 22
Playing an external component ............ 22
Maintenance .......................... 23
Handling discs ....................................... 23
Handling cassettes ................................. 23
More about this unit............... 24
Troubleshooting ..................... 27
Specifications ......................... 29
Temperature inside the car....
If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating the
unit.
Contents
For safety....
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operations.
EN02-05_KW-XC406_405[U]f.indd 3EN02-05_KW-XC406_405[U]f.indd 3 7/26/05 9:27:23 AM7/26/05 9:27:23 AM
4
ENGLISH
How to use the MODE button
Press MODE repeatedly to select the different
functions available during play.
Time countdown indicator
Ex.: When “SSM” is selected
While listening to the radio:
• You cannot select “SSM” or “SCAN”
if you are listening to the station stored
in the EX (extra) button, see page 10 for
details.
While listening to a disc:
While listening to a tape:
While adjusting the sound mode:
• Pressing MODE allows you to store the
adjusted sound mode into memory. (See
page 19 for details.)
* Depending on the level meter setting. (See
page 20 for details.)
How to read this manual
The following methods are used to make the
explanations simple and easy-to-understand:
• Some related tips and notes are explained in
“More about this unit” (see pages 24 – 26).
• Button operations are mainly explained with
the illustrations as follows:
Press briefly.
Press repeatedly.
Press either one.
Press and hold until
your desired response
begins.
Press and hold both
buttons at the same
time.
The following marks are used to indicate...
: Built-in CD player operations.
: External CD changer operations.
SSM SCAN MONO
Canceled
(Station frequency)*
DOLBY B B.SKIP REPEAT
REPEAT RANDOM
INTRO
Canceled
(Track no. and
Elapsed playing time)*
Canceled
(Playback direction)*
–10 +10
EN02-05_KW-XC406_405[U]f.indd 4EN02-05_KW-XC406_405[U]f.indd 4 7/26/05 9:27:24 AM7/26/05 9:27:24 AM
5
ENGLISH
Control panel — KW-XC406/KW-XC405
1Loading slot
2(standby/on attenuator) button
3DISP (display) button
4MODE button
5Cassette compartment
6Remote sensor
• DO NOT expose the remote sensor to
strong light (direct sunlight or artificial
lighting).
7AUX (auxiliary) input jack
8Number buttons
9CD 0(CD eject) button
pDisplay window
q5(up) / ∞(down) buttons
PROG (program) 5/ ∞buttons
w4/ ¢buttons
eSEL (select) button
rT 0(tape eject) button
tControl dial
yReset button
uSource buttons—CD/CD-CH, TAPE/AUX,
FM/AM, EX (extra)
Display window
iTuner reception indicators—ST (stereo),
MO (monaural)
oDisc information indicators—
(track/file), TAG (ID3 Tag), (folder)
;Text name indicators—DISC, STATION
aMain display, level meter
sClock indicator
dEQ (equalizer) indicator
fLOUD (loudness) indicator
g(Dolby B NR) indicator
hPlayback disc indicators—MP3, WMA
jB.SKIP (blank skip) indicator
kSource display
lLevel meter, volume meter, time countdown
indicator
/Playback mode indicators—DISC,
(folder), RND (random),
RPT (repeat), INT (intro), (track/file),
MAG (magazine)
zLoaded source indicators— (disc),
(tape)
Parts identification
Display window
EN02-05_KW-XC406_405[U]f.indd 5EN02-05_KW-XC406_405[U]f.indd 5 8/3/05 10:38:14 AM8/3/05 10:38:14 AM
6
ENGLISH
Remote controller — RM-RK50
Main elements and features
1(standby/on/attenuator) button
•
Turns the power on if pressed briefly or
attenuates the sound when the power is on.
• Turns the power off if pressed and held.
25U (up) / D (down) ∞buttons
•
Changes the FM/AM bands with 5U only.
•
Changes the preset stations with D ∞only.
• Changes the folder of the MP3/WMA
discs.
•
Changes the tape directions with 5U only.
• While playing an MP3 disc on an
MP3-compatible CD changer:
– Changes the disc if pressed briefly.
– Changes the folder if pressed and held.
3VOL – / VOL + buttons
• Adjusts the volume level.
4SOUND button
• Selects the sound mode (EQ: equalizer).
5SOURCE button
• Selects the source.
62R (reverse) / F (forward) 3buttons
• Searches for stations if pressed briefly.
• Fast-forwards or reverses the track if
pressed and held.
• Changes the tracks of the disc if pressed
briefly.
• Fast-forwards or reverses the tape if
pressed and held.*
• Finds the beginning of a tune (MMS)
while listening to a tape if pressed
briefly.*
* To release these operations, press 5U.
Playback resumes.
Installing the lithium coin battery
(CR2025)
• When operating, aim the remote controller
directly at the remote sensor on the unit.
Make sure there is no obstacle in between.
Warning:
• Do not install any battery other than
CR2025 or its equivalent; otherwise, it
may explode.
• Store the battery in a place where children
cannot reach to avoid risk of accident.
• To prevent the battery from over-heating,
cracking, or starting a fire:
– Do not recharge, short, disassemble,
heat the battery, or dispose of it in a fire.
– Do not leave the battery with other
metallic materials.
– Do not poke the battery with tweezers or
similar tools.
– Wrap the battery with tape and insulate
when throwing away or saving it.
Caution:
EN06-13_KW-XC406_405[U]f.indd 6EN06-13_KW-XC406_405[U]f.indd 6 7/28/05 12:33:26 PM7/28/05 12:33:26 PM
7
ENGLISH

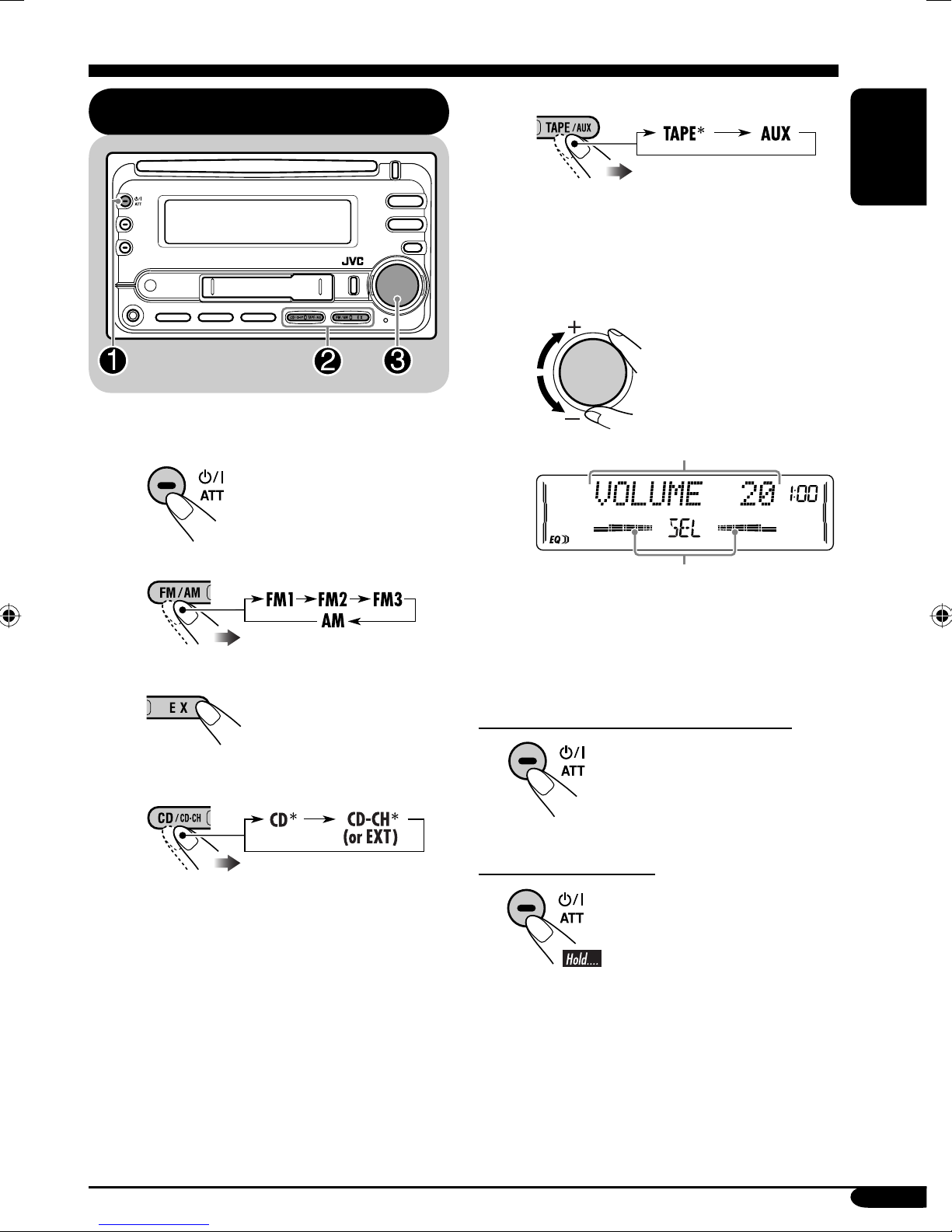

~Turn on the power.
ŸFor FM/AM tuner
For your favorite station
• Stored your favorite
station, see page 10
for details.
For CD/CD-CH
Select “CD-CH” when using an Apple
iPod®or a JVC D. player (see page
22).
iPod is a trademark of Apple
Computer, Inc., registered in the U.S.
and other countries.
For TAPE/AUX
* You cannot select these sources if they
are not ready.
!Adjust the volume.
Volume level appears.
Volume level indicator
⁄Adjust the sound as you want.
(See pages 18 and 19.)
To drop the volume in a moment (ATT)
To restore the sound, press
it again.
To turn off the power
Getting started
Basic operations
EN06-13_KW-XC406_405[U]f.indd 7EN06-13_KW-XC406_405[U]f.indd 7 7/26/05 9:27:47 AM7/26/05 9:27:47 AM
8
ENGLISH
Canceling the display
demonstrations
If no operations are done for about 20 seconds,
display demonstration starts.
[Initial: DEMO ON]—see page 20.
1
2
3
4Finish the procedure.
To activate the display demonstration
In step 3above...
Setting the clock
1
2Set the hour and minute.
1Select “CLOCK HOUR,” then
adjust the hour.
2Select “CLOCK MIN,” (minute)
then adjust the minute.
3Finish the procedure.
EN06-13_KW-XC406_405[U]f.indd 8EN06-13_KW-XC406_405[U]f.indd 8 7/26/05 9:27:48 AM7/26/05 9:27:48 AM
9
ENGLISH
2Select the desired station frequencies.
When an FM stereo broadcast is hard to
receive
1
2
Lights up when monaural mode is activated.
Reception improves, but stereo effect will
be lost.
To restore the stereo effect, repeat the same
procedure. Then, in step 2, select “MONO
OFF.”
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting—
SSM (Strong-station Sequential
Memory)
1Select the FM band (FM1 – FM3)
you want to store into.
Radio operations
Listening to the radio
~
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
Selected band appears.
ŸStart searching for a station.
When a station is received, searching
stops.
To stop searching, press the same
button again.
To tune in to a station manually
In step Ÿabove...
1
To be continued....
EN06-13_KW-XC406_405[U]f.indd 9EN06-13_KW-XC406_405[U]f.indd 9 8/9/05 12:19:26 PM8/9/05 12:19:26 PM
10
ENGLISH
Listening to a preset station
1
2Select the preset station (1 – 6) you
want.
or
To tune in to your favorite station (EX)
If you press the button
again, the previous source
will be played back again.
Scanning broadcast stations
1
2 Start scanning.
Each time a broadcast is tuned in, scanning
stops for about 5 seconds (tuned frequency
appears on the display), and you can check
what program is now being broadcast.
3 Start listening to the program.
2
3
“SSM” flashes, then disappears when
automatic presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
Manual presetting
Ex.: Storing FM station of 92.5 MHz into the
preset number 4 of the FM1 band.
1
2
3
Preset number flashes for a while.
Storing your favorite station into the
EX (extra) button
Ex.: Storing your favorite FM station of
92.5 MHz into the EX button
While listening to an FM station, tune in
to your favorite station, then....
EN06-13_KW-XC406_405[U]f.indd 10EN06-13_KW-XC406_405[U]f.indd 10 7/29/05 7:50:03 PM7/29/05 7:50:03 PM
Questo manuale è adatto per i seguenti modelli
4
Indice
Altri manuali JVC Ricevitore per auto
JVC
JVC KD-LX111R Manuale utente
JVC
JVC KD-R530 Manuale utente
JVC
JVC KD-PDR41 Manuale utente
JVC
JVC CH-X400 Manuale utente
JVC
JVC G300 - KD Radio / CD Manuale utente
JVC
JVC KW-R600BT Manuale utente
JVC
JVC KD-S640 Guida
JVC
JVC KD-LX100 Manuale utente
JVC
JVC KD-G815 Manuale utente
JVC
JVC KD-G115 Manuale utente
JVC
JVC KD-R311 Guida
JVC
JVC KD-APD58 - Radio / CD Guida
JVC
JVC KD-X361BT Manuale utente
JVC
JVC KS-FX950R Manuale utente
JVC
JVC KS-FX470 Manuale utente
JVC
JVC GET0195-001A Manuale utente
JVC
JVC KD-DV5306 Manuale utente
JVC
JVC KS-FX942R Manuale utente
JVC
JVC KW-XG700J Manuale utente
JVC
JVC KW-V50BT Manuale utente
