Check Accessories
STANDBY/ON
RAM/RW
CH
+
CH
-
PUSH-OPEN
RF cable
Audio/Video cable
“AA“ battery x 2
(For remote control)
Remote control
LPT1013-004A
0305MNH-SW-SC

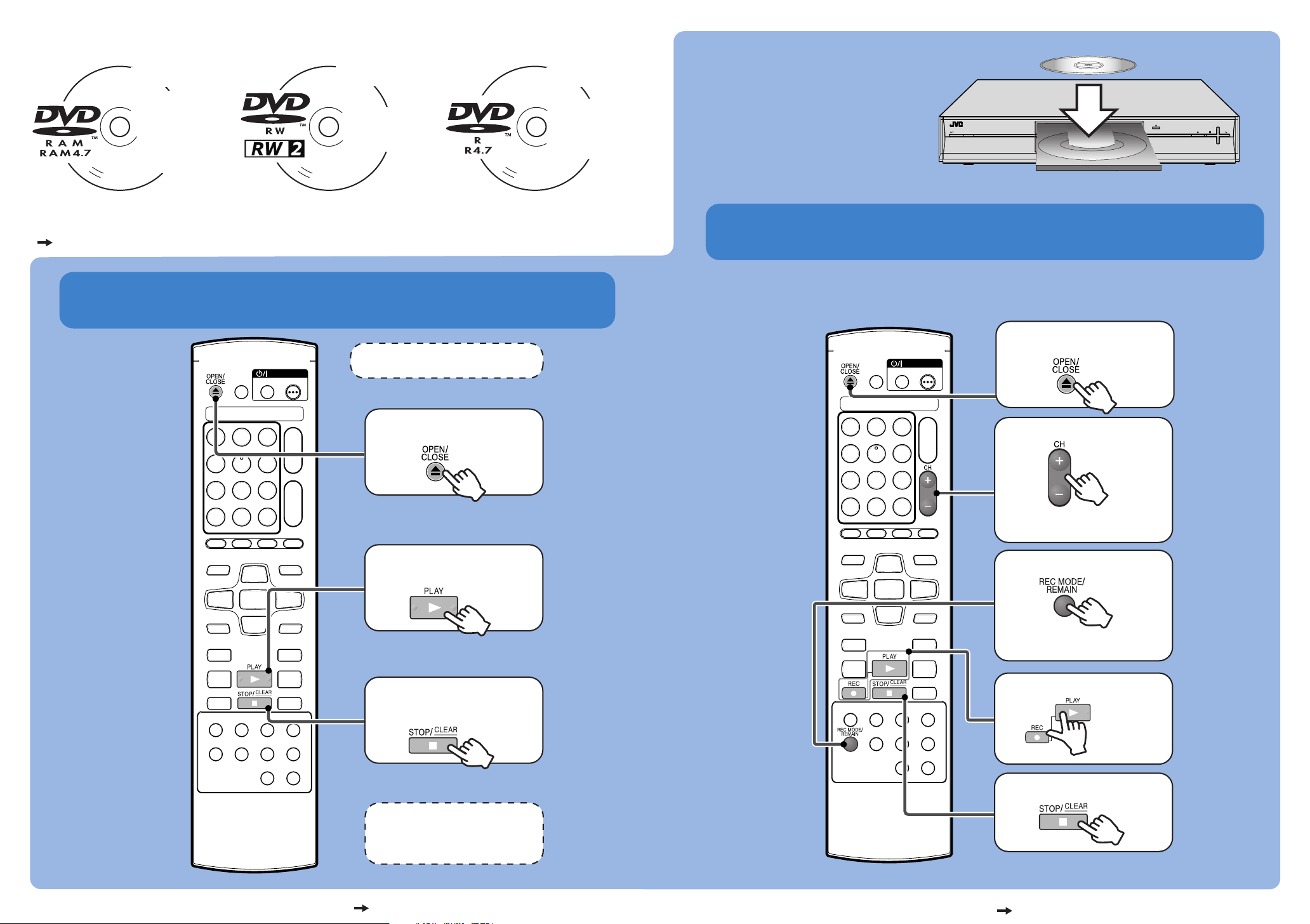

BASIC RECORDING
BASIC PLAYBACK
VHS/DV D
REC
VHS DVDDUBBING
CH
DV IN
STANDBY/ON
RAM/RW
CH
+
CH
-
PUSH-OPEN
For more information, see the instruction manual. ( pg. 34, "Basic Recording")
NOTE:
DVD disc must be finalized to play
on most DVD players.
(pg.64,"Finalize A Disc")
NOTE:
When you use a DVD-RW disc, format it in "VR MODE" or "VIDEO MODE".
( pg. 63, "Format A Disc")
Select TV input/channel first.
Editing or Live
Memory Playback
is possible.
Can be rewritten
100,000 times.
Can be rewritten
1,000 times.
Playable on
other DVD players
or PCs
(after finalized).
Recordable Discs
DVD-RAM DVD-RW DVD-R
For more information, see the instruction manual. ( pg. 22, "Basic Playback")
1Insert a disc
Inserting Disc
Start Playback
2
Stop Playback
3
1Insert a disc
2
Select Channel/
Input
For cable box or DBS receiver users,
set the channel to the external input
("L-1" or "F-1").
Select Mode
3
For the recording mode, see page 34
on the instruction manual.
Stop Recording
5
While holding
REC, press PLAY
Start Recording
4
Connection Without Cable Box Or DBS Receiver
AC outlet
TV
Antenna or cable
Connect
the aerial.
With antenna or cable (no cable box), wait for clock and
channels to be set automatically.( pg. 17, “Plug & Play Set”)
Connect
your TV.
For more information, see the instruction manual. ( pg. 16, "Basic Connection")
IN
Video
Audio (L)
Audio (R)
Video
Aucio (L)
Audio (R)
OUT
ANTENNA
RF
OUTPUT
INPUT
Plug to the
AC outlet.
Audio/Video cable
(supplied)
RF cable
(supplied)
RF cable
(not
supplied)
AC outlet
Connection With Cable Box Or DBS Receiver
(When your TV has only audio/video connectors)
With antenna or cable, wait for clock and channels to be
set automatically.( pg. 17, “Plug & Play Set”)
AC outlet
Antenna
or cable
Connect
the aerial.
Cable box or
DBS receiver
INPUT
Video
Audio (L)
Audio (R)
OUTPUT
Video
Audio (L)
Audio (R)
RF IN
ANTENNA OUT
ANTENNA IN
OUTPUT
RF IN TV
RF OUT
INPUT
Video
Audio (L)
Audio (R)
Video
Audio (L)
Audio (R)
Audio/Video
cable
(not supplied)
Audio/Video
cable
(supplied)
RF cable
(not supplied)
RF cable
(not
supplied)
RF cable
(supplied)
Connection With Cable Box Or DBS Receiver
(When your TV has component video connectors)
AC outlet
NOTE: When watching the images with this connection, set to the progressive scan mode.
( pg. 60, "Scan Mode Set")
With antenna or cable, wait for clock and channels to be
set automatically.( pg. 17, “Plug & Play Set”)
AC outlet
Antenna
or cable
Connect
the aerial.
Cable box or
DBS receiver
INPUT
Video
Audio (L)
Audio (R)
OUTPUT
Video
Audio (L)
Audio (R)
RF IN
ANTENNA OUT
ANTENNA IN
OUTPUT
RF IN TV
RF OUT
INPUT
Video
Audio (L)
Audio (R)
Video
Audio (L)
Audio (R)
Component video cable
(not supplied)
COMPONENT
Y
PB
PR
COMPONENT
VIDEO INPUT
Y
PB
PR
OUTPUT
Audio/Video
cable
(supplied) Audio/Video
cable
(not supplied)
RF cable
(not supplied)
RF cable
(not
supplied)
RF cable
(supplied)
